Acura MDX Hybrid (2017 year). Manual - part 16

uu

When Driving

u

Shifting

248

Driving

■

(

P (park) button

The gear position changes to

(

P when you

press the

(

P button while the vehicle is

parked with the power mode in ON.
The indicators on the sides of the

(

P button

come on.

1

Shifting

When shifting gears in extremely low temperatures
(−22°F/−30°C), there may be a short delay before the
shift is indicated in the display. Always confirm you
are in the correct gear before driving.

(

P Button

17 ACURA MDX E-AWD-31TRX6000.book  248 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

Continued

249

uu

When Driving

u

Shifting

Driving

■

Shift Operation

1

Shift Operation

NOTICE

When you change

(

D to

(

R and vice versa, come to

a complete stop and keep the brake pedal depressed.
Operating the shift button before the vehicle has
come to a complete standstill can damage the
transmission.

Use the gear position indicator and the shift button
indicator to check the gear position before selecting
a shift button.

If the indicator of the currently selected gear position,
or all the gear position indicators are blinking
simultaneously, there is a problem with the
transmission.
Avoid sudden acceleration and have the transmission
checked by a dealer as soon as possible.

The fuel supply may be cut off if you drive at engine
speeds in or over the tachometer’s red zone (engine
speed limit). If this happens, you may experience a
slight jolt.

When the engine speed is increased while the
transmission is in

(

N,

(

P or

(

R, the fuel supply may

be cut off even without the engine speed entering
the tachometer’s red zone.

The beeper sounds once when you change to

(

R.

Gear Position Indicator

Tachometer’s red zone

Press the

(

P button.

Pull back the

(

R button.

Press the

(

N button.

Press the

 button.

D/S

Shift Button
Indicator

M (sequential mode)
Indicator

Sequential Mode Gear
Selection Indicator

Press the

 button twice.

If the gear position is in

(

D,

press the

 button again.

D/S

D/S

17 ACURA MDX E-AWD-31TRX6000.book  249 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

uu

When Driving

u

Shifting

250

Driving

In freezing or sub-freezing conditions, the gear selection response may be slow.
Always depress the brake pedal before changing the gear position to

(

P, and

confirm that

(

P is shown on the gear position indicator before releasing the brake.

■

When opening the driver’s door

If you open the driver’s door under the following conditions, the gear position
automatically changes to

(

P.

• The vehicle is in stationary with the power mode in ON, or moving at 1 mph (2

km/h) or slower.

• The transmission is in other than

(

P.

• You have unfastened the driver side seat belt.

u

If you manually change the gear position from

(

P with the brake pedal

depressed, the gear position will automatically return to

(

P once you release

the brake pedal.

■

When turning off the power mode

If you turn the power system off while the vehicle is stationary, and the transmission
is in other than

(

P, the gear position automatically changes to

(

P.

1

When opening the driver’s door

While the system is designed to automatically change
the gear position to

(

P under the described

conditions, in the interest of safety you should always
select

(

P before opening the driver’s door.

Make sure to park the vehicle in a safe place.

2 When Stopped P. 316

If you want to drive the vehicle after the gear position
has automatically changed to

(

P under the described

conditions, close the door, fasten the seat belt,
depress the brake pedal, then change the gear
position.

If you leave the vehicle, turn off the power system
and lock the doors.

17 ACURA MDX E-AWD-31TRX6000.book  250 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

Continued

251

uu

When Driving

u

Shifting

Driving

■

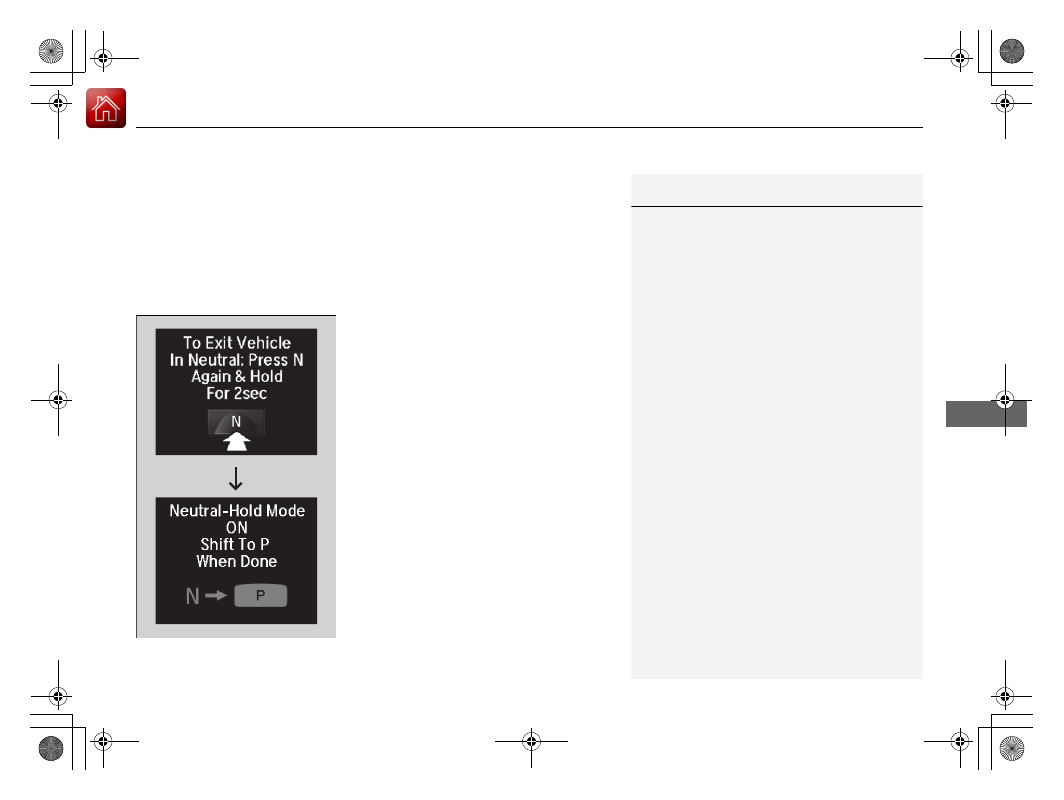

If you want to keep the transmission in

(

N position [car wash mode]

With the READY indicator on:
1. Press and hold the brake pedal.
2. Select

(

N, then release the button to display

(

N (Neutral) hold mode on the MID.

3. Press and hold

(

N again for two seconds.

u

This puts the vehicle in car wash mode which must be used when your vehicle
is pulled through a conveyor type automatic car wash where you or an
attendant do not remain in the vehicle.

If the POWER button is pressed after car wash
mode has been activated, the power mode
will change to ACCESSORY and a message
will be displayed on the MID.

u

For 15 minutes the gear position remains
in

(

N with the power mode in

ACCESSORY. After that, the position
automatically changes to

(

P and the

power mode changes to OFF.

u

Manually changing to

(

P cancels

ACCESSORY mode. The

(

P indicator

comes on and the power mode changes
to OFF. You must always shift to

(

P when

car wash mode is no longer needed.

1

If you want to keep the transmission in

(

N position [car wash

mode]

The transmission may not stay in

(

N position while

the following indicators are on or when the message
below appears:

•

Malfunction indicator lamp

•

Transmission system indicator

•

POWER SYSTEM indicator

•

12-Volt battery charging system indicator

•

The Charging System Problem message on the
MID.

17 ACURA MDX E-AWD-31TRX6000.book  251 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

252

uu

When Driving

u

Shifting

Driving

■

Restriction on selecting a gear position

You cannot select a gear position under certain circumstances that may lead to a crash.

When the
transmission is in:

1. Under the circumstances
of that:

2. You cannot select:

3. The gear position
remains in/changes to:

How to change the
gear position

(

P

The brake pedal is not
depressed.

Other gear position

(

P

Release the accelerator
pedal and depress the
brake pedal.

The accelerator pedal is
depressed.

(

N

The vehicle is moving at low
speed without the brake pedal
depressed.

(

N

The vehicle is moving at low
speed with the accelerator
pedal depressed.

(

N

, (

D

 or (

S

The vehicle is moving forward.

(

R

Stop your vehicle in a
safe place, depress the
brake pedal, and select
the appropriate gear
position.

(

R

 or (

N

The vehicle is moving backward.

(

D,

(

S

(

R

, (

N

, (

D

 or (

S

The vehicle is moving.

(

P

(

P

 or (

N

The READY indicator is not on.

A gear position other than

(

P

or

(

N

(

P

 or (

N

Make sure that the
READY indicator
comes on.

17 ACURA MDX E-AWD-31TRX6000.book  252 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

Continued

253

uu

When Driving

u

Shifting

Driving

Use the paddle shifters to change between 1st and 7th gears without removing your
hands from the steering wheel. The transmission will switch to the sequential mode.

■

When the transmission is in

(

D:

The vehicle will go into the sequential mode momentarily, and the sequential mode
gear selection indicator will come on.
Once you start traveling at a constant speed, the sequential mode will automatically
switch off, and the sequential mode gear selection indicator will go off.

Hold the

(

+ paddle shifter for two seconds or push the

 button to return to

normal drive.

■

When the transmission is in

(

S

The vehicle will go into the sequential mode, and the M (sequential mode) indicator
and sequential mode gear selection indicator will come on.
If the vehicle speed increases and the engine speed reaches near the tachometer’s
red zone, the transmission automatically shifts up to the next gear.
You can cancel this mode by holding the

(

+ paddle shifter for two seconds or push

the

 button. When the sequential mode is canceled, the sequential mode

indicator and sequential mode gear selection indicator go off.

■

Sequential Mode

1

Sequential Mode

The vehicle is engine operated when SPORT+ mode is
on.

D/S

D/S

17 ACURA MDX E-AWD-31TRX6000.book  253 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

uu

When Driving

u

Shifting

254

Driving

■

Sequential Mode Operation

1

Sequential Mode Operation

Each paddle shift operation makes a single gear
change.
To change gears continuously, release the paddle
shifter before pulling it again for the next gear.

If the sequential mode gear selection indicator blinks
when you try to shift up or down, this means your
vehicle speed is not in its allowable gear range.
Slightly accelerate to shift up and decelerate to shift
down while the indicator is blinking.

In S range and SPORT+ mode, to prioritize the engine
performance enhancement, the transmission may
not allow for shifting up while the engine speed is
low.

Downshifting when pulling
the

 paddle shifter.

(Changes to a lower gear)

Upshifting when pulling
the

 paddle shifter.

(Changes to a higher gear)

Paddle Shifter
(Shift down)

Paddle Shifter
(Shift up)

17 ACURA MDX E-AWD-31TRX6000.book  254 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

255

uu

When Driving

u

Acoustic Vehicle Alerting System

Driving

Acoustic Vehicle Alerting System

Alerts pedestrians when a vehicle is propelled solely by electricity, approaching at
speeds around 12 mph (20 km/h) or less.

17 ACURA MDX E-AWD-31TRX6000.book  255 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

256

uu

When Driving

u

Integrated Dynamics System

Driving

Integrated Dynamics System

Modifies the dynamic character of the vehicle. There are four modes to select from: Comfort, Normal, Sport, and Sport+.
Press the Dynamic Mode button to select a mode. The mode you have selected appears on the MID.
You can customize the mode default setting using the MID.

2 Customized Features P. 125

When you restart the power system with Sport+ mode, the mode is changed to Sport automatically.

Normal
Balanced driving performance for most driving situations.

Sport
Enhances vehicle response feel through decreased steering
assist, heightened throttle response, increased SPORT
HYBRID SH-AWD® torque bias, and modified active sound
control.

Comfort
Maximizes driver comfort through increased steering assist.

Dynamic Mode
Button

SPORT+ Mode
Indicator

Sport+
Adds to Sport mode to allow for increase performance when
using the steering wheel paddle shifters.

17 ACURA MDX E-AWD-31TRX6000.book  256 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

257

uu

When Driving

u

Front Sensor Camera

Continued

Driving

Front Sensor Camera

The camera, used in systems such as LKAS, RDM, ACC with LSF, and CMBS

TM

, auto

high-beam, is designed to detect an object that triggers any of the systems to
operate its functions.

This camera is located behind the rearview
mirror.

To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
system to shut off, when parking, find a shady
area or face the front of the vehicle away from
the sun. If you use a reflective sun shade, do
not allow it to cover the camera housing.
Covering the camera can concentrate heat on
it.

■

Camera Location and Handling Tips

1

Front Sensor Camera

Never apply a film or attach any objects to the
windshield, the hood, or the front grill that could
obstruct the camera’s field of vision and cause the
system to operate abnormally.
Scratches, nicks, and other damage to the windshield
within the camera’s field of vision can cause the
system to operate abnormally. If this occurs, we
recommend that you replace the windshield with a
genuine Acura replacement windshield. Making even
minor repairs within the camera’s field of vision or
installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing the windshield, have a dealer
recalibrate the camera. Proper calibration of the
camera is necessary for the system to operate
properly.

Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.

Front Sensor
Camera

17 ACURA MDX E-AWD-31TRX6000.book  257 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

uu

When Driving

u

Front Sensor Camera

258

Driving

1

Front Sensor Camera

If the Some Driver Assist Systems Cannot
Operate: Camera Temperature Too High message
appears:

•

Use the climate control system to cool down the
interior and, if necessary, also use defroster mode
with the airflow directed towards the camera.

•

Start driving the vehicle to lower the windshield
temperature, which cools down the area around
the camera.

If the Some Driver Assist Systems Cannot
Operate: Clean Front Windshield message
appears:

•

Park your vehicle in a safe place, and clean the
windshield. If the message does not disappear after
you have cleaned the windshield and driven for a
while, have your vehicle checked by a dealer.

17 ACURA MDX E-AWD-31TRX6000.book  258 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

259

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

Continued

Driving

Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)

Helps maintain a constant vehicle speed and a set following-interval behind a vehicle
detected ahead of yours and, if the detected vehicle slows to a stop, decelerates and
stops your vehicle, without you having to keep your foot on the brake or the
accelerator.
When ACC with LSF slows your vehicle by applying the brakes, your vehicle’s brake
lights will illuminate.

1

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

Important Reminder
As with any system, there are limits to ACC with LSF.
Use the brake pedal whenever necessary, and always
keep a safe interval between your vehicle and other
vehicles.

3

WARNING

Improper use of ACC with LSF can lead to a
crash.

Use ACC with LSF only when driving on
expressways or freeways and in good
weather conditions.

3

WARNING

ACC with LSF has limited braking capability
and may not stop your vehicle in time to
avoid a collision with a vehicle that quickly
stops in front of you.

Always be prepared to apply the brake
pedal if the conditions require.

When to use

■

Vehicle speed for ACC with LSF: A vehicle is detected ahead within ACC with
LSF range – ACC with LSF operates at speeds up to 90 mph (145 km/h).
No vehicle is detected within ACC with LSF range – ACC with LSF operates at
the speed of about 25 mph (40 km/h) or above.

■

Gear position for ACC with LSF: In

(

D or

(

S.

The radar sensor is in
the front grille.

The camera is
located behind the
rearview mirror.

17 ACURA MDX E-AWD-31TRX6000.book  259 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

260

Driving

■

How to activate the system

1

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

When the MAIN button is pressed, ACC with LSF and
Lane Keeping Assist System (LKAS) are both turned
on or off.

ACC with LSF may not work properly under certain
conditions.

2 ACC with LSF Conditions and Limitations

P. 265

When not using ACC with LSF: Turn off adaptive
cruise by pressing the MAIN button. This also will
turn off the Lane Keeping Assist System (LKAS).

Do not use ACC with LSF under the following
conditions:

•

On roads with heavy traffic or while driving in
continuous stop and go traffic.

•

On roads with sharp turns.

•

On roads with steep downhill sections, as the set
vehicle speed can be exceeded by coasting. In such
cases, ACC with LSF will not apply the brakes to
maintain the set speed.

•

On roads with toll collection facilities or other
objects between lanes of traffic, or in parking
areas, or facilities with drive through access.

■

Press the MAIN button on
the steering wheel.

ACC (green) is on in the
instrument panel.
ACC with LSF is ready to
use.

17 ACURA MDX E-AWD-31TRX6000.book  260 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

261

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

Continued

Driving

When driving at about 25 mph (40 km/h) or above: Take your foot off the
pedal and press down the RES/+/SET/– switch when you reach the desired speed.
The moment you release the switch, the set speed is fixed, and ACC with LSF begins.
When driving at slower than about 25 mph (40 km/h): If the vehicle is moving
and the brake pedal is not depressed, pressing the switch fixes the set speed to
about 25 mph (40 km/h) regardless of current vehicle speed. If the vehicle is
stationary, you can set the vehicle speed even with the brake pedal depressed.

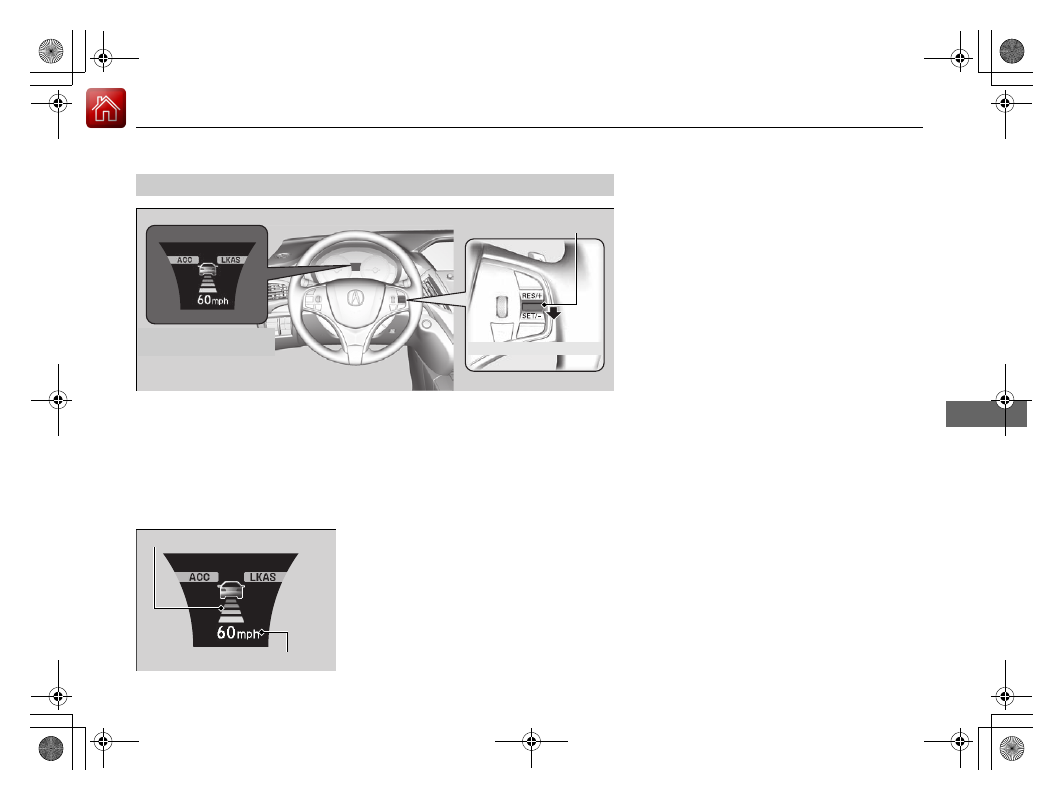

When ACC with LSF starts operating, the
vehicle icon, interval bars and set speed
appear on the MID.

■

To Set the Vehicle Speed

On when ACC with LSF
begins

Press down and release

RES/+/SET/− Switch

Set Vehicle Speed

Set Vehicle Interval

17 ACURA MDX E-AWD-31TRX6000.book  261 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

262

Driving

■

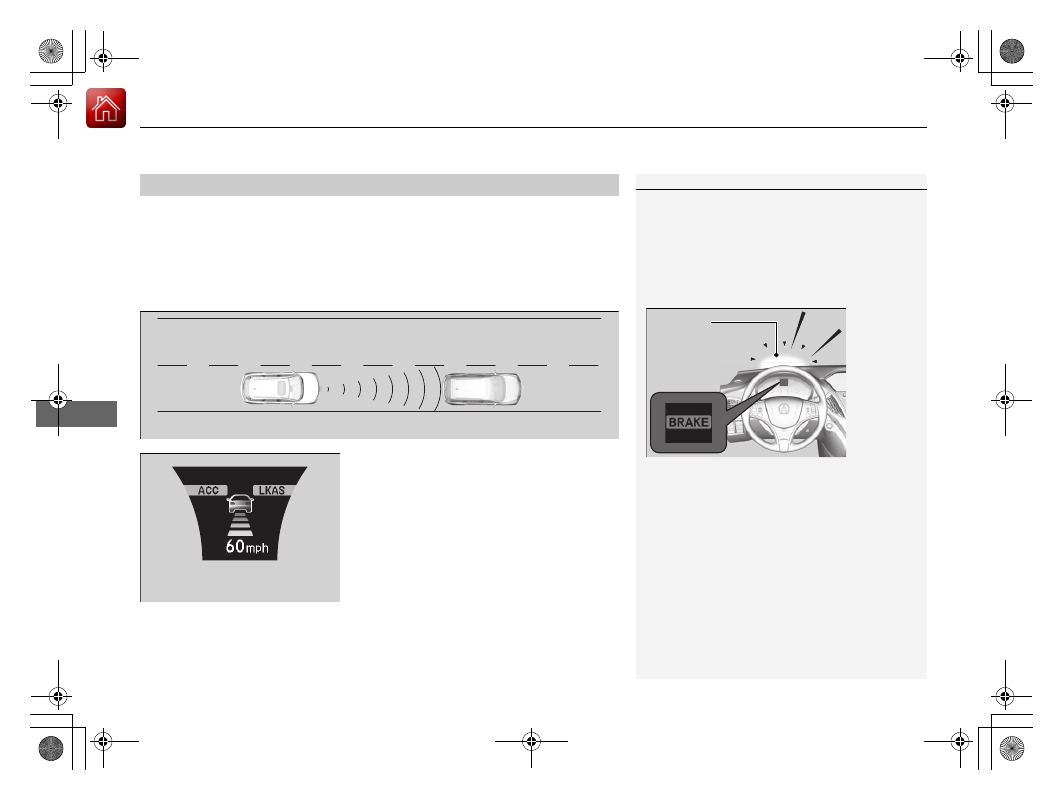

There is a vehicle ahead

ACC with LSF monitors if a vehicle ahead of you enters the ACC with LSF range. If a
vehicle is detected doing so, the ACC with LSF system maintains or decelerates your
vehicle’s set speed in order to keep the vehicle’s set following-interval from the
vehicle ahead.

2 To Set or Change Following-interval P. 268

When a vehicle whose speed is slower than
your set speed is detected in front of you, your
vehicle starts to slow down.

■

When in Operation

1

When in Operation

If the vehicle detected ahead of you slows down
abruptly, or if another vehicle is detected cutting in
front of you, the beeper sounds, a message appears
on the MID, and the head-up warning lights

*

 come

on.
Depress the brake pedal, and keep an appropriate
interval from the vehicle ahead.

Even if the interval between your vehicle and the
vehicle detected ahead is short, ACC with LSF may
start accelerating your vehicle under the following
circumstances:

•

The vehicle ahead of you is going at almost the
same speed as, or faster than, your vehicle.

•

A vehicle that cuts in front of you is going faster
than your vehicle, gradually increasing the interval
between the vehicles.

Beep

Head-up
Warning
Lights

*

ACC with LSF Range: 394 ft. (120 m)

A vehicle icon appears
on the MID.

* Not available on all models

17 ACURA MDX E-AWD-31TRX6000.book  262 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

Continued

263

uu

When Driving

u

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

Driving

■

There is no vehicle ahead

Your vehicle maintains the set speed without
having to keep your foot on the brake or
accelerator pedal.
If there previously was a vehicle detected
ahead that kept your vehicle from traveling at
the set speed, ACC with LSF accelerates your
vehicle to the set speed, and then maintains it.

While stationary and no vehicle is detected,
ACC with LSF automatically cancels and a
beeper sounds.

■

When you depress the accelerator pedal

You can temporarily increase the vehicle speed. In this case, there is no audible or
visual alert even if a vehicle is in the ACC with LSF range.
ACC with LSF stays on unless you cancel it. Once you release the accelerator pedal,
the system resumes the set speed.
There are times when the vehicle speed will decrease when the accelerator pedal is
lightly applied.

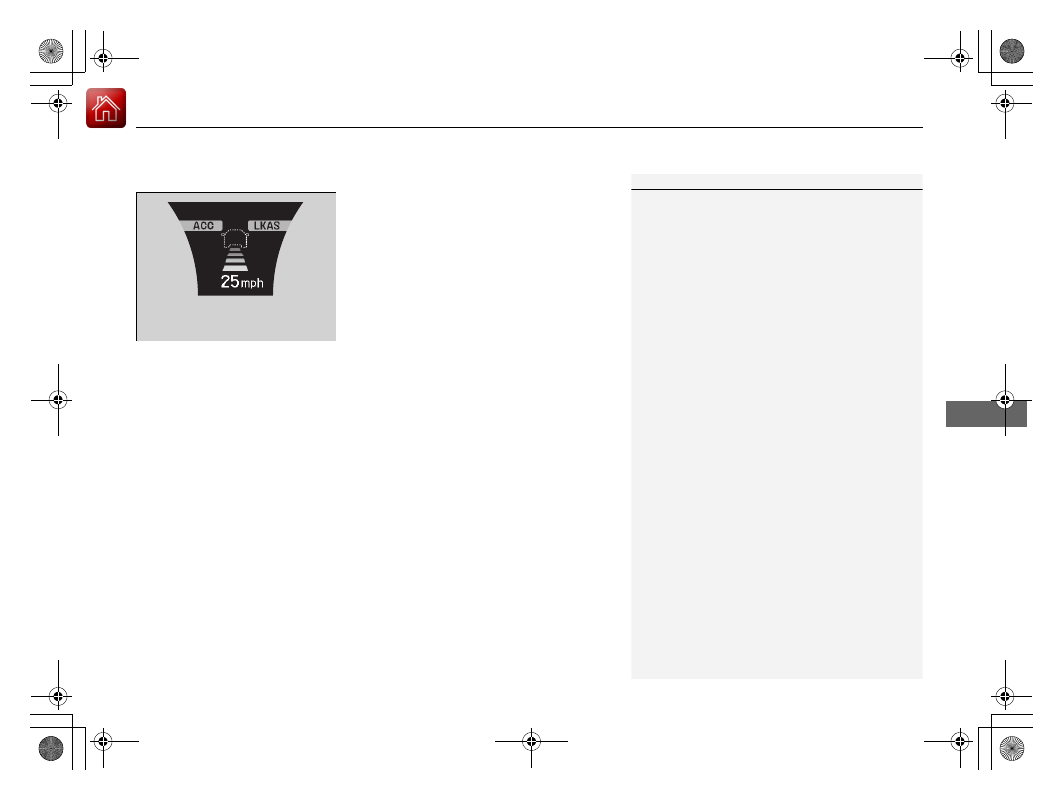

A vehicle icon with dotted-line
contour appears on the MID.

1

When in Operation

You can also set the system to beep when a vehicle in
front of you comes in and goes out of the ACC with
LSF detecting range. Change the ACC Forward
Vehicle Detect Beep setting.

2 Customized Features P. 125

Limitations
You may need to use the brake to maintain a safe
interval when using ACC with LSF. Additionally, ACC
with LSF may not work properly under certain
conditions.

2 ACC with LSF Conditions and Limitations

P. 265

17 ACURA MDX E-AWD-31TRX6000.book  263 ページ  ２０１７年１月２０日　金曜日　午後２時５３分
