152

uu

Opening and Closing the Tailgate

u

Using the Tailgate Outer Handle

Co
ntrols

Using the Tailgate Outer Handle

When all the doors are unlocked, the tailgate
is unlocked.

Press the tailgate outer handle for more than
one second, and lift open the tailgate.

If you are carrying the keyless access remote,
you do not have to unlock the tailgate before
opening it.

To close the tailgate, grab the inner handle,
pull the tailgate down, and push it closed
from outside.

1

Using the Tailgate Outer Handle

•

Do not leave the keyless access remote in the
vehicle when you get out. Carry it with you.

•

Even if you are not carrying the keyless access
remote, you can lock/unlock the tailgate while
someone else with the remote is within range.

•

Do not leave the keyless access remote inside the
cargo area and close the tailgate. The beeper
sounds repeatedly. You can open the tailgate and
retrieve the key.

Tailgate Outer
Handle

Inner Handle

17 ACURA MDX E-AWD-31TRX6000.book  152 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

153

uu

Opening and Closing the Tailgate

u

Opening/Closing the Power Tailgate

Continued

Co
ntrols

Opening/Closing the Power Tailgate

The power tailgate can be operated by pressing the power tailgate button on the
remote transmitter or driver's door, or pressing the outer handle or button on the
tailgate.

■

The power tailgate can be opened when:

• The tailgate is fully closed.
• The transmission is in

(

P.

• Press and hold the tailgate button on the remote transmitter for about one

second when the power mode is in VEHICLE OFF (LOCK).

u

If you have changed the Keyless Open Mode setting to When Unlocked,
you need to unlock the tailgate before you press the tailgate button to open it.

2 Customized Features P. 125
2 Refer to the Navigation System Manual

■

The power tailgate can be closed when:

• The tailgate is fully open.
• Press and hold the tailgate button on the remote transmitter for about one

second when the power mode is in VEHICLE OFF (LOCK).

1

Opening/Closing the Power Tailgate

NOTICE

Do not push or pull on the power tailgate when it is
being automatically opened or closed.

Forcibly opening or closing the power tailgate while
in operation can deform the tailgate frame.

When operating the power tailgate, make sure there
is enough space around your vehicle. People near the
tailgate may be seriously hurt if the tailgate hits or
closes on their heads. Be especially cautious if
children are around.

The power tailgate may not open or close under the
following conditions:

•

You start the power system while the tailgate is
automatically opening or closing.

•

The vehicle is parked on a steep hill.

•

The vehicle is swayed in a strong wind.

•

The tailgate or the roof is covered with snow or ice.

If you close the power tailgate when all the doors are
locked, the power tailgate locks automatically.

If you replace the 12-volt battery or the power
tailgate fuse while the tailgate is open, the power
tailgate may be disabled. The power tailgate resumes
once you manually close the tailgate.

17 ACURA MDX E-AWD-31TRX6000.book  153 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

uu

Opening and Closing the Tailgate

u

Opening/Closing the Power Tailgate

154

Co
ntrols

Press the power tailgate button for more than
one second to operate when the power mode
is in VEHICLE OFF (LOCK).

To reverse direction while the power tailgate is
in operation, press the button again. The
beeper sounds three times and the tailgate
reverses direction.

■

Customizing when to open the tailgate

Anytime: The power tailgate unlocks and opens at the same time. This is the
default setting.
When Unlocked: The tailgate opens when all doors are unlocked.

2 Customized Features P. 125
2 Refer to the Navigation System Manual

■

Remote Transmitter

1

Opening/Closing the Power Tailgate

Installing aftermarket components other than Acura
genuine accessories on the power tailgate may
prevent it from fully opening or closing.

Make sure the power tailgate is fully open before you
get your luggage in and out.

Make sure the power tailgate is fully closed before
you start the vehicle.

If the power tailgate meets resistance while opening
or closing, the auto reverse feature reverses the
direction. The beeper sounds three times.

The auto reverse function stops sensing when the
tailgate is almost closed to make sure that it fully
closes.

Do not touch the sensors located on both sides of the
tailgate. The power tailgate does not close if you
touch either sensor when you are trying to close the
tailgate.

Be careful not to scratch the sensors with a sharp
object. If scratched, they can be damaged, and the
power tailgate closing feature malfunctions.

Power
Tailgate
Button

17 ACURA MDX E-AWD-31TRX6000.book  154 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

155

uu

Opening and Closing the Tailgate

u

Opening/Closing the Power Tailgate

Continued

Co
ntrols

To open or close the power tailgate, press the
power tailgate button for about one second.
Some exterior lights flash and the beeper
sounds.

To reverse direction while the power tailgate is
in operation, press the button again. The
beeper sounds three times and the tailgate
reverses direction.

To open the power tailgate, press the outer
handle for one second. Some exterior lights
flash and the beeper sounds.

■

Power Tailgate Button

Power Tailgate Button

■

Power Tailgate Outer Handle

Power Tailgate
Outer Handle

17 ACURA MDX E-AWD-31TRX6000.book  155 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

uu

Opening and Closing the Tailgate

u

Opening/Closing the Power Tailgate

156

Co
ntrols

Press the button on the tailgate to close the
power tailgate.
If you press the button again while the power
tailgate is closing, it reverses direction.

If you manually close the power tailgate, it latches automatically.

■

Power Tailgate Close Button

1

Power Tailgate Close Button

If you press the power tailgate close button while the
tailgate is automatically opening, the power tailgate
operation reverses direction.

Power Tailgate
Close Button

■

Auto-Closer

1

Auto-Closer

The auto-closer feature does not activate if you press
the tailgate outer handle while the power tailgate is
closing.

Do not put any force on the tailgate while the power
tailgate is latching.

Keep your hands away from the tailgate when you
manually close the tailgate and let it latch
automatically. It is dangerous to put your hands
around the tailgate as it starts to latch itself.

17 ACURA MDX E-AWD-31TRX6000.book  156 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

157

uu

Opening and Closing the Tailgate

u

Opening/Closing the Power Tailgate

Co
ntrols

Automatically lowers the power tailgate when there is a possibility that the fully
opened power tailgate can fall down by its own weight (for example, by snow on
the tailgate). The beeper sounds while the power tailgate lowers.

■

Power Tailgate Fall Detection

1

Power Tailgate Fall Detection

If you try to manually close the power tailgate
immediately after it fully opens, the power tailgate
fall detection may activate.

Once the power tailgate fall detection activates, wait
until the power tailgate fully closes. Keep away from
the power tailgate when it is in motion.

If the power tailgate fall detection constantly
activates, consult at a dealer.

17 ACURA MDX E-AWD-31TRX6000.book  157 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

158

Co
ntrols

Security System

Immobilizer System

The immobilizer system prevents a key that has not been pre-registered from
starting the power system. Each key contains electronic transmitters that use
electronic signals to verify the key.

Pay attention to the following when pressing the POWER button:
• Do not allow objects that emit strong radio waves near the POWER button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the POWER

button.

• Do not put the key near magnetic items. Electronic devices, such as televisions

and audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.

Security System Alarm

The security system alarm activates when the tailgate, hood or doors are forcibly
opened. The alarm does not activate if the tailgate or doors are opened with the key,
remote transmitter or keyless access system.

However, the alarm activates if a door is opened with the key and then the hood is
opened before the power mode is set to ON.

■

When the security system alarm activates

The horn sounds intermittently, and some exterior lights flash.

■

To deactivate the security system alarm

Unlock the vehicle using the key, remote transmitter, or keyless access system. The
system, along with the horn and flashing lights, is deactivated.

1

Immobilizer System

NOTICE

Leaving the key in the vehicle can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.

Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.

1

Security System Alarm

Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.

The security alarm continues for a maximum of two
minutes until the security system alarm deactivates.

17 ACURA MDX E-AWD-31TRX6000.book  158 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

Continued

159

uu

Security System

u

Security System Alarm

Co
ntrols

■

Setting the security system alarm

The security system alarm automatically sets when the following conditions have
been met:
• The power mode is set to VEHICLE OFF (LOCK).
• The hood is closed.
• All doors and the tailgate are locked from outside with the key, remote

transmitter, or keyless access system.

■

When the security system alarm sets

The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 seconds, the security system alarm is set.

■

To cancel the security system alarm

The security system alarm is canceled when the vehicle is unlocked using the key,
remote transmitter, keyless access system, or the power mode is set to ON. The
security system alarm indicator goes off at the same time.

1

Security System Alarm

Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:

•

Unlocking the door with the lock tab.

•

Opening the hood with the hood release.

If the 12-volt battery goes dead after you have set the
security system alarm, the security alarm may go off
once the 12-volt battery is recharged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the key, remote transmitter,
or keyless access system.

17 ACURA MDX E-AWD-31TRX6000.book  159 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

160

uu

Security System

u

Security System Alarm

Co
ntrols

■

The panic button on the remote
transmitter

If you press the panic button for
approximately one second, the following will
occur for about 30 seconds:
• The horn sounds.
• Some exterior lights flash.

■

Canceling panic mode

Press any button on the remote transmitter, or set the power mode to ON.

■

Panic Mode

Panic
Button

17 ACURA MDX E-AWD-31TRX6000.book  160 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

161

Continued

Co
ntrols

Opening and Closing the Windows

Opening/Closing the Power Windows

The power windows can be opened and closed when the power mode is in ON,
using the switches on the doors.

The driver’s side switches can be used to open and close all the windows. The power
window lock button on the driver’s side must be switched off (not pushed in,
indicator off) to open and close the windows from anywhere other than the driver’s
seat.

When the power window lock button is pushed in, the indicator comes on and you
can only operate the driver’s window. Turn the power window lock button on if a
child is in the vehicle.

■

Manual operation

To open: Push the switch down lightly, and
hold it until the desired position is reached.
To close: Pull the switch up lightly, and hold it
until the desired position is reached.

■

Automatic operation

To open: Push the switch down firmly.
To close: Pull the switch up firmly.

The window opens or closes completely. To
stop the window at any time, push or pull the
switch briefly.

■

Opening/Closing Windows with Auto-Open/Close Function

1

Opening/Closing the Power Windows

The power windows can be operated for up to 10
minutes after you set the power mode to VEHICLE
OFF (LOCK).
Opening either front door cancels this function.

Auto Reverse
If a power window senses resistance when closing
automatically, it will stop closing and reverse
direction.

The driver’s window auto reverse function is disabled
when you continuously pull up the switch.

The auto reverse function stops sensing when the
window is almost closed to ensure that it fully closes.

3

WARNING

Closing a power window on someone’s
hands or fingers can cause serious injury.

Make sure your passengers are away from
the windows before closing them.

ON
OFF

Power Window
Lock Button

Rear Passenger’s
Window Switches

Front Passenger’s
Window Switch

Driver’s Window
Switch

Indicator

17 ACURA MDX E-AWD-31TRX6000.book  161 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

162

uu

Opening and Closing the Windows

u

Opening/Closing the Power Windows

Co
ntrols

To open: Press the unlock button, and then
within 10 seconds, press it again and hold it.

If the windows and moonroof stop midway,
repeat the procedure.

To open: Unlock the driver’s door with the
key. Within 10 seconds of returning the key to
the central position, turn the key in the unlock
direction and hold it there.

To close: Lock the driver’s door with the key.
Within 10 seconds of returning the key to the
central position, turn the key in the lock
direction and hold it there.

Release the key to stop the windows and
moonroof at the desired position. If you want
further adjustment, repeat the same
operation.

■

Opening the Windows and Moonroof with the Remote

Unlock
Button

■

Opening/Closing the Windows and Moonroof with the Key

Close

Open

17 ACURA MDX E-AWD-31TRX6000.book  162 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

163

Co
ntrols

Opening and Closing the Moonroof

You can only operate the moonroof when the power mode is in ON. Use the switch
in the front of the ceiling to open and close the moonroof.

■

Automatic operation

To open: Pull the switch back firmly.
To close: Push the switch forward firmly.

The moonroof will automatically open or close
all the way. To stop the moonroof midway,
push the switch briefly.

■

Manual operation

To open: Pull the switch back lightly, and
hold it until the desired position is reached.
To close: Push the switch forward lightly, and
hold it until the desired position is reached.

■

Tilting the moonroof up

To tilt: Push on the center of the moonroof
switch.
To close: Push the switch forward firmly, then
release.

■

Opening/Closing the Moonroof

1

Opening/Closing the Moonroof

NOTICE

Opening the moonroof in below freezing
temperature or when it is covered with snow or ice
can damage the moonroof panel or motor.

The power moonroof can be operated for up to 10
minutes after you set the power mode to VEHICLE
OFF (LOCK).
Opening either front door cancels this function.

When resistance is detected, the auto reverse
function causes the moonroof to change directions,
then stop. Auto reverse stops sensing when the
moonroof is almost closed to ensure that it fully
closes. Make sure that all objects, including fingers,
are clear of the moonroof.

You can use the remote transmitter or the key to
operate the moonroof.

2 Opening the Windows and Moonroof with

the Remote P. 162

2 Opening/Closing the Windows and

Moonroof with the Key P. 162

3

WARNING

Opening or closing the moonroof on
someone’s hands or fingers can cause
serious injury.

Make sure all hands and fingers are clear of
the moonroof before opening or closing it.

Open

Close

Tilt

17 ACURA MDX E-AWD-31TRX6000.book  163 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

164

Co
ntrols

Operating the Switches Around the Steering Wheel

POWER Button

■

Changing the Power Mode

1

POWER Button

POWER Button Operating Range

You can start the power system when the keyless
access remote is inside the vehicle.
The power system may also start if the keyless access
remote is close to the door or window, even if it is
outside the vehicle.

If the keyless access remote battery is weak, beeper
sounds and the To Start, Hold Remote Near Start
Button message appears on the MID.

2 If the Keyless Access Remote Battery is

Weak P. 405

Do not leave the power mode in ACCESSORY or ON
when you get out.

Operating Range

VEHICLE OFF (LOCK)
Indicator in the button is off.
The power to all electrical components is turned off.

ACCESSORY
The button blinks (in red).
Operate the audio system and other accessories in this
position.

ON
The button blinks (in red).
All electrical components can be used.

Press the button.

Indicator

Without
pressing the
brake pedal

17 ACURA MDX E-AWD-31TRX6000.book  164 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

165

uu

Operating the Switches Around the Steering Wheel

u

POWER Button

Continued

Co
ntrols

If you leave the vehicle for 30 to 60 minutes with the transmission in

(

P and the

power mode in ACCESSORY, the vehicle automatically goes into the mode to
VEHICLE OFF (LOCK) to avoid draining the 12-volt battery.

If you open the driver’s door when the power mode is set to ACCESSORY, a warning
buzzer sounds.

■

Automatic Power Off

■

Power Mode Reminder

17 ACURA MDX E-AWD-31TRX6000.book  165 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

uu

Operating the Switches Around the Steering Wheel

u

POWER Button

166

Co
ntrols

Warning buzzers may sound from inside and/
or outside the vehicle to remind you that the
keyless access remote is out of the vehicle. If
the buzzer continues even after the remote is
put back inside, place it to be within its
operational range.

■

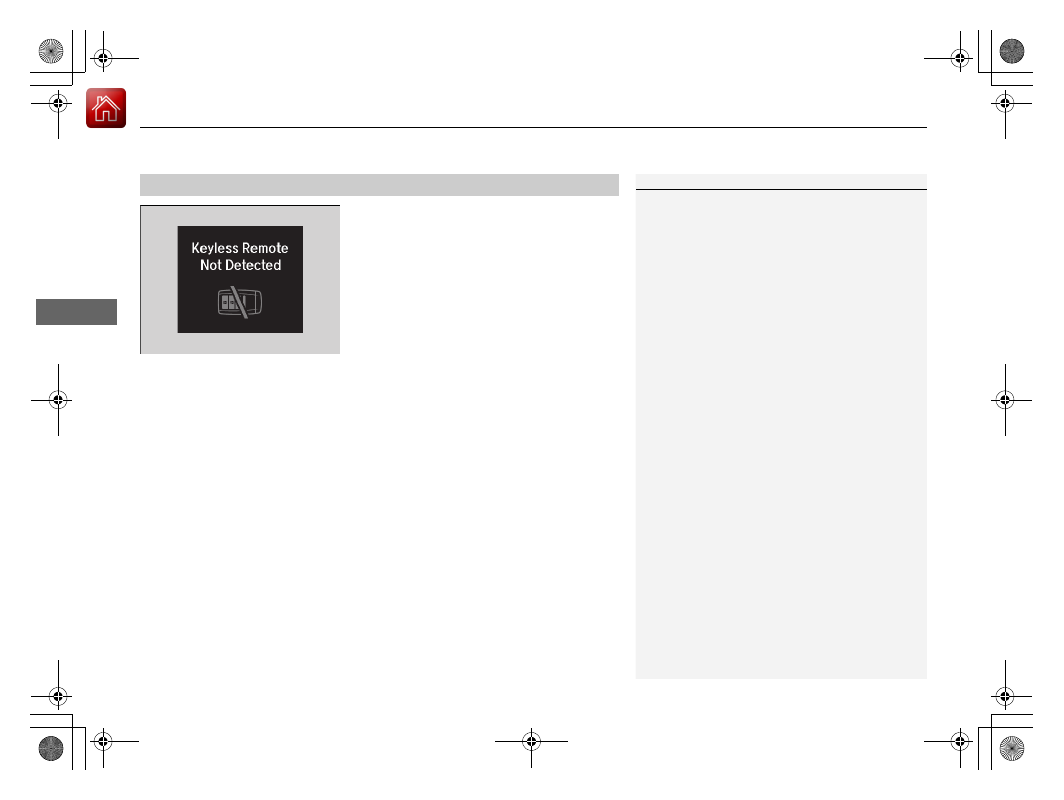

When the power mode is in ON

If the keyless access remote is taken out of the
vehicle, and the driver’s door is closed, a
warning buzzer sounds from both inside and
outside the vehicle. A warning message on
the MID notifies the driver inside that the
remote outside of the vehicle.

■

When the power mode is in
ACCESSORY

If the keyless access remote is taken out of the
vehicle, and the driver’s door is closed, a
warning buzzer sounds from outside the
vehicle.

■

Keyless Access Remote Reminder

1

Keyless Access Remote Reminder

When the keyless access remote is within the
system’s operational range, and the driver’s door is
closed, the warning function cancels.

If the keyless access remote is taken out of the vehicle
after the power system has been turned on, you can
no longer change the POWER button mode or
restart the power system. Always make sure if the
remote is in your vehicle when you operate the
POWER button.

Removing the keyless access remote from the vehicle
through a window does not activate the warning
buzzer.

Do not put the keyless access remote on the
dashboard or in the glove box. It may cause the
warning buzzer to go off. Under some other
conditions that can prevent the vehicle from locating
the remote, the warning buzzer may also go off even
if the remote is within the system’s operational
range.

17 ACURA MDX E-AWD-31TRX6000.book  166 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

167

uu

Operating the Switches Around the Steering Wheel

u

Turn Signals

Co
ntrols

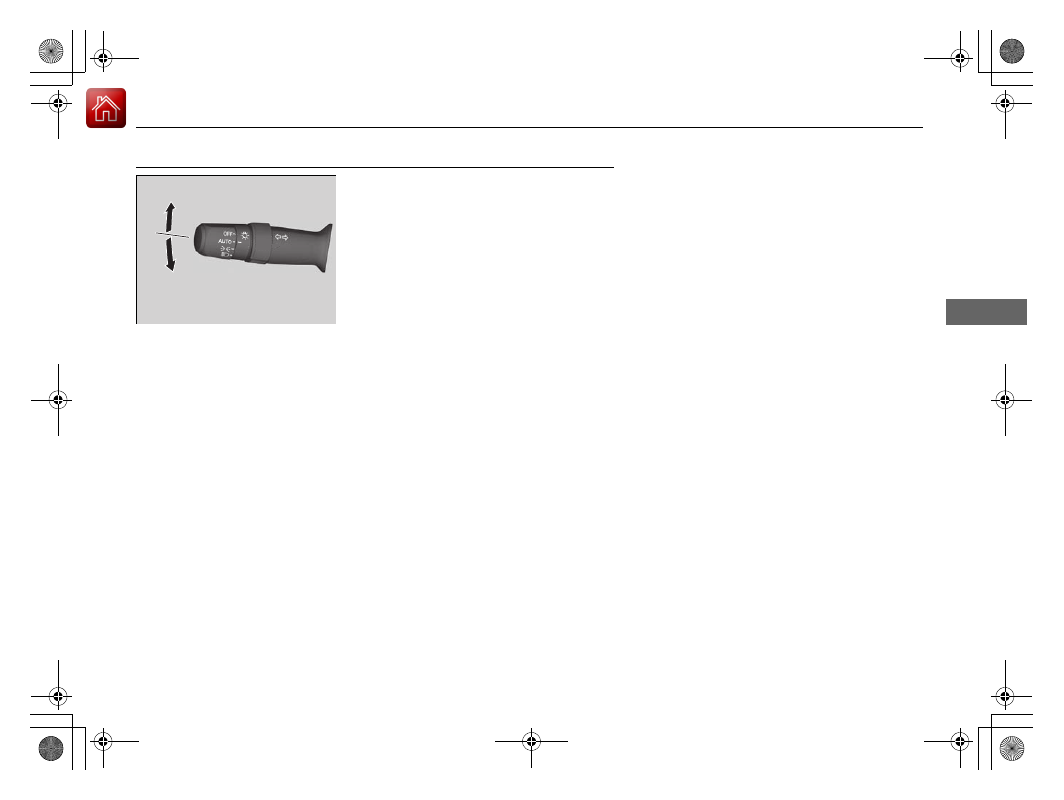

Turn Signals

The turn signals can be used when the power
mode is in ON.

■

One-touch turn signal

When you lightly push up or down and release
the turn signal lever, the exterior turn signals
and turn signal indicator blink three times.
This feature can be used when signaling for a
lane change.

Right Turn

Left Turn

17 ACURA MDX E-AWD-31TRX6000.book  167 ページ  ２０１７年１月２０日　金曜日　午後２時５３分
