Acura RSX Honda Integra. Manual - part 469

＊０１

＊０２

Ｓ６Ｍ６Ａ００Ｈ４６２０００５３４０１ＭＡＡＴ００

Retractor

In-vehicle

Front

Rear

23-8

Seat Belts

Inspection

2.5 °

40 °

15 °

40 °

15 °

40 °

Inside

Forward

22.5 °

40 °

15 °

40 °

15 °

40 °

Inside

Forward

For front seat belt retractor with seat belt tensioner,
review the SRS component locations (see page 23-10)
and the precautions and procedures (see page 23-11)
before performing repairs or service.

1. Before installing the retractor, check that the seat

belt can be pulled out freely.

2. Make sure that the seat belt does not lock when the

retractor (A) is leaned slowly up to 15 ° from the
mounted position. The seat belt should lock when
the retractor is leaned over 40 °. Do not attempt to
disassemble the retractor.

3. Replace the seat belt with a new assembly if there

is any abnormality. Do not disassemble any part of
the seat belt for any reason.

1. Check that the seat belt is not twisted or caught on

anything.

2. After installing the anchors, check for free

movement on the anchor bolts. If necessary,
remove the anchor bolts and check that the
washers and other parts are not damaged or
improperly installed.

3. Check the seat belts for damage or discoloration.

Clean with a shop towel if necessary. Use only
soap and water to clean.

NOTE: Dirt buildup in the loops of the upper
anchors can cause the seat belts to retract slowly.
Wipe the inside of the loops with a clean cloth
dampened in isopropyl alcohol.

4. Check that the seat belt does not lock when pulled

out slowly. The seat belt is designed to lock only
during a sudden stop or impact.

5. Make sure that the seat belt will retract

automatically when released.

6. For each passenger’s seat belt, check the seat belt

retractor locking mechanism ALR (automatic
locking retractor). This function is for securing child
seats.

–1 Pull the seat belt all the way out to engage the

ALR. The seat belt should retract with a soft,
ratcheting sound, but not extend. This is
normal.

–2 To disengage the ALR, release the seat belt and

allow it to fully retract, then pull the seat belt
out part-way. The seat belt should retract and
extend normally.

7. Replace the seat belt with a new assembly if there

is any abnormality. Do not disassemble any part of
the seat belt for any reason.

05/06/27 18:07:55 61S6M040_230_0008

０１

Ｓ６Ｍ６Ａ００Ｈ１４８０００１６９０１ＫＤＡＴ００

23-9

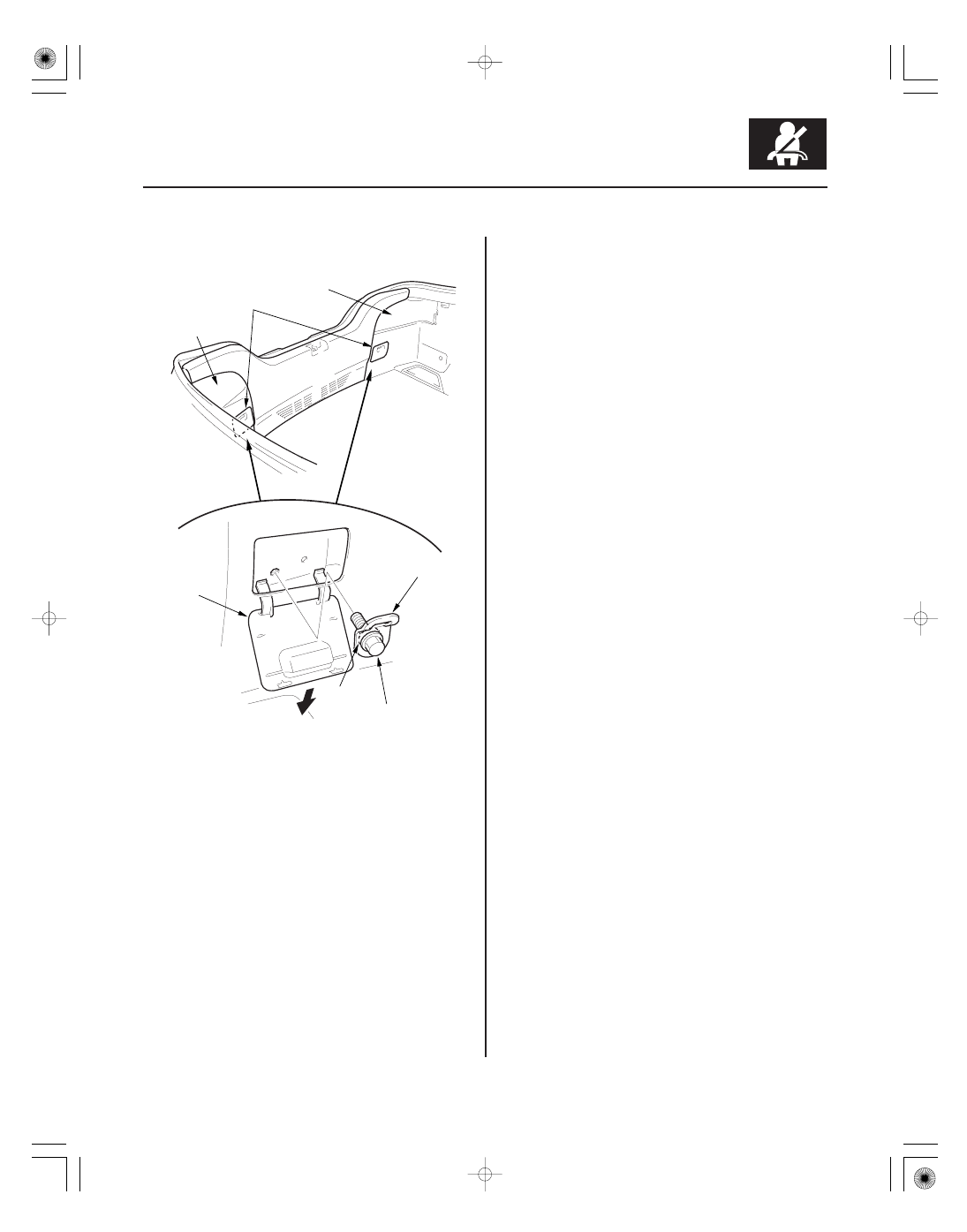

Child Seat Tether Anchor Removal/Installation

8 x 1.25 mm
22 N·m (2.2 kgf·m,
16 lbf·ft)

1. Open the child seat tether anchor cap (A) in the

trunk side trim panel (B).

2. Remove the child seat tether anchor (C). Do not

remove the toothed washer (D) from the tether
anchor.

3. Install the anchor in the reverse order of removal,

and apply liquid thread lock to the threads of the
anchor bolt(s).

05/06/27 18:07:56 61S6M040_230_0009

＊０１

Ｓ６Ｍ６Ａ００Ｈ４６４００００００００ＤＡＡＴ００

23-10

SRS

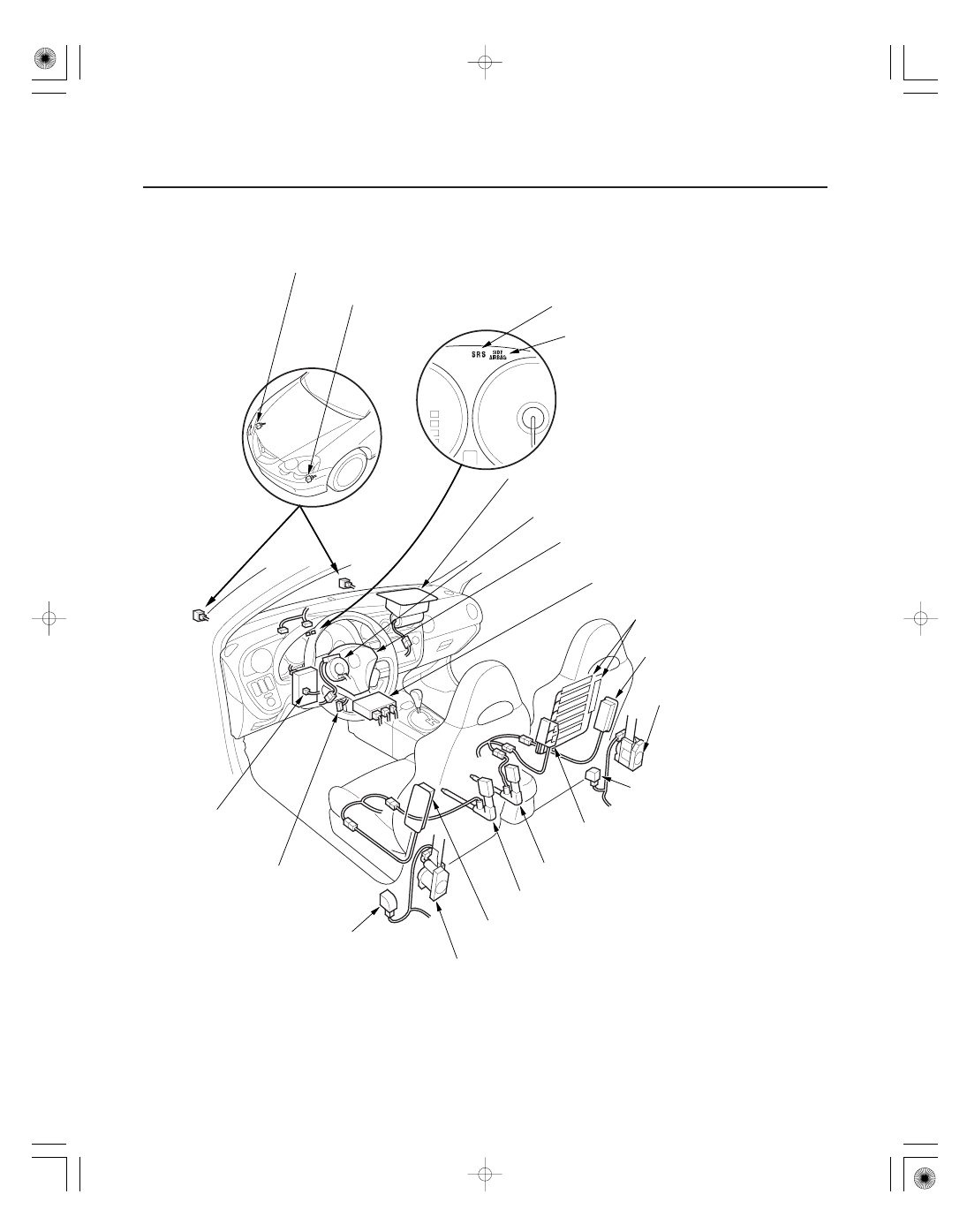

Component Location Index

OPDS SENSOR/SEAT-BACK

OPDS UNIT

MEMORY ERASE
SIGNAL (MES)
CONNECTOR (2P)

DATA LINK
CONNECTOR
(DLC) 16P

FRONT PASSENGER’S AIRBAG

DRIVER’S SIDE AIRBAG

DRIVER’S AIRBAG

SRS UNIT

DRIVER’S SIDE IMPACT SENSOR

FRONT PASSENGER’S
SIDE AIRBAG

SIDE AIRBAG CUTOFF INDICATOR

SRS INDICATOR

FRONT PASSENGER’S SEAT
BELT TENSIONER

DRIVER’S SEAT BELT TENSIONER

FRONT PASSENGER’S SIDE
IMPACT SENSOR

CABLE REEL

FRONT PASSENGER’S SEAT BELT BUCKLE TENSIONER

DRIVER’S SEAT BELT BUCKLE TENSIONER

LEFT FRONT IMPACT SENSOR

RIGHT FRONT IMPACT SENSOR

Replacement, page 20-79

Initialization, page 23-24
Replacement, page 23-143

Replacement, page 23-132
Disposal, page 23-135

Replacement, page 23-134
Disposal, page 23-135

Replacement, page 23-130
Disposal, page 23-135

Replacement, page 23-141

Replacement, page 23-142

Replacement, page 23-134
Disposal, page 23-135

Troubleshooting, page 23-123

Replacement, page 23-4
Disposal, page 23-135

Replacement, page 23-142

Replacement, page 23-138

Replacement, page 23-5

Replacement, page 23-144

05/06/27 18:08:00 61S6M040_230_0010

＊０１

Ｓ６Ｍ６Ａ００Ｈ４６４００００００００ＡＡＡＴ００

General Precautions

Steering-related Precautions

Cable Reel Alignment

23-11

Precautions and Procedures

Please read the following precautions carefully before
performing the airbag system service. Observe the
instructions described in this manual, or the airbags
could accidentally deploy and cause damage or injuries.

• Except when performing electrical inspections,

always turn the ignition switch OFF, disconnect the
negative cable from the battery, and wait at least
3 minutes before beginning work.
NOTE: The SRS memory is not erased even if the
ignition switch is turned OFF or the battery cables are
disconnected from the battery.

• Use replacement parts which are manufactured to the

same standards and quality as the original parts. Do
not install used SRS parts. Use only new parts when
making SRS repairs.

• Carefully inspect any SRS part before you install it.

Do not install any part that shows signs of being
dropped or improperly handled, such as dents, cracks,
or deformation.

• Before removing any of the SRS parts (including

disconnection of the connectors), always disconnect
the SRS connector.

• Use only a digital multimeter to check the system. If it

is not a Honda multimeter, make sure its output is
10 mA (0.01 A) or less when switched to the lowest
value in the ohmmeter range. A tester with a higher
output could cause accidental deployment and
possible injury.

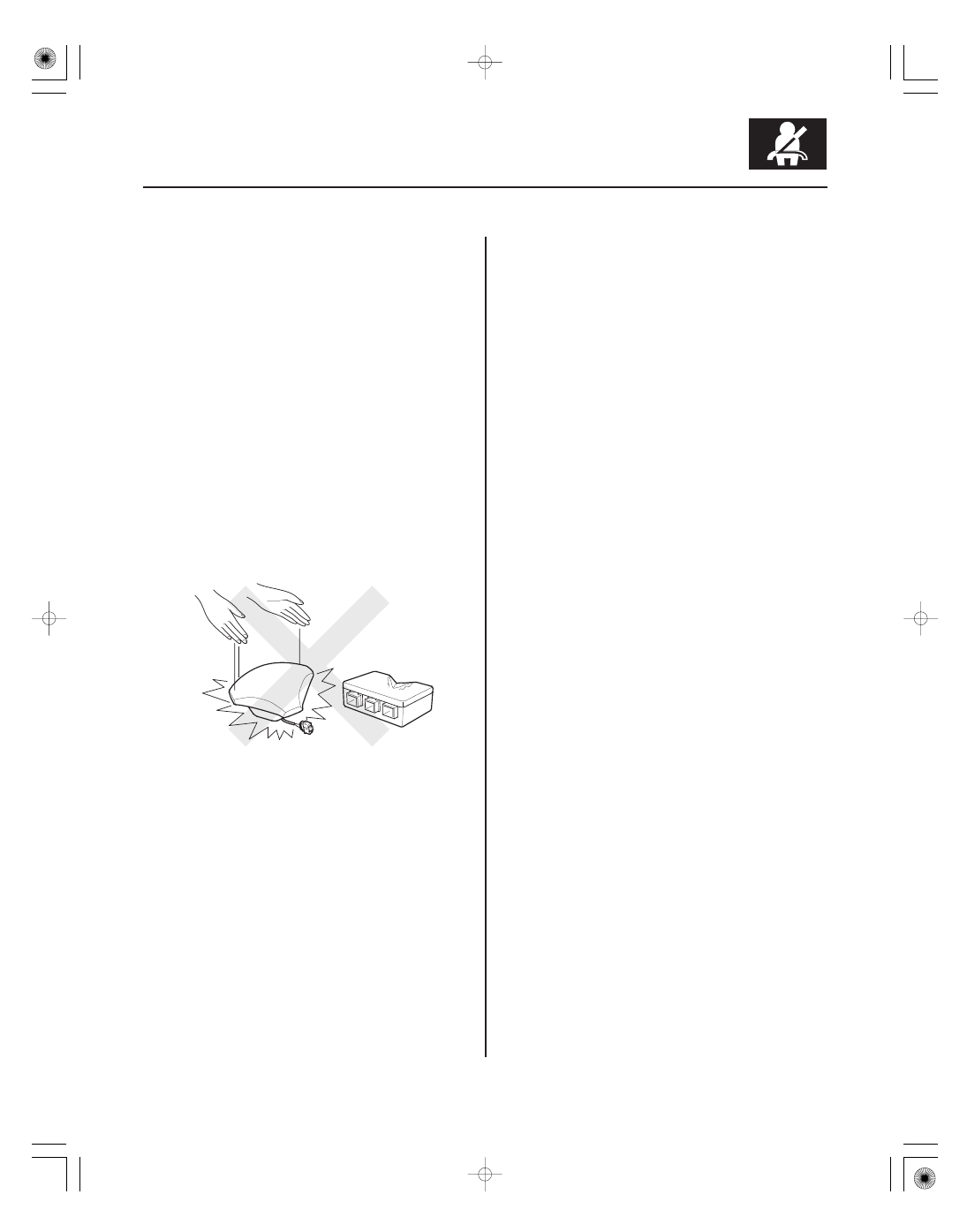

• Do not put objects on the front passenger’s airbag.
• The original radio has a coded theft protection circuit.

Be sure to get the customer’s radio code and write
down the frequencies for the radio’s preset stations
before disconnecting the battery negative cable.

• Before returning the vehicle to the customer, enter

the radio code, then enter the customer’s radio
station presets, and set the clock. Do the idle learn
procedure (see page 11-349).

• Misalignment of the cable reel could cause an open in

the wiring, making the SRS system and the horn
inoperative. Center the cable reel whenever the
following is performed (see step 6 on page 23-140).
– Installation of the steering wheel
– Installation of the cable reel
– Installation of the steering column
– Other steering-related adjustment or installation

• Do not disassemble the cable reel.
• Do not apply grease to the cable reel.
• If the cable reel shows any signs of damage, replace

it with a new one. For example, if it does not rotate
smoothly, replace the cable reel.

(cont’d)

05/06/27 18:08:00 61S6M040_230_0011
