Acura RSX Honda Integra. Manual - part 444





―――

―――
―――
―――
―――

01

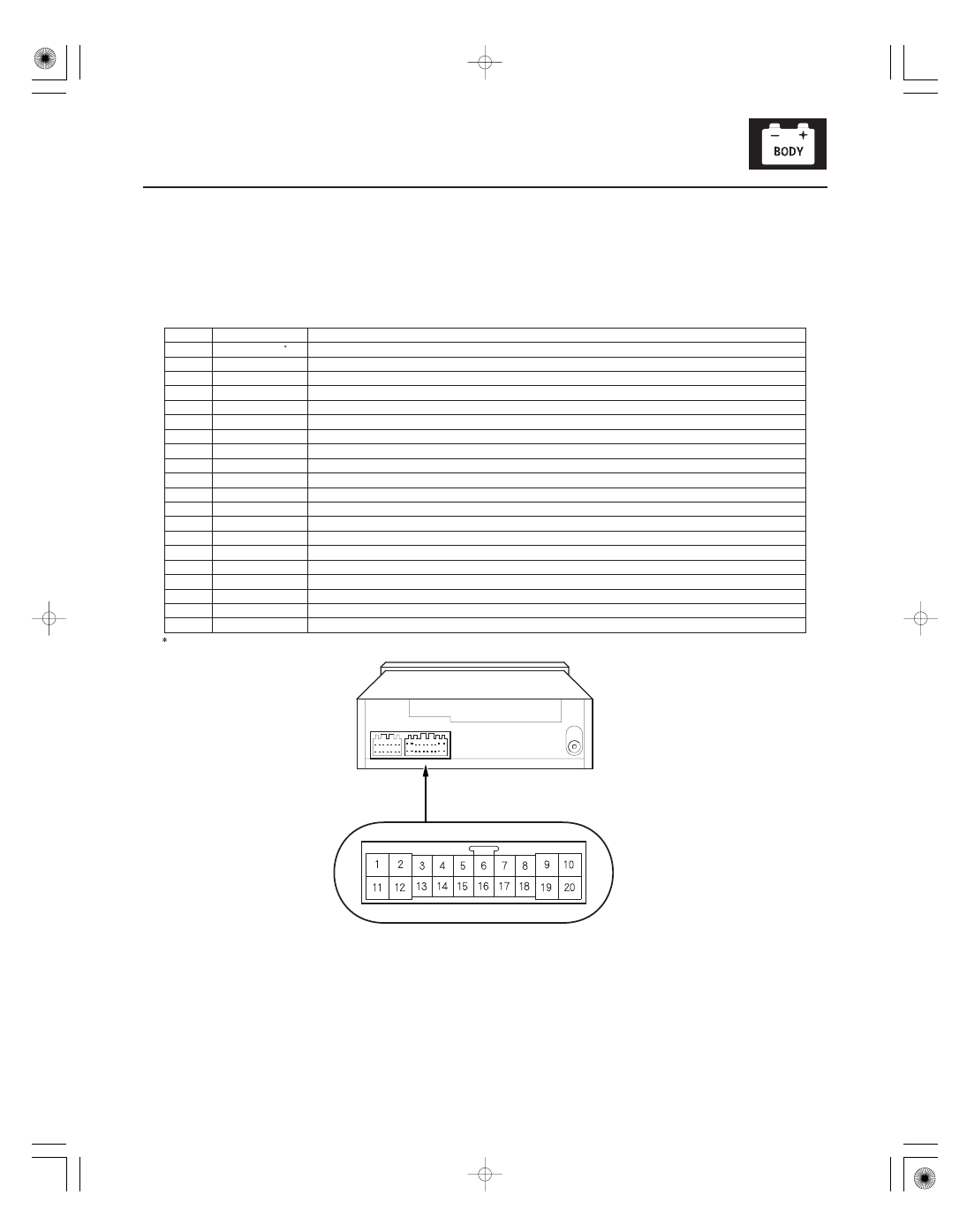

Audio Unit Connector Inputs and Outputs

Without BOSE Sound System

Cavity

Wire

Connects to

22-115

When replacing an audio unit connector, match the wires to the cavities as listed in the following table.

1

YEL/GRN

Antenna amplifier power

2

YEL/RED

ACC (Main stereo power supply)

3

Not used

4

RED/WHT

Security input

5

PNK

Right rear speaker (

)

6

BLU/WHT

Left rear speaker (

)

7

GRN/YEL

Passenger’s door speaker (

), Right tweeter (

)

8

GRN/BLK

Driver’s door speaker (

), Left tweeter (

)

9

RED/BLK

Lights-on signal

10

WHT/RED

Constant power

11

Not used

12

Not used

13

Not used

14

Not used

15

BLU/YEL

Right rear speaker (

)

16

BLU/BLK

Left rear speaker (

)

17

GRY/RED

Passenger’s door speaker (

), Right tweeter (

)

18

LT GRN

Driver’s door speaker (

), Left tweeter (

)

19

RED

Dash lights brightness controller (In the gauge assembly)

20

BLK

Ground (G403)

: ’05-06 models

(cont’d)

05/06/27 18:04:11 61S6M040_220_0116

―――

―――



―――

―――

01

Front Stereo Amplifier Connector Inputs and Outputs

With BOSE Sound System

Cavity

Wire

Connects to

22-116

Audio System

System Description (cont’d)

When replacing a stereo amplifier connector, match the wires to the cavities as listed in the following table.

1

GRY/RED

Passenger’s door speaker (

), Right tweeter (

)

2

GRN/YEL

Passenger’s door speaker (

), Right tweeter (

)

3

BLU/RED

Constant power

4

Not used

5

BRN

Radio switch

6

LT GRN

Rear stereo amplifier-bass signal (

)

7

RED

Audio unit-right rear (

)

8

GRN

Audio unit-right front (

)

9

BLK

Audio unit-left rear (

)

10

BRN

Audio unit-left front (

)

11

Not used

12

BLU/WHT

Left rear speaker (

)

13

BLU/BLK

Left rear speaker (

)

14

BLU/YEL

Right rear speaker (

)

15

PNK

Right rear speaker (

)

16

BLK

Ground (G502)

17

WHT/BLU

Shielding

18

Not used

19

GRN/WHT

Rear stereo amplifier-bass signal (

)

20

YEL

Audio unit-right rear (

)

21

ORN

Audio unit-right front (

)

22

WHT

Audio unit-left rear (

)

23

BLU

Audio unit-left front (

)

24

Not used

25

LT GRN

Driver’s door speaker (

), Left tweeter (

)

26

GRN/BLK

Driver’s door speaker (

), Left tweeter (

)

05/06/27 18:04:11 61S6M040_220_0117

―――

―――

01

Rear Stereo Amplifier Connector Inputs and Outputs

With BOSE Sound System

Cavity

Wire

Connects to

22-117

When replacing a stereo amplifier connector, match the wires to the cavities as listed in the following table.

1

WHT

Rear stereo amplifier relay (power when radio is ON)

2

Not used

3

BLK

Ground (G502)

4

LT GRN

Front stereo amplifier-bass (

)

5

Not used

6

GRN/WHT

Front stereo amplifier-bass (

)

Terminal side of
male terminals

05/06/27 18:04:11 61S6M040_220_0118

01

02

S6M6A30J10311113151KDAT00

With BOSE Sound System

22-118

Audio System

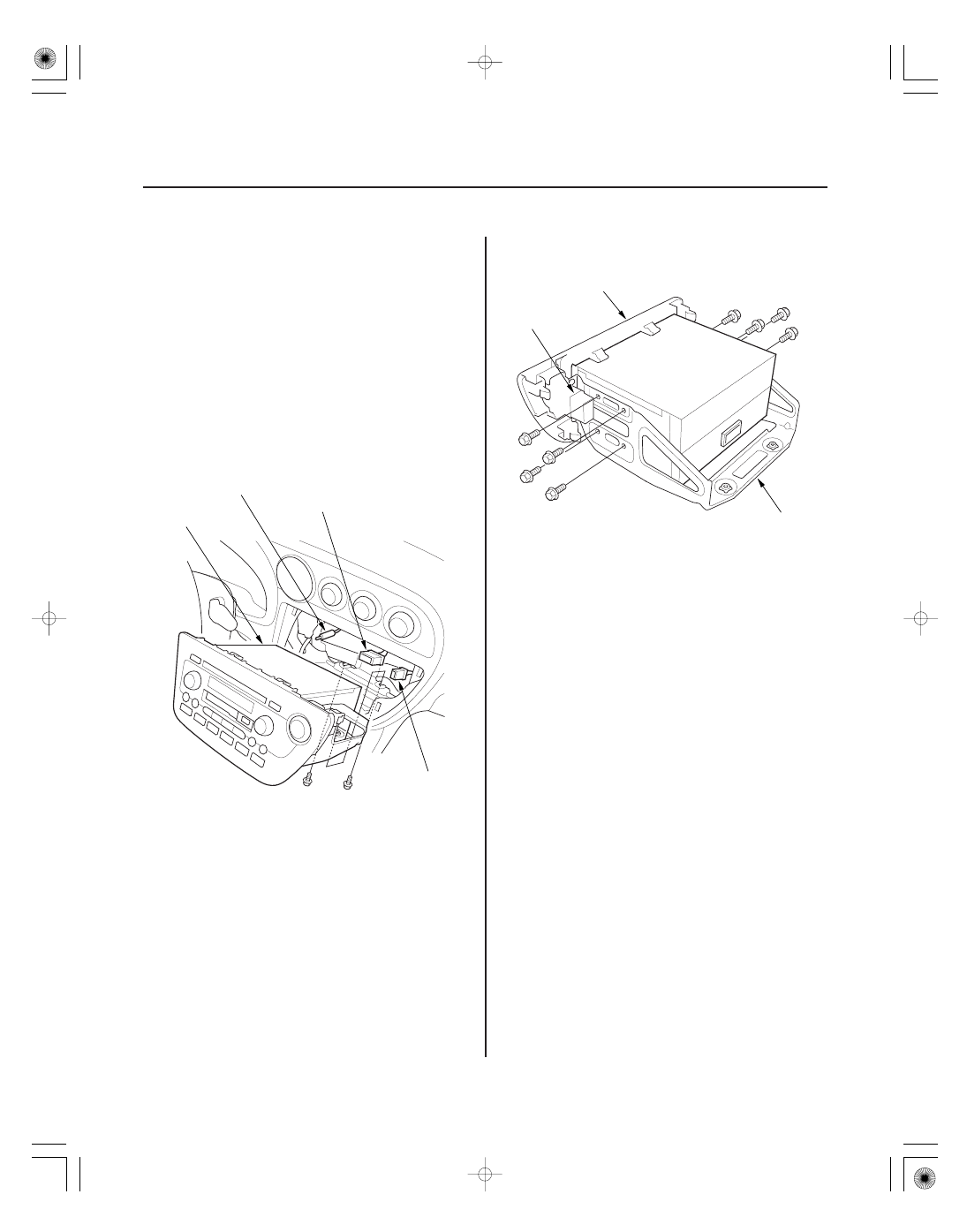

Audio Unit Removal/Installation

D

B

A

C

A

C

B

NOTE:

• Put on gloves to protect your hands.
• Take care not to scratch the dashboard and related

parts.

1. Make sure you have the anti-theft code for the radio,

then write down the frequencies for the radio’s
preset buttons.

2. Remove the dashboard center lower cover

(see page 20-65).

3. Remove the two mounting bolts, then remove the

center panel.

4. Disconnect the audio unit connector (A), antenna

lead (B) and hazard warning switch connector (C),
then remove the audio unit (D).

5. Remove the four mounting bolts and the audio unit

assembly (A) from the audio bracket (B).

6. Remove the hazard warning switch (C) from the

audio unit assembly.

7. Install the hazard warning switch to the audio unit,

then install the audio unit in the reverse order of
removal, and note these items:

• Install the hazard warning switch in the audio

unit.

• Make sure the audio unit and hazard warning

light switch connectors are plugged in properly,
and the antenna lead is connected properly.

• Enter the anti-theft code for the radio, then enter

the customer’s radio station presets.

05/06/27 18:04:12 61S6M040_220_0119
