Acura RSX Honda Integra. Manual - part 426
＋
−
Ｓ６Ｍ６ＡＺＨＪ５４２８３２５０５０１ＤＢＡＴ２０

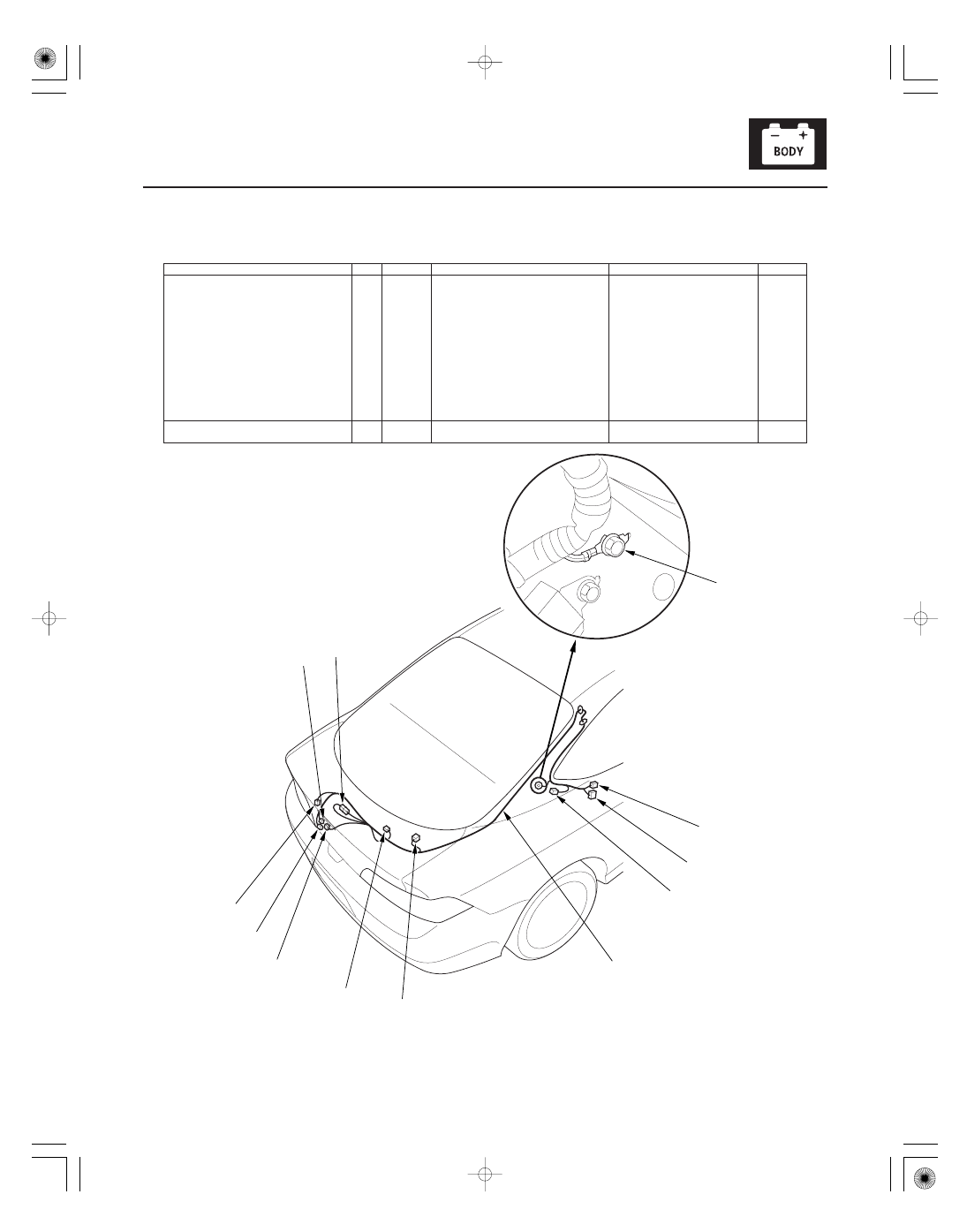

Rear Wire Harness (’05-06 models)
License Plate Light Subharness (’05-06 models)
Rear Window Defogger Wire Harness (’05-06 models)
Connector or Terminal
Ref
Cavities
Location
Connects to
Notes
Connector or Terminal
Ref
Cavities
Location
Connects to
Notes
Connector or Terminal
Ref
Cavities
Location
Connects to
Notes
22-42
Connectors and Harnesses
Connector to Harness Index (cont’d)
Cargo area light
3
2
Right side of cargo area
Left back-up light
12
2
Left taillights
Left rear side marker light
15
2
Left taillights
Left rear turn signal light
14
3
Left taillights
Left taillight/brake light connector B
13
3
Left taillights
Right back-up light
9
2
Right taillights
Right rear wheel sensor
2
2
Under right rear of floor
Right rear side marker light
4
2
Right taillights
Right rear turn signal light
5
3
Right taillights
Right taillight/brake light connector
6
3
Right taillights
Trailer lighting connector
7
6
Middle of cargo area
C601
1
20
Right rear side of floor
Floor wire harness
(see page 22-34)
C602
10
2
Middle of cargo area
License plate light
subharness
G601
8
Middle of cargo area
Body ground via rear wire
harness
License plate light connector
11
2
Behind rear bumper
C602
10
2
Middle of cargo area
Rear wire harness
Rear window defogger connector A (
)
16
1
Left C-pillar
Rear window defogger connector B (
)
18
1
Right C-pillar
Rear window defogger noise condenser
17
2
Middle of hatch
C751
19
2
Middle of hatch
Hatch wire harness
(see page 22-45)
05/06/27 18:02:52 61S6M040_220_0043
