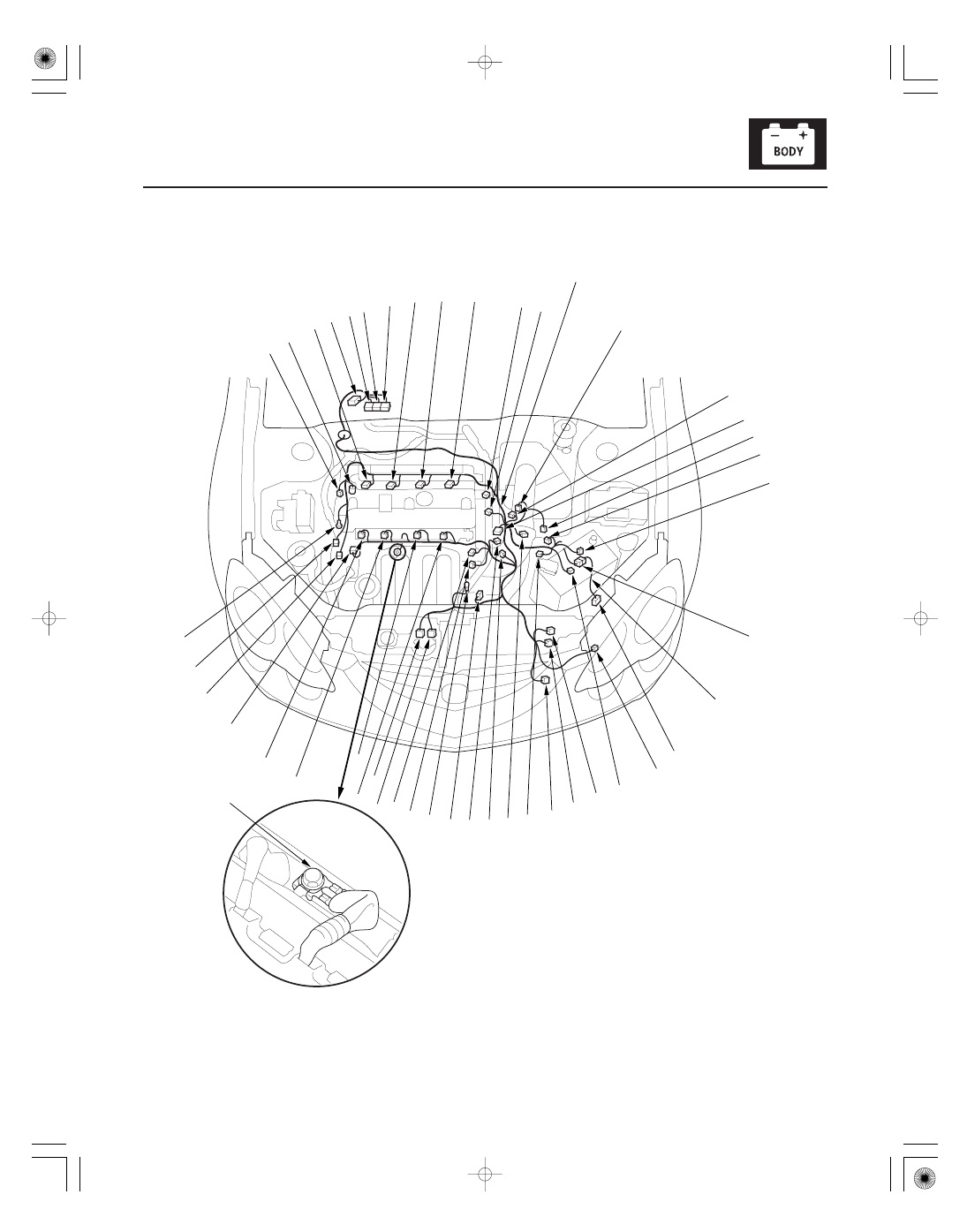

Engine Wire Harness
Connector or Terminal
Ref
Cavities
Location
Connects to
Notes
22-14
Connectors and Harnesses
Connector to Harness Index (cont’d)
A/T clutch pressure control solenoid
valve A
22
2
Transmission housing
A/T
A/T clutch pressure control solenoid
valve B
24
2
Transmission housing
A/T
A/T clutch pressure control solenoid
valve C
23
2
Transmission housing
A/T
Back-up light switch
27
2
Transmission housing
M/T
Camshaft position (CMP) sensor A
12
3
Left side of engine
Camshaft position (CMP) sensor B
11
3
Left side of engine
CKP sensor
42
3
Right side of engine
ECM/PCM connector A
7
31
Under glove box
ECM/PCM connector B
6
25
Under glove box
Engine coolant temperature (ECT)
sensor
14
2
Left side of engine
Engine oil pressure switch
44
1
Right side of engine
EVAP canister purge valve
32
2
Left side of intake manifold
Idle air control (IAC) valve
30
3
Left side of intake manifold
Ignition coil No. 1
3
3
Middle of engine compartment
Ignition coil No. 2
8
3
Middle of engine compartment
Ignition coil No. 3
9
3
Middle of engine compartment
Ignition coil No. 4
10
3
Middle of engine compartment
IMT (IMRC) solenoid valve
41
2
Right side of intake manifold
Except
Type-S
Injector No. 1
40
2
Middle of engine compartment
Injector No. 2
39
2
Middle of engine compartment
Injector No. 3
37
2
Middle of engine compartment
Injector No. 4
36
2
Middle of engine compartment
Input shaft (mainshaft) speed sensor
18
3
Transmission housing
A/T
Intake air temperature (IAT) sensor
29
2
Intake air duct
MAP sensor
33
3
Left side of intake manifold
Output shaft (countershaft) speed
sensor
17
3
Transmission housing
A/T
Output shaft (countershaft) speed
sensor
17
3
Transmission housing
M/T
PCM connector C
5
22
Under glove box
A/T
Reverse lockout solenoid valve
16
2
Transmission housing
Type-S
Starter solenoid
31
1
Under intake manifold
Except
Type-S
Throttle position (TP) sensor
28
3
Left side of intake manifold
Vehicle speed sensor (VSS)
13
3
Transmission housing
M/T
VTC oil control solenoid valve
43
2
Right side of engine
Rocker arm oil pressure switch (VTEC
oil pressure switch)
2
2
Right side of engine
Rocker arm oil control solenoid (VTEC
solenoid valve)
1
2
Right side of engine
2 clutch transmission fluid pressure
switch
26
1
Transmission housing
A/T
3 clutch transmission fluid pressure
switch
21
1
Transmission housing
A/T
1: ’02-04 models
2: ’05-06 models
2
1
nd
rd
