Acura RSX Honda Integra. Manual - part 401





21-11

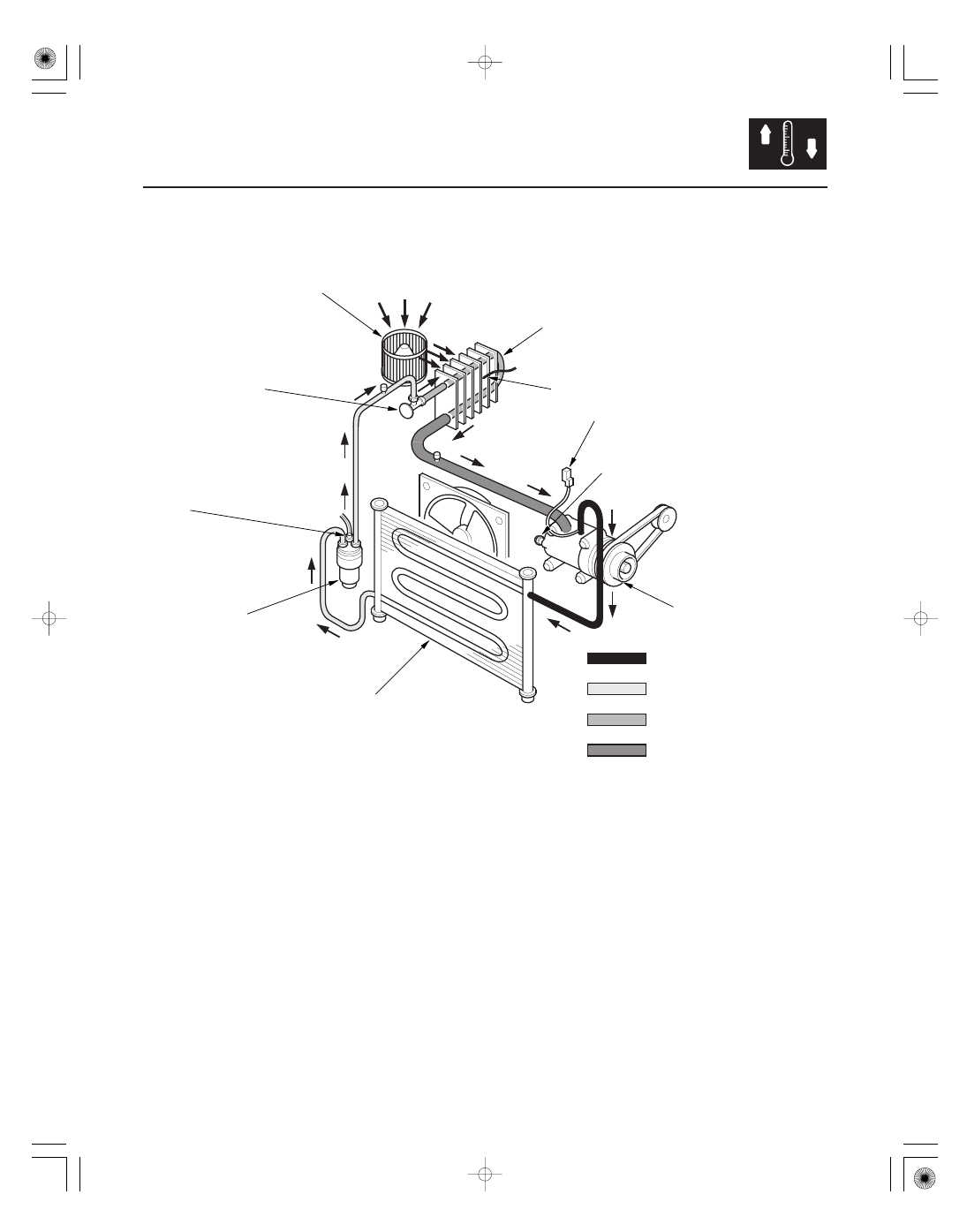

System Description

EVAPORATOR
EXPANSION VALVE

RECEIVER/DRYER

A/C COMPRESSOR

A/C CONDENSER

A/C PRESSURE SWITCH

BLOWER FAN

EVAPORATOR

A/C COMPRESSOR RELIEF VALVE

HIGH PRESSURE VAPOR

HIGH PRESSURE LIQUID

LOW PRESSURE LIQUID

LOW PRESSURE VAPOR

EVAPORATOR TEMPERATURE
SENSOR

THERMAL PROTECTOR

The air conditioning system removes heat from the passenger compartment by circulating refrigerant through the
system as shown below.

This vehicle uses HFC-134a (R-134a) refrigerant which does not contain chlorofluorocarbons. Pay attention to the
following service items:

• Do not mix refrigerants CFC-12 (R-12) and HFC-134a (R-134a). They are not compatible.
• Use only the recommended polyalkyleneglycol (PAG) refrigerant oil (KEIHIN SP-10) designed for the R-134a A/C

compressor. Intermixing the recommended (PAG) refrigerant oil with any other refrigerant oil will result in A/C
compressor failure.

• All A/C system parts (A/C compressor, discharge line, suction line, evaporator, A/C condenser, receiver/dryer,

expansion valve, O-rings for joints) are designed for refrigerant R-134a. Do not exchange with R-12 parts.

• Use a halogen gas leak detector designed for refrigerant R-134a.
• R-12 and R-134a refrigerant servicing equipment are not interchangeable. Use only a recovery/recycling/charging

station that is U.L.-listed and is certified to meet the requirements of SAE J2210 to service the R-134a air
conditioning systems.

• Always recover the refrigerant R-134a with an approved recovery/recycling/charging station before disconnecting

any A/C fitting.

(cont’d)

(Meters the required
amount of refrigerant
into the evaporator)

(Traps debris, and
removes moisture)

(Suction and compression)

(Radiation of heat)

When the refrigerant is below
196 kPa (2.0 kgf/cm , 28 psi)
or above 3,140 kPa (32 kgf/cm ,
455 psi), the A/C pressure
switch opens the circuit to
the A/C switch and stops the
air conditioning to protect the
A/C compressor.

(Absorption of heat)

(Relieves pressure at the A/C compressor
when the pressure is too high)

(Opens the A/C compressor clutch circuit
when the A/C compressor temperature
becomes too high)

2

2

05/06/27 18:02:40 61S6M040_210_0012

―――

―――

―――

―――

―――

―――

―――

―――

―――

―――

―――

―――

[ ]

Climate Control Unit Inputs and Outputs

Cavity

Wire color

Signal

21-12

Climate Control

System Description (cont’d)

CLIMATE CONTROL UNIT 30P CONNECTOR

1

BLK

GROUND (G402)

OUTPUT

2

LT GRN

SENSOR COMMON GROUND

OUTPUT

3
4

GRY

AIR MIX POTENTIAL

5 V

OUTPUT

5

BRN

EVAPORATOR TEMPERATURE SENSOR

INPUT

6

ORN

SUNLIGHT SENSOR

INPUT

7

PNK

OUTSIDE AIR TEMPERATURE SENSOR

INPUT

8

LT BLU

IN-CAR TEMPERATURE SENSOR

INPUT

9

PNK/BLK

AIR MIX POTENTIAL

INPUT

10
11

YEL/GRN

MODE 5

INPUT

12

WHT/BLU

MODE 3, 6

INPUT

13

RED/BLU

MODE 2

INPUT

14

RED/YEL

MODE 1, 4

INPUT

15

BLK/YEL

IG2 (Power)

INPUT

16

BLU/RED

BLOWER FEEDBACK

INPUT

17

BLU/YEL

POWER TRANSISTOR CONTROL

OUTPUT

18

RED/WHT

ENGINE COOLANT TEMPERATURE (ECT) SENSOR

OUTPUT

19
20

GRN

AIR MIX COOL

OUTPUT

21

PNK/BLU

AIR MIX HOT

OUTPUT

22

YEL/RED

MODE DEF

OUTPUT

23

YEL/BLU

MODE VENT

OUTPUT

24

BLU

A/C PRESSURE SWITCH

OUTPUT

25

GRN/WHT

FRESH

OUTPUT

26

GRN/YEL

RECIRCULATE

OUTPUT

27

YEL/BLK

REAR WINDOW DEFOGGER RELAY

OUTPUT

28

RED

DASH LIGHTS BRIGHTNESS CONTROLLER
(In the gauge assembly)

OUTPUT

29
30

RED/BLK

No.2 (15 A)

No.2 (10 A)

FUSE (In the under-hood

fuse/relay box)

INPUT

: ’05-06 models

Wire side of female terminals

05/06/27 18:02:41 61S6M040_210_0013

21-13

05/06/27 18:02:41 61S6M040_210_0014

21-14

Climate Control

Circuit Diagram

BLK

1

G302

G302

No. 20 (40 A) *

BLK/YEL

No. 19 (100 A)

5 V

ECT

SG2

GRN/YEL

B8

RED/WHT

G301

BLK

BLU/WHT

No. 12 (40 A)

3

2

1

4

YEL

SEFMJ

12 V

1

ACC

No. 14 (10 A)

BLK/RED

FANC

BLK/YEL

BLU/WHT

ECM/PCM

No. 1 (30 A)

No. 4 (20 A)

GRN

GRN/WHT

1

2

1

2

BLK

GRN/WHT

2

3

3

2

2

1

3

2

4

1

BLU/RED

RED

BLK

BLU/BLK

1

4

4

1

BLU/YEL

UNDER-HOOD FUSE/RELAY BOX

BAT

IG2

WHT

No. 20 (50 A) *

BATTERY

IGNITION SWITCH
IG2 HOT in ON (II)

UNDER-DASH
FUSE/RELAY BOX

RADIATOR
FAN
RELAY

A/C
CONDENSER
FAN
RELAY

A/C
COMPRESSOR
CLUTCH
RELAY

BLOWER
MOTOR
RELAY

THERMAL
PROTECTOR

A/C
COMPRESSOR
CLUTCH

MULTIPLEX
CONTROL UNIT
(In the under-dash
fuse/relay box)

A/C PRESSURE
SWITCH

ENGINE
COOLANT
TEMPERATURE
(ECT) SENSOR

A/C
CONDENSER
FAN
MOTOR

RADIATOR
FAN
SWITCH
(Closed: Above

199 °F (93 °C) )

RADIATOR
FAN
MOTOR

FANC

GRN/WHT

BLU

1

2

SEFMJ

YEL

12 V

YEL

SG2

GRN/YEL

RED/WHT

*3

*4

*3

*4

*3

*4

1

2

1

2

E10

B6

E18

F9

E12

E24

E13

A10

A23

05/06/27 18:02:43 61S6M040_210_0015
