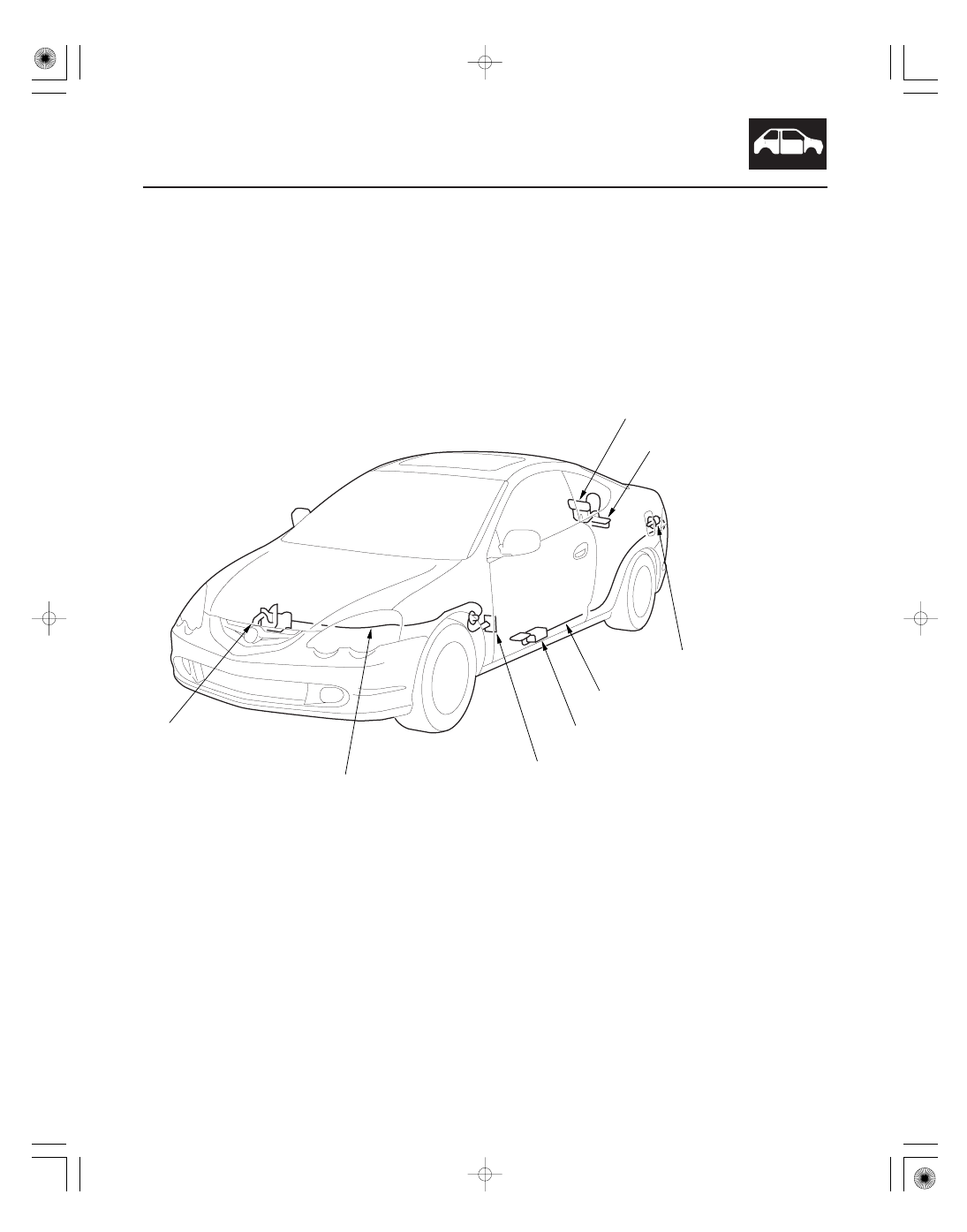

01 S6M6A00J18526234611KBAT01 01 S6M6A00J18500028101KBAT00 For Some Models 20-113 20-113 Rear Strake Replacement Fuel Pipe Protector Replacement Fastener Locations : Bolt, 5 A C B : Clip, 2 B B A A A A A C Forward 6 x 1.0 mm Fastener Locations : Clip, 4 A 1. Remove the bolts (A) and clips (B), then remove the rear strake (C) on each side. Take care not to 2. Install the strake in the reverse order of removal, and note these items: • Replace any damaged or stress-whitened clips. 1. Remove the clips, then remove the fuel pipe protector (A). Take care not to scratch the body. 2. Install the protector in the reverse order of removal, and note these items: • Replace any damaged or stress-whitened clips. 05/06/27 18:24:59 61S6M040_200_0114 |
