Acura RSX Honda Integra. Manual - part 292





01

S6M6A02E10400013012KBAT10

14-293

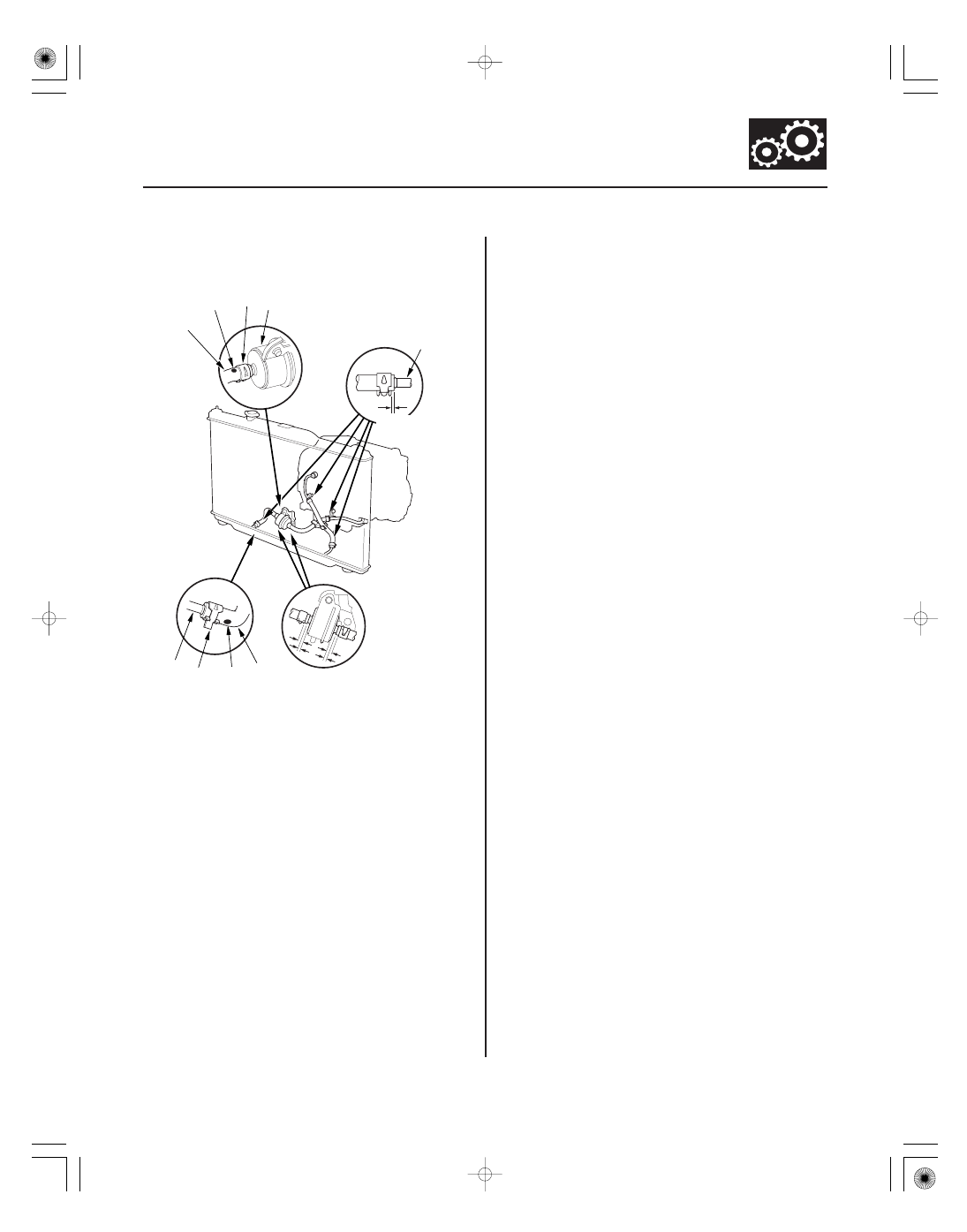

ATF Cooler Hose Replacement

A

C

D

B

H

F

D

G

E

2

4 mm

(0.1

0.2 in.)

10

12 mm

(0.4

0.5 in.)

Both sides

5

6 mm

(0.20

0.24 in.)

Both sides

1. Connect the ATF cooler hoses (A) to the ATF filter

(B), with the dot (C) facing up, and secure the hose
ends with the clips (D).

2. Connect the ATF cooler hose (E) to the ATF cooler

(F) with the dot (G) facing down, and to the ATF
cooler lines (H) on the transmission, and secure the
hoses with the clips.

3. Install the clamp on the hoses.

05/06/27 17:57:52 61S6M040_140_0294

01

02

03

S6M6A02E10411412282KAAT00

14-294

Automatic Transmission

Shift Lever Removal

D

B

A

C

E

B

A

1. Remove the center console (see page 20-59).

2. Shift the transmission into the N position.

3. Remove the nut securing the shift cable end, then

separate the cable end from the shift lever.

4. Rotate the socket holder (A) on the shift cable (B) a

quarter turn; the tab (C) on the socket holder will be
in the opening of the shift lever bracket base (D).
Then slide the holder to remove the shift cable
from the shift lever bracket base (D). Do not remove
the shift cable by twisting the shift cable guide (E).

5. Disconnect transmission gear selection switch/park

pin switch connector (A) and shift lock solenoid
connector (B).

6. Remove the shift lever assembly.

05/06/27 17:57:53 61S6M040_140_0295

01

01

S6M6A02E10411412282KCAT00

14-295

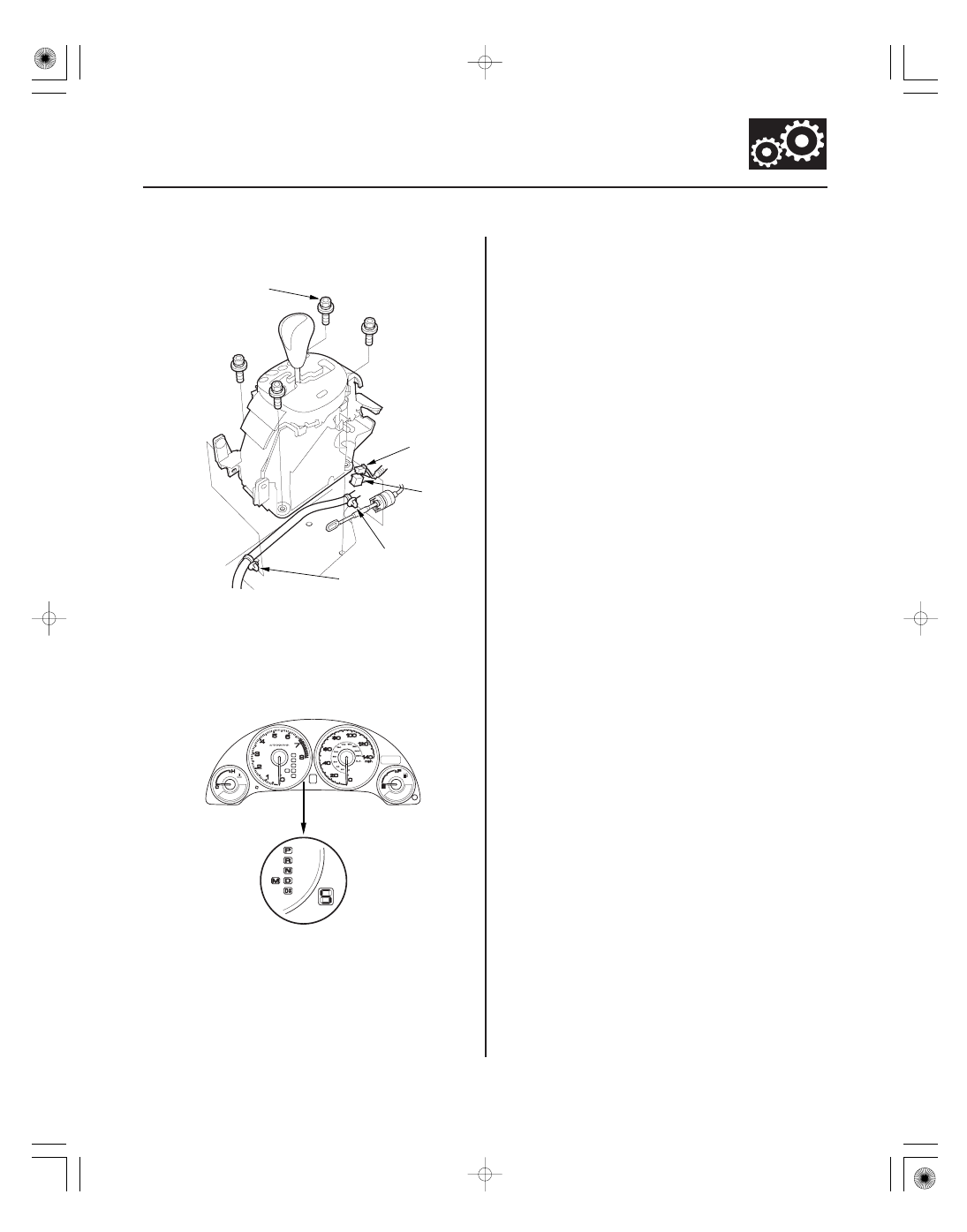

Shift Lever Installation

8 x 1.25 mm
22 N·m (2.2 kgf·m, 16 lbf·ft)

B

A

C

C

1. Install the shift lever assembly.

2. Connect transmission gear selection switch/park

pin switch connector (A) and shift lock solenoid
connector (B), and install the harness clamps (C) on
the shift lever bracket base.

3. Turn the ignition switch ON (II), and verify that the

N position indicator comes on.

4. Install the shift cable to the shift lever (see step 5 on

page 14-299). If necessary, adjust the shift cable.

05/06/27 17:57:53 61S6M040_140_0296

01

S6M6A02E10411412282MFAT00

14-296

Automatic Transmission

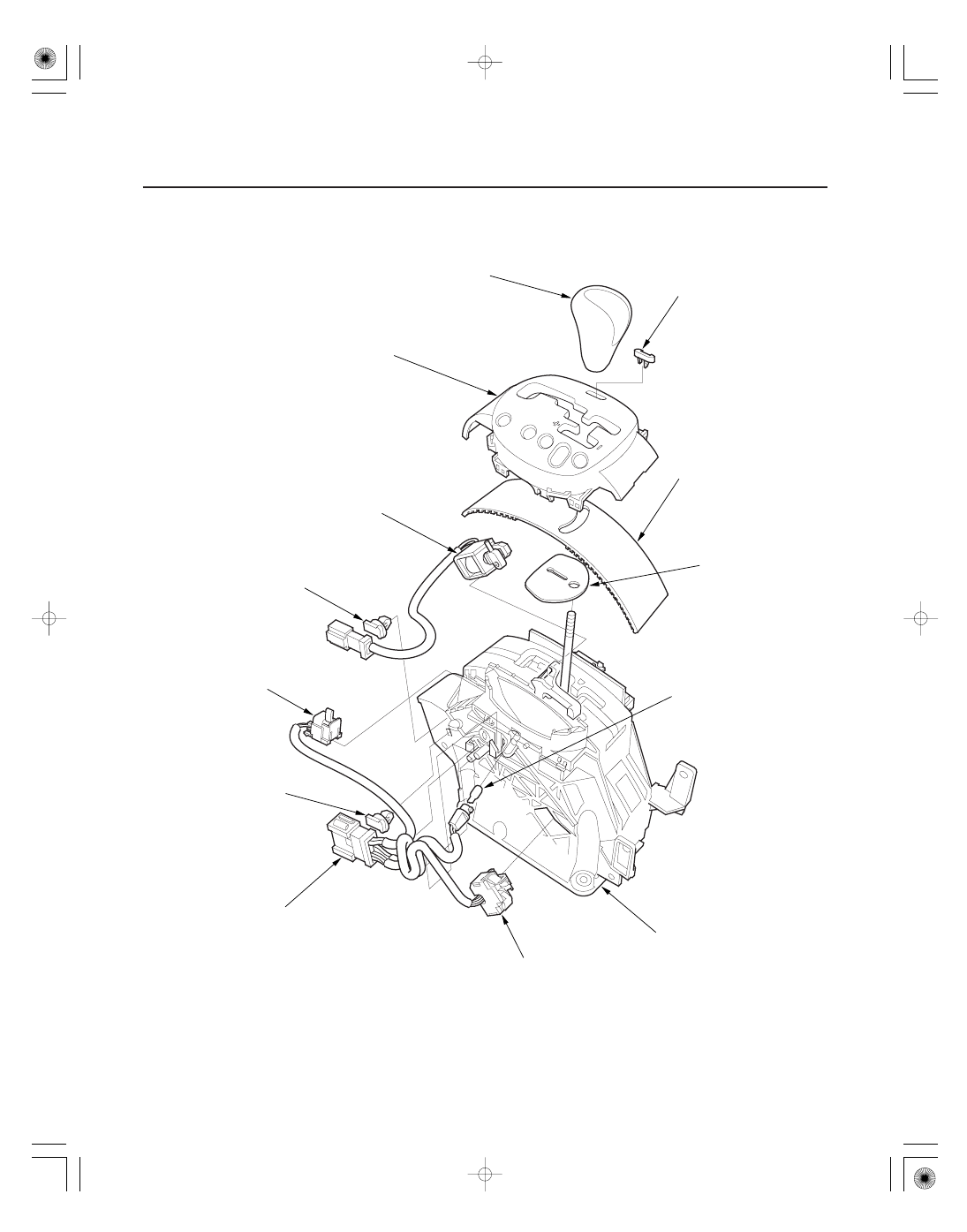

Shift Lever Disassembly/Reassembly

SHIFT LOCK RELEASE
COVER

A/T GEAR POSITION INDICATOR PANEL

SHIFT LEVER KNOB
8 N·m (0.8 kgf·m, 6 lbf·ft)

SHIFT LEVER COVER

SHIFT LEVER
COVER SLIDER

A/T GEAR POSITION
INDICATOR PANEL
LIGHT BULB

SHIFT LEVER BRACKET BASE

SHIFT LOCK SOLENOID

TRANSMISSION GEAR
SELECTION SWITCH

CONNECTOR BRACKET

PARK PIN SWITCH

CONNECTOR BRACKET

TRANSMISSION GEAR
SELECTION SWITCH/
PARK PIN SWITCH
CONNECTOR

05/06/27 17:57:53 61S6M040_140_0297
