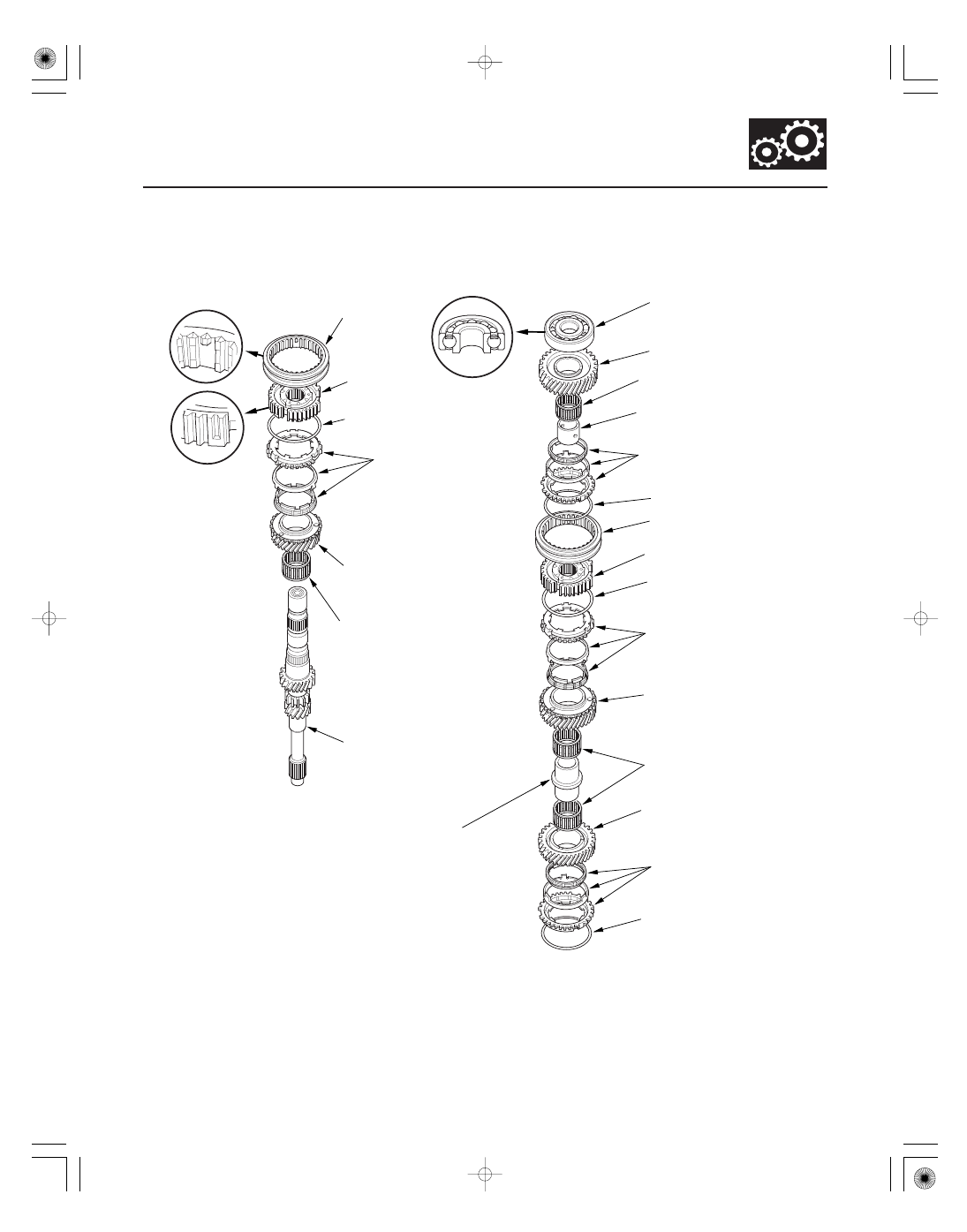

03 04 S6M6A01E34150400000MAAT00 − − − − − − − − − − Standard: 27.987 28.000 mm (1.1019 1.1024 in.) B Distance collar surface: 31.984 32.000 mm (1.2594 1.2598 in.) C Needle bearing surface: 38.984 39.000 mm (1.5348 1.5354 in.) D Ball bearing surface (clutch housing side): 27.977 27.990 mm (1.1015 1.1020 in.) E Bushing surface: 20.80 20.85 mm (0.819 0.821 in.) Service Limit: 27.93 mm (1.100 in.) B: 31.93 mm (1.257 in.) C: 38.93 mm (1.533 in.) D: 27.92 mm (1.099 in.) E: 20.75 mm (0.817 in.) Standard: 0.02 mm (0.001 in.) max. Service Limit: 0.05 mm (0.002 in.) 13-43 Mainshaft Inspection E D C B A 1. Inspect the gear and bearing surfaces for wear and damage, then measure the mainshaft at points A, B, 2. Inspect the runout by supporting both ends of the mainshaft. Then rotate mainshaft two complete 05/06/27 18:10:11 61S6M040_130_0043 |
