PGM-FI System

DTC Troubleshooting (cont’d)

A/F SENSOR (SENSOR 1) 4P CONNECTOR

AFS
(RED)

AFS
(YEL/GRN)

10. Turn the ignition switch OFF.

11. Disconnect the A/F sensor (Sensor 1) 4P connector

and ECM/PCM connector A (31P).

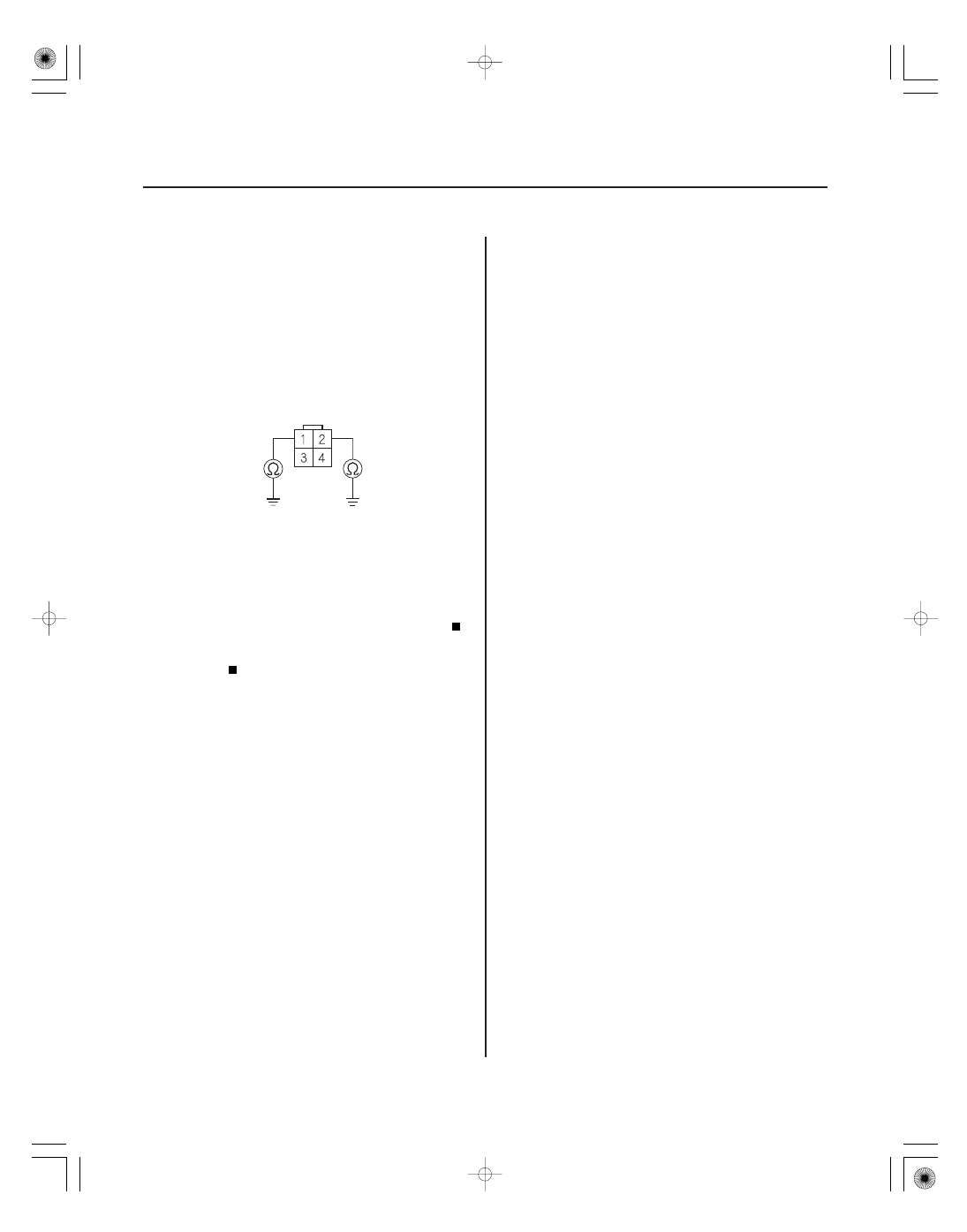

12. Check for continuity between body ground and A/F

sensor (Sensor 1) 4P connector terminals No. 2 and
No. 1.

Repair short in the wire between the A/F

sensor (Sensor 1) and the ECM/PCM (A6 or A16).

Replace the A/F sensor (Sensor 1) (see page

11-279).

Wire side of female terminals

Is ther e continuity?

05/06/27 17:37:52 61S6M040_110_0222

Ｓ６Ｍ６ＡＡＧＫ７２１０００９１１６４ＦＡＡＴ００

−

DTC P1164:

DTC P2A00:

YES

11-223

A/F Sensor (Sensor 1) Circuit

Range/Performance Problem
(2002-2003 models)

A/F Sensor (Sensor 1) Circuit

Range/Performance Problem
(2004 model)

NOTE:

• Information marked with an asterisk ( ) applies to

2002-2003 models.

• Information marked with double asterisk (

) applies

to 2004 model.

1. Reset the ECM/PCM (see page 11-4).

2. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on.

3. Check for a Temporary DTC with a scan tool or the

HDS.

Replace the A/F sensor (Sensor 1) (see page

11-279).

Go to step 4.

4. Test-drive in D3 position (M/T in 3rd gear). Starting

at 1,600 rpm, accelerate using wide open throttle
for at least 5 seconds. Then decelerate for at least
5 seconds with the throttle completely closed until
the readiness code or Temporary DTC P1164
comes on.

Replace the A/F sensor (Sensor 1) (see page

11-279).

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
C101 (located under the right side of the dash),
C401 (located under the left side of the dash), the
A/F sensor relay, the A/F sensor (Sensor 1) and the
ECM/PCM.

Is T empor ar y DT C P1164 ( P2A00) indicated?

05/06/27 17:37:52 61S6M040_110_0223

０１

０２

Ｓ６Ｍ６ＡＡＡＫ７２１０００９１１６７ＦＡＡＴ００

＋

−

＋

−

DTC P1167:

YES

11-224

PGM-FI System

DTC Troubleshooting (cont’d)

AFS

(RED)

AFS

(RED/YEL)

ECM/PCM CONNECTOR A (31P)

JUMPER WIRE

A/F SENSOR (SENSOR 1) 4P CONNECTOR

AFS
(RED)

AFS
(YEL/GRN)

A/F Sensor (Sensor 1) Heater

System Malfunction
(2002 model)

NOTE: If DTC P1162 is stored the same time as
DTC P1167, troubleshoot DTC P1162 first, then
troubleshoot DTC P1167 (2002 model only).

1. Reset the ECM/PCM (see page 11-4).

2. Start the engine. Wait for at least 80 seconds.

Go to step 3.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
C101 (located under the right side of the dash),
C401 (located under middle of the dash), C402
(located under middle of the dash) the A/F sensor
relay, the A/F sensor (Sensor 1), and the ECM/
PCM.

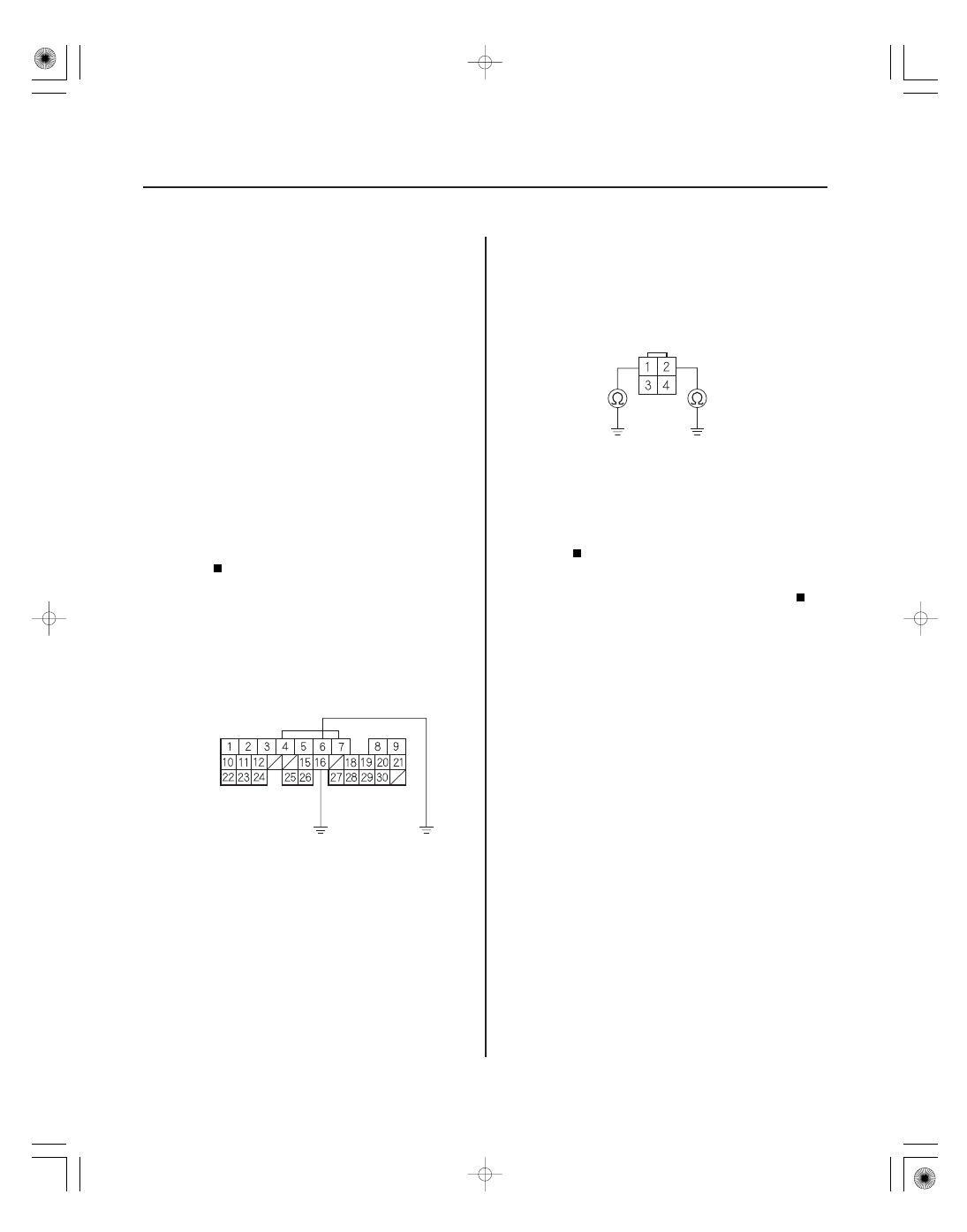

3. Disconnect the A/F sensor (Sensor 1) 4P connector

and ECM/PCM connector A (31P).

4. Connect ECM/PCM connector terminals A6 and A16

to body ground with a jumper wire.

5. Check for continuity between body ground and A/F

sensor (Sensor 1) 4P connector terminals No. 1 and
No. 2 individually.

Replace the A/F sensor (Sensor 1) (see page

11-279).

Repair open in the wire between the A/F

sensor (Sensor 1) and the ECM/PCM (A6 or A16).

Wire side of female terminals

Is DT C P1167 indicated?

Is ther e continuity?

05/06/27 17:37:52 61S6M040_110_0224

Ｓ６Ｍ６ＡＡＬＫ７２１０００９１１７２ＦＡＡＴ００

−

DTC P1172:

YES

11-225

A/F Sensor (Sensor 1) Circuit Out

of Range High
(2005-2006 models)

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle.

4. Monitor the OBD STATUS for P1172 in the DTCs

MENU with the HDS.

Go to step 5.

If the screen indicates PASSED, intermittent

failure, system is OK at this time. Check for poor
connections or loose terminals at the A/F sensor
(Sensor 1) and the ECM/PCM. If the screen
indicates EXECUTING, keep driving until a result
comes on. If the screen indicates OUT OF
CONDITION, go to step 3 and recheck.

5. Turn the ignition switch OFF.

6. Replace the A/F sensor (Sensor 1) (see page

11-279).

7. Turn the ignition switch ON (II).

8. Reset the ECM/PCM with the HDS.

9. Do the ECM/PCM idle learn procedure (see page

11-349).

10. Start the engine. Hold the engine speed at

3,000 rpm withtout load (in Park or neutral) until the
radiator fan comes on, then let it idle.

11. Check for Temporary DTCs or DTCs with the HDS.

If DTC P1172 is indicated, check for poor

connections or loose terminals at the A/F sensor
(Sensor 1) and the ECM/PCM, then go to step 1. If
any other Temporary DTCs or DTCs are indicated,
go to the indicated DTC’s troubleshooting.

Go to step 12.

12. Monitor the OBD STATUS for DTC P1172 in the

DTCs MENU with the HDS.

Troubleshooting is complete.

If the screen indicates FAILED, check for poor

connections or loose terminals at the A/F sensor
(Sensor 1) and the ECM/PCM, then go to step 1. If
the screen indicates EXECUTING, keep driving until
a result comes on. If the screen indicates OUT OF
CONDITION, go to step 10 and recheck.

Does the scr een indicate F AILED?

Ar e any T empor ar y DT Cs or DT Cs indicated?

Does the scr een indicate PASSED?

05/06/27 17:37:53 61S6M040_110_0225
