Acura RSX Honda Integra. Manual - part 103

−

０１

０２

Ｓ６Ｍ６ＡＡＪＫ７２１０００９０１１８ＦＡＡＴ００

−

DTC P0118:

YES

11-118

PGM-FI System

DTC Troubleshooting (cont’d)

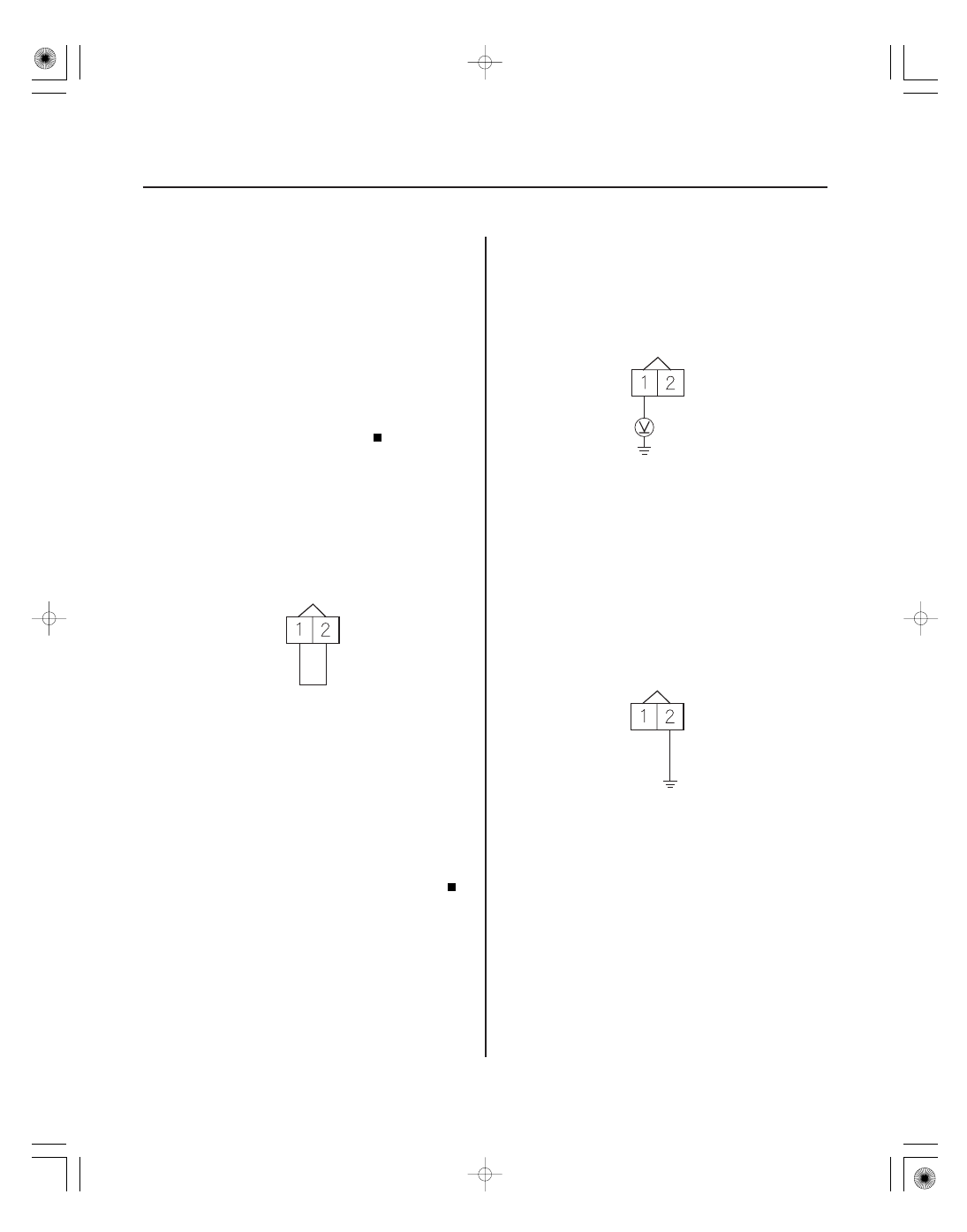

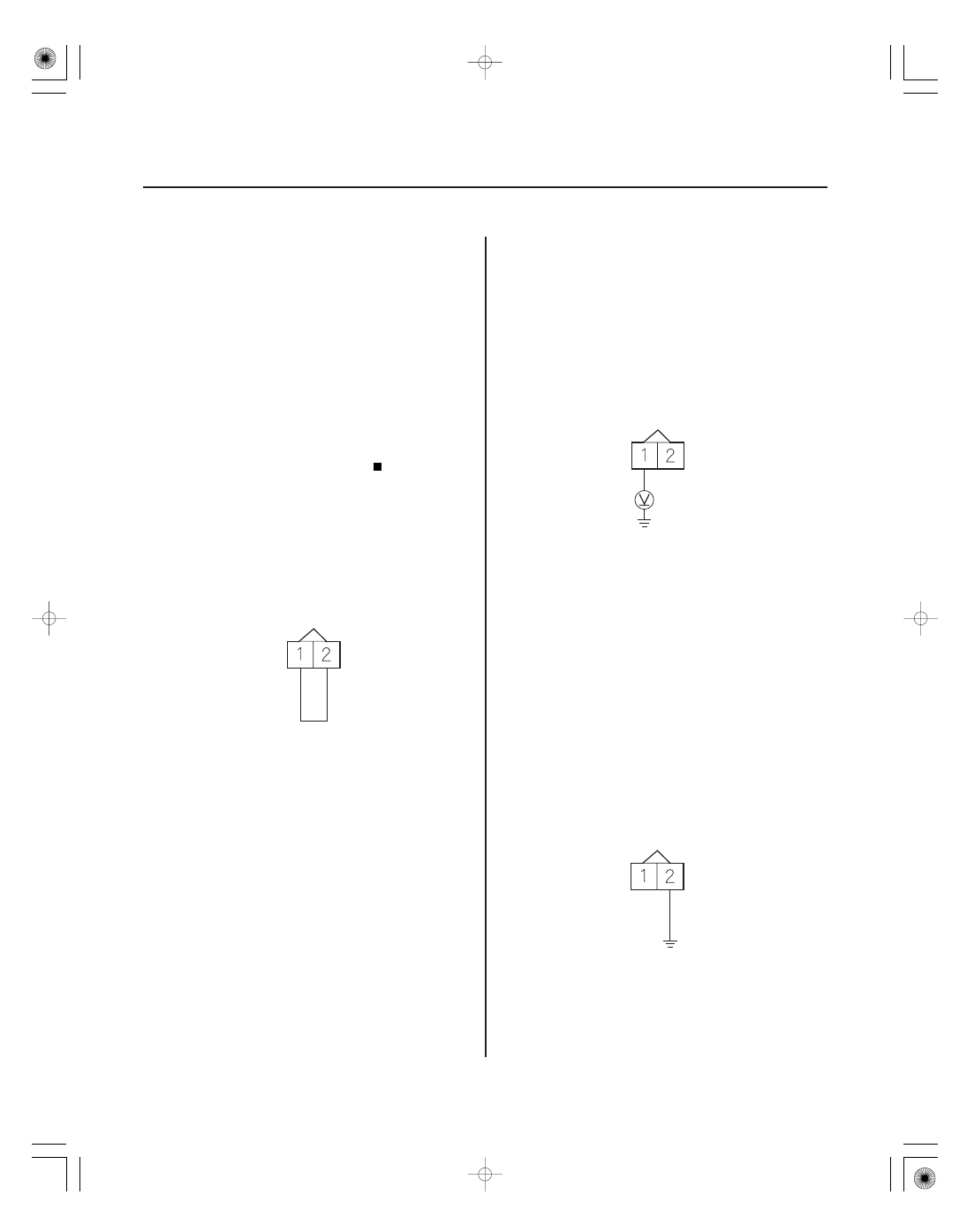

ECT SENSOR 2P CONNECTOR

ECT
(RED/WHT)

SG2
(GRN/YEL)

JUMPER WIRE

ECT SENSOR 2P CONNECTOR

ECT
(RED/WHT)

ECT SENSOR 2P CONNECTOR

SG2
(GRN/YEL)

JUMPER WIRE

ECT Sensor Circuit High Voltage

(2002-2004 models)

1. Turn the ignition switch ON (II).

2. Check the ECT with a scan tool or the HDS.

Go to step 3.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
the ECT sensor and the ECM/PCM.

3. Turn the ignition switch OFF.

4. Disconnect the ECT sensor 2P connector.

5. Connect ECT sensor 2P connector terminals No. 1

and No. 2 with a jumper wire.

6. Turn the ignition switch ON (II).

7. Check the ECT with a scan tool or the HDS.

Go to step 8.

Replace the ECT sensor (see page 11-280).

8. Turn the ignition switch OFF.

9. Remove the jumper wire.

10. Turn the ignition switch ON (II).

11. Measure voltage between ECT sensor 2P connector

terminal No. 1 and body ground.

Go to step 12.

Go to step 14.

12. Connect ECT sensor 2P connector terminal No. 2 to

body ground with a jumper wire.

Wire side of female terminals

4 °F (

20 °C) or less, or 5 V indicated?

4 °F (

20 °C) or less, or 5 V indicated?

Is ther e about 5 V ?

05/06/27 17:33:39 61S6M040_110_0118

０３

０４

−

YES

11-119

SG2
(GRN/YEL)

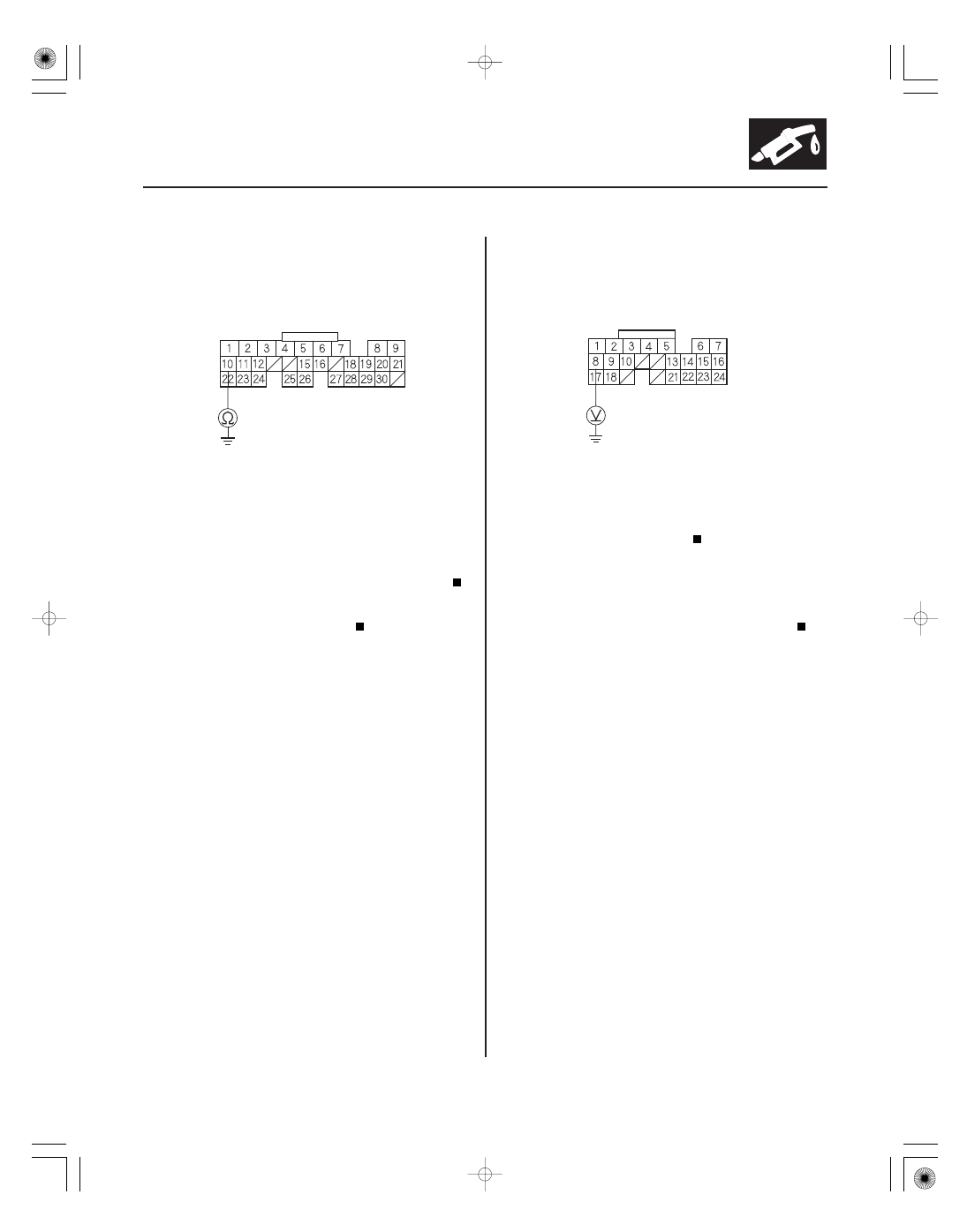

ECM/PCM CONNECTOR A (31P)

ECT (RED/WHT)

ECM/PCM CONNECTOR B (24P)

13. Check for continuity between ECM/PCM connector

terminal A10 and body ground.

Update the ECM/PCM if it does not have the

latest software, or substitute a known-good ECM/
PCM (see page 11-6), then recheck. If the symptom/
indication goes away with a known-good ECM/PCM,
replace the original ECM/PCM (see page 11-284).

Repair open in the wire between the ECM/

PCM (A10) and the ECT sensor.

14. Measure voltage between ECM/PCM connector

terminal B8 and body ground.

Repair open in the wire between the ECM/

PCM (B8) and the ECT sensor.

Update the ECM/PCM if it does not have the

latest software, or substitute a known-good ECM/
PCM (see page 11-6), then recheck. If the symptom/
indication goes away with a known-good ECM/PCM,
replace the original ECM/PCM (see page 11-284).

Wire side of female terminals

Is ther e continuity?

Is ther e about 5 V ?

05/06/27 17:33:40 61S6M040_110_0119

−

０１

０２

０３

Ｓ６Ｍ６ＡＡＬＫ７２１０００９０１１８ＦＡＡＴ００

−

DTC P0118:

YES

11-120

PGM-FI System

DTC Troubleshooting (cont’d)

ECT SENSOR 2P CONNECTOR

ECT
(RED/WHT)

SG2
(GRN/YEL)

JUMPER WIRE

ECT SENSOR 2P CONNECTOR

ECT
(RED/WHT)

ECT SENSOR 2P CONNECTOR

SG2
(GRN/YEL)

JUMPER WIRE

ECT Sensor Circuit High Voltage

(2005-2006 models)

1. Turn the ignition switch ON (II).

2. Check the ECT SENSOR in the DATA LIST with the

HDS.

Go to step 3.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
the ECT sensor and the ECM/PCM.

3. Turn the ignition switch OFF.

4. Disconnect the ECT sensor 2P connector.

5. Connect ECT sensor 2P connector terminals No. 1

and No. 2 with a jumper wire.

6. Turn the ignition switch ON (II).

7. Check the ECT SENSOR in the DATA LIST with the

HDS.

Go to step 8.

Go to step 18.

8. Turn the ignition switch OFF.

9. Remove the jumper wire from the ECT sensor 2P

connector.

10. Turn the ignition switch ON (II).

11. Measure voltage between ECT sensor 2P connector

terminal No. 1 and body ground.

Go to step 12.

Go to step 17.

12. Turn the ignition switch OFF.

13. Jump the SCS line with the HDS.

14. Disconnect ECM/PCM connector A (31P).

15. Connect ECT sensor 2P connector terminal No. 2 to

body ground with a jumper wire.

Wire side of female terminals

Is about

40 °F (

40 °C) or less, or 4.90 V or

mor e indicated?

Is about

40 °F (

40 °C) or less, or 4.90 V or

mor e indicated?

Is ther e about 5 V ?

05/06/27 17:33:40 61S6M040_110_0120

０４

０５

−

YES

11-121

SG2
(GRN/YEL)

ECM/PCM CONNECTOR A (31P)

ECM/PCM CONNECTOR B (24P)

ECT (RED/WHT)

16. Check for continuity between ECM/PCM connector

terminal A23 and body ground.

Go to step 25.

Repair open in the wire between the ECM/

PCM (A23) and the ECT sensor, then go to step 20.

17. Measure voltage between ECM/PCM connector

terminal B8 and body ground.

Repair open in the wire between the ECM/

PCM (B8) and the ECT sensor, then go to step 20.

Go to step 25.

18. Turn the ignition switch OFF.

19. Replace the ECT sensor (see page 11-280).

20. Reconnect all connectors.

21. Turn the ignition switch ON (II).

22. Reset the ECM/PCM with the HDS.

23. Do the ECM/PCM idle learn procedure (see page

11-349).

24. Check for Temporary DTCs or DTCs with the HDS.

If DTC P0118 is indicated, check for poor

connections or loose terminals at the ECT sensor
and the ECM/PCM, then go to step 1. If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

Troubleshooting is complete.

25. Update the ECM/PCM if it does not have the latest

software, or substitute a known-good ECM/PCM
(see page 11-6).

26. Check for Temporary DTCs or DTCs with the HDS.

If DTC P0118 is indicated, check for poor

connections or loose terminals at the ECT sensor
and the ECM/PCM, then go to step 1. If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

If the ECM/PCM was updated, troubleshooting

is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-284).

Wire side of female terminals

Is ther e continuity?

Is ther e about 5 V ?

Ar e any T empor ar y DT Cs or DT Cs indicated?

05/06/27 17:34:17 61S6M040_110_0121
