Acura RSX Honda Integra. Manual - part 1





S6M6A00000000000000BAAT00

INTRODUCTION

How to Use This Manual

Safety Messages

Safety Labels
Safety Messages

Instructions

HONDA MOTOR CO., LTD.
Service Publication Office

As sections with * include SRS components;
special precautions are required when servicing.

This manual is divided into multiple sections. The first page of
each section is marked with a black tab that lines up with its
corresponding thumb index tab on this page and the back cover.
You can quickly find the first page of each section without
looking through a full table of contents. The symbols printed at
the top corner of each page can also be used as a quick
reference system.
Each section includes:

1. A table of contents, or an exploded view index showing:

• Parts disassembly sequence.
• Bolt torques and thread sizes.
• Page references to descriptions in text.

2. Disassembly/assembly procedures and tools.
3. Inspection.
4. Testing/troubleshooting.
5. Repair.
6. Adjustments.

Your safety, and the safety of others, is very important. To help
you make informed decisions, we have provided safety
messages, and other safety information throughout this manual.
Of course, it is not practical or possible to warn you about all the
hazards associated with servicing this vehicle. You must use
your own good judgment.

You will find important safety information in a variety of forms
including:

on the vehicle.

preceded by a safety alert symbol

and

one of three signal words, DANGER, WARNING, or CAUTION.
These signal words mean:

You WILL be KILLED or SERIOUSLY HURT if
you don’t follow instructions.
You CAN be KILLED or SERIOUSLY HURT if
you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.

how to service this vehicle correctly and safely.

All information contained in this manual is based on the latest
product information available at the time of printing. We reserve
the right to make changes at anytime without notice. No part of
this publication may be reproduced, stored in retrieval system,
or transmitted, in any form by any means, electronic,
mechanical, photocopying, recording, or otherwise, without the
prior written permission of the publisher. This includes text,
figures, and tables.

As you read this manual, you will find information that is
preceded by a

symbol. The purpose of this message is

to help prevent damage to your vehicle, other property, or the
environment.

First Edition 07/2005 2,038 pages
All Rights Reserved
Specifications apply to U.S.A. and Canada

General Info

Specifications

Maintenance

Engine

Cooling

Fuel and Emissions

*Steering

Suspension

*Body

*Heating, Ventilation

and Air Conditioning

*Body Electrical

*Restraints

Transaxle

*Engine Electrical

Brakes

(Including ABS)

S6M6A000000000J0001ABAT00

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

The Acura RSX SRS includes a driver’s airbag in the steering wheel hub, a passenger’s airbag in the dashboard above
the glove box, seat belt tensioners in the front seat belt retractors, seat belt buckle tensioners in the front seat belt
buckles, and side airbags in the front seat-backs. Information necessary to safely service the SRS is included in this
Service Manual. Items marked with an asterisk (

) on the contents page include or are located near SRS components.

Servicing, disassembling, or replacing these items require special precautions and tools, and should be done only by
an authorized Acura dealer.

• To avoid rendering the SRS inoperative, which could lead to personal injury or death in the event of a severe frontal

or side collision, all SRS service work must be performed by an authorized Acura dealer.

• Improper service procedures, including incorrect removal and installation of the SRS could lead to personal injury

caused by unintentional deployment of the airbags and/or side airbags.

• Do not bump or impact the SRS unit, front impact sensors, side impact sensors whenever the ignition switch is

ON (II), or for at least 3 minutes after the ignition switch is turned OFF. Otherwise, the system may fail in a collision,
or the airbags may deploy.

• SRS electrical connectors are identified by yellow color coding. Related components are located in the steering

column, front console, dashboard, dashboard lower panel, in the dashboard above the glove box, in the front seats,
and around the floor. Do not use electrical test equipment on these circuits.

S6M6A000000000J0101ZCAT00

...................................................

...................................................

...................................................

...................................................

...................................................

...................

...

..............

...................................

.............................................................

...................................................

...................................................

...................................................

...................................................

...................................................

...................................................

...................

...

..............

...................................

.............................................................

...................................................

Chassis and Paint Codes

2002 Model

. 1-2

Chassis and Paint Codes

2003 Model

. 1-3

Chassis and Paint Codes

2004 Model

. 1-4

Chassis and Paint Codes

2005 Model

. 1-5

Chassis and Paint Codes

2006 Model

. 1-6

Identification Number Locations

. 1-7

Danger/Warning/Caution Label Locations

. 1-8

Under-hood Emission Control Label

. 1-10

Lift and Support Points

. 1-12

Towing

. 1-13

Parts Marking

. 1-14

General Information







01

01

02

03

S6M6AZA000000000000BAAT96

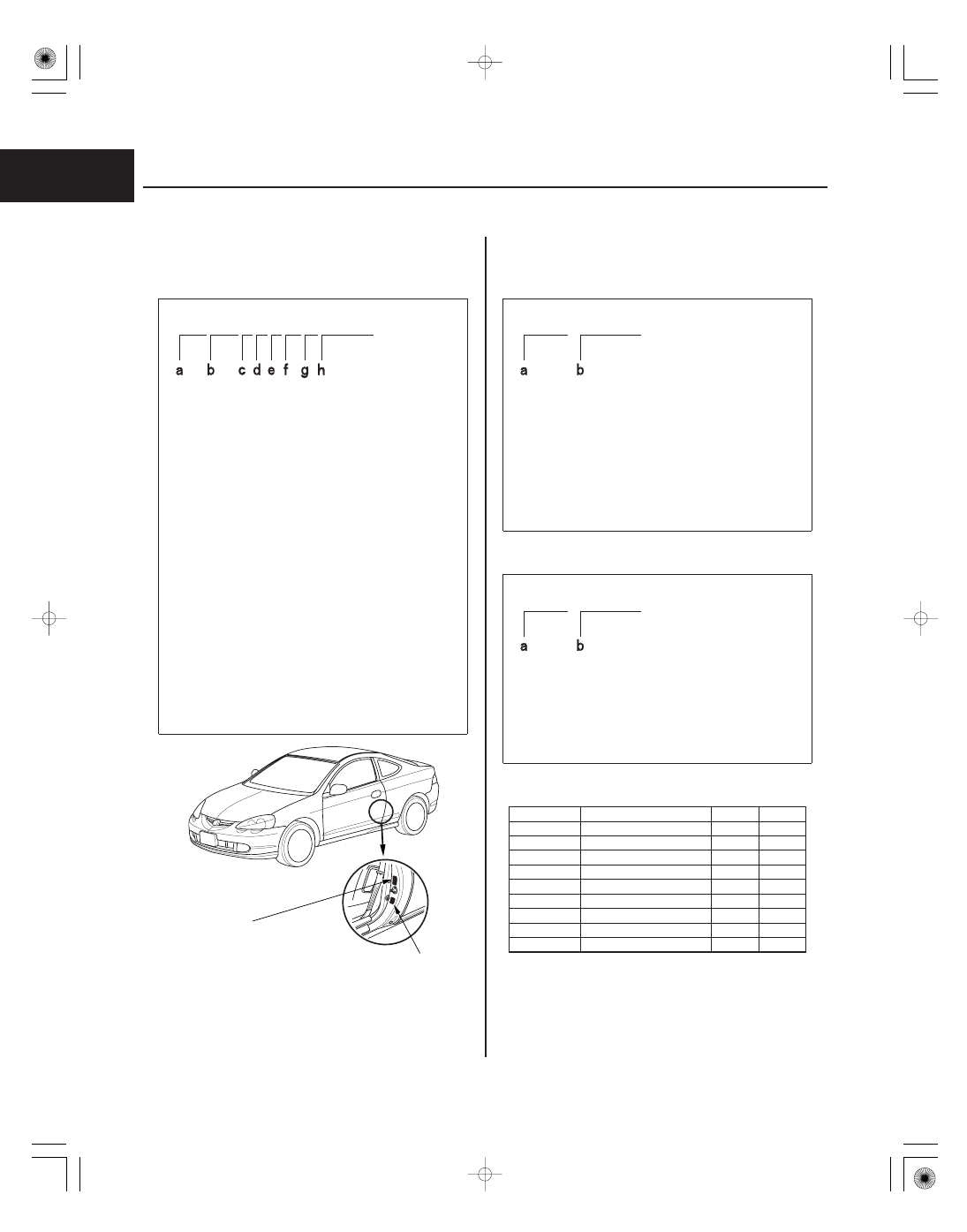

2002 Model

Vehicle Identification Number

Engine Number

Transmission Number

Paint Code

a. Manufacturer, Make and Type of Vehicle

b. Line, Body and Engine Type

c. Body Type and Transmission Type

d. Vehicle Grade (Series)

e. Check Digit

f. Model Year

g. Factory Code

h. Serial Number

a. Engine Type

b. Serial Number

a. Transmission Type

b. Serial Number

1-2

General Information

Chassis and Paint Codes

JH4

3

000001

DC5

8 * 2

C

K20A2

1400001

-

MRMA

1000001

-

Vehicle Identification Number
and Federal Motor Vehicle
Safety Standard Certification.
Vehicle Identification Number
and Canadian Motor Vehicle
Safety Standard Certification.

COLOR LABEL

JH4: HONDA MOTOR CO., LTD.

ACURA passenger vehicle

DC5: ACURA RSX/K20A2, K20A3

3: 2-door Hatchback/5-speed Manual

2-door Hatchback/6-speed Manual

4: 2-door Hatchback/5-speed Automatic

U.S. Model

Canada Model

0: Type S

0: Type S

8: RSX

6: RSX
8: Premium

2: 2002

C: Saitama Factory in Japan

U.S.: 000001
Canada: 800001

K20A2: 2.0 L DOHC i-VTEC Sequential Multiport

Fuel-injected 200 HP engine

K20A3: 2.0 L DOHC i-VTEC Sequential Multiport

Fuel-injected 160 HP engine

K20A2: 1400001
K20A3: 1100001

MRMA: 5-speed Automatic
W2M5: 5-speed Manual
X2M5:

6-speed Manual

Code

Color

U.S.

B-507P

Arctic Blue Pearl

B-92P
B-96P

Eternal Blue Pearl

NH-578

Taffeta White

NH-623M

Satin Silver Metallic

NH-636P

Brilliant White Pearl

R-81

Milano Red

R-507P
YR-534M

Desert Silver Metallic

Canada

Nighthawk Black Pearl

Fire Pepper Red Pearl
