Acura RL (1996-2004 year). Manual - part 545

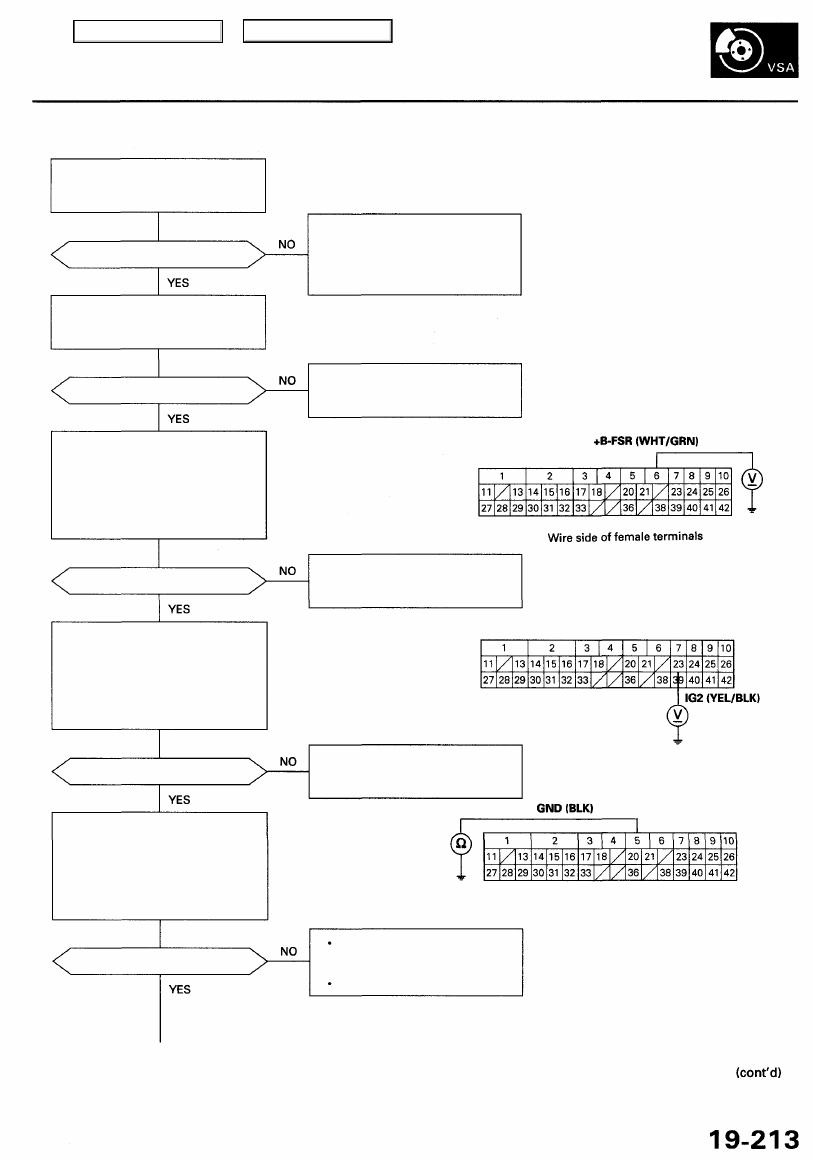

ABS Indicator Does Not Go Off

Check the VSA (20 A) fuse in the
under-hood fuse/relay box, and
reinstall the fuse if it is OK.

Is the fuse OK?

Check the R/C MIRROR (7.5 A) fuse
in the under-dash fuse/relay box,
and reinstall the fuse if it is OK.

Is the fuse OK?

Check for an open in the +B FSR
circuit:

1. Disconnect the VSA control

unit 42P connector.

2. Measure the voltage between

terminal No. 6 and body
ground.

Is there battery voltage?

Check for an open in the GND cir-
cuit:

1. Turn the ignition switch OFF.

2. Check for continuity between

the VSA control unit 42P con-

nector terminal No. 5 and body

ground.

Is there continuity?

(To page

19-214

)

Replace the fuse, and recheck. If
the fuse is blown, check for a
short to body ground in this fuse
circuit. If the circuit is OK, replace
the VSA modulator-control unit.

Replace the fuse, and recheck. If

the fuse is blown, check for a short
to body ground in this fuse circuit.

VSA CONTROL UNIT 42P CONNECTOR

Repair open in the wire between

the VSA (20 A) fuse and the VSA
control unit.

Repair open in the wire between

the R/C MIRROR (7.5 A) fuse and
the VSA control unit.

Repair open in the wire between

the VSA control unit and body
ground.

Repair poor ground (G251).

Check for an open in the IG2 cir-
cuit:

1. Turn the ignition switch ON (II).

2. Measure the voltage between

the VSA control unit 42P con-

nector terminal No. 23 and
body ground.

Main Menu

Table of Contents

Troubleshooting

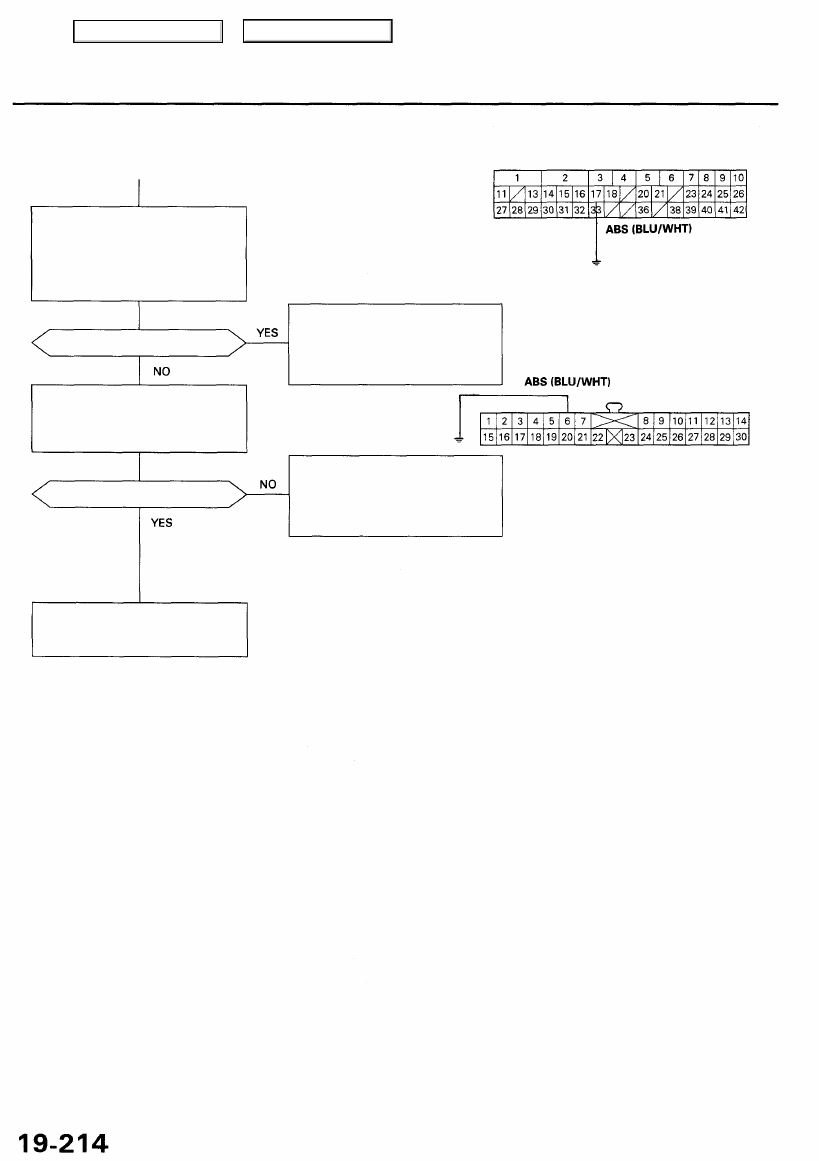

ABS Indicator Does Not Go Off (cont'd)

(From page

19-213

)

VSA CONTROL UNIT 42P CONNECTOR

Check the VSA control unit:

1. Turn the ignition switch ON (II).

2. Connect the VSA control unit

42P connector terminal No. 17
and body ground with a

jumper wire.

Does the ABS indicator go off?

Check the gauge assembly:

Connect the gauge assembly 30P
connector terminal No. 6 and
body ground with a jumper wire.

Check for loose terminals in the
VSA control unit 42P connector.
If necessary, substitute a known-
good VSA modulator-control
unit, and recheck.

Wire side of female terminals

GAUGE ASSEMBLY 30P CONNECTOR

Does the ABS indicator go off?

Check for loose terminals in the
gauge assembly 30P connector.
If the connector is OK, replace
the printed circuit board in the
gauge assembly.

Wire side of female terminals

Repair open in the wire between

the gauge assembly and the VSA
control unit.

JUMPER
WIRE

Main Menu

Table of Contents

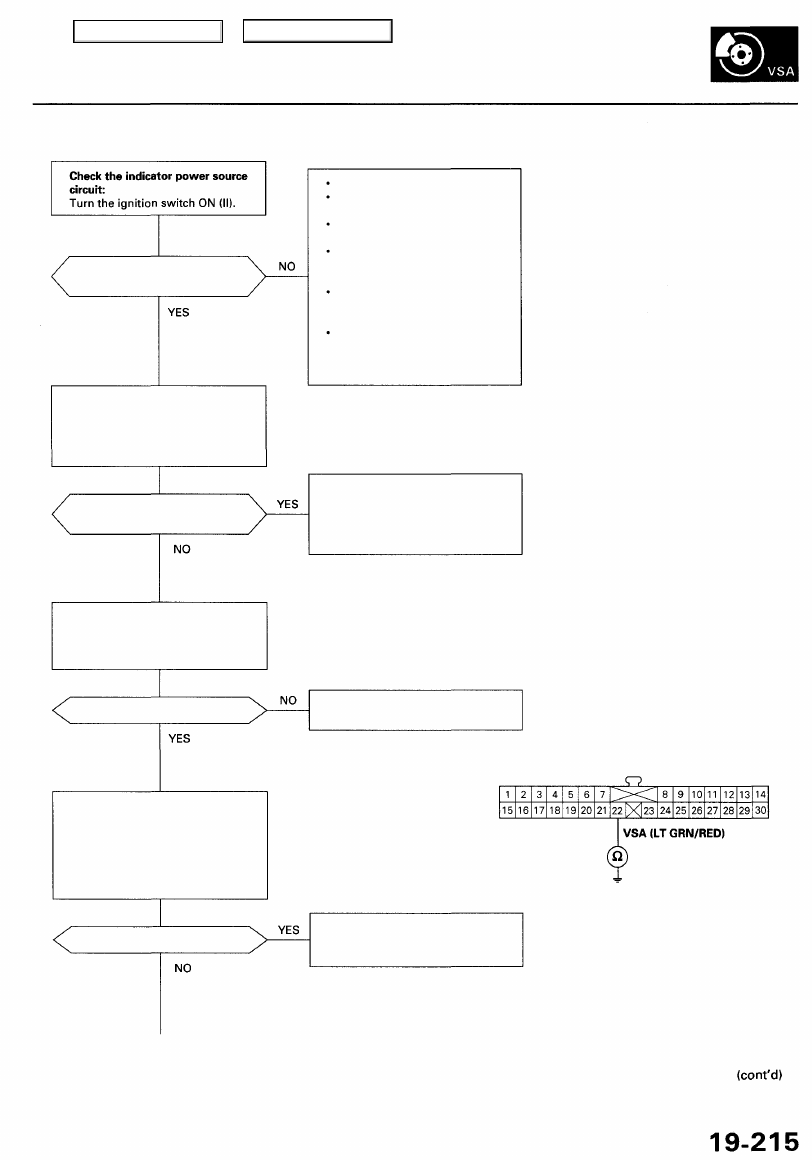

VSA System Indicator Does Not Come On

Does the brake system indica-

tor come on?

Check the VSA control unit:

1. Turn the ignition switch OFF.

2. Disconnect the VSA control

unit 42P connector.

3. Turn the ignition switch ON (II).

Does the VSA system indica-

tor come on?

Check the VSA indicator:

1. Turn the ignition switch OFF.

2. Check the VSA system indica-

tor bulb in the gauge assembly.

Is the bulb OK?

Check for a short to body ground
in the VSA circuit:

1. Disconnect the gauge assem-

bly 30P connector.

2. Check for continuity between

terminal No. 22 and body
ground.

Is there continuity?

(To page

19-216

)

Gauge relay stuck OFF.
Blown METER (15 A) fuse in the
under-hood fuse/relay box.
Blown METER (7.5 A) fuse in
the under-dash fuse/relay box.
Repair open in the wire between
the METER (15 A) fuse and the
gauge assembly.
Repair open in the wire between
the METER (7.5 A) fuse and body
ground.
Replace the under-hood fuse/
relay box or under-dash fuse/
relay box. (Open circuit inside
the box.)

Check for loose terminals in the
VSA control unit 42P connector.
If necessary, substitute a known-
good VSA modulator-control
unit, and recheck.

Replace the VSA system indica-

tor bulb.

GAUGE ASSEMBLY 30P CONNECTOR

Wire side of female terminals

Repair short to body ground in the
wire between the gauge assembly
and the VSA control unit.

Main Menu

Table of Contents

Troubleshooting

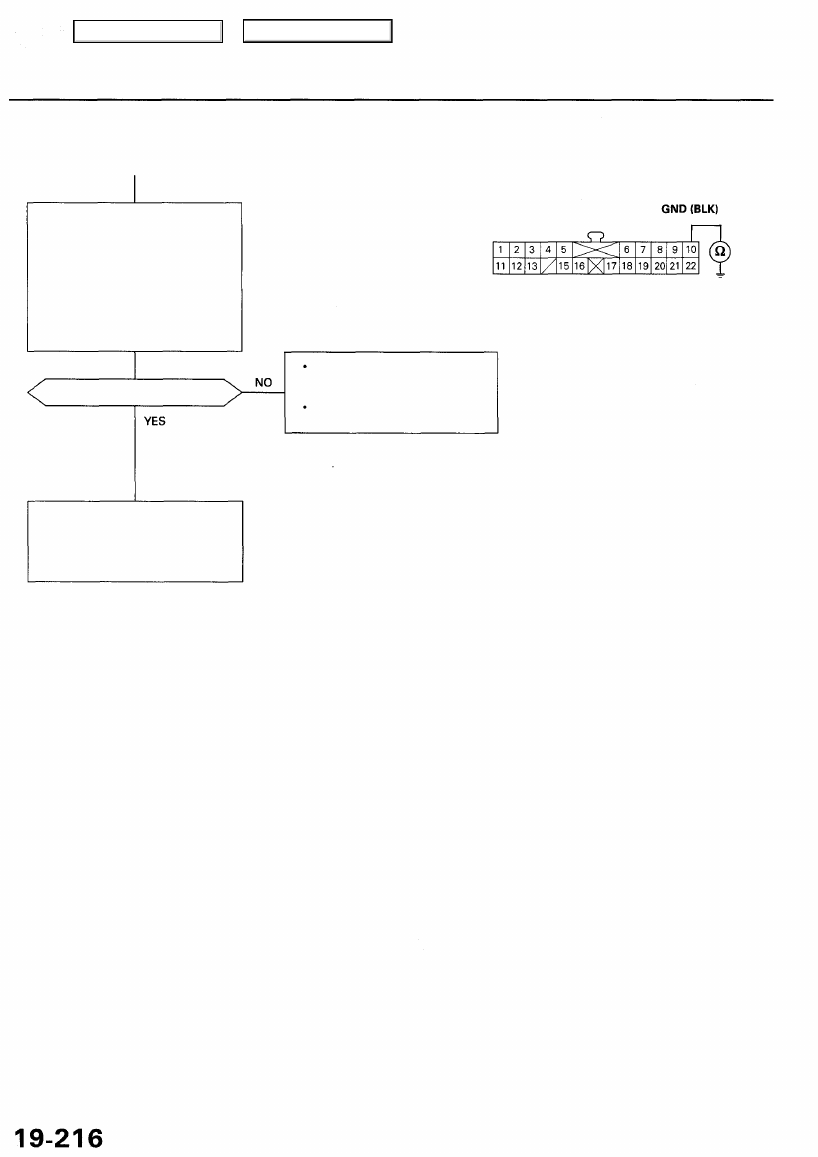

VSA System Indicator Does Not Come On (cont'd)

(From page

19-215

)

Check for loose terminals in the
gauge assembly 22P connector. If
the connector is OK, replace the
printed circuit board in the gauge
assembly.

GAUGE ASSEMBLY 22P CONNECTOR

Wire side of female terminals

Repair open in the wire between

the gauge assembly and the
VSA control unit.
Repair poor ground (G401,
G402).

Is there continuity?

Check for an open in the indicator
GND circuit:

1. Connect the gauge assembly

30P connector.

2. Disconnect the gauge assem-

bly 22P connector.

3. Check for continuity between

the gauge assembly 22P con-

nector terminal No. 10 and
body ground.
