Acura RL (1996-2004 year). Manual - part 170

2004 American Honda Motor Co., Inc.

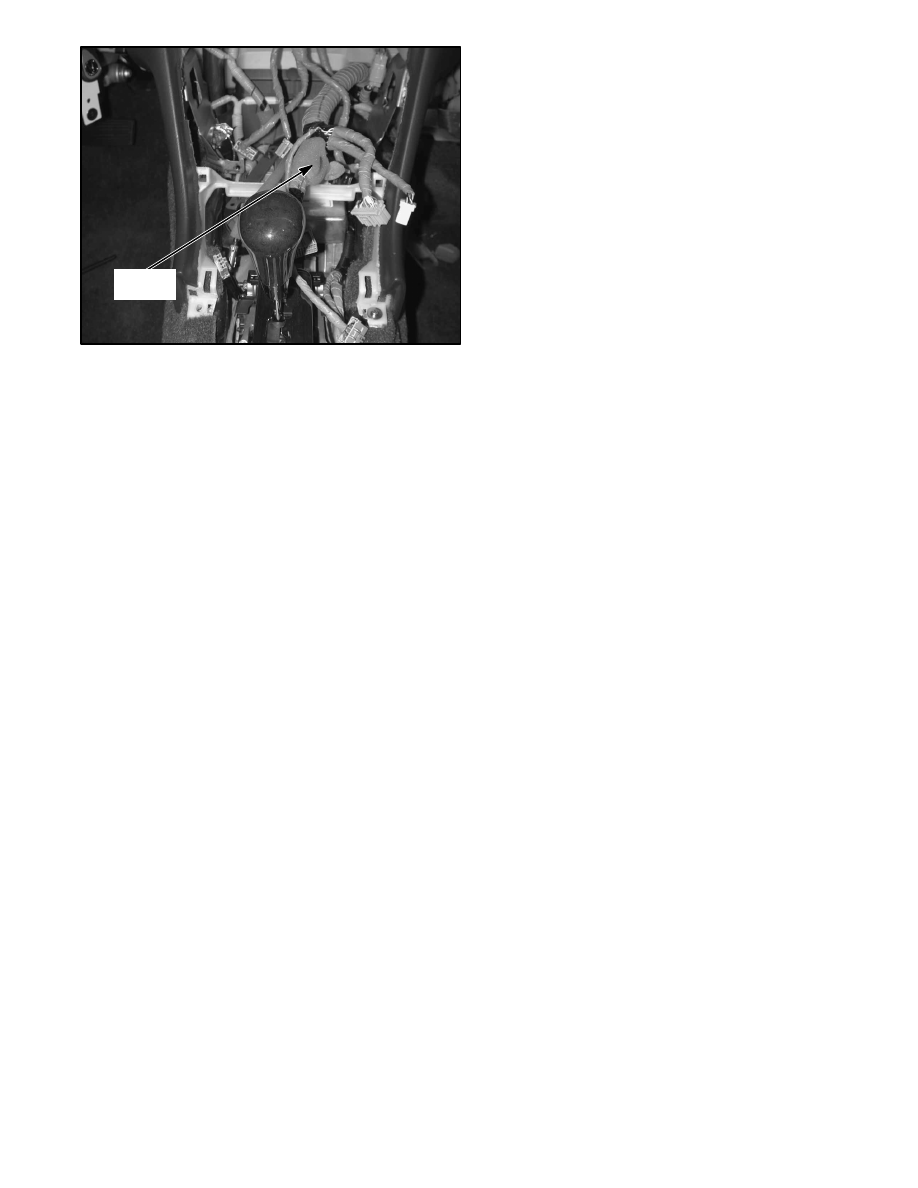

215. Center of Dash (’04)

C488
(20-GRN)

2004 American Honda Motor Co., Inc.

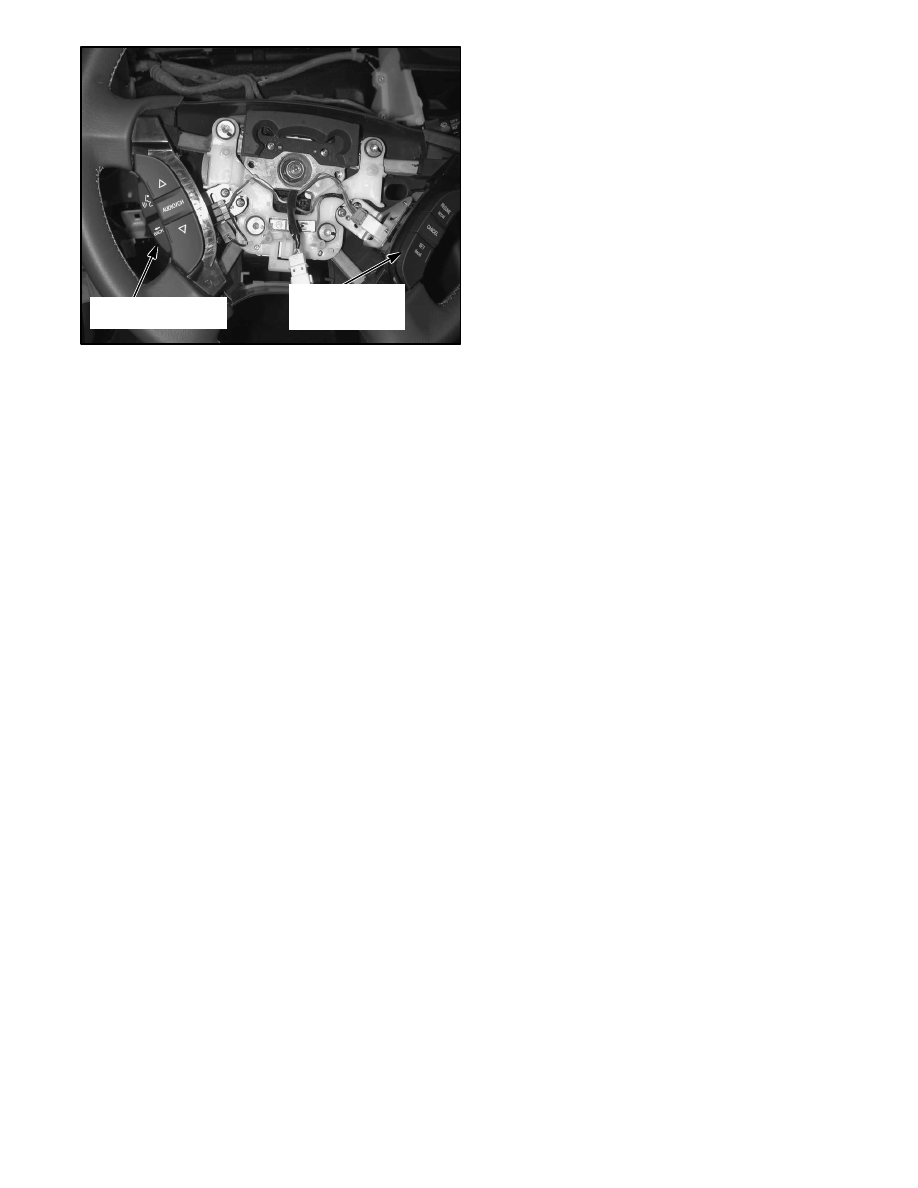

216. Steering Wheel (’04)

AUDIO/VOICE
CONTROL SWITCHES

CRUISE SET/
CANCEL/RESUME
SWITCHES

2004 American Honda Motor Co., Inc.

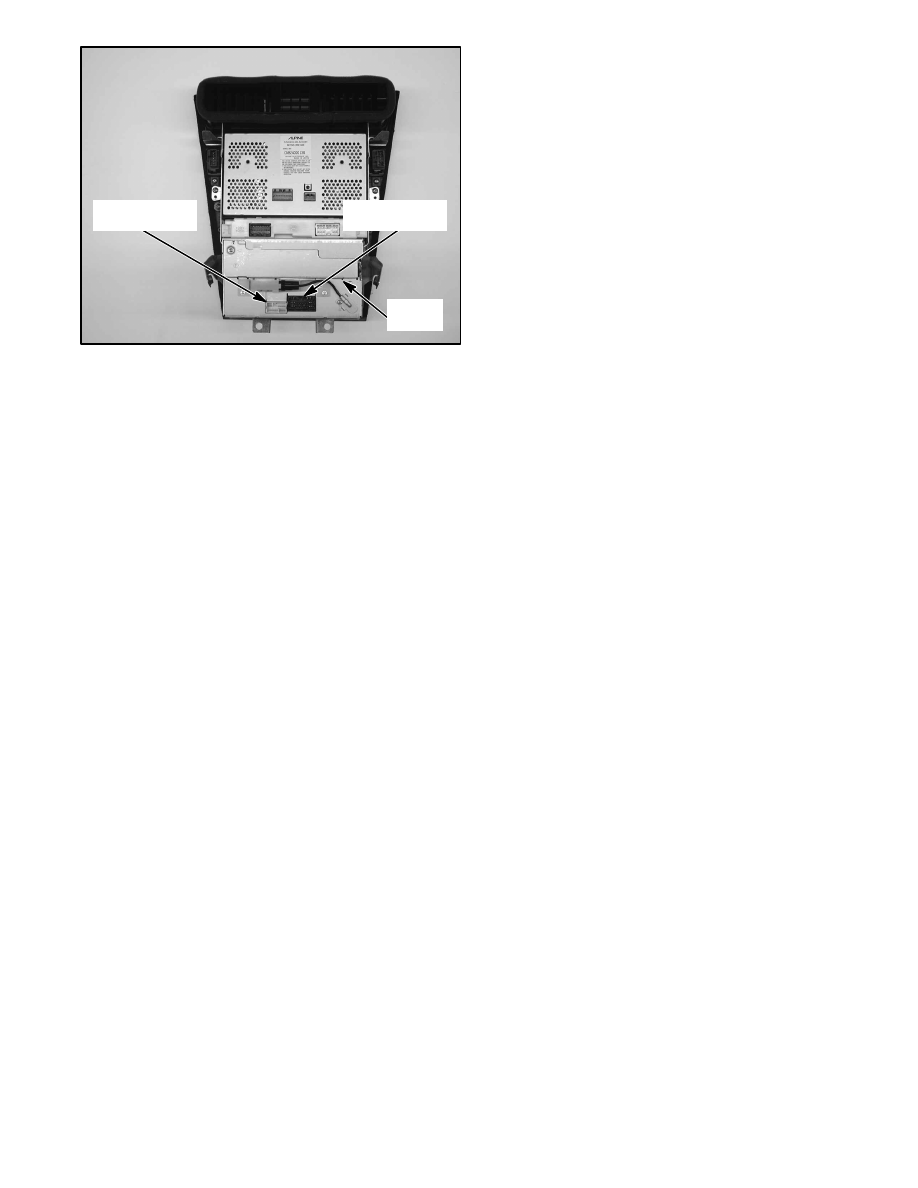

218. Behind Audio Unit (’04)

CONNECTOR B
(14-WHT)

CONNECTOR A
(20-LT BLU)

AUDIO
UNIT

+

–

2004 American Honda Motor Co., Inc.

Connector Views

1 BLK/YEL

(PGM-FI)

2 BLK/YEL

(PGM-FI)

3 BLK/YEL

(PGM-FI)

4 YEL

(PGM-FI)

5 RED/BLU

(PGM-FI)

6 LT GRN

(PGM-FI)

2

3

6

5

1

4

1.

C108

– Gray
– Center rear of engin
– Connects the engine wire harness to IAB low and high control solenoid valves and

engine mount control solenoid valve pigtails
