Acura RL. Manual - part 930

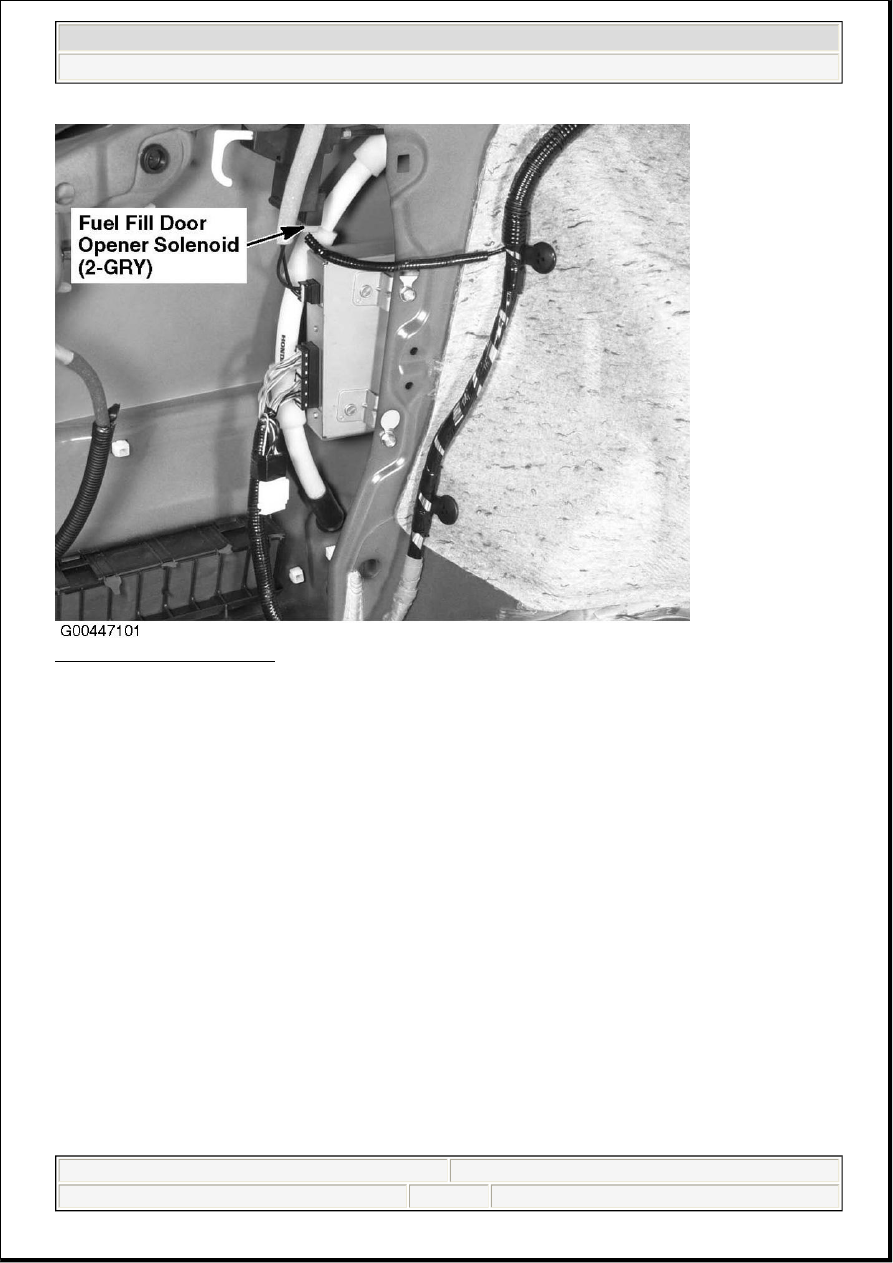

Fig. 149: Behind Rear Seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:17 PM

Page 160  © 2005 Mitchell Repair Information Company, LLC.

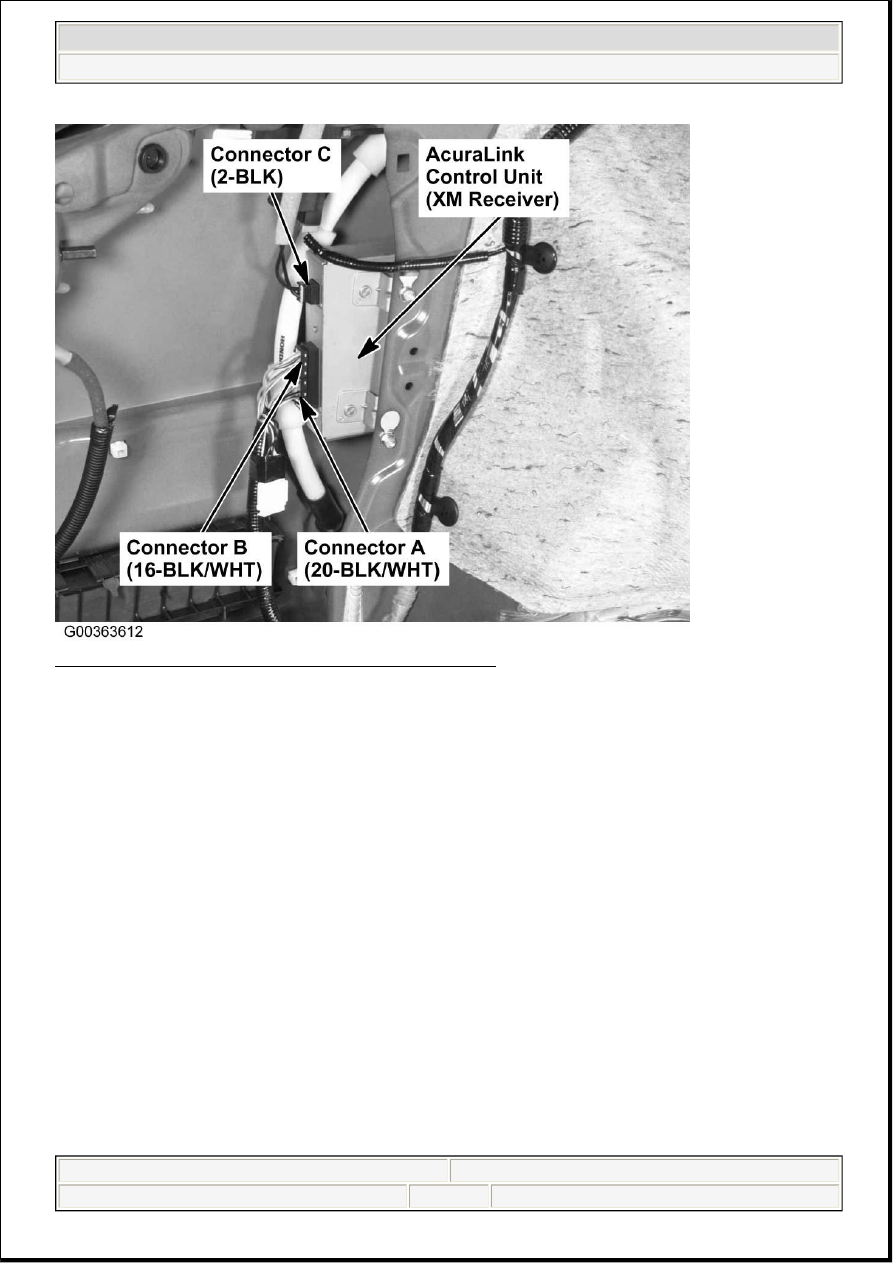

Fig. 150: Left Side Of Trunk
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:17 PM

Page 161  © 2005 Mitchell Repair Information Company, LLC.

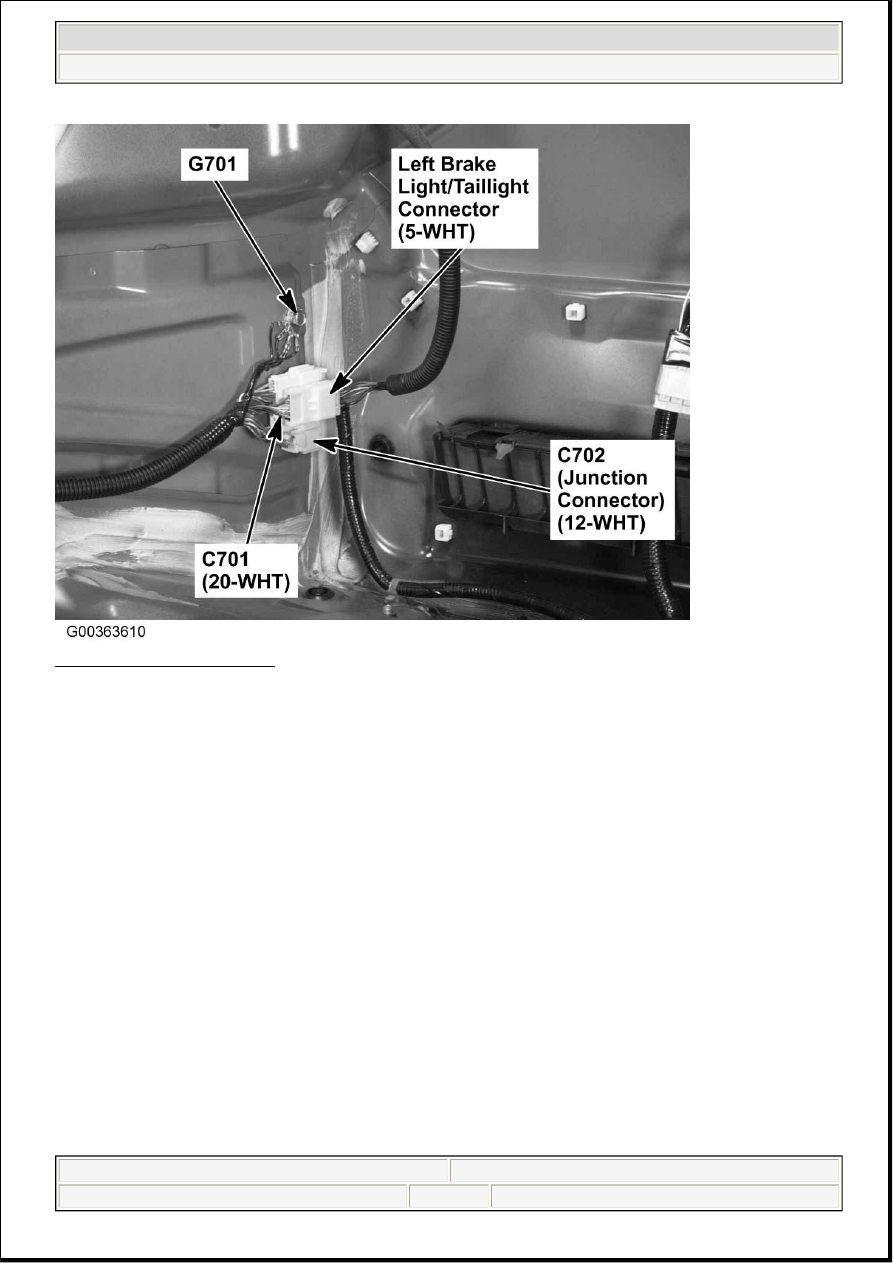

Fig. 151: Left Side Of Trunk
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:18 PM

Page 162  © 2005 Mitchell Repair Information Company, LLC.

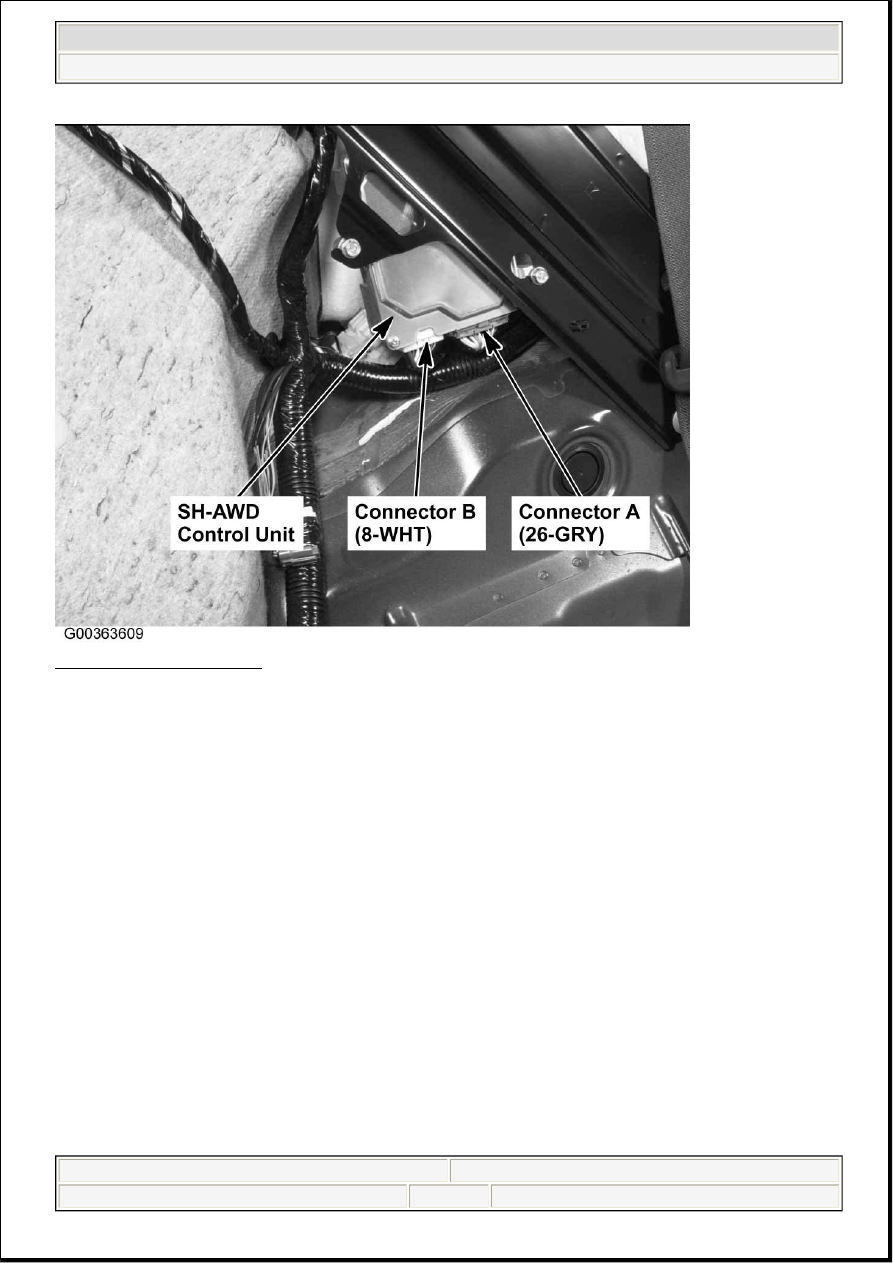

Fig. 152: Left Side Of Trunk (USA: Technology Package)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2007 ACURA RL



me



Friday, June 05, 2009 3:07:18 PM

Page 163  © 2005 Mitchell Repair Information Company, LLC.
