Wipers/Washers - RL

COMPONENT LOCATION INDEX

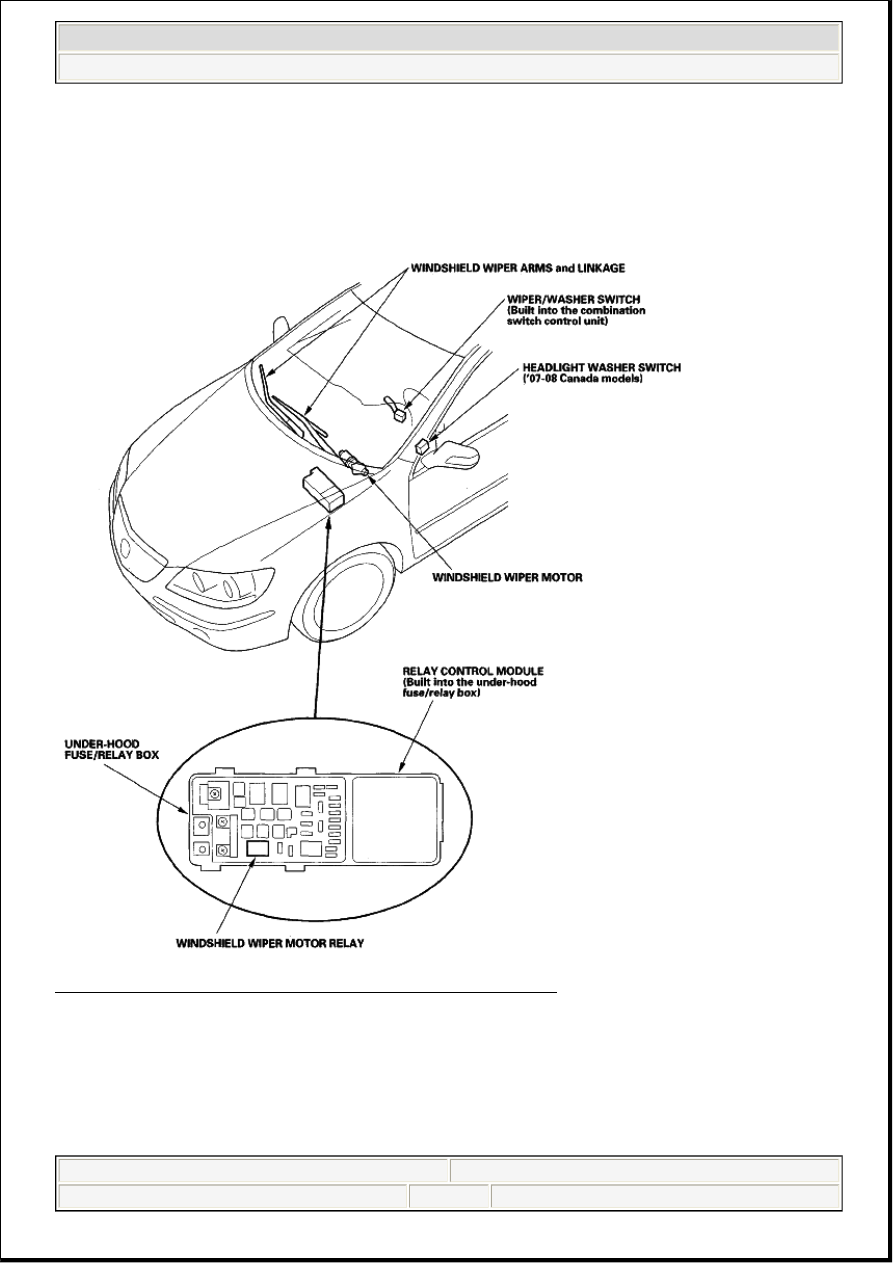

Fig. 1: Identifying Wipers/Washers Component Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - RL





2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - RL



me



Friday, June 05, 2009 3:19:36 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 3:19:40 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

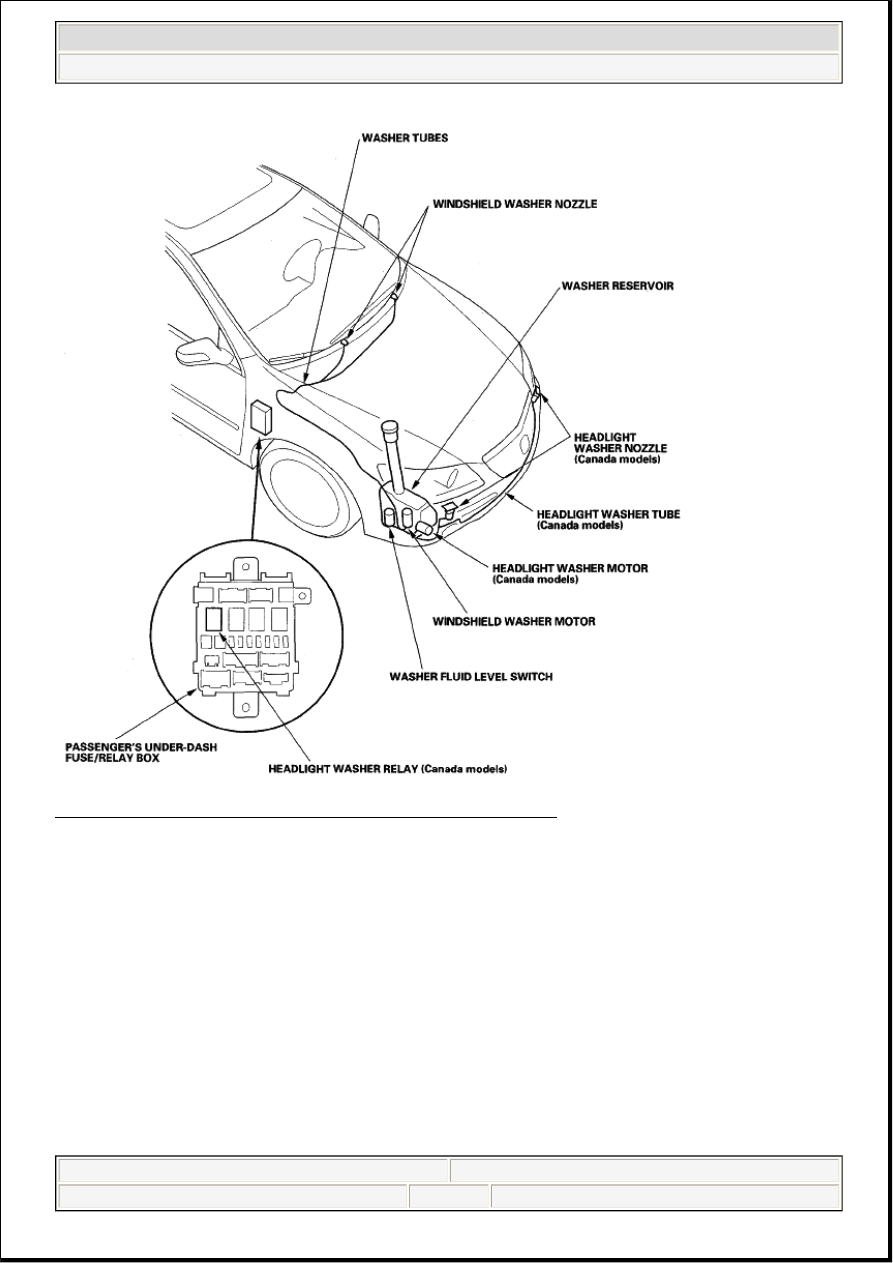

Fig. 2: Identifying Wipers/Washers Component Location (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - RL



me



Friday, June 05, 2009 3:19:36 PM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

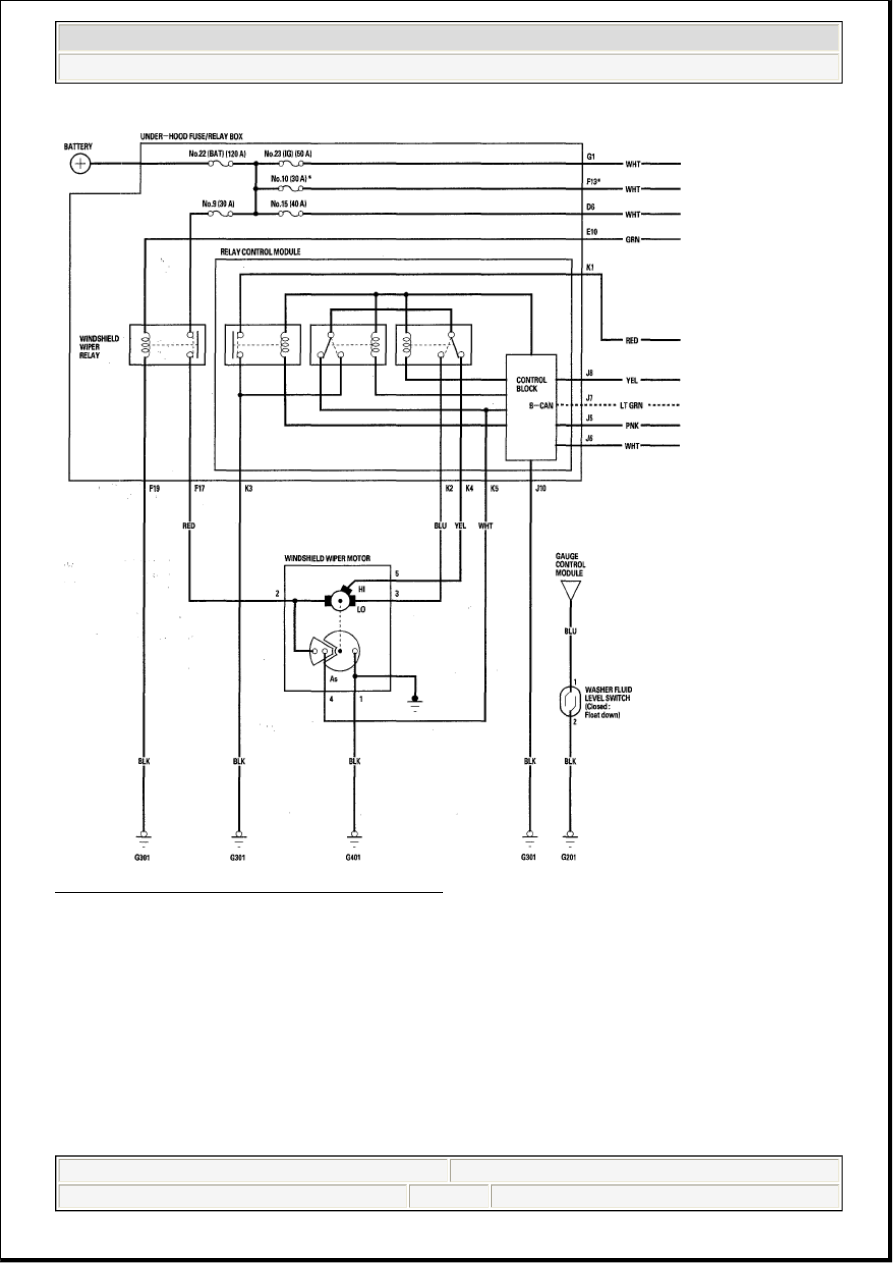

Fig. 3: Wipers/Washers - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - RL



me



Friday, June 05, 2009 3:19:36 PM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

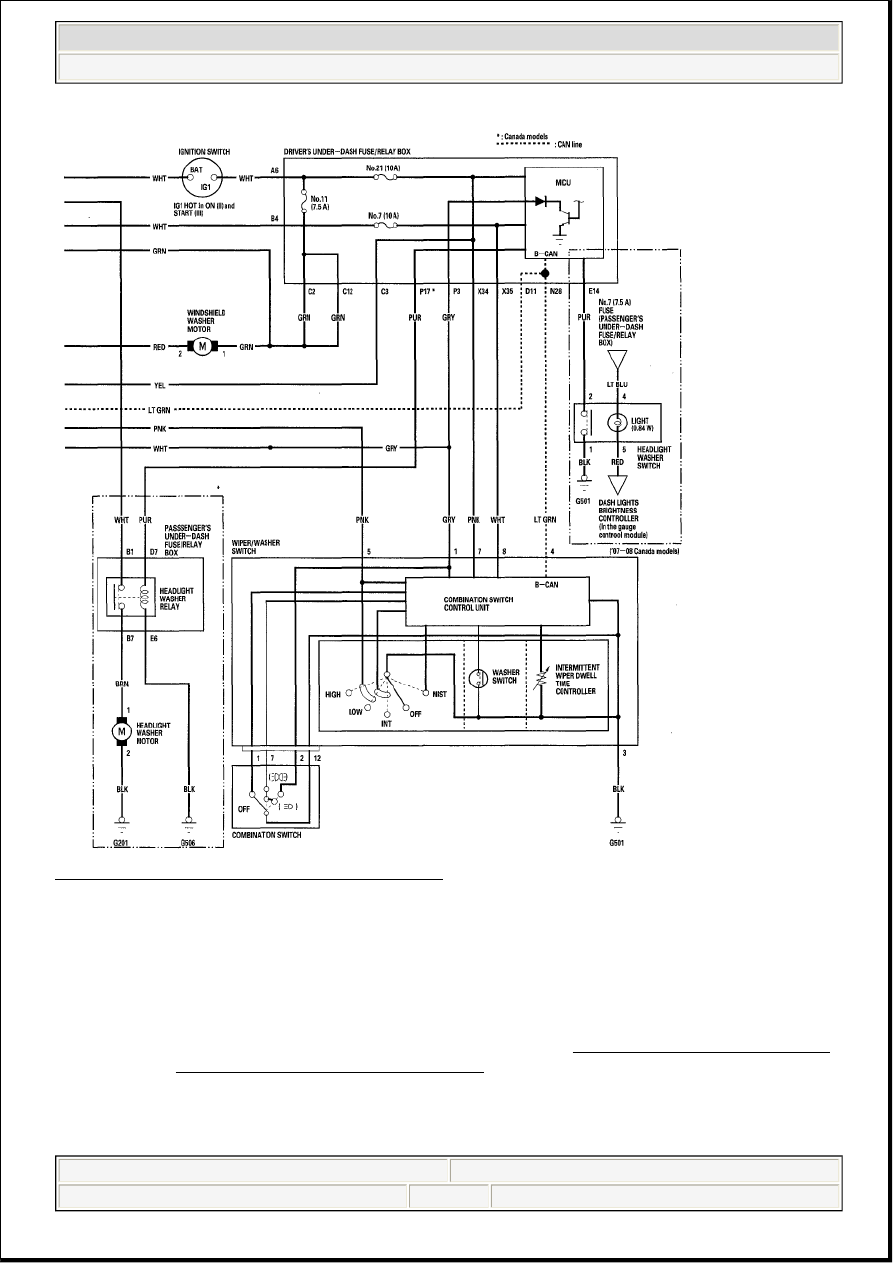

Fig. 4: Wipers/Washers - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

DTC TROUBLESHOOTING

DTC B1076: WINDSHIELD WIPER SIGNAL ERROR

1. Clear the DTCs with the HDS.

2. Turn the ignition switch OFF, and then back ON (II).

NOTE:

If you are troubleshooting multiple DTCs, be sure to follow the instructions
in B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN
SYSTEM DIAGNOSIS TEST MODE A ).
