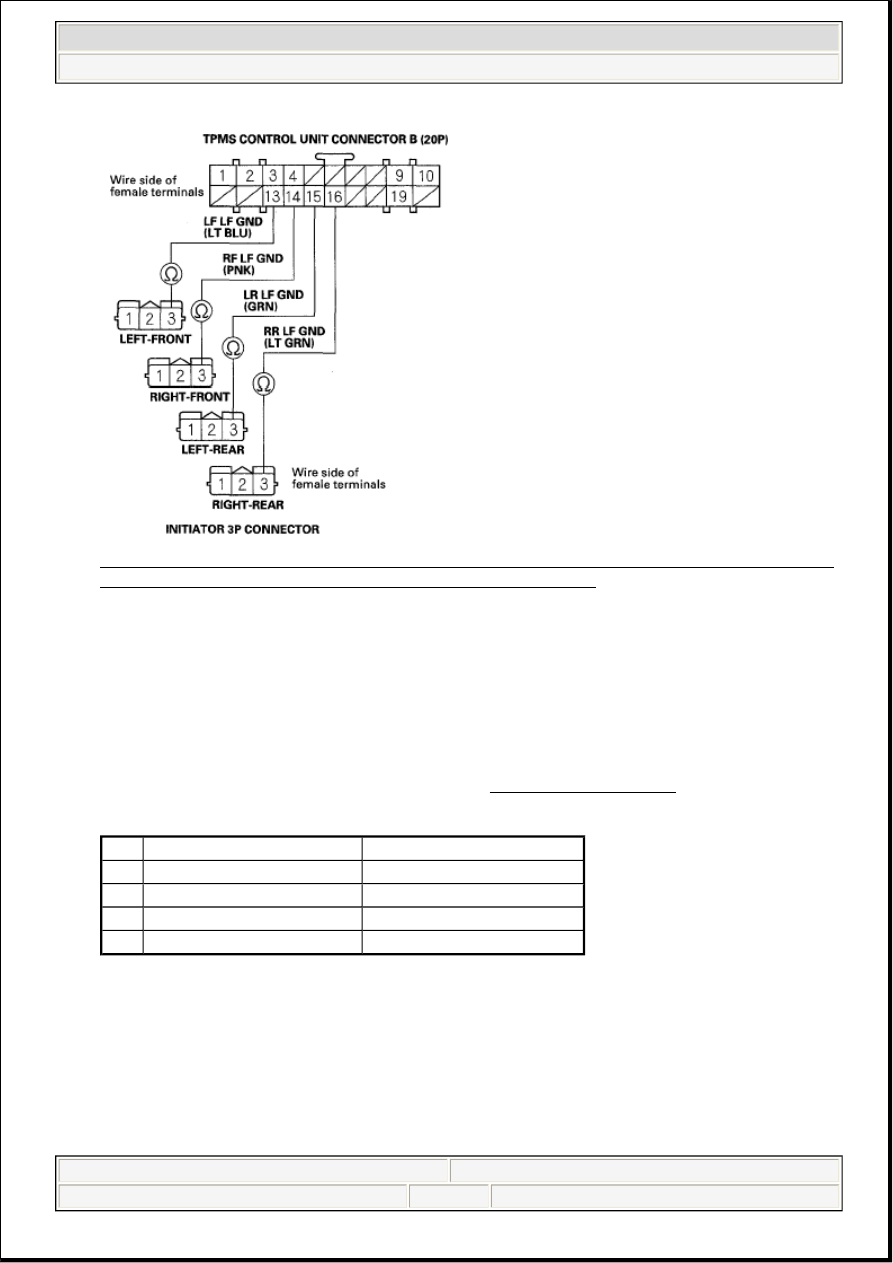

Fig. 16: Checking Continuity Between Appropriate Terminal In TPMS Control Unit Connector
B (20P) And Appropriate Initiator 3P Connector Terminal No. 3
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 23.

NO - Repair open in the wire between the TPMS control unit and the appropriate initiator.

23. Check for continuity between the appropriate terminal in TPMS control unit connector B (20P) and

appropriate initiator 3P connector terminal No. 2 (see CONTINUITY CHART).

CONTINUITY CHART

DTC TPMS control unit terminal Initiator name/ terminal No.

32

No. 1

RIGHT-FRONT/2

34

No. 3

LEFT-FRONT/2

36

No. 2

RIGHT-REAR/2

38

No. 4

LEFT-REAR/2



2007 Acura RL

2005-08 SUSPENSION TPMS (Tire Pressure Monitoring System) - RL



me



Friday, June 05, 2009 3:22:24 PM

Page 25

© 2005 Mitchell Repair Information Company, LLC.

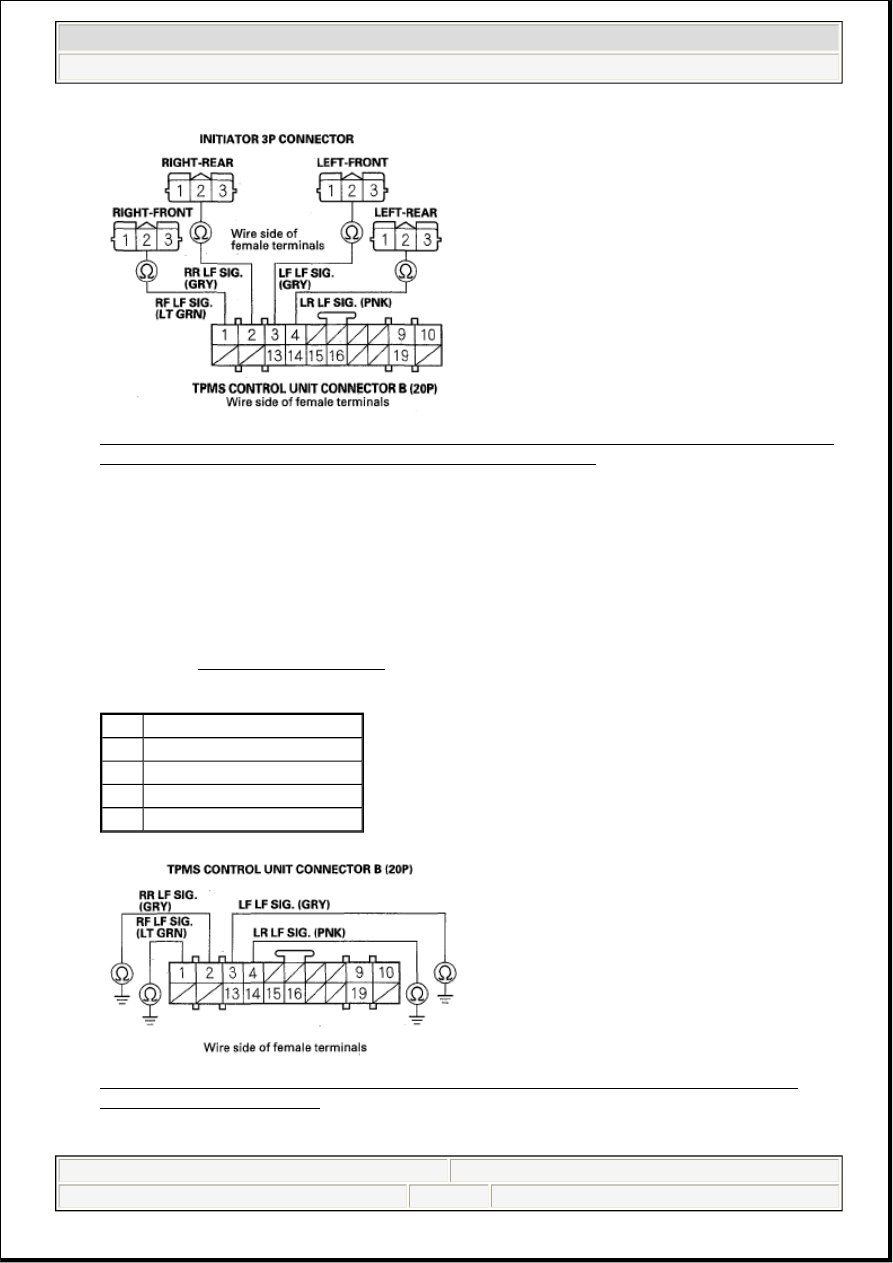

Fig. 17: Checking Continuity Between Appropriate Terminal In TPMS Control Unit Connector
B (20P) And Appropriate Initiator 3P Connector Terminal No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 24.

NO - Repair open in the wire between the TPMS control unit and the appropriate initiator.

24. Check for continuity between body ground and the appropriate TPMS control unit connector B (20P)

terminal (see CONTINUITY CHART).

CONTINUITY CHART

Fig. 18: Checking Continuity Between Body Ground And Appropriate TPMS Control Unit
Connector B (20P) Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

DTC TPMS control unit terminal

32

No. 1

34

No. 3

36

No. 2

38

No. 4



2007 Acura RL

2005-08 SUSPENSION TPMS (Tire Pressure Monitoring System) - RL



me



Friday, June 05, 2009 3:22:24 PM

Page 26

© 2005 Mitchell Repair Information Company, LLC.

Is there continuity?

YES - Repair short to body ground in the wire between the TPMS control unit and the appropriate
initiator.

NO - Go to step 25.

25. Measure the voltage between body ground and the appropriate TPMS control unit connector B (20P)

terminal (see VOLTAGE TERMINAL CHART).

VOLTAGE TERMINAL CHART

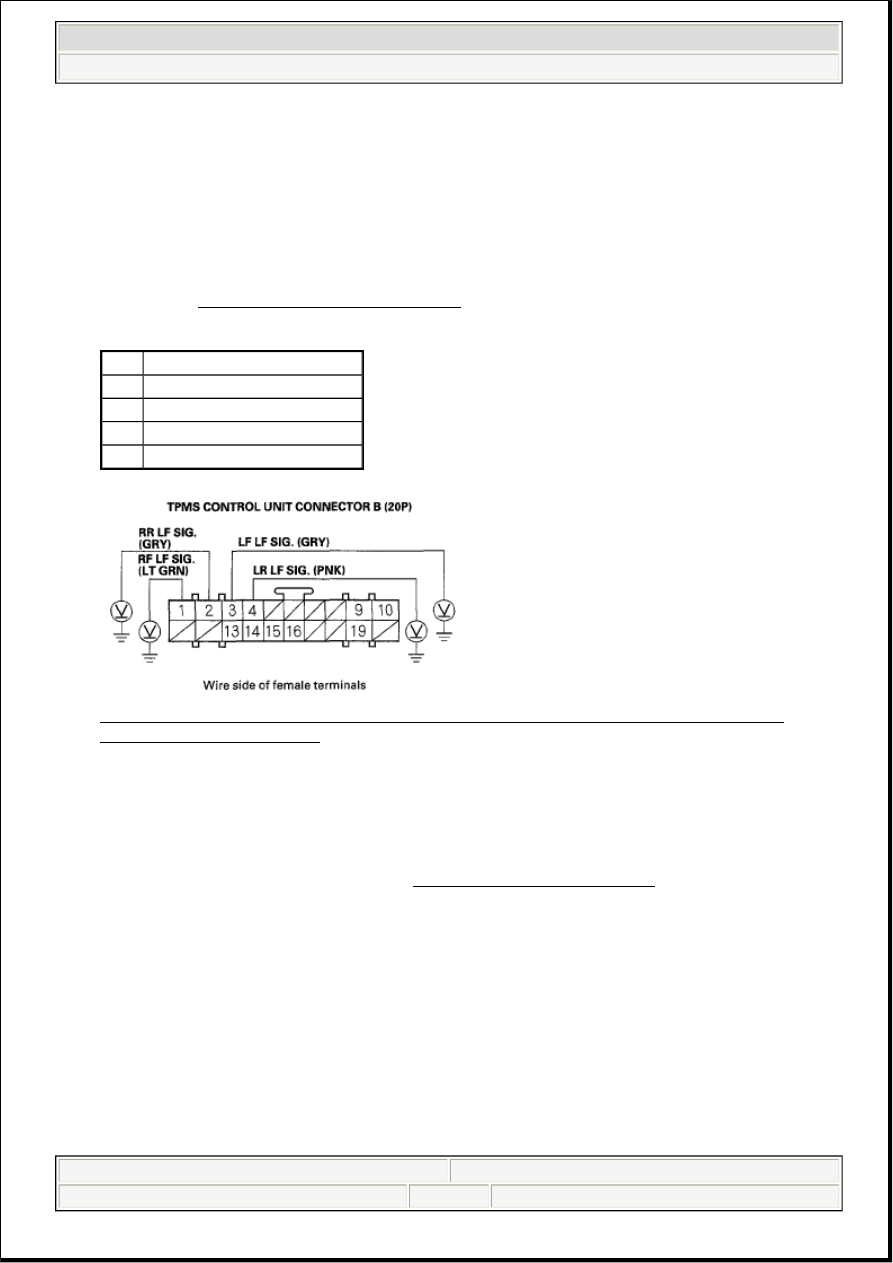

Fig. 19: Measuring Voltage Between Body Ground And Appropriate TPMS Control Unit
Connector B (20P) Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES - Repair short to power in the wire between the TPMS control unit and the appropriate initiator.

NO - Replace the appropriate initiator (see INITIATOR REPLACEMENT ).

DTC 41: ABNORMAL SIGNAL RECEPTION ERROR

1. Check all four wheels to make sure they are the TPMS type with the tire pressure sensor.

Is each wheel a TPMS type with a tire pressure sensor mounted on the vehicle?

YES - Go to step 4.

DTC TPMS control unit terminal

32

No. 1

34

No. 3

36

No. 2

38

No. 4

NOTE:

Inspect for an aftermarket device interfering with the RF signal from the
sensors when turning the ignition switch ON (II).



2007 Acura RL

2005-08 SUSPENSION TPMS (Tire Pressure Monitoring System) - RL



me



Friday, June 05, 2009 3:22:24 PM

Page 27

© 2005 Mitchell Repair Information Company, LLC.

NO - Go to step 2.

2. Install known-good TPMS wheel(s).

3. To memorize the sensor ID(s), drive the vehicle above 15 mph (24 km/h) for 40 continuous seconds,

or memorize the ID(s) with the HDS (see MEMORIZE THE ID WITH THE HDS ).

4. Test-drive the vehicle.

5. Check the VSP in the TPMS DATA LIST with the HDS.

Is the vehicle speed indicated?

YES - Go to step 9.

NO - Go to step 6.

6. Turn the ignition switch OFF.

7. Turn the ignition switch ON (II).

8. Check for DTCs with the HDS.

Is DTC 85 indicated?

YES - Go to the DTC 85 TROUBLESHOOTING .

NO - Check for loose terminals and poor connections at the TPMS control unit. If necessary,
substitute a known-good TPMS control unit (see TPMS INDICATOR OR TIRE(S) INDICATOR
(S) DOES NOT GO OFF, AND NO DTCS ARE STORED ), and recheck.

9. Turn the ignition switch OFF.

10. Turn the ignition switch ON (II).

11. Check TPMS DATA LIST for LF, RF, LR, RR sensor status changing to "NORMAL".

Is NORMAL indicated within one full turn of the tire?

YES - The system is OK at this time. Clear the DTC with the HDS.

NO - Check for loose terminals and poor connections at the TPMS control unit. If necessary,
substitute a known-good TPMS control unit (see TPMS INDICATOR OR TIRE(S) INDICATOR
(S) DOES NOT GO OFF, AND NO DTCS ARE STORED ), and recheck.

DTC 45: INITIATOR CIRCUIT SHORT DETECTION

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

NOTE:

If the HDS screen shows UNDEFINED for sensor status, turn the
ignition switch OFF, rotate the tire 1/4 turn, then turn the ignition switch
ON (II), and try again. If UNDEFINED is still shown, repeat the rotating
procedure until NORMAL is shown.
