SYMPTOM TROUBLESHOOTING INDEX

SYMPTOM TROUBLESHOOTING CHART

32

Right-front tire pressure sensor transmitting failure

33

Left-front tire pressure sensor low battery voltage

34

Left-front tire pressure sensor transmitting failure

35

Right-rear tire pressure sensor low battery voltage

36

Right-rear tire pressure sensor transmitting failure

37

Left-rear tire pressure sensor low battery voltage

38

Left-rear tire pressure sensor transmitting failure

41

Abnormal signal reception error

45

Initiator circuit short detection

51

Right-front tire pressure sensor registration error

53

Left-front tire pressure sensor registration error

55

Right-rear tire pressure sensor registration error

57

Left-rear tire pressure sensor registration error

81

TPMS control unit failure
(RAM/ROM/ADC/EEPROM/ALU) check

83

No VSP signal

85

F-CAN communication failure

91

Right-front tire pressure sensor internal error

93

Left-front tire pressure sensor internal error

95

Right-rear tire pressure sensor internal error

97

Left-rear tire pressure sensor internal error

Symptom

Diagnostic procedure

HDS does not communicate with the
TPMS control unit or the vehicle

Troubleshoot the DLC circuit (see '08 MODEL )

Low tire pressure indicator does not
come on, and no DTCs are stored
('05-07 models)

Symptom Troubleshooting (see LOW TIRE PRESSURE
INDICATOR DOES NOT COME ON, AND NO DTCS
ARE STORED ('05-07 MODELS) )

Low tire pressure indicator does not
come on, and no DTCs are stored ('08
model)

Symptom Troubleshooting (see LOW TIRE PRESSURE
INDICATOR DOES NOT COME ON, AND NO DTCS
ARE STORED ('08 MODEL) )

Low tire pressure indicator does not
go off, and no DTCs are stored ('05-
07 models)

Symptom Troubleshooting (see LOW TIRE PRESSURE
INDICATOR DOES NOT GO OFF, AND NO DTCS ARE
STORED ('05-07 MODELS) )

Low tire pressure indicator does not
go off, and no DTCs are stored ('08
model)

Symptom Troubleshooting (see LOW TIRE PRESSURE
INDICATOR DOES NOT GO OFF, AND NO DTCS ARE
STORED ('08 MODEL) )

TPMS indicator does not come on,
and no DTCs are stored

Symptom Troubleshooting (see TPMS INDICATOR OR
TIRE(S) INDICATOR(S) DOES NOT COME ON, AND
NO DTCS ARE STORED )

TPMS indicator does not go off, and
no DTCs are stored

Symptom Troubleshooting (see TPMS INDICATOR OR
TIRE(S) INDICATOR(S) DOES NOT GO OFF, AND NO
DTCS ARE STORED )



2007 Acura RL

2005-08 SUSPENSION TPMS (Tire Pressure Monitoring System) - RL



me



Friday, June 05, 2009 3:22:24 PM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

SYSTEM DESCRIPTION

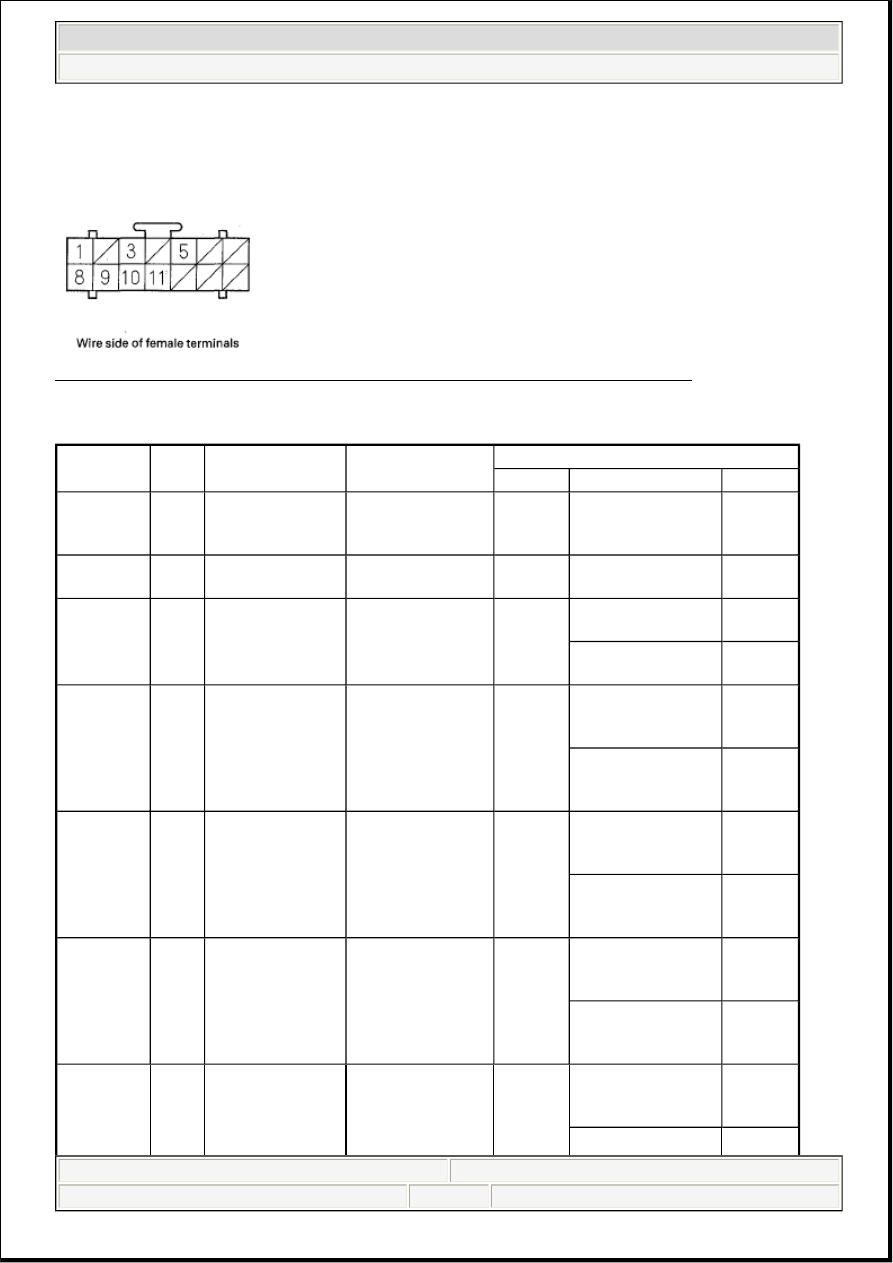

TPMS CONTROL UNIT INPUTS AND OUTPUTS FOR CONNECTOR A (14P)

Fig. 6: Identifying TPMS Control Unit Inputs And Outputs For Connector A (14P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

VOLTAGE TERMINAL CHART

Terminal

number

Wire
color

Terminal sign

(Terminal name)

Description

Measurement

Terminal

Conditions

Voltage

1

RED

+B (Battery
positive)

Power source for
the TPMS control
unit

1-GND At all times

Battery
voltage

3

BLK GND (Ground)

Ground for the
TPMS control unit

3-GND At all times

Less than
0.1V

5

YEL IG1 (Ignition 1)

Power source for
activating the
system

5-GND

Ignition switch ON
(II)

Battery
voltage

Ignition switch OFF

Less than
0.1V

8

BRN

LF LF PWR. (LF
low frequency
power)

Power source for
the left-front
initiator

8-GND

For 5 seconds with
ignition switch ON
(II)

About 7
V

After 5 seconds

with ignition switch

ON (II)

-

9

ORN

RF LF PWR. (RF
low frequency
power)

Power source for
the right-front
initiator

9-GND

For 5 seconds with
ignition switch ON
(II)

About 7
V

After 5 seconds

with ignition switch

ON (II)

-

10

BRN

LR LF PWR. (LR
low frequency
power)

Power source for
the left-rear
initiator

10-GND

For 5 seconds with
ignition switch ON
(II)

About 7
V

After 5 seconds

with ignition switch

ON (II)

-

11

PUR

RR LF PWR. (RR
low frequency
power)

Power source for
the right-rear
initiator

11-GND

For 5 seconds with
ignition switch ON
(II)

About 7
V

After 5 seconds



2007 Acura RL

2005-08 SUSPENSION TPMS (Tire Pressure Monitoring System) - RL



me



Friday, June 05, 2009 3:22:24 PM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

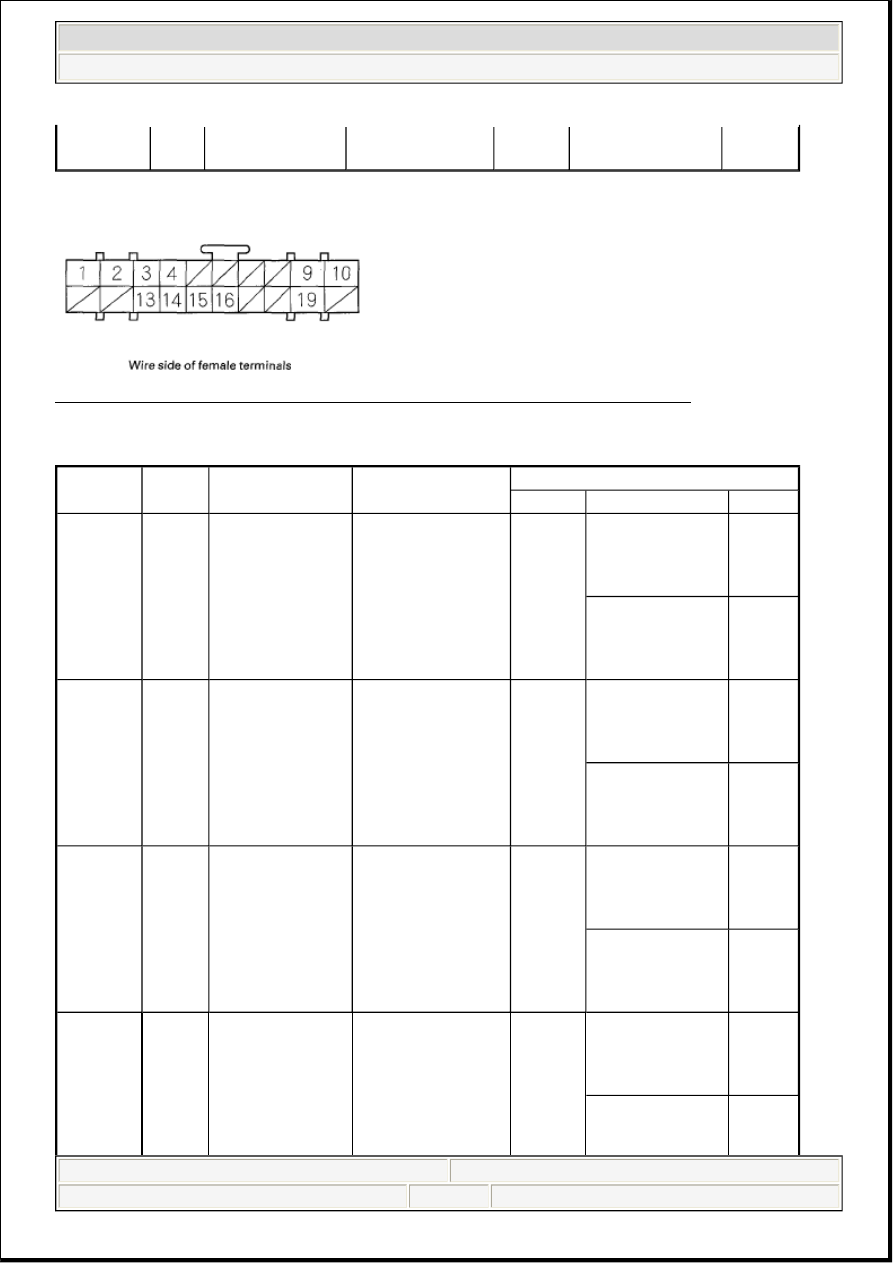

TPMS CONTROL UNIT INPUTS AND OUTPUTS FOR CONNECTOR B (20P)

Fig. 7: Identifying TPMS Control Unit Inputs And Outputs For Connector B (20P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

VOLTAGE TERMINAL CHART

with ignition switch

ON (II)

-

Terminal

number

Wire
color

Terminal sign

(Terminal name)

Description

Measurement

Terminal

Conditions

Voltage

1

LTGRN

RF LF SIG. (RF
low frequency
signal)

Detects the signal
from the right-front
initiator

1-GND

For the first 5
seconds after
turning the ignition
switch ON (II)

Pulses 0-
2 V

With ignition

switch ON (II) for

more than 5

seconds

Less
than
0.1V

2

GRY

RR LF SIG. (RR
low frequency
signal)

Detects the signal
from the right-rear
initiator

2-GND

For the first 5
seconds after
turning the ignition
switch ON (II)

Pulses 0-
2 V

With ignition

switch ON (II) for

more than 5

seconds

Less
than
0.1V

3

GRY

LF LF SIG. (LF
low frequency
signal)

Detects the signal
from the left-front
initiator

3-GND

For the first 5
seconds after
turning the ignition
switch ON (II)

Pulses 0-
2 V

With ignition

switch ON (II) for

more than 5

seconds

Less
than
0.1V

4

PNK

LR LF SIG. (LR
low frequency
signal)

Detects the signal
from the left-rear
initiator

4-GND

For the first 5
seconds after
turning the ignition
switch ON (II)

Pulses 0-
2 V

With ignition

switch ON (II) for

more than 5

Less
than



2007 Acura RL

2005-08 SUSPENSION TPMS (Tire Pressure Monitoring System) - RL



me



Friday, June 05, 2009 3:22:24 PM

Page 11

© 2005 Mitchell Repair Information Company, LLC.

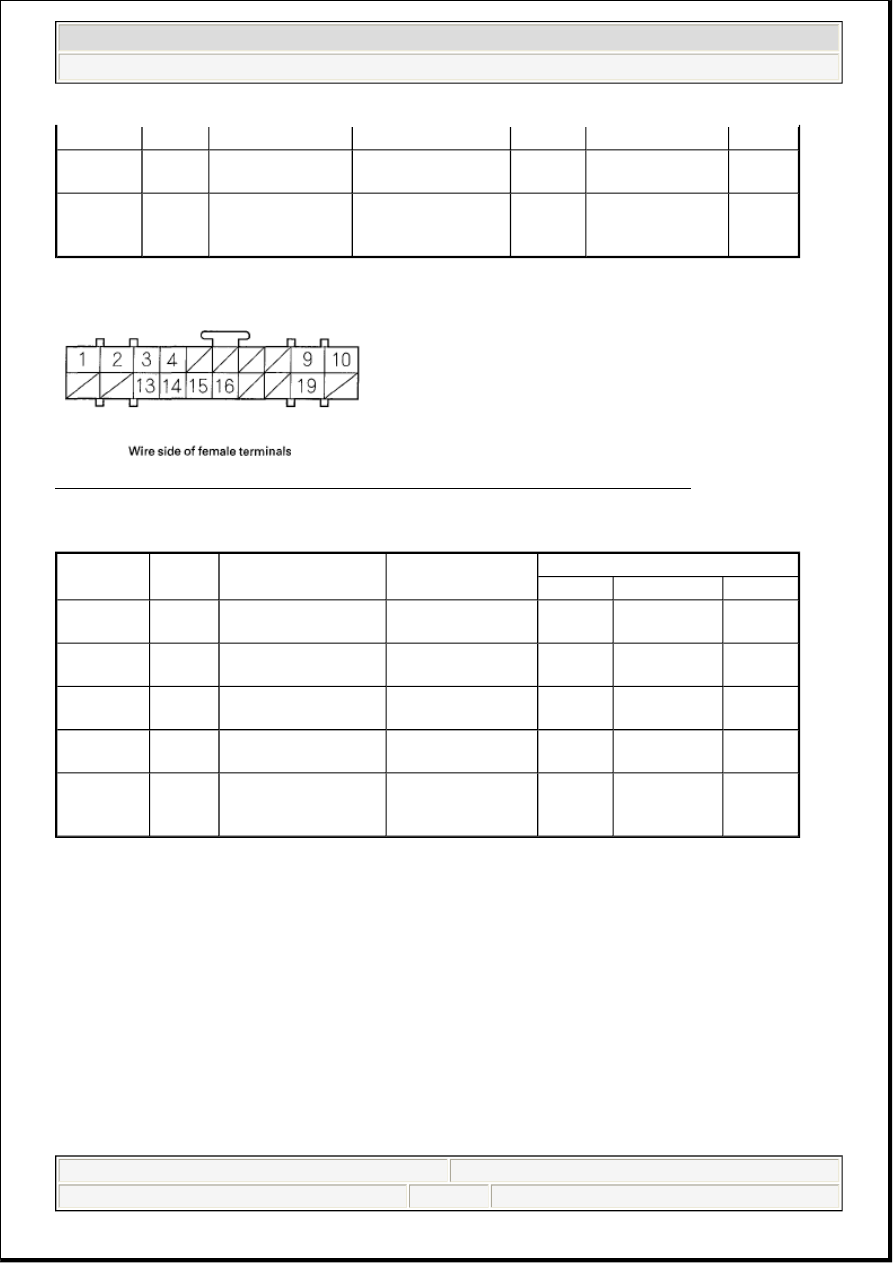

TPMS CONTROL UNIT INPUTS AND OUTPUTS FOR CONNECTOR B (20P)

Fig. 8: Identifying TPMS Control Unit Inputs And Outputs For Connector B (20P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

VOLTAGE TERMINAL CHART

SYSTEM STRUCTURE

Whenever the engine is running, the TPMS control unit continuously monitors all four tires and the system.
If it detects low pressure in a tire, it alerts the driver by turning on the low tire pressure indicator and the
appropriate tire(s) indicator shown on the multi-information display. If it detects a problem in the system it
turns on the TPMS indicator.

Initiators

Mounted on the top of each wheel well, each initiator sends a start/stop signal to the tire pressure sensor in
the tire below it.

Control unit

Mounted under the rear shelf, the control unit sends signals to the initiators and receives signals from them

seconds

0.1V

9

LTBLU

K-LINE (Data link
connector)

Communications
with HDS

-

-

-

10

BLK

CANL (CAN
communication
signal low)

Sends the
communication
signal

-

Ignition switch ON
(II)

Pulses

Terminal

number

Wire
color

Terminal sign

(Terminal name)

Description

Measurement

Terminal Conditions

Voltage

13

LT BLU

LF LF GND (LF low
frequency ground)

Ground for the left-
front initiator

13-GND

Ignition
switch ON (II)

Less than
0.1V

14

PNK

RF LF GND (RF low
frequency ground)

Ground for the
right-front initiator

14-GND

Ignition
switch ON (II)

Less than
0.1V

15

GRN

LR LF GND (LR low
frequency ground)

Ground for the left-
rear initiator

15-GND

Ignition
switch ON (II)

Less than
0.1V

16

LTGRN

RR LF GND (RR low
frequency ground)

Ground for the
right-rear initiator

16-GND

Ignition
switch ON (II)

Less than
0.1V

19

WHT

CANH (CAN
communication signal
high)

Sends the
communication
signal

-

Ignition
switch ON (II)

Pulses



2007 Acura RL

2005-08 SUSPENSION TPMS (Tire Pressure Monitoring System) - RL



me



Friday, June 05, 2009 3:22:24 PM

Page 12
