Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

1. Detach the hooks (A), then remove the beverage holder cover (B).

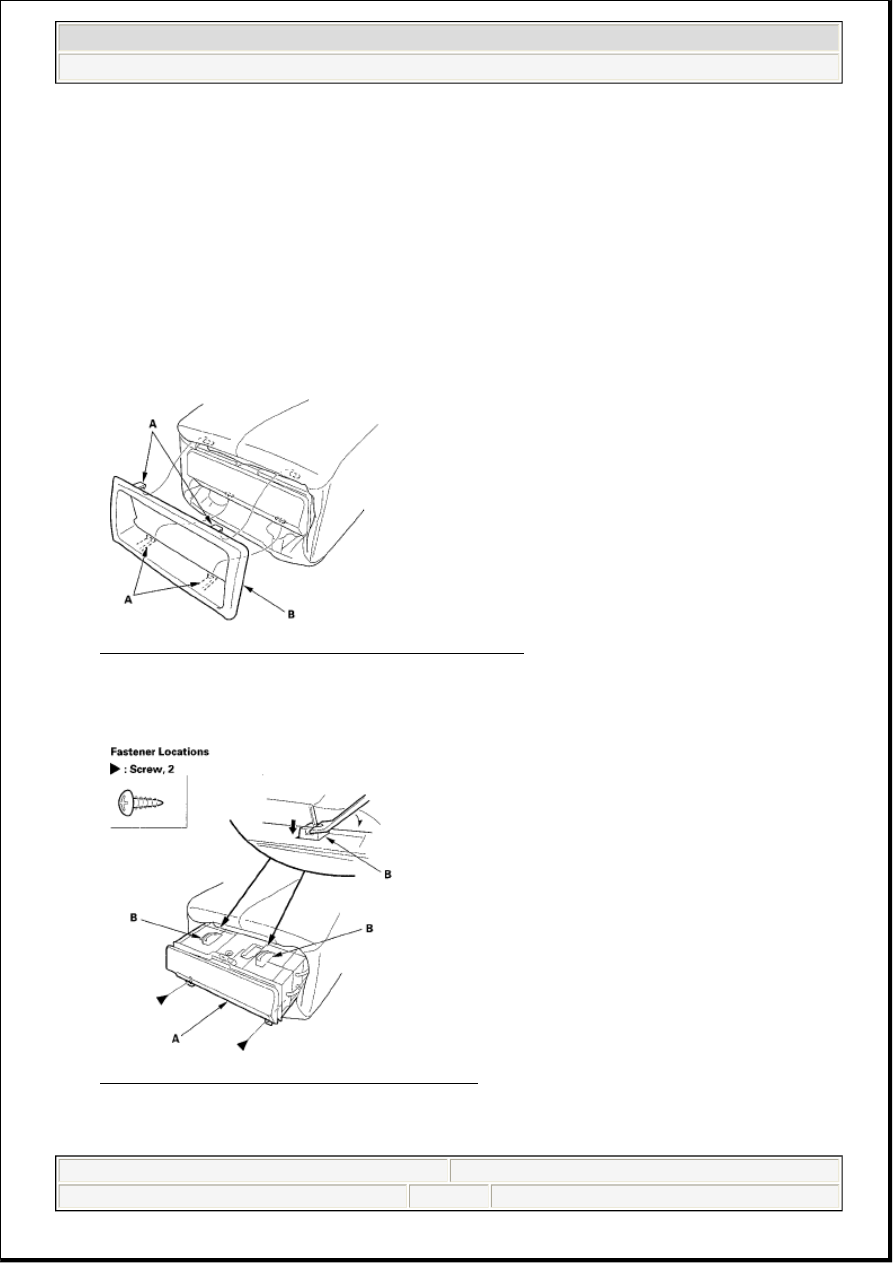

Fig. 62: Identifying Beverage Holder Cover And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the screws, then pull out on the beverage holder (A) to release the hooks (B).

Fig. 63: Identifying Beverage Holder And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the beverage holder in the reverse order of removal.

NOTE:



Take care not to tear the seams or damage the seat covers.



Use the appropriate tool from the KTC trim tool set to avoid damage
when prying components.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Seats - RL



me



Friday, June 05, 2009 3:27:17 PM

Page 38

© 2005 Mitchell Repair Information Company, LLC.

REAR SEAT ARMREST REPLACEMENT

1. Remove the rear seat-back (see REAR SEAT REMOVAL/INSTALLATION ).

2. Open the trunk pass-through cover (A), and remove the screws, then separate the armrest cover (B)

from the trunk pass-through cover.

Fig. 64: Identifying Trunk Pass-Through Cover And Armrest Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the screws, and detach the hooks (A), then remove the upper cover (B). Remove the spring

(C).

Fig. 65: Identifying Upper Cover, Spring And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Release the Velcro fastener (A), then pull back the upper flap (B). Remove the screws, then remove

the trunk pass-through lid (C).

NOTE:

Take care not to tear the seams or damage the seat covers.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Seats - RL



me



Friday, June 05, 2009 3:27:17 PM

Page 39

© 2005 Mitchell Repair Information Company, LLC.

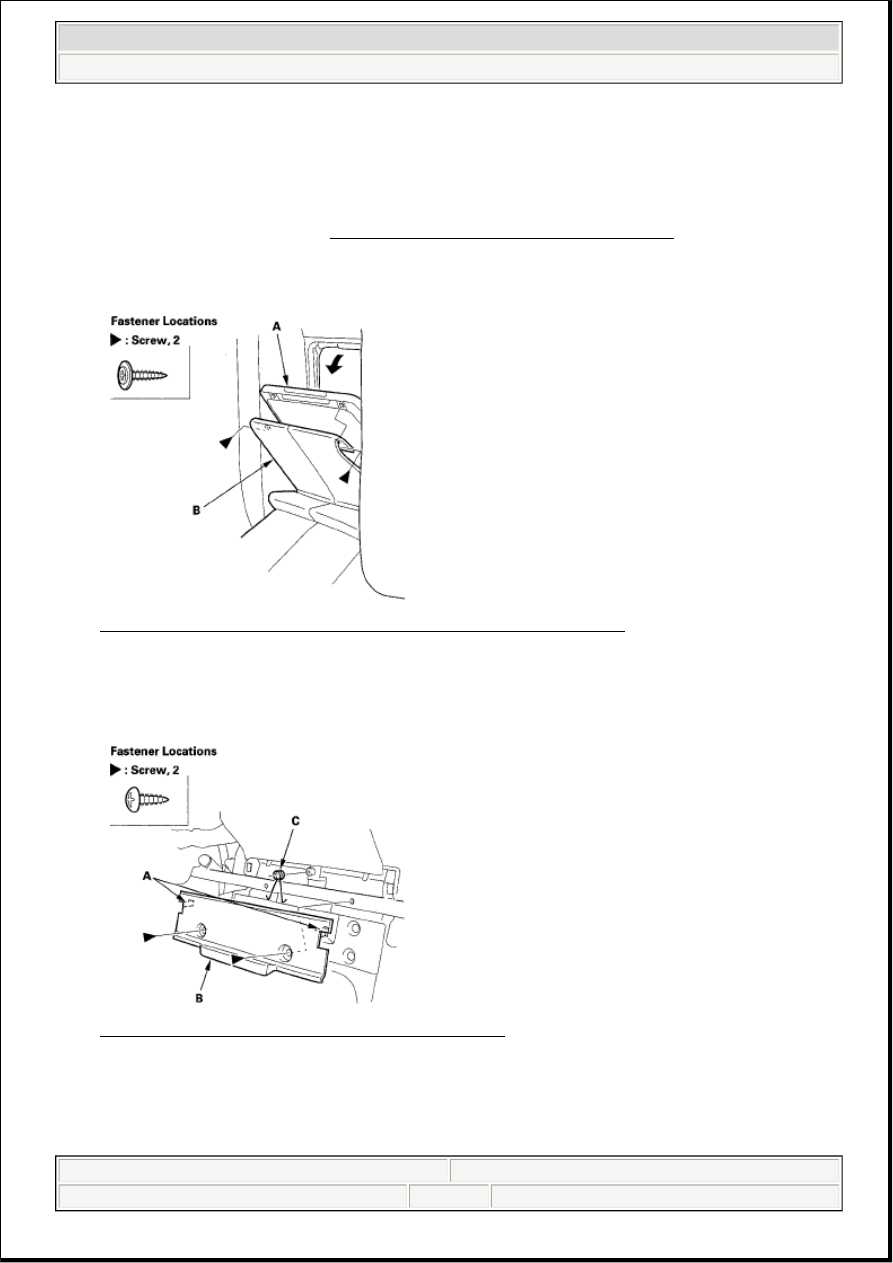

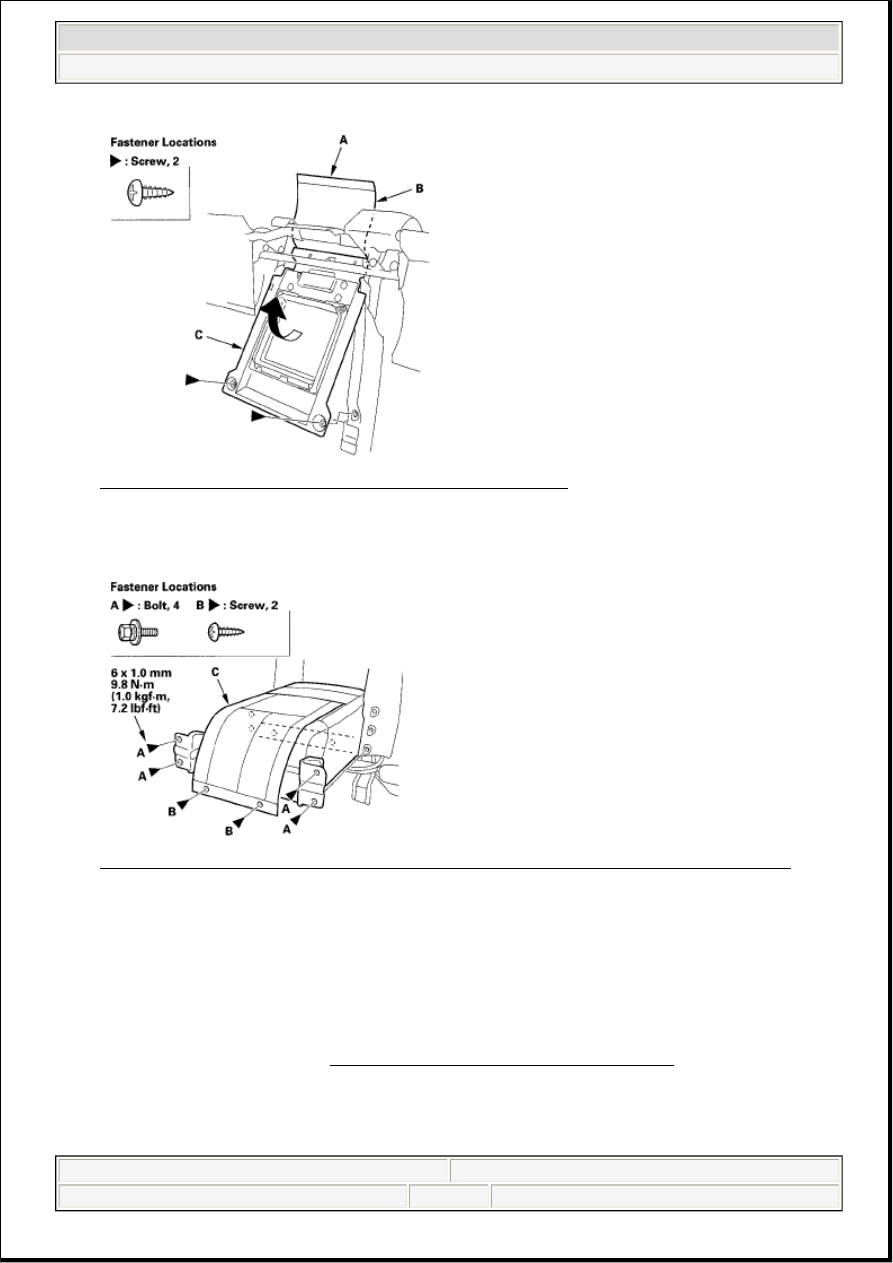

Fig. 66: Identifying Velcro Fastener, Upper Flap And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the bolts (A) and screws (B), and remove the armrest (C) from the seat-back frame.

Fig. 67: Identifying Armrest, Seat-Back Frame And Fasteners With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install the armrest in the reverse order of removal.

TRUNK PASS-THROUGH LID LOCK CYLINDER REPLACEMENT

1. Remove the rear seat-back (see REAR SEAT REMOVAL/INSTALLATION ).

2. Remove the screws, and detach the hooks (A), then remove the upper cover (B).

NOTE:

Take care not to tear the seams or damage the seat covers.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Seats - RL



me



Friday, June 05, 2009 3:27:17 PM

Page 40

© 2005 Mitchell Repair Information Company, LLC.

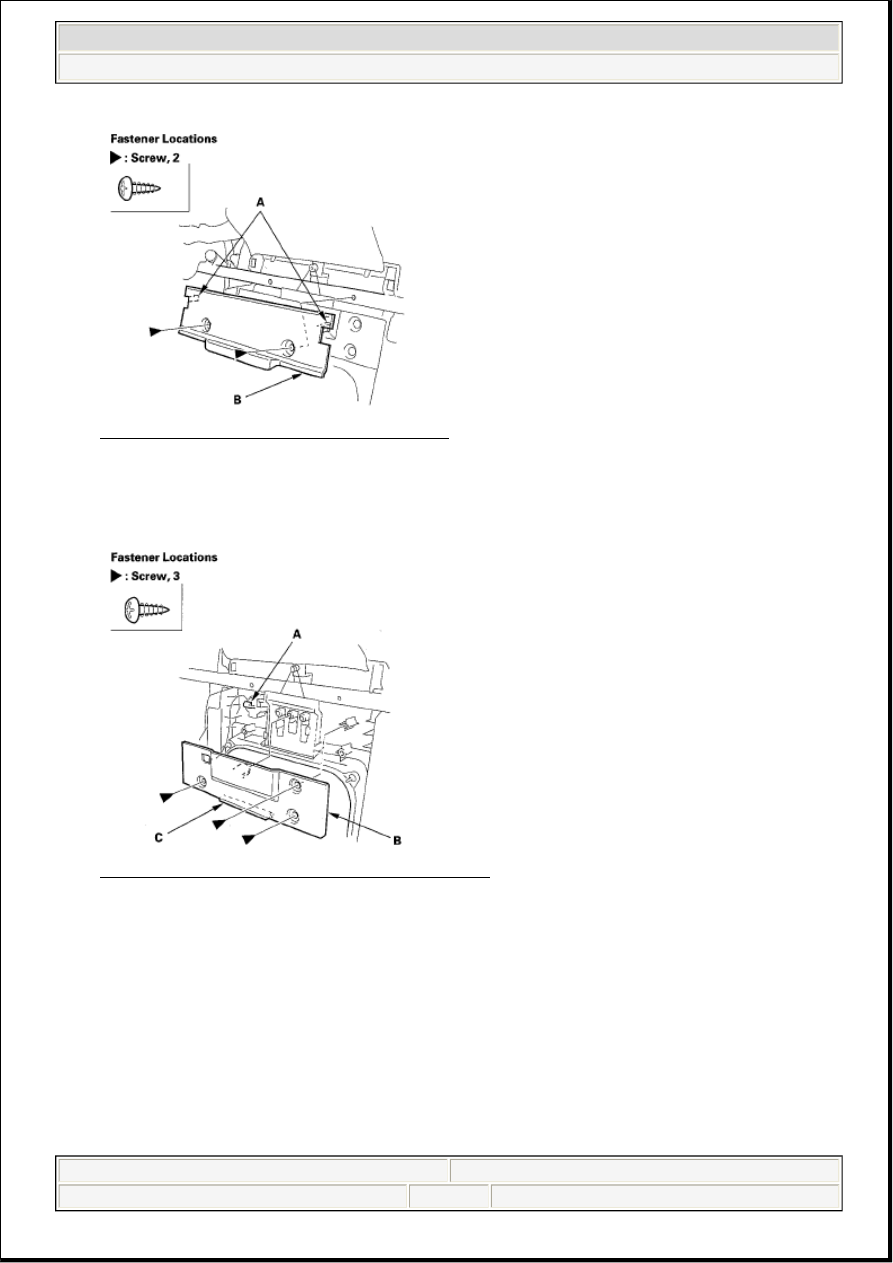

Fig. 68: Identifying Upper Cover And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the screws, and detach the hook (A), then remove the lock cover (B), and release the hook

(C).

Fig. 69: Identifying Lock Cover, Hook And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the retainer clip (A), then remove the trunk pass-through lid lock cylinder (B) from the lid

(C).

NOTE:

Wear eye protection when doing this step.
