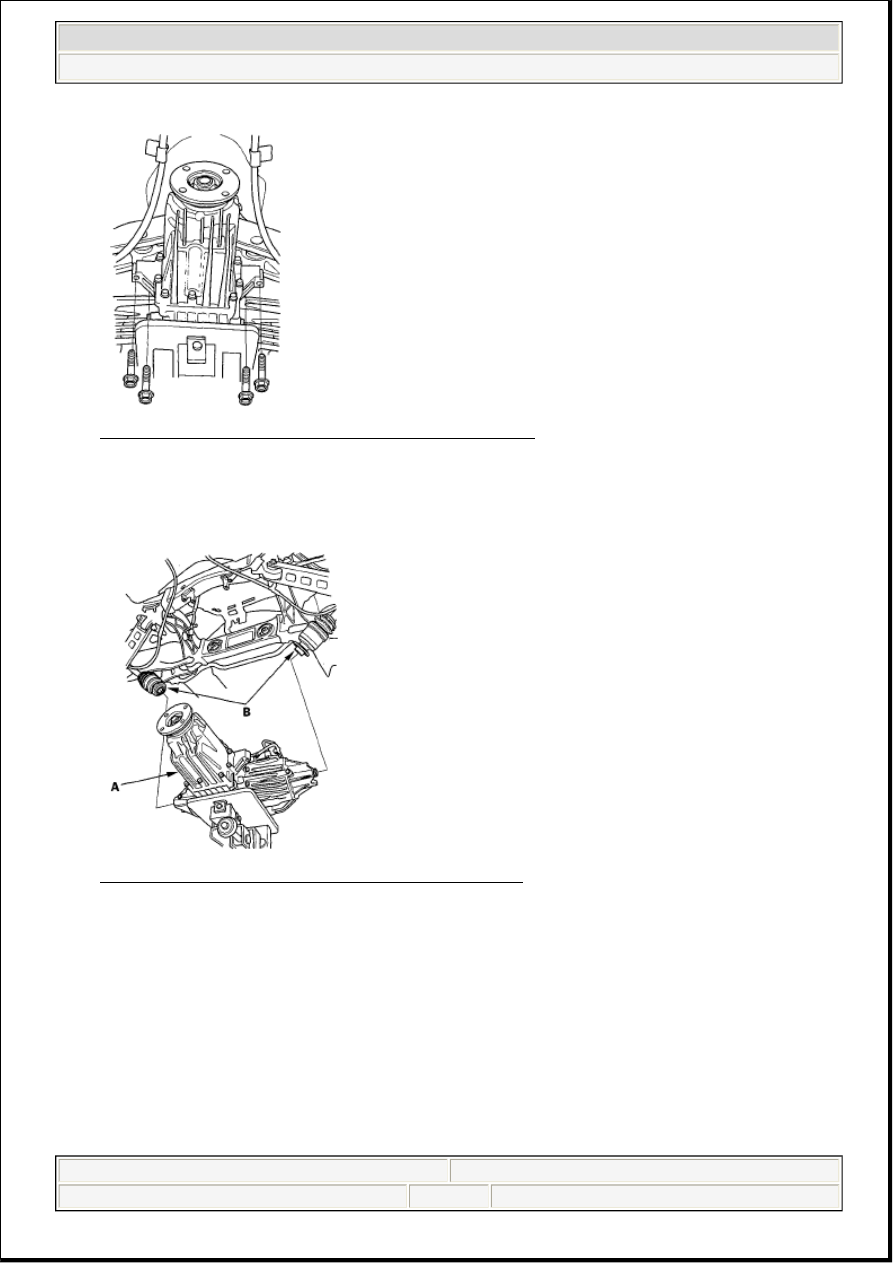

Fig. 175: Identifying Differential's Front Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. As you lower the rear differential (A) with the transmission jack, remove the rear driveshafts (B) from

the rear differential.

Fig. 176: Identifying Rear Differential And Driveshafts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

REAR DIFFERENTIAL INSTALLATION

1. Raise the rear differential (A) with the transmission jack.



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 135  © 2005 Mitchell Repair Information Company, LLC.

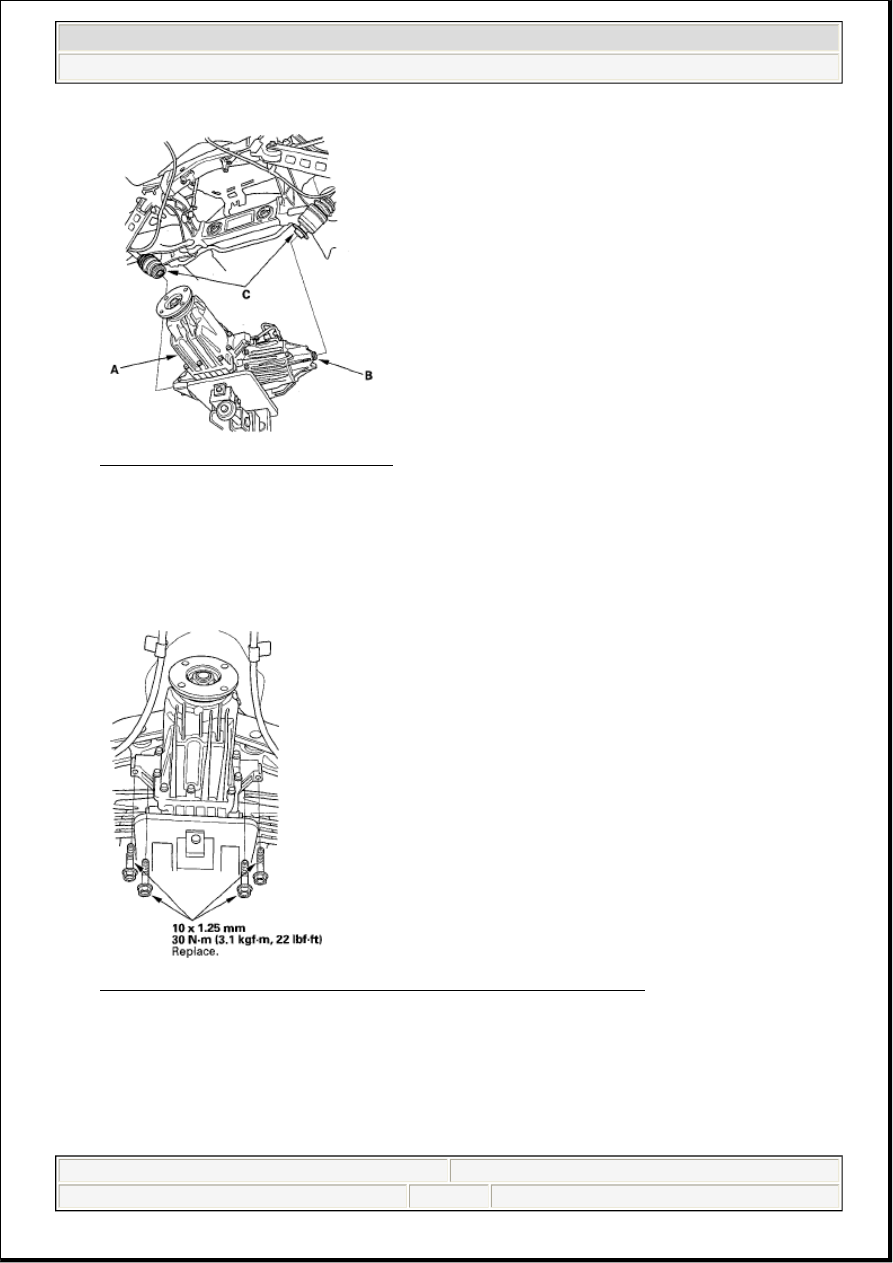

Fig. 177: Identifying Rear Differential
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. If the original differential is being reinstalled, replace the set rings (B).

3. Apply multipurpose grease to the splines of the rear driveshafts (C), then install the rear driveshafts to

the rear differential.

4. Install the new front mounting bolts.

Fig. 178: Identifying Front Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install the new rear mounting bolts.



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 136  © 2005 Mitchell Repair Information Company, LLC.

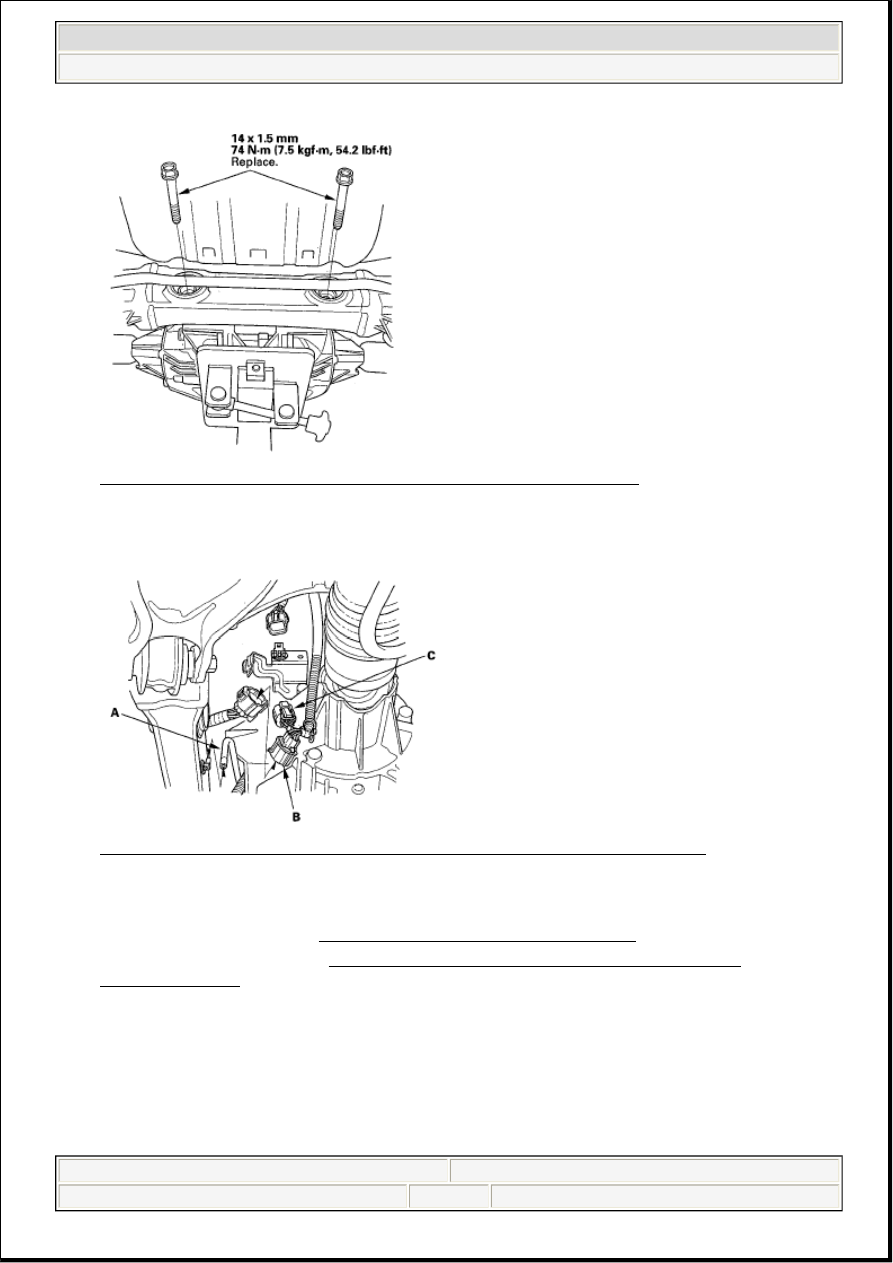

Fig. 179: Identifying Rear Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Connect the breather hose (A).

Fig. 180: Identifying Breather Hose And Rear Differential Harness Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Connect the rear differential harness connectors (B) and (C).

8. Install the propeller shaft (see PROPELLER SHAFT INSTALLATION ).

9. Refill the differential fluid (see REAR DIFFERENTIAL FLUID INSPECTION AND

REPLACEMENT ).

REAR DIFFERENTIAL DISASSEMBLY/REASSEMBLY



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 137  © 2005 Mitchell Repair Information Company, LLC.

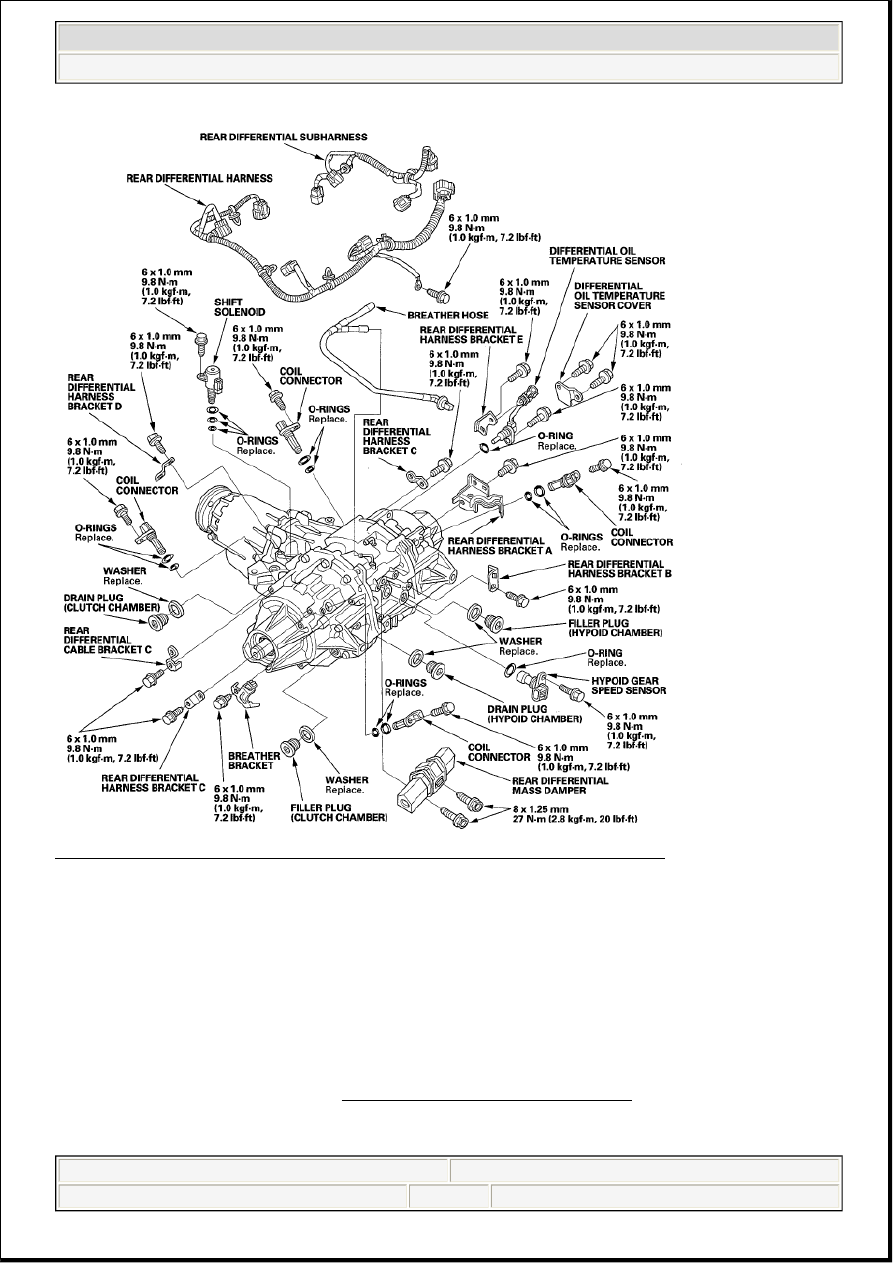

Fig. 181: Identifying Rear Differential Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

FRONT CASE OIL SEAL REPLACEMENT

Special Tools Required



Companion flange holder 07XAB-0010101



Oil seal driver D 070AD-RJC0140



Inner driver handle 40 07746-0030100

1. Remove the rear differential (see REAR DIFFERENTIAL REMOVAL ).

2. Raise the locknut tab (A) from the groove of the input shaft, making sure that the tab completely

clears the groove to prevent damaging the input shaft.
