REPLACEMENT ).

3. Disconnect the 14P connector (A) from the left rear power window switch (B).

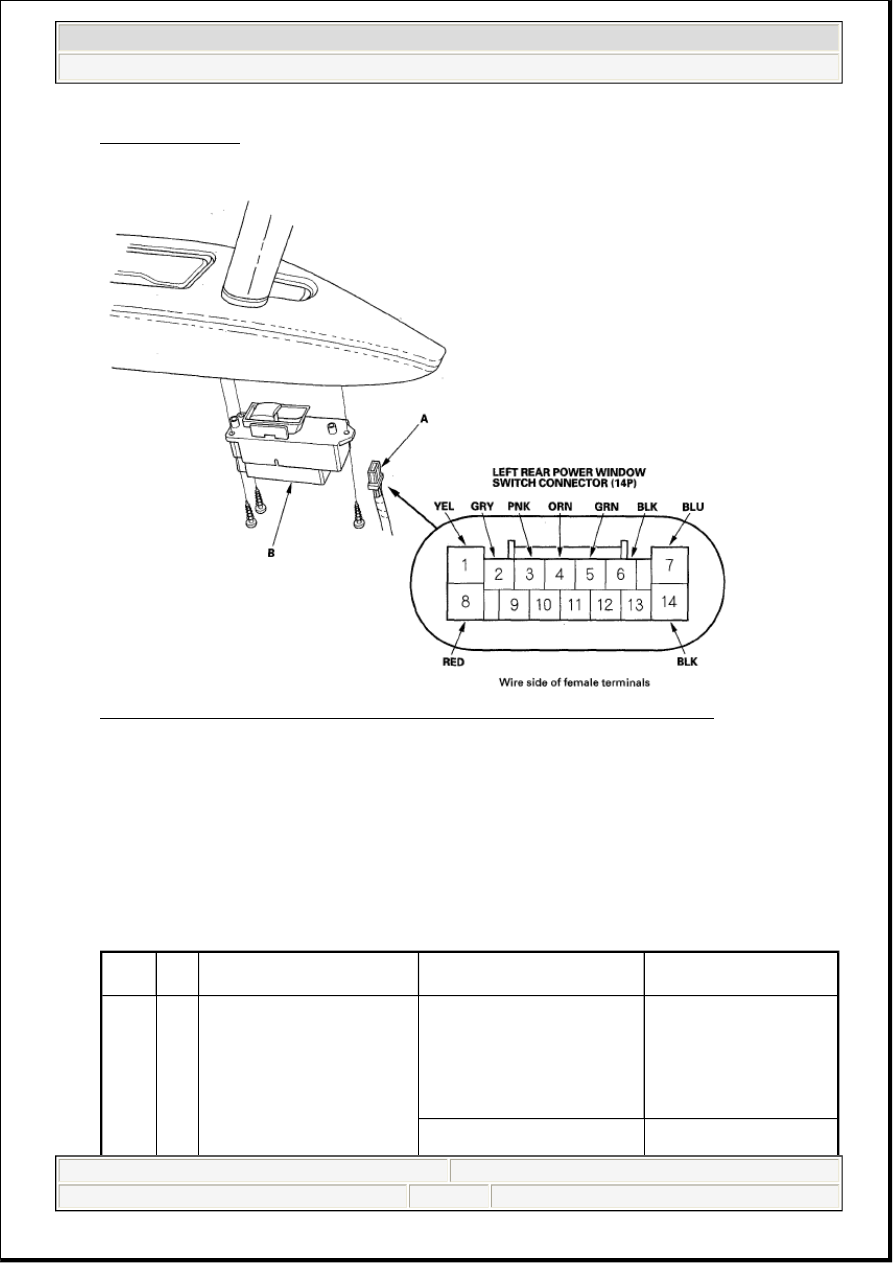

Fig. 50: Identifying Left Rear Power Window Switch Connector Terminal (14P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Inspect the connector and socket terminals to be sure they are all making good contact.



If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.



If the terminals look OK, go to step 5.

5. With the connector still disconnected, make these input tests at the connector.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 6.

TEST CONDITION AND POSSIBLE CAUSE REFERENCE CHART

Cavity Wire

Test condition

Test: Desired result

Possible cause if desired

result is not obtained

2

GRY

Driver's under-dash
fuse/relay box connector J
(21P) disconnected

Check for continuity between
the No. 2 terminal and driver's
under-dash fuse/relay box
connector J (21P) No. 1
terminal:
There should be continuity.

An open in the wire

Check for continuity to

A short to ground in the



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 56

© 2005 Mitchell Repair Information Company, LLC.

6. Reconnect the connector to the left rear power window switch, and make these input tests at the

connector.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, the left rear power window switch must be faulty; replace it (see
POWER WINDOW MASTER SWITCH REPLACEMENT ) and go to step 7.

TEST CONDITION AND POSSIBLE CAUSE REFERENCE CHART

ground:

There should be no continuity.

wire

1

YEL

Connect the No. 8 and No. 1
terminals with a jumper wire,
and connect the No. 7
terminal to body ground.

Check the left rear power
window motor operation:
The motor should run (the
window should go down).



Blown No. 24
(20A) fuse in the
driver's under-dash
fuse/relay box



Faulty left rear
power window
motor



An open in the wire

7

BLU

Connect the No. 8 and No. 7
terminals with a jumper wire,
and connect the No. 1
terminal to body ground.

Check the left rear power
window motor operation:
The motor should run (the
window should go up).



Blown No. 24
(20A) fuse in the
driver's under-dash
fuse/relay box



Faulty left rear
power window
motor



An open in the wire

Cavity Wire

Test condition

Test: Desired result

Possible cause if

desired result is not

obtained

6

BLK Under all conditions

Measure the voltage to
ground:
There should be less than
0.5 V.



Poor ground
(G602)



An open in the
wire

14

BLK Under all conditions

Measure the voltage to
ground:
There should be less than
0.5 V.



Poor ground
(G601)



An open in the
wire

8

RED Under all conditions

Measure the voltage to
ground:
There should be battery
voltage.



Blown No. 23
(P/W) (50A) fuse
in the under-hood
fuse/relay box



Blown No. 24
(20A) fuse in the
driver's under-
dash fuse/relay
box



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 57

© 2005 Mitchell Repair Information Company, LLC.

7. Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL

UNIT ).

RIGHT REAR POWER WINDOW SWITCH INPUT TEST

1. Turn the ignition switch OFF.

2. Remove the right rear power window switch (see PASSENGER'S POWER WINDOW SWITCH

TEST/REPLACEMENT ).

3. Disconnect the 14P connector (A) from the right rear power window switch (B).



Faulty driver's
under-dash
fuse/relay box



An open in the
wire

3

PNK Ignition switch ON (II)

Measure the voltage to
ground:
There should be battery
voltage.



Faulty left rear
power window
switch



An open in the
wire

5

GRN

Ignition switch ON (II) and left
rear power window motor runs by
connecting the No. 8 and No. 1
terminals with a jumper wire, and
connect the No. 7 terminal to body
around.

Measure the voltage
between the No. 5 and No.
6 terminals:
There should be 0-about 5
V - 0-about 5 V
repeatedly (a digital
voltmeter reads about 2.5
V while the window
moves).



Blown No. 24
(20A) fuse in the
driver's under-
dash fuse/relay
box



Faulty left rear
power window
switch



Faulty left rear
power window
motor



An open in the
wire

4

ORN

Ignition switch ON (II) and left
rear power window motor runs by
connecting the No. 8 and No. 1
terminals with a jumper wire, and
connect the No. 7 terminal to body
ground.

Measure the voltage
between the No. 4 and No.
6 terminals:
There should be 0-about 5
V - 0-about 5 V
repeatedly (a digital
voltmeter reads about 2.5
V while the window
moves).



Blown No. 24
(20A) fuse in the
driver's under-
dash fuse/relay
box



Faulty left rear
power window
switch



Faulty left rear
power window
motor



An open in the
wire



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 58

© 2005 Mitchell Repair Information Company, LLC.

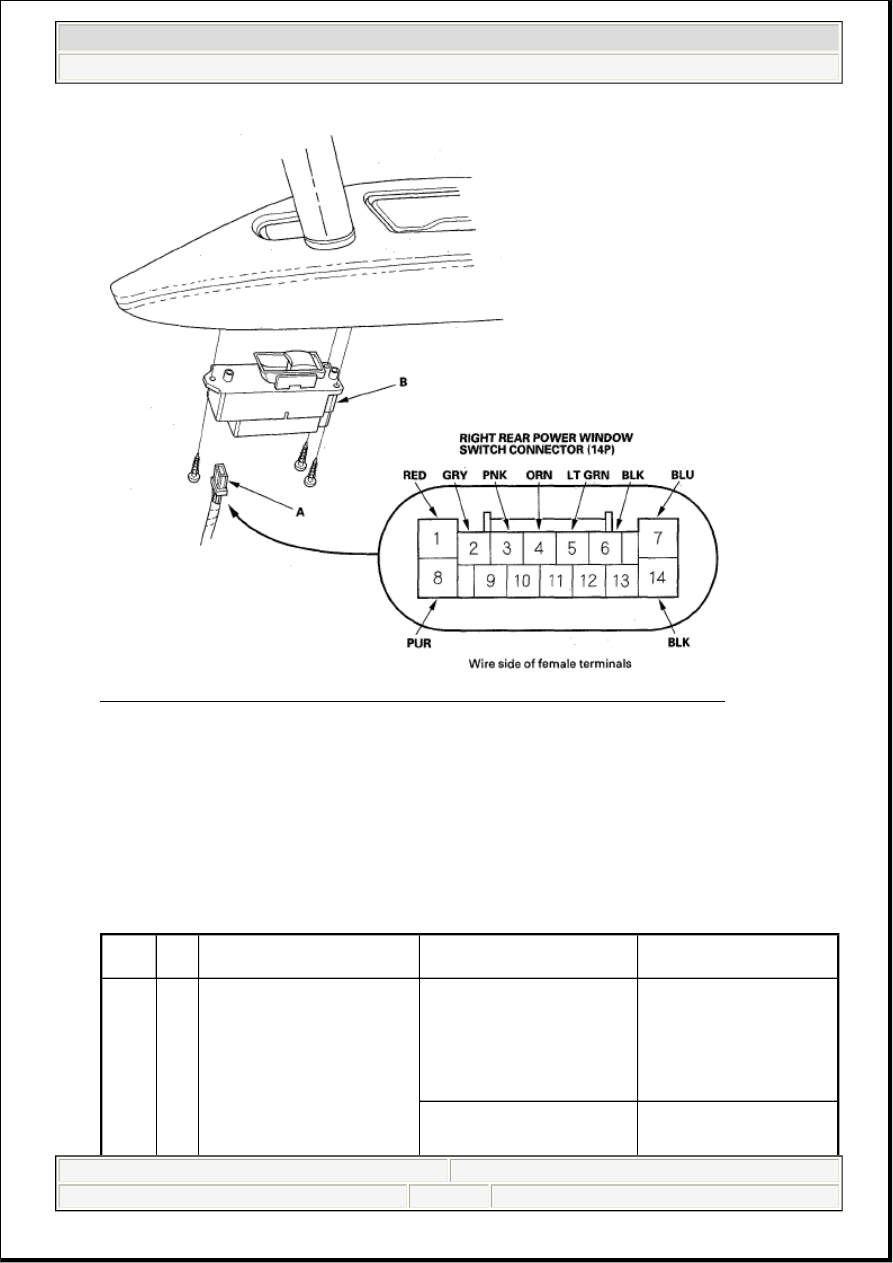

Fig. 51: Identifying Right Rear Power Window Switch Connector Terminal (14P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Inspect the connector and socket terminals to be sure they are all making good contact.



If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.



If the terminals look OK, go to step 5.

5. With the connector still disconnected, make these input tests at the connector.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 6.

TEST CONDITION AND POSSIBLE CAUSE REFERENCE CHART

Cavity Wire

Test condition

Test: Desired result

Possible cause if desired

result is not obtained

2

GRY

Driver's under-dash fuse/relay
box connector X (39P) and
passenger's MPCS unit
connector A (28P)
disconnected

Check for continuity between
the No. 2 terminal and
driver's under-dash fuse/relay
box connector X (39P) No.
15 terminal:
There should be continuity.



Faulty passenger's
under-dash
fuse/relay box



An open in the wire

Check for continuity to



Faulty passenger's
under-dash



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 59
