Acura RL. Manual - part 735

Is DTC B2189 indicated?

YES - Replace the driver's power window motor.

NO - Replace the driver's MPCS unit.

DTC B2190: FRONT PASSENGER'S POWER WINDOW POSITION DETECT CIRCUIT ERROR

1. Clear the DTCs with the HDS.

2. Turn the ignition switch OFF, and then back ON (II).

3. Open and close the front passenger's window by using the front passenger's power window switch

manually.

4. Check for DTCs with the HDS.

Is DTC B2177 or B2178 also indicated?

YES - Troubleshoot the indicated DTC(s) first.

NO - Go to step 5.

5. Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL

UNIT ).

6. Clear the DTCs with the HDS.

7. Turn the ignition switch OFF, and then back ON (II).

8. Open and close the front passenger's power window by using the front passenger's power window

switch manually.

9. Check for DTCs with the HDS.

Is DTC B2190 indicated?

YES - Go to step 10.

NO - The system is OK at this time.

10. Turn the ignition switch OFF.

11. Substitute a known-good passenger's MPCS unit.

12. Clear the DTCs with the HDS.

13. Turn the ignition switch OFF, and then back ON (II).

14. Open and close the front passenger's power window by using the front passenger's power window

switch manually.

15. Check for DTCs with the HDS.

Is DTC B2190 indicated?

NOTE:

If you are troubleshooting multiple DTCs, be sure to follow the instructions
in B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN
SYSTEM DIAGNOSIS TEST MODE A ).



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 44

© 2005 Mitchell Repair Information Company, LLC.

YES - Replace the front passenger's window motor.

NO - Replace the passenger's MPCS unit.

DTC B2191: FRONT PASSENGER'S MPCS UNIT INTERNAL (EEPROM) ERROR

1. Clear the DTCs with the HDS.

2. Turn the ignition switch OFF, and then back ON (II).

3. Check for DTCs with the HDS.

Is DTC B2191 indicated?

YES - Replace the front passenger's MPCS unit.

NO - Intermittent failure, the system is OK at this time.

DRIVER'S MPCS UNIT INPUT TEST

1. Turn the ignition switch OFF.

2. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

3. Disconnect driver's MPCS unit (A) connectors A (40P) and B (14P).

NOTE:

If you are troubleshooting multiple DTCs, be sure to follow the instructions
in B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN
SYSTEM DIAGNOSIS TEST MODE A ).



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 45

© 2005 Mitchell Repair Information Company, LLC.

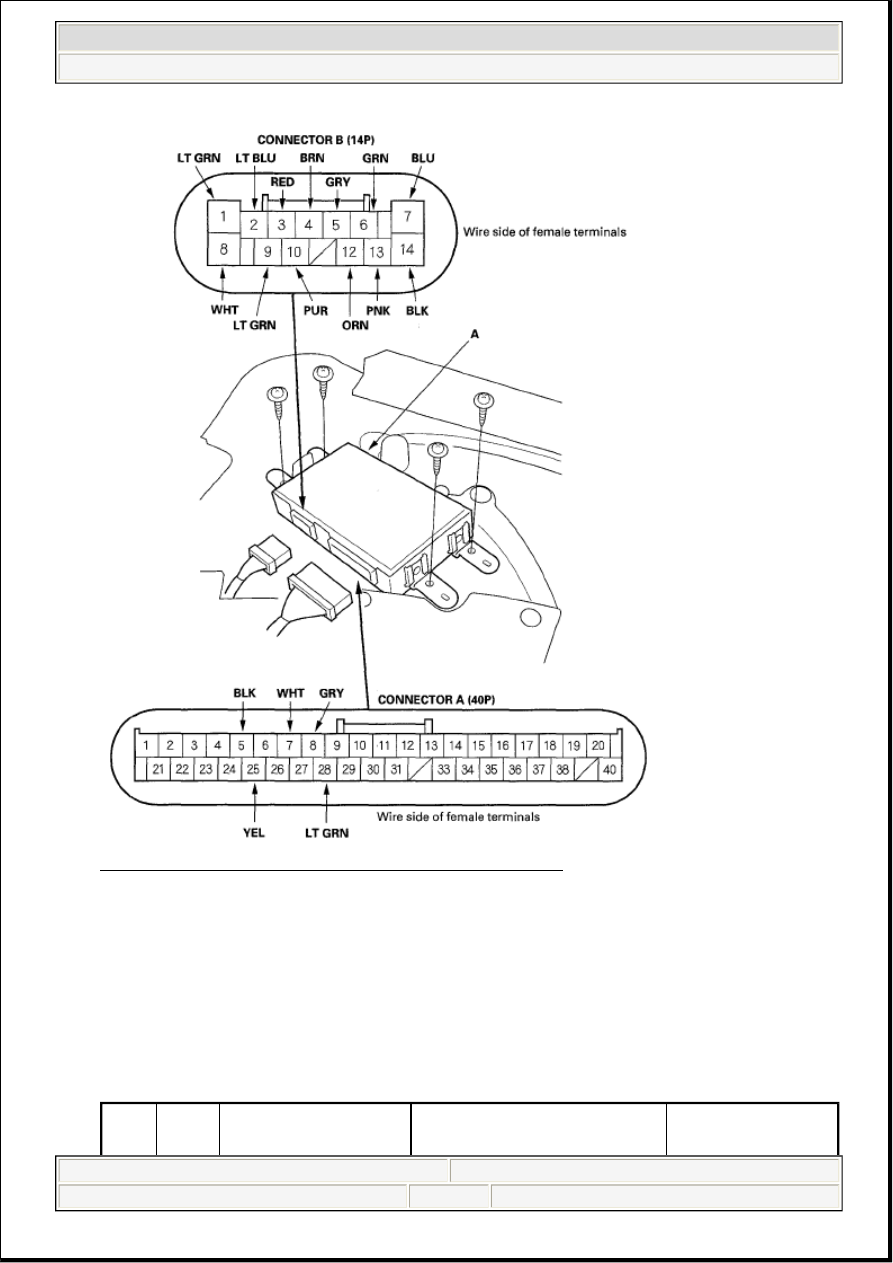

Fig. 48: Identifying MPCS Unit Connectors (40P) And (14P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Inspect the connector and socket terminals to be sure they are all making good contact.



If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.



If the terminals look OK, go to step 5.

5. With the connectors still disconnected, make these input tests at the connectors.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 6.

TEST CONDITION AND POSSIBLE CAUSE REFERENCE CHART

Cavity Wire

Test condition

Test: Desired result

Possible cause if

desired result is not



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 46

© 2005 Mitchell Repair Information Company, LLC.

obtained

A8

GRY

Driver's under-dash
fuse/relay box connector
H (14P) and power
window master switch 6P
connector disconnected

Check for continuity between the
A8 terminal and driver's under-
dash fuse/relay box connector H
(14P) No. 4 terminal, and A8
terminal and power window
master switch 6P connector No. 6
terminal:
There should be continuity.

An open in the wire

Check for continuity to ground:

There should be no continuity.

A short to ground in
the wire

B10

PUR

Driver's power window
switch in DOWN
position

Check for continuity between the
terminals:
There should be no continuity.



Faulty power
window master
switch



A short to
ground in the
wire

B12

ORN

B10

PUR

Driver's power window
switch released

Check for continuity between the
terminals:
There should be continuity.



Faulty power
window master
switch



An open in the
wire

B12

ORN

B10

PUR

Driver's power window
switch in DOWN
position

Check for continuity between the
terminals:
There should be continuity.



Faulty power
window master
switch



An open in the
wire

B13

PNK

B10

PUR

Driver's power window
switch released

Check for continuity between the
terminals:
There should be no continuity.



Faulty power
window master
switch



A short to
ground in the
wire

B13

PNK

B9

LTGRN

Driver's power window
switch in UP position

Check for continuity between the
terminals:
There should be continuity.



Faulty power
window master
switch



An open in the
wire

B2

LTBLU

B9

LTGRN

Driver's power window
switch released

Check for continuity between the
terminals:
There should be no continuity.



Faulty power
window master
switch



A short to
ground in the
wire

B2

LTBLU



Blown No. 27
(30A) fuse in the
