Acura RL. Manual - part 725

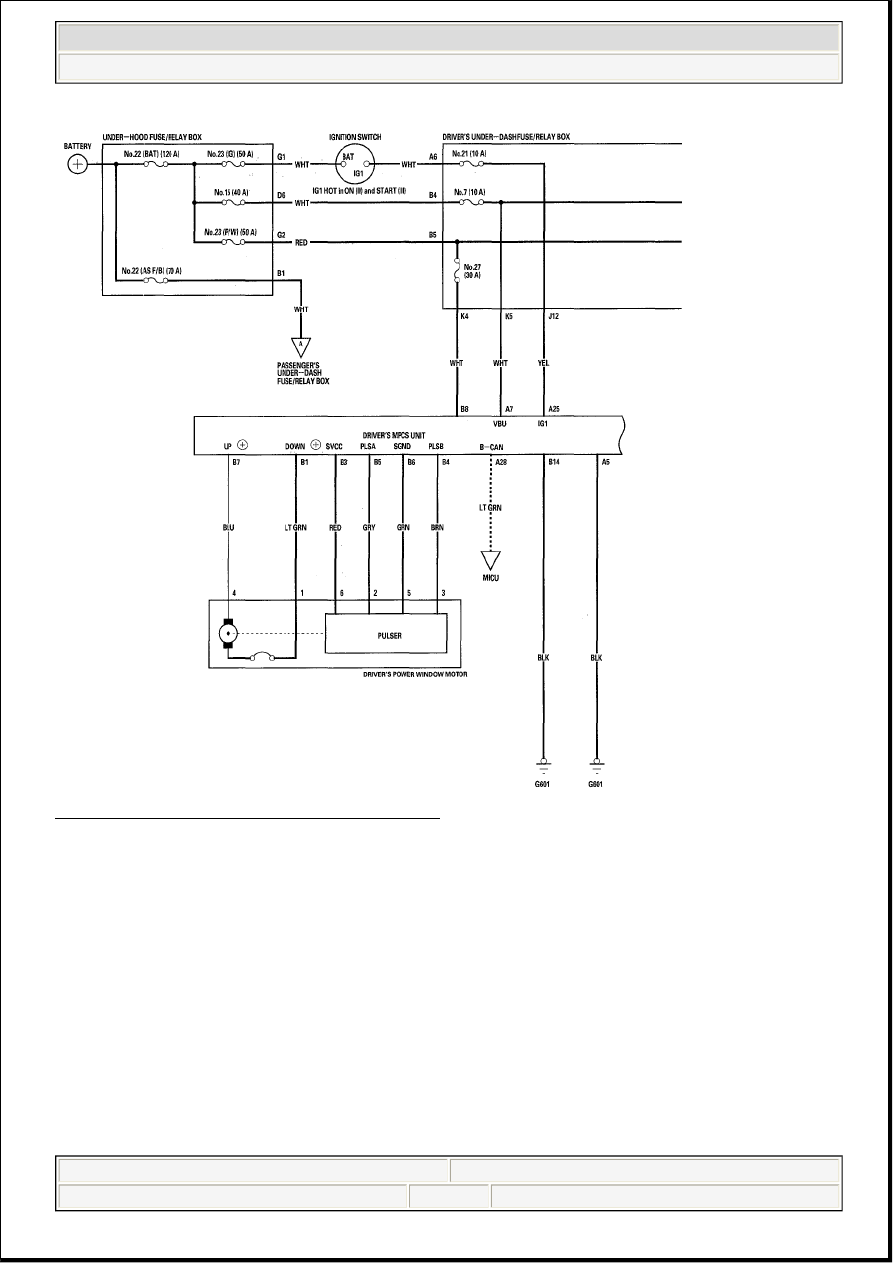

Fig. 4: Power Windows - Circuit Diagram (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

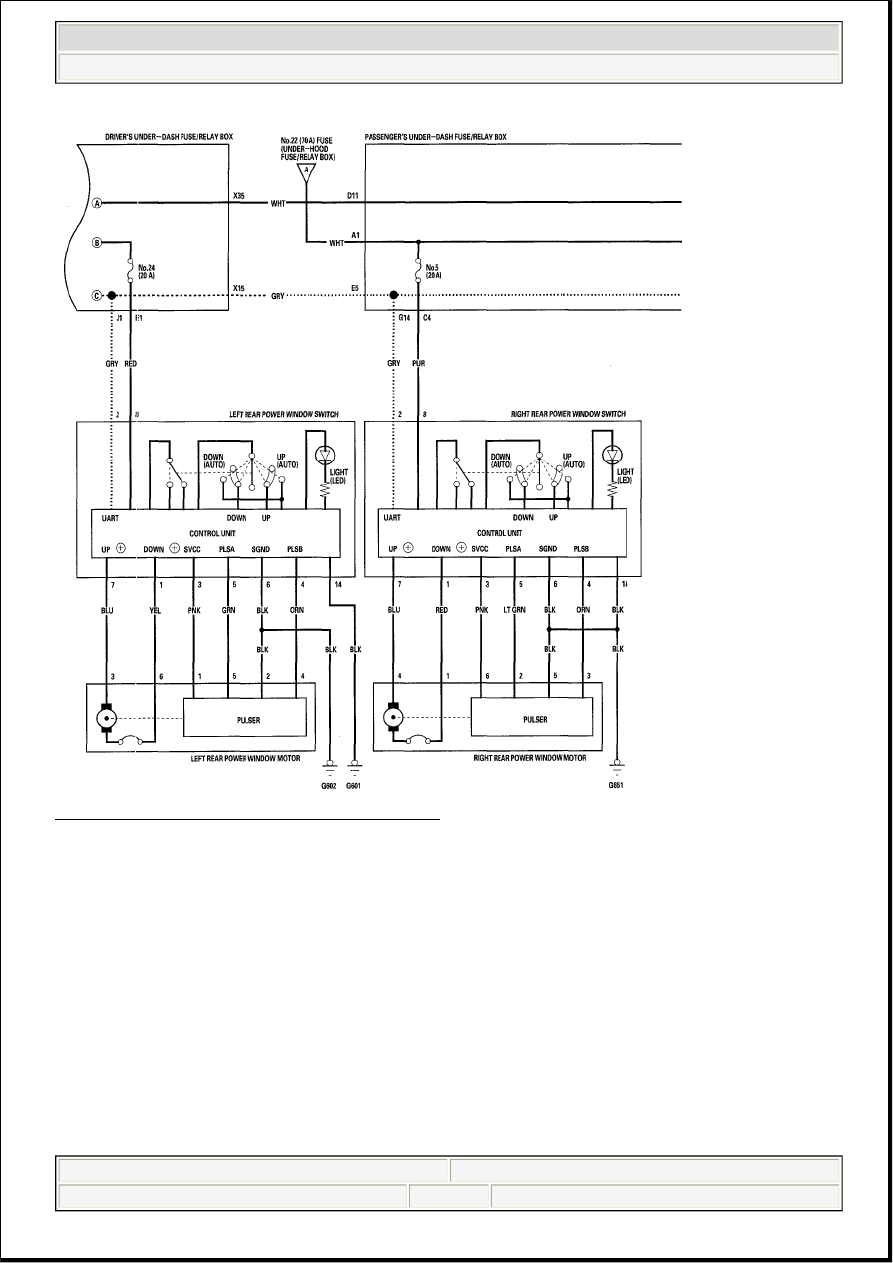

Fig. 5: Power Windows - Circuit Diagram (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

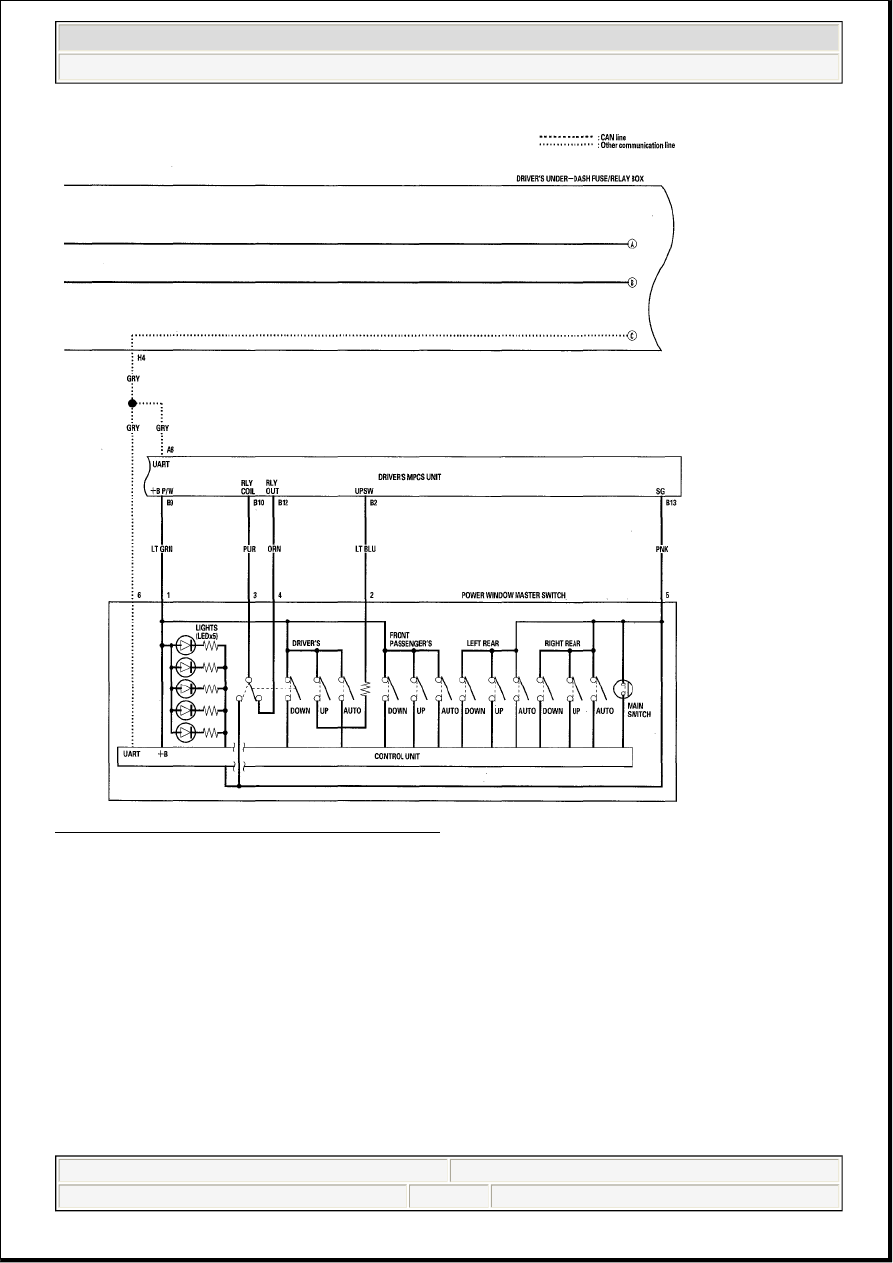

Fig. 6: Power Windows - Circuit Diagram (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 6

© 2005 Mitchell Repair Information Company, LLC.

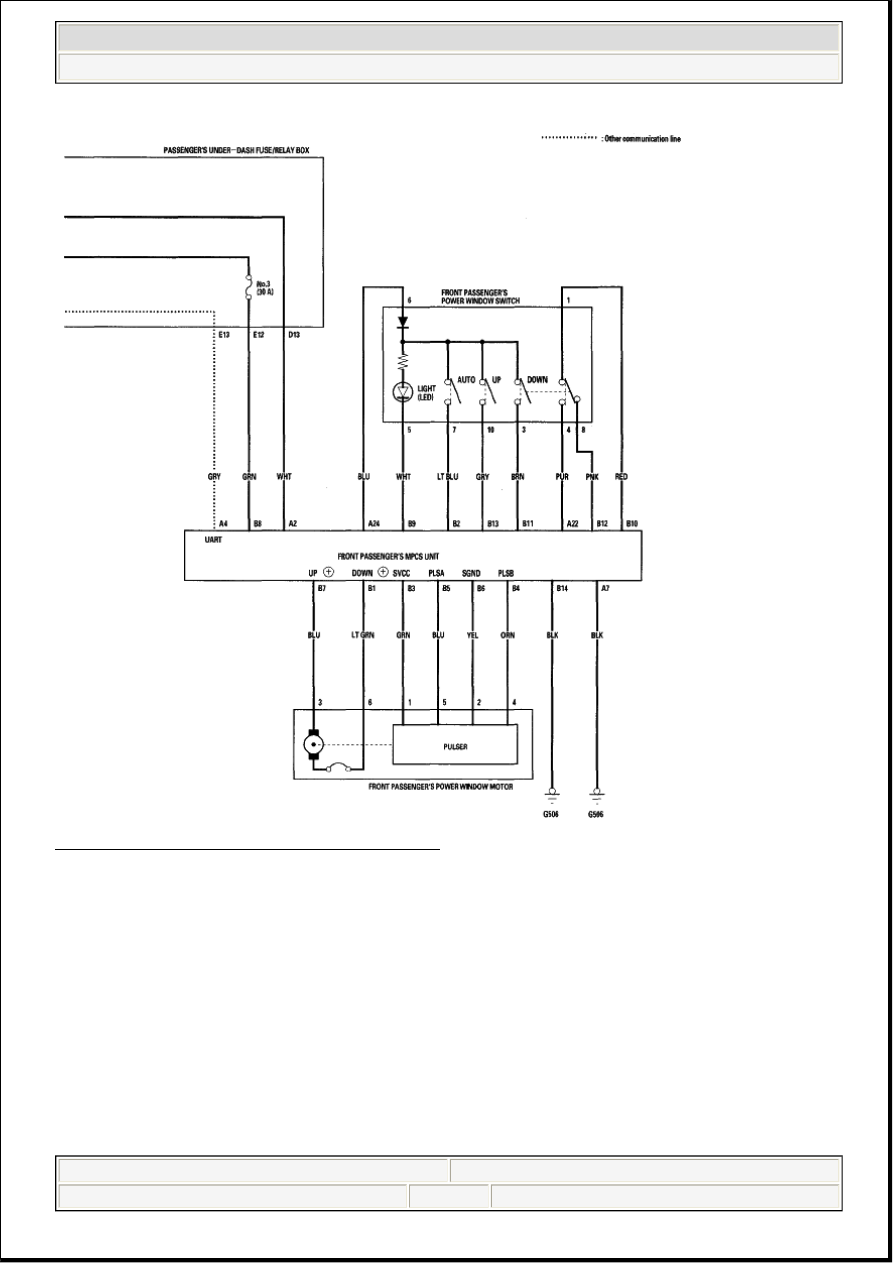

Fig. 7: Power Windows - Circuit Diagram (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

RESETTING THE POWER WINDOW CONTROL UNIT

Resetting the power windows are required when any of the following have occurred:



Power window regulator replacement or repair



Power window motor replacement or repair



Window run channel replacement or repair power



Driver's MPCS unit replacement or repair



Front passenger's MPCS unit replacement or repair



Rear power window switch replacement



Door glass replacement or repair



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 7

© 2005 Mitchell Repair Information Company, LLC.
