67. Continue to check for continuity between PCM connector terminal C6 and body ground, while

disconnecting these parts, one at a time:



MAP sensor 3P connector



Output shaft (countershaft) speed sensor 3P connector

Does continuity go away when one of the above components is disconnected?

YES - Replace the part that caused an open when it was disconnected

NO - Repair short in the wire between the PCM (C6) and the MAP sensor, the output shaft
(countershaft) speed sensor

68. Check for continuity between PCM connector terminal C14 and body ground.

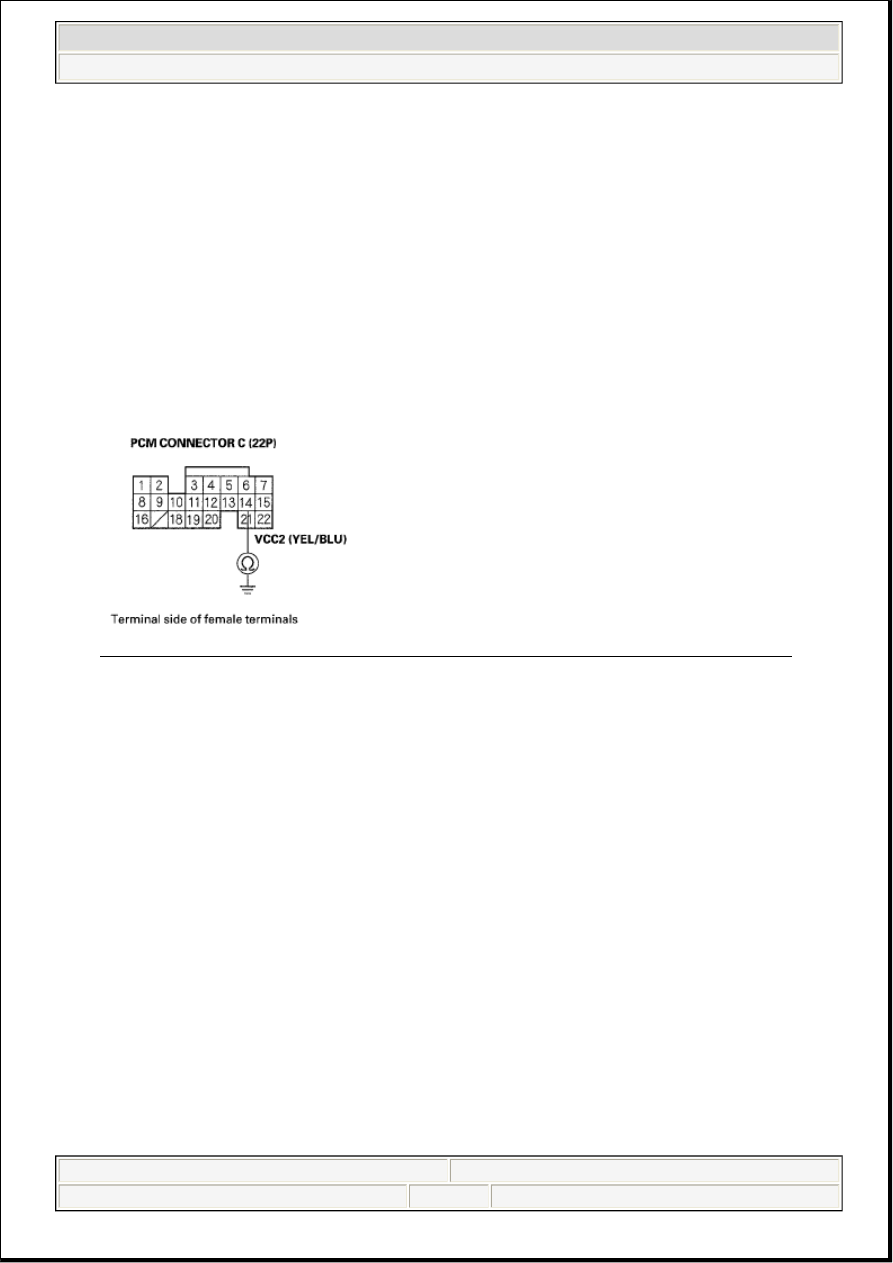

Fig. 201: Checking Continuity Between PCM Connector Terminal C14 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 69.

NO - Go to step 70.

69. Continue to check for continuity between PCM connector terminal C14 and body ground, while

disconnecting these parts, one at a time:



EGR valve 6P connector



Input shaft (mainshaft) speed sensor 3P connector



IMT actuator 5P connector

Does continuity go away when one of the above components is disconnected ?

YES - Replace the part that caused an open when it was disconnected

NO - Repair short in the wire between the PCM (C14) and the EGR valve, the input shaft (mainshaft)
speed sensor, or the IMT actuator

70. Check for continuity between PCM connector terminal D2 and body ground.

2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL

Friday, June 05, 2009 2:35:00 PM

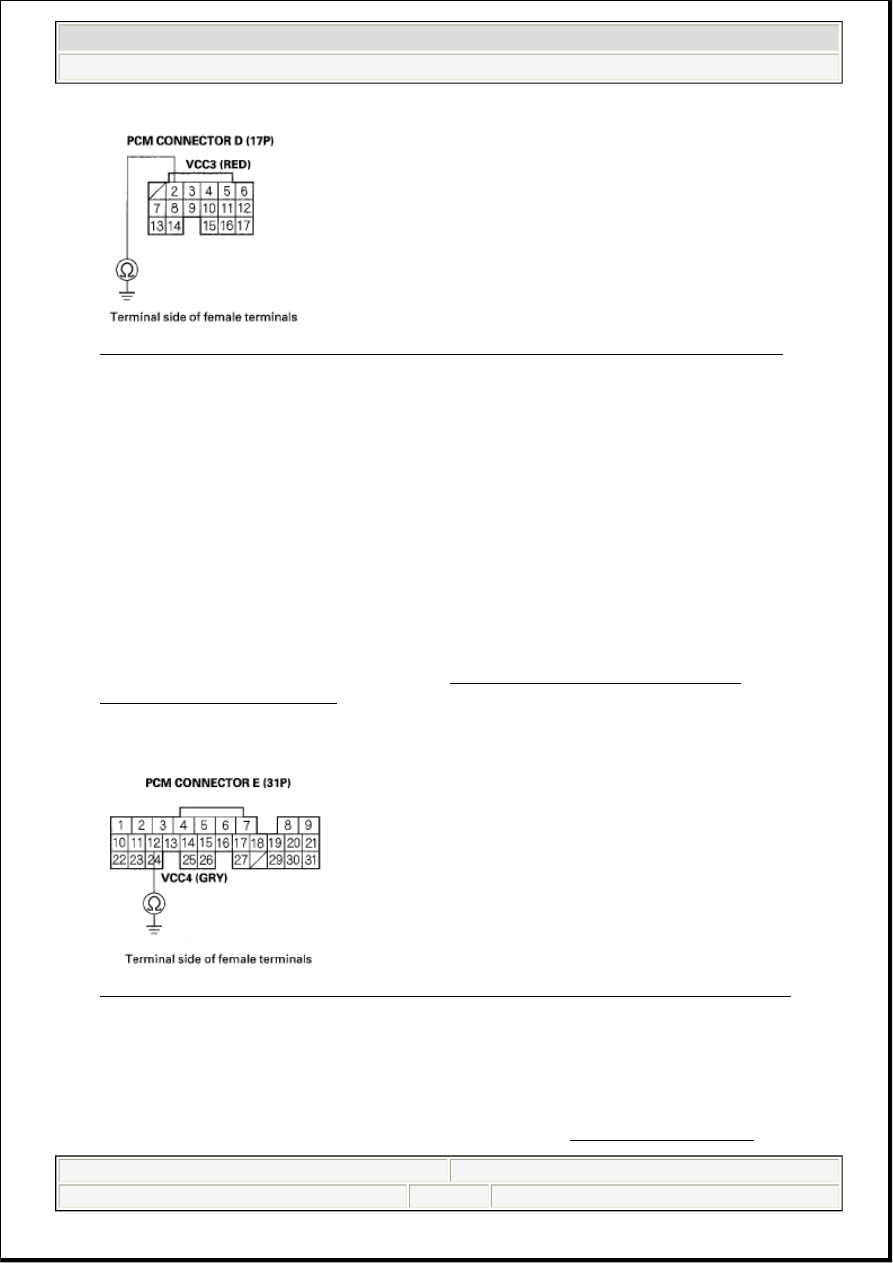

Fig. 202: Checking Continuity Between PCM Connector Terminal D2 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 71.

NO - Go to step 72.

71. Continue to check for continuity between PCM connector terminal D2 and body ground, while

disconnecting the APP sensor 6P connector.

Is there continuity?

YES - Repair short in the wire between the PCM (D2) and APP sensor A

NO - Replace the accelerator pedal module (see ACCELERATOR PEDAL MODULE
REMOVAL/INSTALLATION )

72. Check for continuity between PCM connector terminal E12 and body ground.

Fig. 203: Checking Continuity Between PCM Connector Terminal E12 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 73.

NO - Update the PCM if it does not have the latest software (see UPDATING THE PCM ), or

2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL

Friday, June 05, 2009 2:35:00 PM

substitute a known-good PCM (see SUBSTITUTING THE PCM ), then recheck. If the
symptom/indication goes away with a known-good PCM, replace the original PCM (see PCM
REPLACEMENT )

73. Continue to check for continuity between PCM connector terminal E12 and body ground, while

disconnecting these connectors one at a time.



APP sensor 6P connector



FTP sensor 3P connector

Does continuity go away when one of the above components is disconnected?

YES - Replace the part that caused an open when it was disconnected

NO - Repair short in the wire between the PCM (E12) and the APP sensor B or the FTP sensor

INJECTOR REPLACEMENT

1. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).

2. Remove the intake manifold (see REMOVAL ).

3. Disconnect the connectors from the injectors (A).

2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL

Friday, June 05, 2009 2:35:00 PM

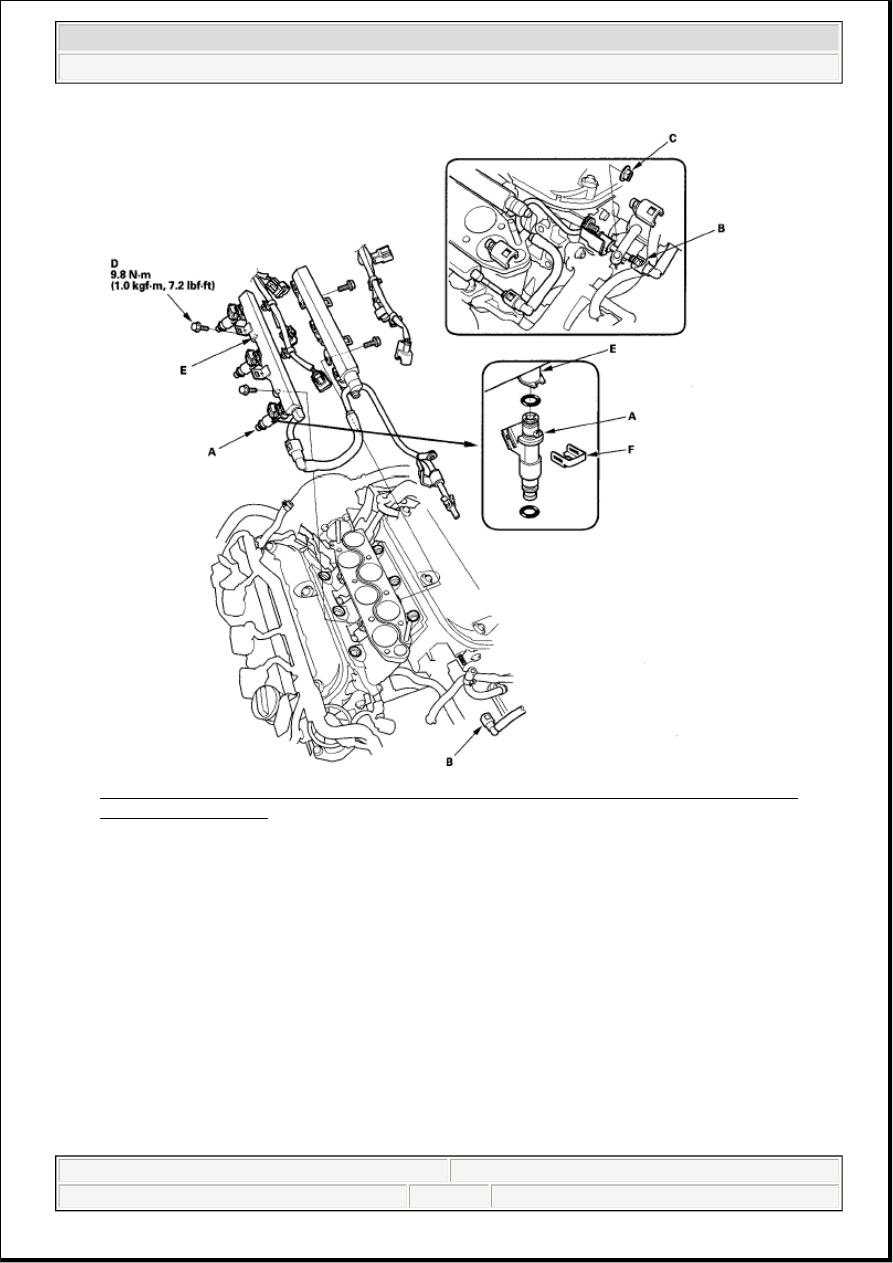

Fig. 204: Identifying Injector, Fuel Rail, Injector Clips And Fuel Rail Mounting Bolts With
Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Disconnect the quick-connect fitting (B), and remove the nut (C).

5. Remove the fuel rail mounting bolts (D) from the fuel rail (E).

6. Remove the injector clips (F) from the injectors.

7. Remove the injectors from the fuel rail.

8. Coat the new O-rings (A) with clean engine oil, and insert the injectors (B) into the fuel rail (C).

2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL

Friday, June 05, 2009 2:35:00 PM
