individually.

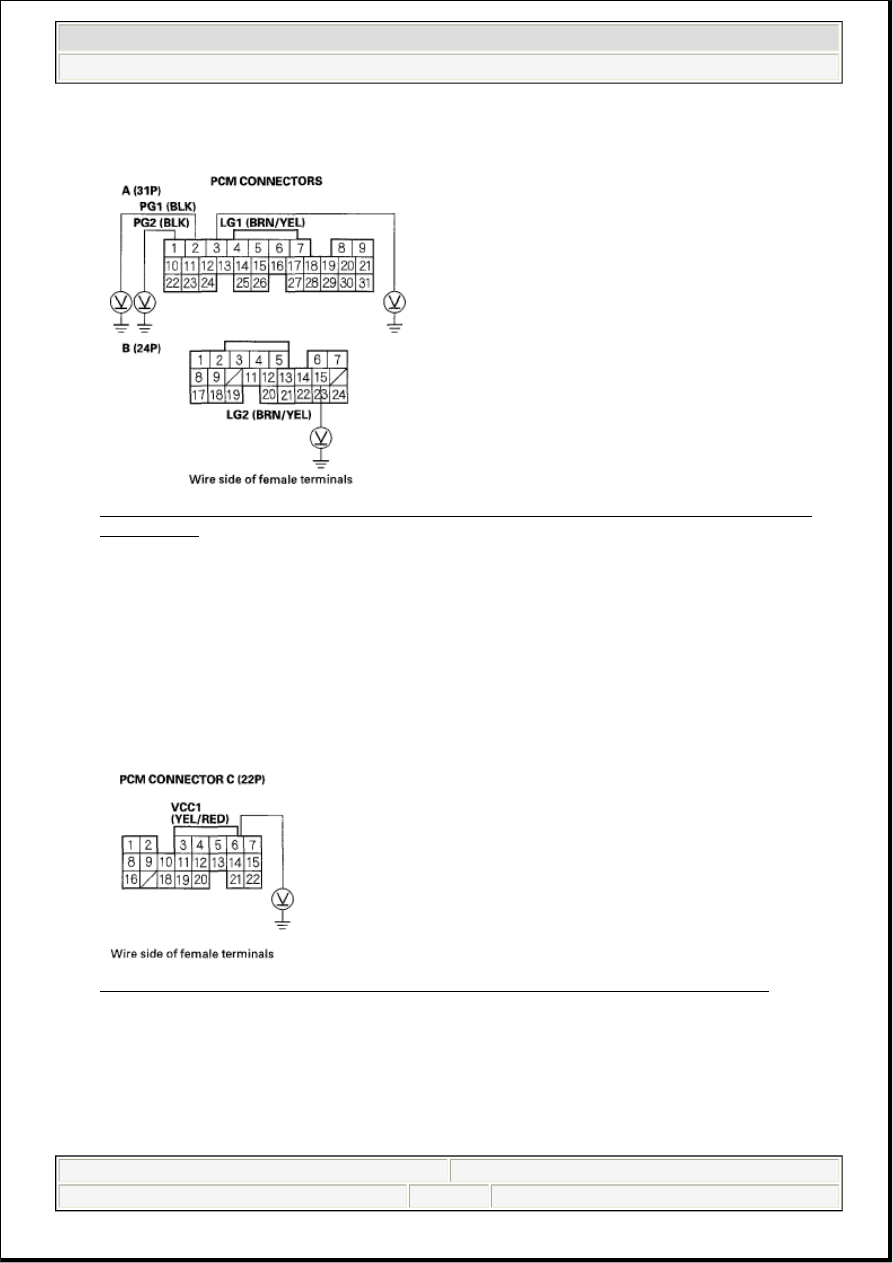

Fig. 163: Measuring Voltage Between Body Ground And PCM Connector Terminals A1, A2,
A3, And B15
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there more than 0.2 V?

YES - Repair open in the wire(s) that had more than 0.2 V between G101 and the PCM (A1, A2, A3,
and B15)

NO - Go to step 51.

51. Measure voltage between body ground and PCM connector terminal C6.

Fig. 164: Measuring Voltage Between Body Ground And PCM Connector Terminal C6
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there about 5 V?

YES - Go to step 59.

NO - Go to step 52.



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 178  © 2005 Mitchell Repair Information Company, LLC.

52. Turn the ignition switch OFF.

53. Disconnect the connector from each of the following sensors, one at a time, and measure voltage

between body ground and PCM connector terminal C6 with the ignition switch ON (II).



Manifold absolute pressure (MAP) sensor



Output shaft (countershaft) speed sensor

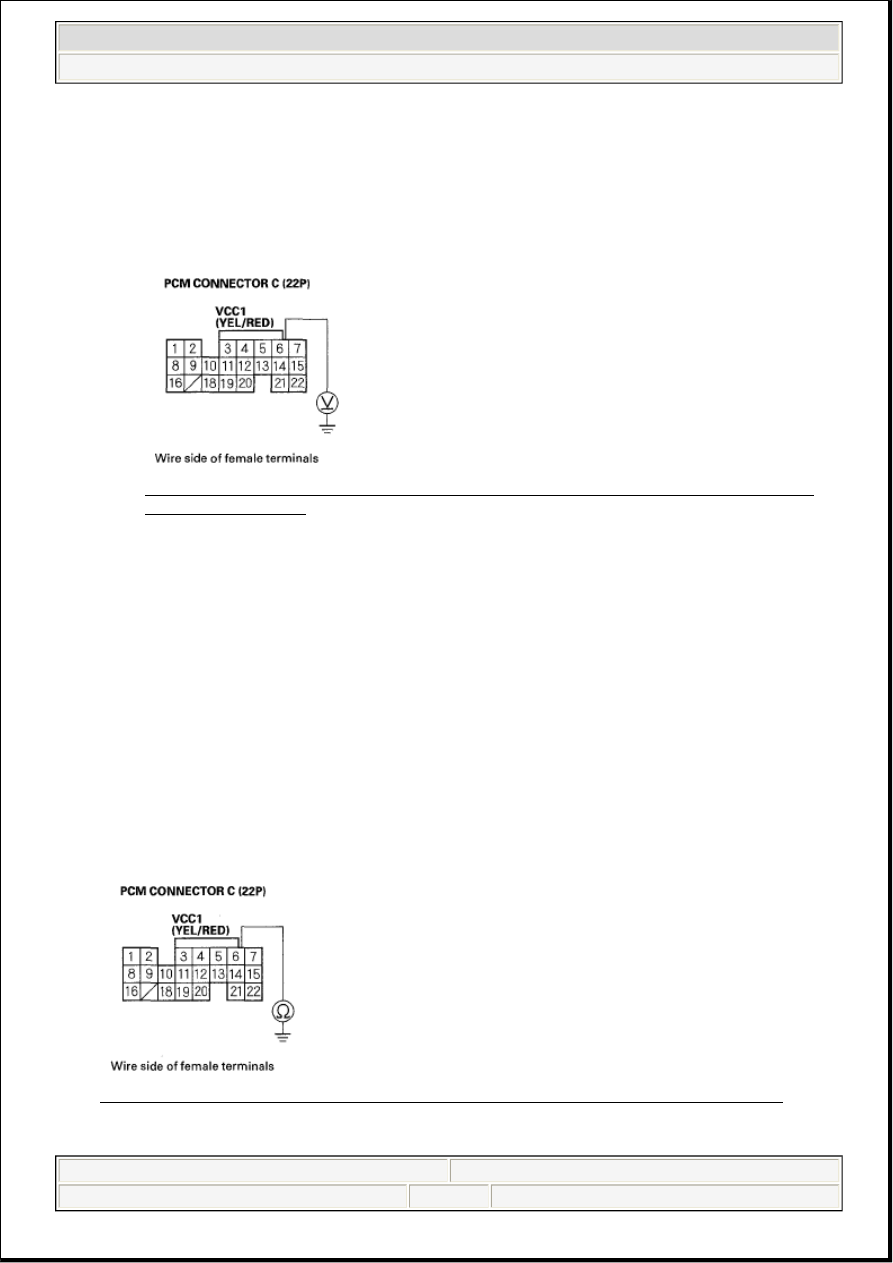

Fig. 165: Measuring Voltage Between Body Ground And PCM Connector Terminal C6
With Ignition Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there about 5 V?

YES - Replace the sensor that restored 5 V when disconnected

NO - Go to step 54.

54. Turn the ignition switch OFF.

55. Jump the SCS line with the HDS.

56. Disconnect the connectors from these sensors:



Manifold absolute pressure (MAP) sensor



Output shaft (countershaft) speed sensor

57. Disconnect PCM connector C (22P).

58. Check for continuity between PCM connector terminal C6 and body ground.

Fig. 166: Checking Continuity Between PCM Connector Terminal C6 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 179  © 2005 Mitchell Repair Information Company, LLC.

Is there continuity?

YES - Repair short in the wire between the PCM (C6) and the MAP sensor or the output shaft
(countershaft) speed sensor

NO - Update the PCM if it does not have the latest software (see UPDATING THE PCM ), or
substitute a known-good PCM (see SUBSTITUTING THE PCM ), then recheck. If the
symptom/indication goes away with a known-good PCM, replace the original PCM (see PCM
REPLACEMENT )

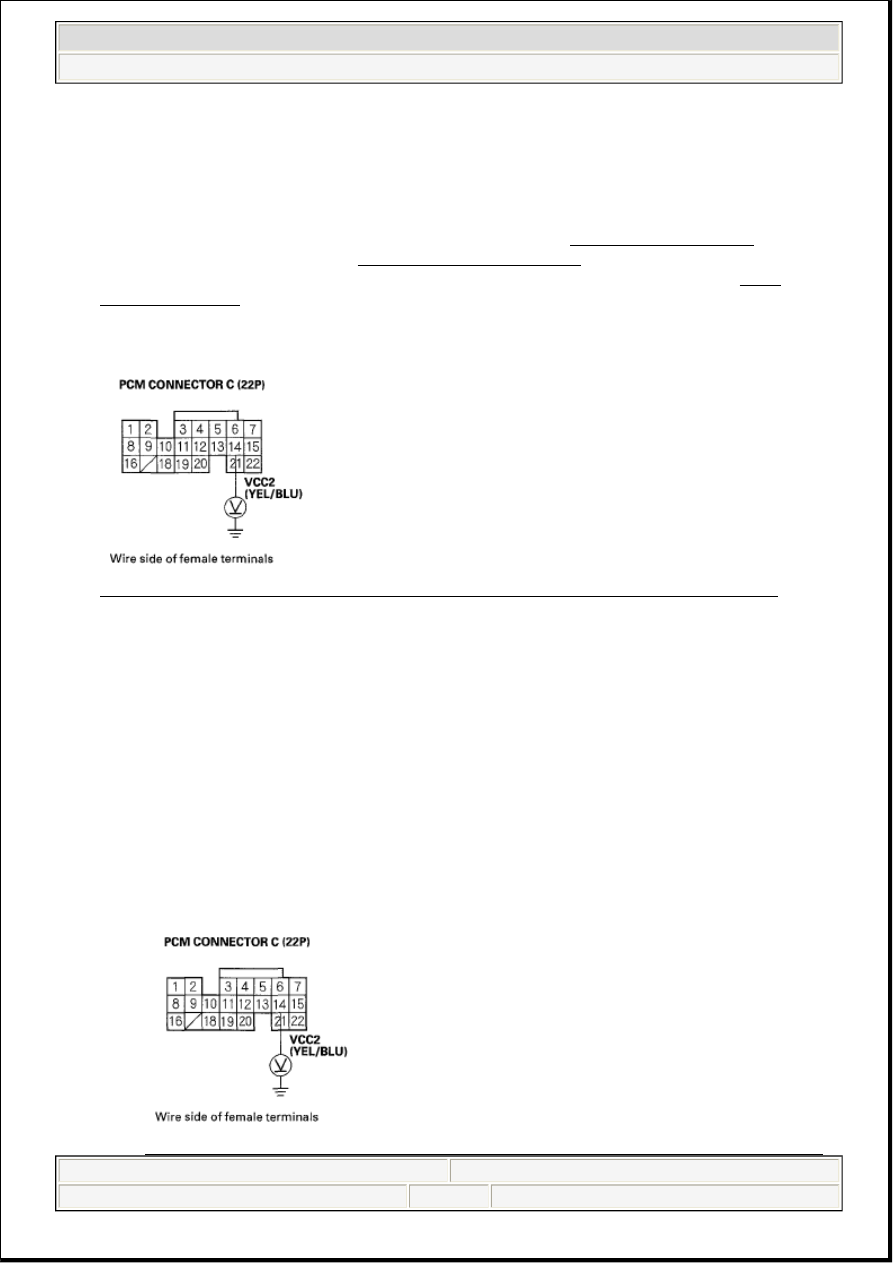

59. Measure voltage between body ground and PCM connector terminal C14.

Fig. 167: Measuring Voltage Between Body Ground And PCM Connector Terminal C14
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there about 5 V?

YES - Go to step 67.

NO - Go to step 60.

60. Turn the ignition switch OFF.

61. Disconnect the connector from each of the following sensors, one at a time, while measuring voltage

between body ground and PCM connector terminal C14 with the ignition switch ON (II).



Intake manifold tuning (IMT) actuator



Exhaust gas recirculation (EGR) valve



Input shaft (mainshaft) speed sensor

Fig. 168: Measuring Voltage Between Body Ground And PCM Connector Terminal C14



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 180  © 2005 Mitchell Repair Information Company, LLC.

With Ignition Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there about 5 V?

YES - Replace the part that restored 5 V when disconnected

NO - Go to step 62.

62. Turn the ignition switch OFF.

63. Jump the SCS line with the HDS.

64. Disconnect the connectors from these parts:



Intake manifold tuning (IMT) actuator



Exhaust gas recirculation (EGR) valve



Input shaft (mainshaft) speed sensor

65. Disconnect PCM connector C (22P).

66. Check for continuity between PCM connector terminal C14 and body ground.

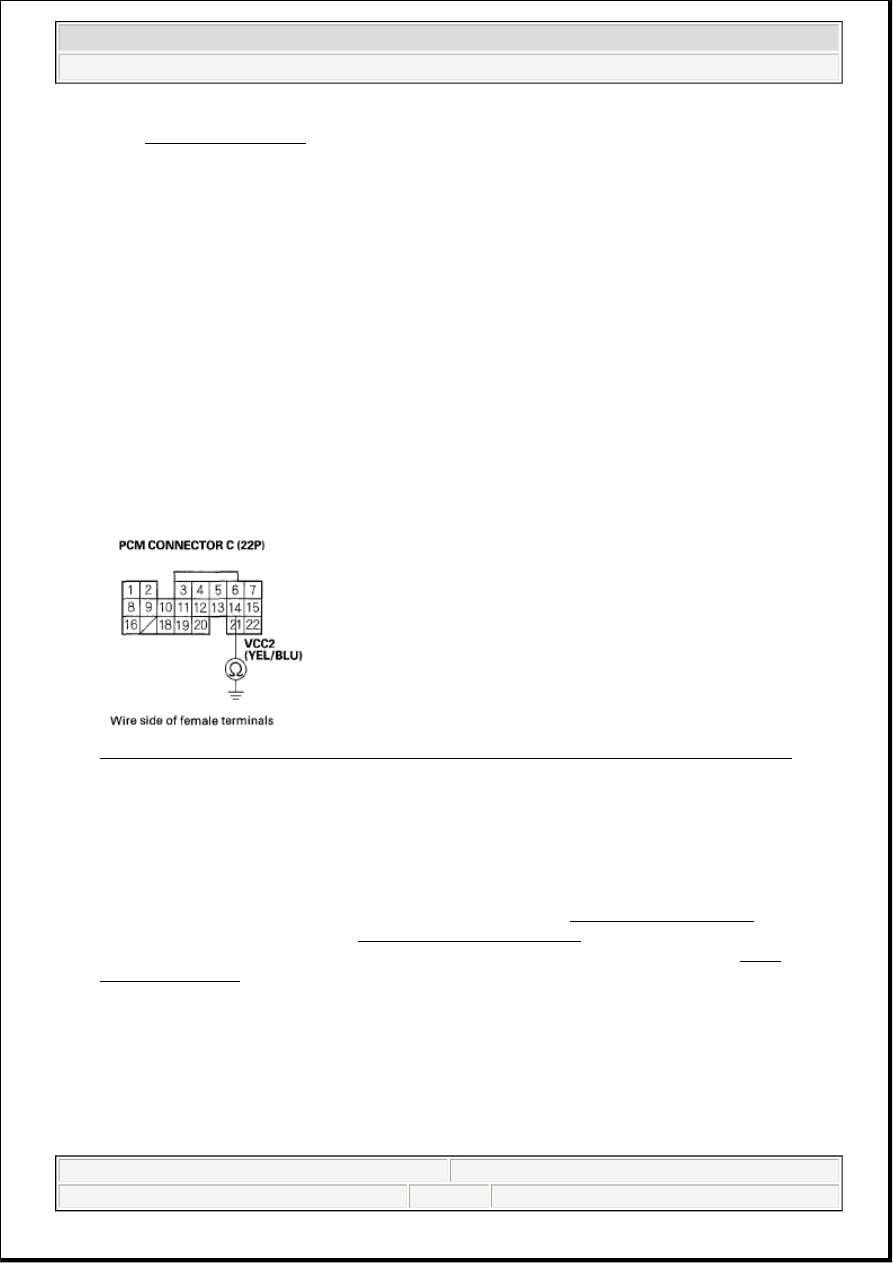

Fig. 169: Checking Continuity Between PCM Connector Terminal C14 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Repair short in the wire between the PCM (C14) and the IMT actuator, the EGR valve, or the
input shaft (mainshaft) speed sensor

NO - Update the PCM if it does not have the latest software (see UPDATING THE PCM ), or
substitute a known-good PCM (see SUBSTITUTING THE PCM ), then recheck. If the
symptom/indication goes away with a known-good PCM, replace the original PCM (see PCM
REPLACEMENT )

67. Measure voltage between body ground and PCM connector terminal D2.
