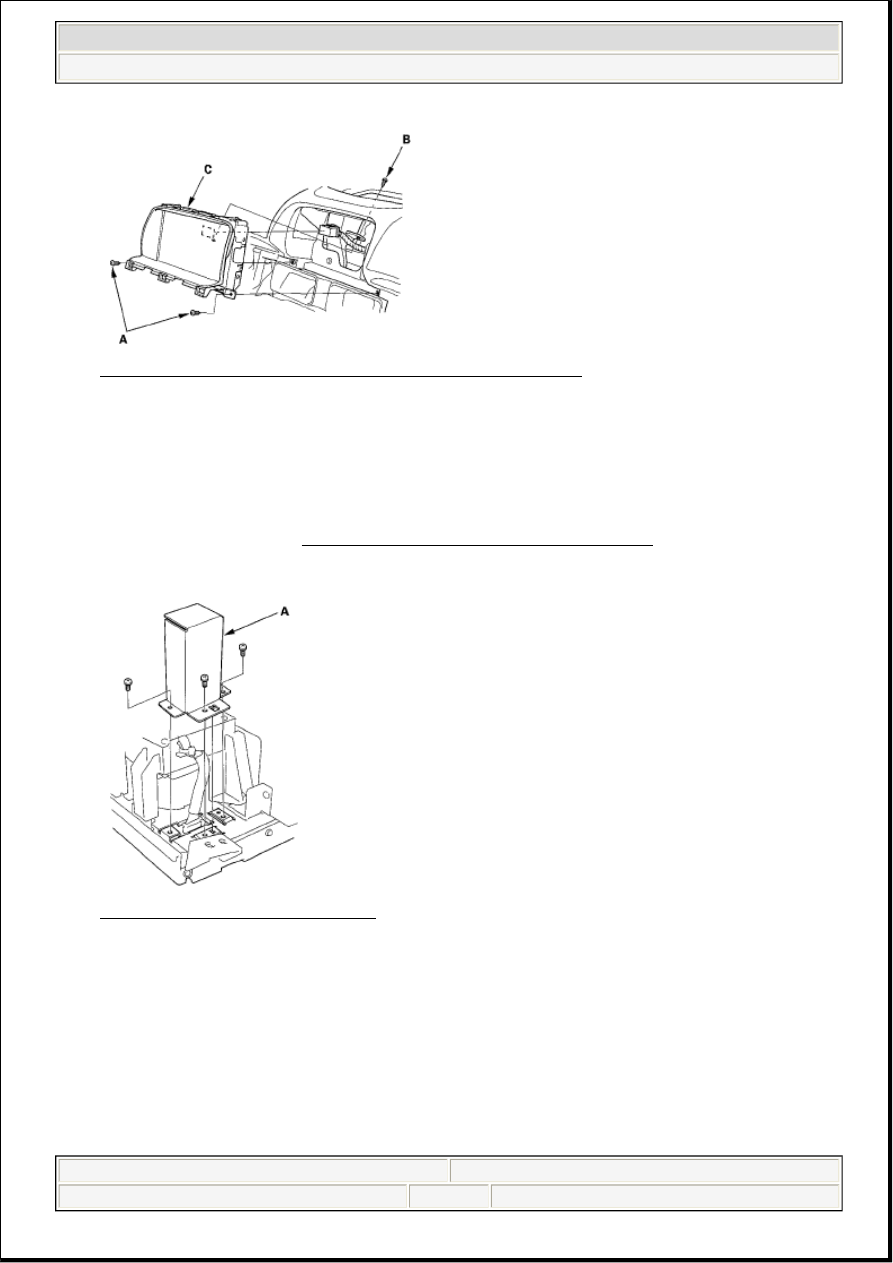

Fig. 100: Identifying Screws, Display Unit And Forward Screw
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the unit in the reverse order of removal. Be careful not to drop the forward screw behind the

dashboard.

INTERFACE DIAL REMOVAL/INSTALLATION

1. Remove the audio unit (see AUDIO UNIT REMOVAL/INSTALLATION ).

2. Remove the harness cover (A).

Fig. 101: Identifying Harness Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the interface dial (B).



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL



me



Friday, June 05, 2009 3:28:16 PM

Page 111  © 2005 Mitchell Repair Information Company, LLC.

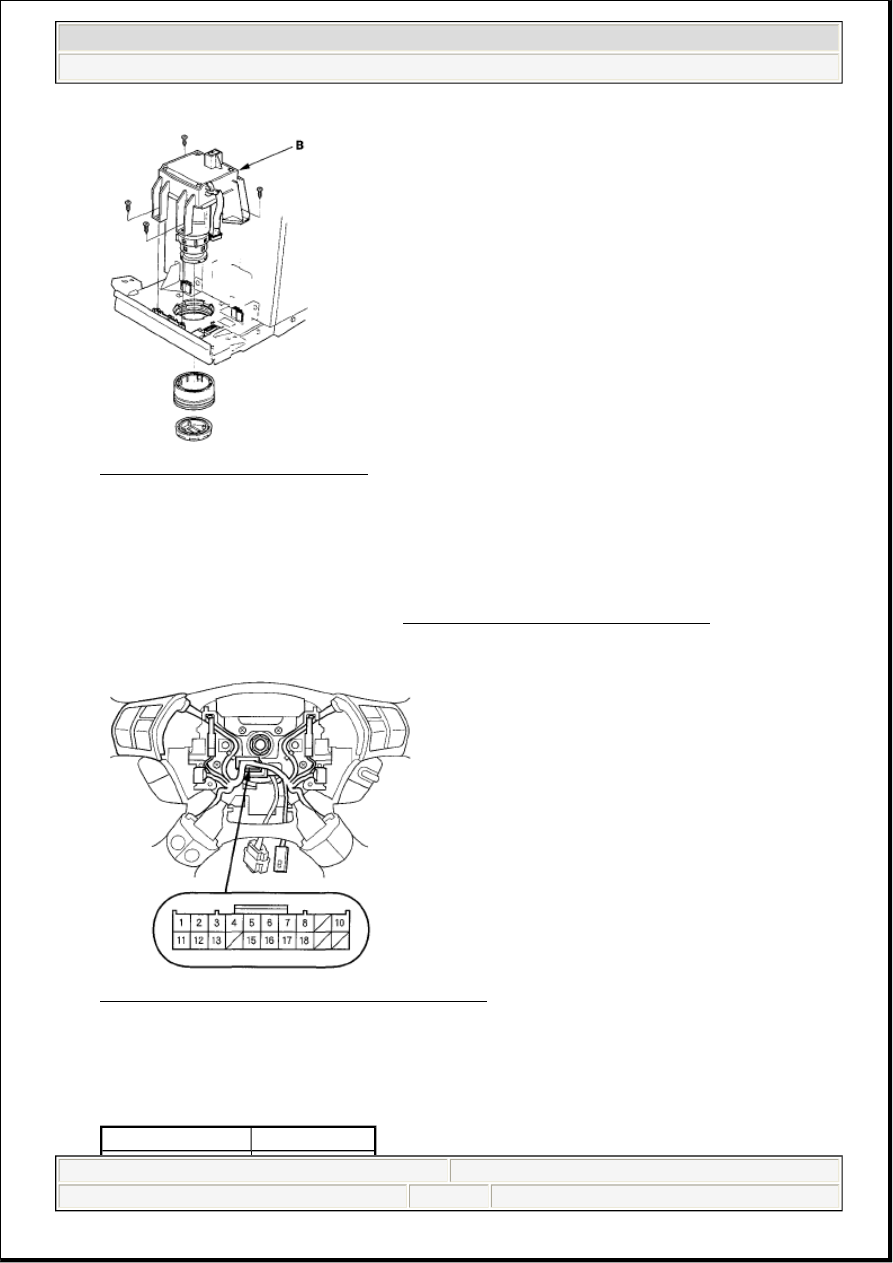

Fig. 102: Identifying Interface Dial
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the dial in reverse order of removal.

VOICE CONTROL SWITCH TEST

1. Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT ).

2. Remove the 20P connector from the cable reel.

Fig. 103: Identifying 20P Connector At Cable Reel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Measure the resistance between the No. 10 and No. 18 terminals in each switch position according to

the table.

RESISTANCE CHART

Position

Resistance



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL



me



Friday, June 05, 2009 3:28:16 PM

Page 112  © 2005 Mitchell Repair Information Company, LLC.

4. If the resistance is not as specified, replace the remote switch (see STEERING WHEEL

DISASSEMBLY/REASSEMBLY ), and replace the voice control switch (see STEERING
WHEEL DISASSEMBLY/REASSEMBLY ).

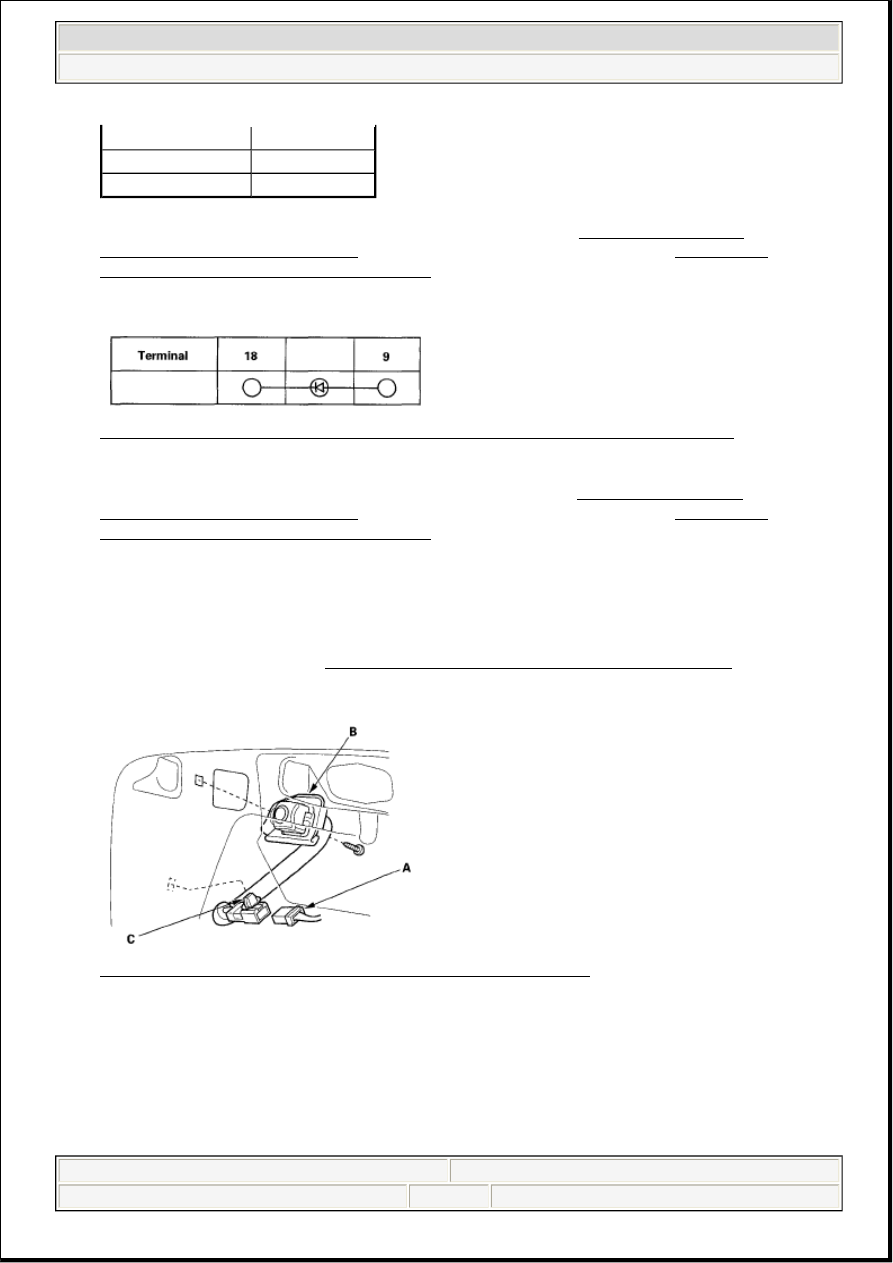

5. Use a diode tester between the terminals in each switch position as shown.

Fig. 104: Testing Remote Switch Using Diode Tester Between Terminals As Shown
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. If the diode test is not as specified, replace the remote switch (see STEERING WHEEL

DISASSEMBLY/REASSEMBLY ), and replace the voice control switch (see STEERING
WHEEL DISASSEMBLY/REASSEMBLY ).

REARVIEW CAMERA REMOVAL/INSTALLATION

'07-08 MODELS

1. Remove the trunk lid trim (see TRIM REMOVAL/INSTALLATION - TRUNK LID ).

2. Disconnect the 6P connector (A) from the rearview camera (B).

Fig. 105: Identifying 6P Connector, Rearview Camera And Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the clip (C).

4. Remove the mounting bolt or nut, then remove the rearview camera.

5. Install in the reverse order of removal.

OFF

About 1 kohms

Talk button pressed About 697 ohms

Back button pressed About 529 ohms



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL



me



Friday, June 05, 2009 3:28:16 PM

Page 113  © 2005 Mitchell Repair Information Company, LLC.

2005-08 ENGINE PERFORMANCE

PCV System - RL

COMPONENT LOCATION INDEX

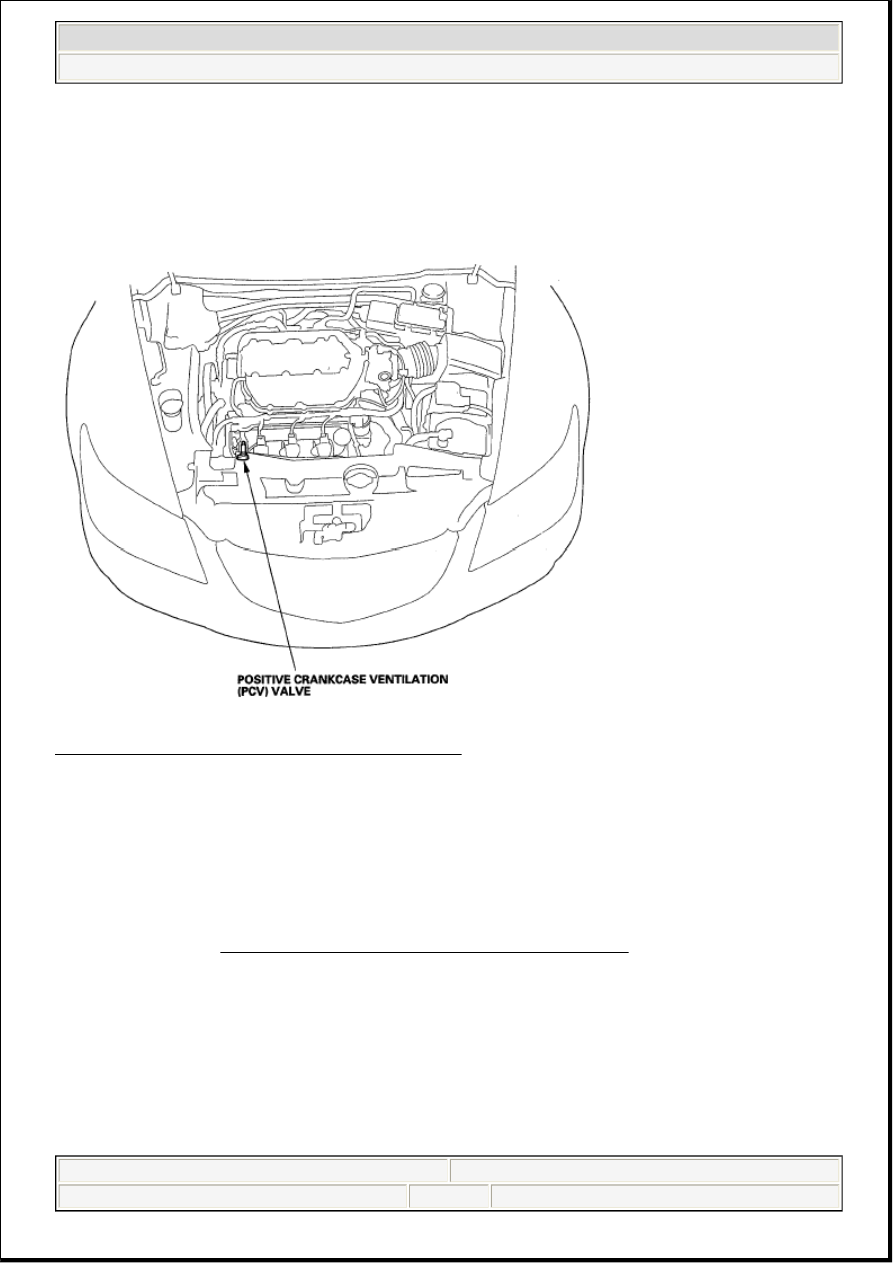

Fig. 1: Identifying PCV System Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

DTC TROUBLESHOOTING

DTC P2279: INTAKE AIR SYSTEM LEAK

1. Check for vacuum leaks at these parts:



PCV valve



PCV hose



Purge (PCS) line



Throttle body

NOTE:



Before you troubleshoot, record all freeze data and any on-board
snapshot, and review the general troubleshooting information (see
GENERAL TROUBLESHOOTING INFORMATION ).



If DTC P0443 is stored at the same time as DTC P2279, troubleshoot
DTC P0443 first, then recheck for DTC P2279.
