NAVIGATION UNIT INPUTS AND OUTPUTS

source)

source

System will reboot to
"enter code" screen. If
short to ground: Blows
fuse No. 7(10A) in the
driver's under-dash
fuse/relay box.

2

PUR

ACC
(Accessory)

Power source for
accessories

Battery voltage
at ACC (I)

If open: Display picture
goes out (display back
light still on).
If short to ground: Blows
fuse No. 32 (10A) in the
under-dash fuse/relay
box.

4

BLK GND (Ground)

Ground for navigation
unit

0 V

If open: No effect on
system.
If short to ground: No
effect on system.

5

BRN

BACK LT
(Back light or
reverse signal)

Reverse signal of select
lever from "Multiplex
Integrated Control
Unit" (A/T) or backup
light switch (M/T)

In reverse,
battery voltage:
Otherwise 0 V

If open: Navigation never
sees reverse.
Diagnostic screen "Car
Status," "Back" = 0.
If short to ground: Blows
fuse No. 21 (7.5A) in the
driver's under-dash
fuse/relay box.

6

BLU

VSP (Vehicle
speed pulse)

Vehicle speed pulse
signal from PCM

Pulses 0-5 V:
2.5 V average
(depends on
Bus traffic)

If open: No vehicle speed
pulses.
Diagnostic screen "Car
Status," VSP Navi = 0.
If short to ground: No
vehicle speed pulses.
Diagnostic screen "Car
Status," VSP Navi = 0.

7

GRN

DIAG P
(Diagnostic
positive)

Service check signal for
navigation system

5-6 V

If open: No effect on
system.
If short to ground: System
goes into diagnostic
mode.

8

YEL

DIAG N
(Diagnostic
negative)

Ground for service
check signal

0 V

If open: No effect on
system.
If short to ground: No
effect on system.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL



me



Friday, June 05, 2009 3:28:15 PM

Page 35

© 2005 Mitchell Repair Information Company, LLC.

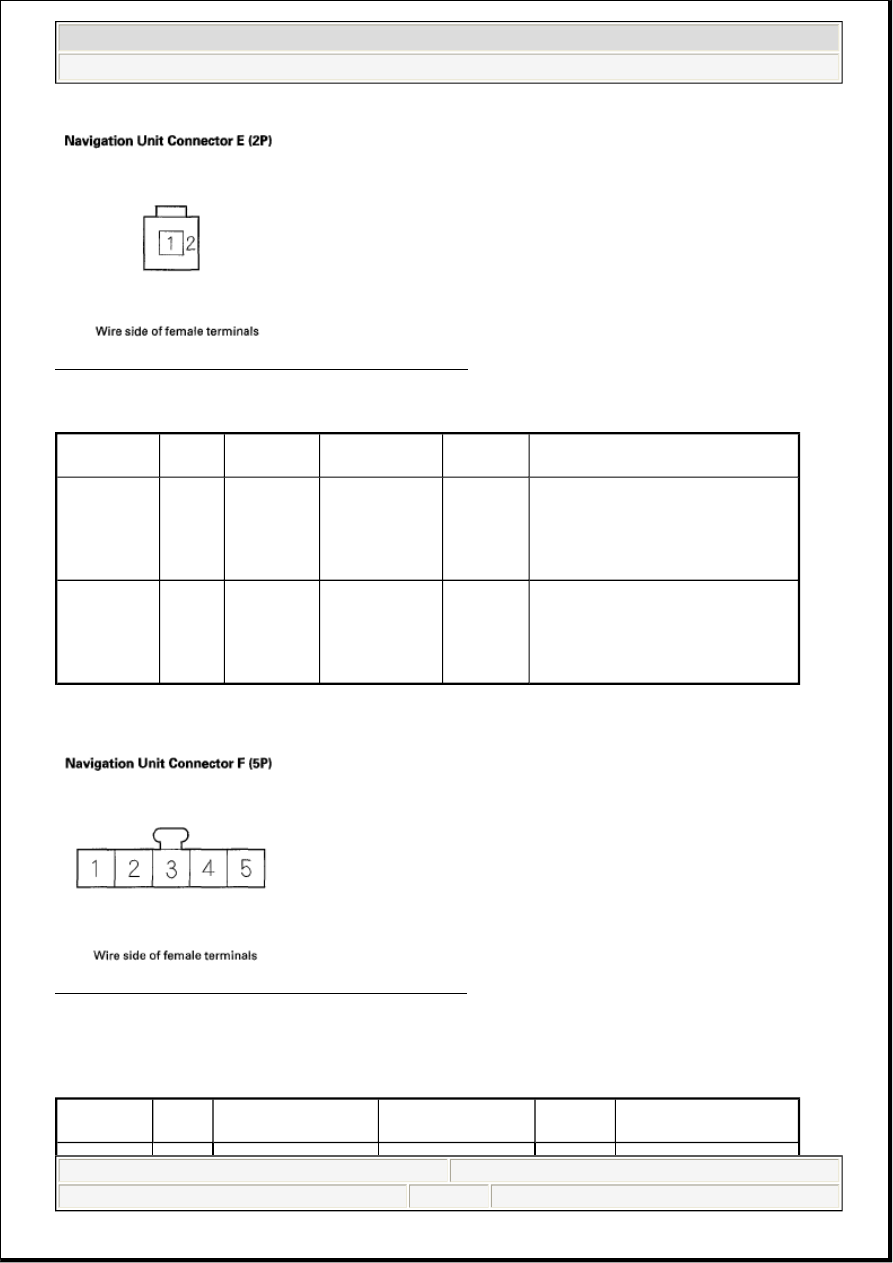

Fig. 18: Identifying Navigation Unit Connector E (2P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NAVIGATION UNIT CONNECTOR REFERENCE

NAVIGATION UNIT INPUTS AND OUTPUTS

Fig. 19: Identifying Navigation Unit Connector F (5P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

With AcuraLink

NAVIGATION UNIT CONNECTOR REFERENCE

Terminal

Number

Wire

Color

Terminal

Name

Description

Voltage

(about)

Symptom

1

-

GPS

GPS signal

5V

If open: GPS icon on screen is
white, system links screen ANT
shows "NG."
If short to body ground: Same as
open.

2

-

GND GPS

Ground for GPS
signal

0 V

If open: GPS icon on screen is
white, system links screen ANT
shows "NG."
If short to body ground: No effect
on system.

Terminal

Number

Wire

Color

Terminal Name

Description

Voltage

(about)

Symptom



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL



me



Friday, June 05, 2009 3:28:15 PM

Page 36

© 2005 Mitchell Repair Information Company, LLC.

Without AcuraLink

NAVIGATION UNIT CONNECTOR REFERENCE

NAVIGATION UNIT INPUTS AND OUTPUTS

1

WHT

HFL COMM3 (HFL
communication 3)

Communication
signal for HFL

5 V DC

Solid red HFL icon in
Navi System Link

2

RED

HFL COMM4 (HFL
communication 4)

Communication
signal for HFL

4.5 V DC

Solid red HFL icon in
Navi System Link

3

GRN

HFL COMM1 (HFL
communication 1)

Communication
signal for HFL

5 V DC

HFL icon in Navi
System Link changes
between red and green

4

BLK

HFL COMM2 (HFL
communication 2)

Communication
signal for HFL

4.5 V DC

HFL icon in Navi
System Link changes
between red and green

5

GRY

(1)

SH HFL (Shield
HFL)

Shield for No. 1, 2,
3, 4 terminals

0 V

-

(1)

The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the
insulating tube, typically black or dark gray, may not match the color of the wire listed on the
schematic.

Terminal

Number

Wire

Color

Terminal Name

Description

Voltage

(about)

Symptom

1

GRN

HFL COMM3 (HFL
communication 3)

Communication
signal for HFL

-

Solid red HFL icon in
Navi System Link

2

BLK

HFL COMM4 (HFL
communication 4)

Communication
signal for HFL

-

Solid red HFL icon in
Navi System Link

3

RED

HFL COMM1 (HFL
communication 1)

Communication
signal for HFL

-

HFL icon in Navi
System Link changes
between red and green

4

WHT

HFL COMM2 (HFL
communication 2)

Communication
signal for HFL

-

HFL icon in Navi
System Link changes
between red and green

5

GRY

(1)

SH HFL (Shield
HFL)

Shield for No. 1, 2,
3, 4 terminals

-

-

(1)

The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the
insulating tube, typically black or dark gray, may not match the color of the wire listed on the
schematic.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL



me



Friday, June 05, 2009 3:28:15 PM

Page 37

© 2005 Mitchell Repair Information Company, LLC.

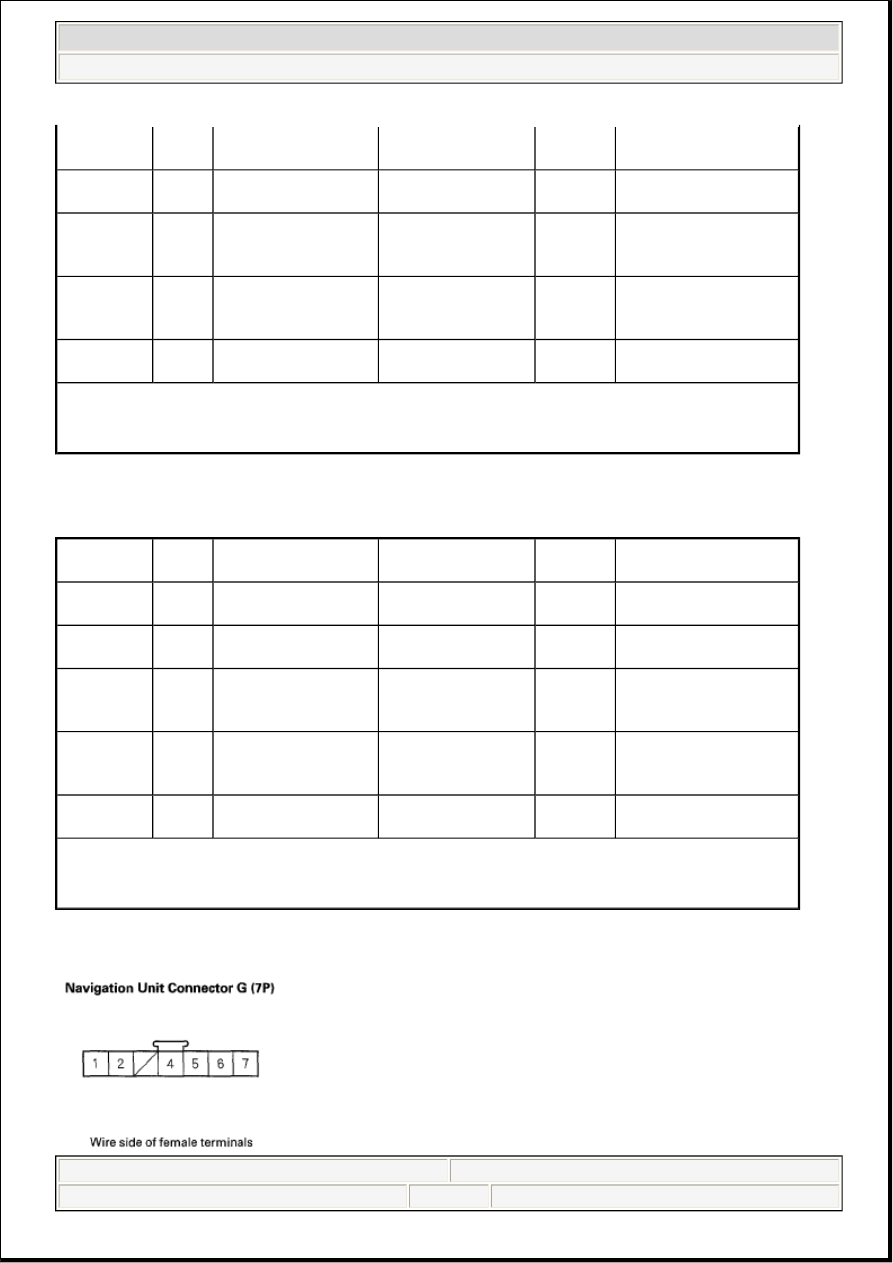

Fig. 20: Identifying Navigation Unit Connector G (7P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NAVIGATION UNIT CONNECTOR REFERENCE

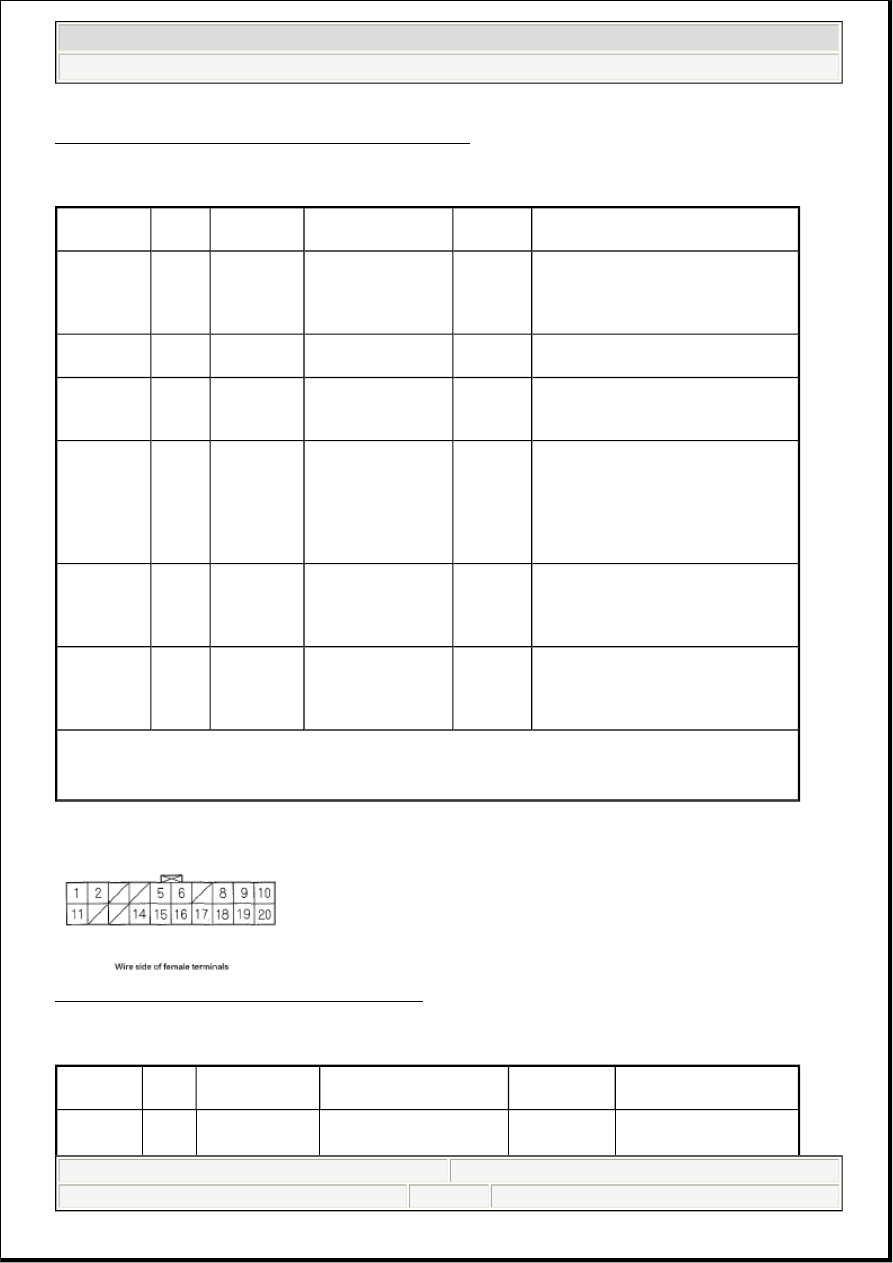

DISPLAY UNIT INPUTS AND OUTPUTS FOR 20P CONNECTOR

Fig. 21: Identifying Display Unit 20P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NAVIGATION UNIT CONNECTOR REFERENCE

Terminal

Number

Wire

Color

Terminal

Name

Description

Voltage

(about)

Symptom

1

WHT VCC (RC)

Power source for
rearview camera

8 V

If open: No rearview camera image
in reverse.
If short to ground: No rearview
camera image in reverse.

2

BLK GND (RC)

Ground for
rearview camera

0 V

If open: No rearview camera image
in reverse.

4

RED

VIDEO
GND (RC)

Ground for
rearview camera
video signal

0 V

If open: No rearview camera image
in reverse.

5

YEL

VIDEO
(RC)

Video signal for
rearview camera

0.3 VAC

If open: No rearview camera image
in reverse.
If short to ground: When put into
reverse, navigation screen goes
black (display backlight still
operative).

6

GRY

(1)

SHIELD
(RC)

Shield for 1, 2, 4, 5,
7 terminals

-

If open: No rearview camera image
in reverse.
If short to ground: No rearview
camera image in reverse.

7

GRN SEN (RC)

Control signal for
rearview camera

0-1 V

If open: No rearview camera image
in reverse.
If short to ground: No rearview
camera image in reverse.

(1)

The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the
insulating tube, typically black or dark gray, may not match the color of the wire listed on the
schematic.

Terminal

Number

Wire

Color

Terminal

Name

Description

Voltage

(about)

Symptom

If open: Screen
completely off (no
