7. Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL

UNIT ).

LEFT REAR POWER WINDOW SWITCH INPUT TEST

1. Turn the ignition switch OFF.

2. Remove the left rear power window switch (see POWER WINDOW MASTER SWITCH

REPLACEMENT ).

3. Disconnect the 14P connector from the left rear power window switch.

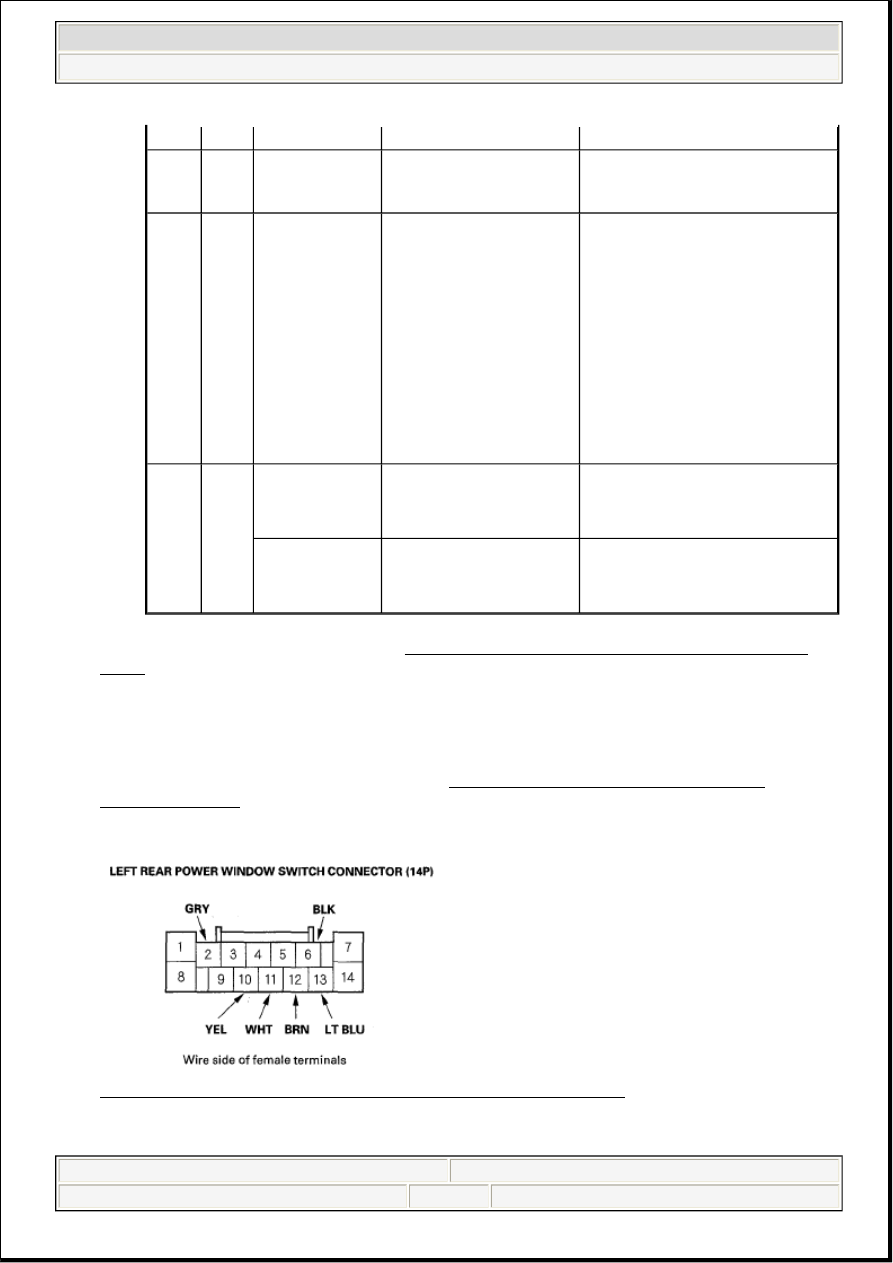

Fig. 15: Identifying Left Rear Power Window Switch 14P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Inspect the connector and socket terminals to be sure they are all making good contact.

Cavity Wire Test condition

Test: Desired result

not obtained

A7

BLK

Under all
conditions

Measure the voltage to
ground: There should be
less than 0.5 V.



Poor ground (G506)



An open in the wire

A2

WHT

Under all
conditions

Measure the voltage to
ground: There should be
battery voltage.



Blown No. 15 (40A) fuse in
the under-hood fuse/relay
box



Blown No. 7 (10A) fuse in
the driver's under-dash
fuse/relay box



Faulty driver's under-dash
fuse/relay box



Faulty passenger's under-
dash fuse/relay box



An open in the wire

A28

LT

GRN

Front passenger's
door open

Measure the voltage to
ground: There should be
less than 1 V.



Faulty front passenger's door
switch



An open in the wire

Front passenger's

door closed

Measure the voltage to
ground: There should be 5
V or more.



Faulty front passenger's door
switch



A short to ground in the wire



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 19

© 2005 Mitchell Repair Information Company, LLC.



If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.



If the terminals look OK, go to step 5.

5. With the connector still disconnected, make these input tests at the connector.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, the left rear power window switch must be faulty; replace it (see
POWER WINDOW MASTER SWITCH REPLACEMENT ).

WIRE CAVITY REFERENCE CHART

Cavity Wire

Test condition

Test: Desired result

Possible cause if desired

result is not obtained

6

(1)

BLK Under all conditions

Measure the voltage to
ground: There should be less
than 0.5 V.



Poor ground
(G602)



An open in the wire

11

WHT Under all conditions

Measure the voltage to
ground: There should be
battery voltage.



Blown No. 15
(40A) fuse in the
under-hood
fuse/relay box



Blown No. 6
(7.5A) fuse in the
driver's under-dash
fuse/relay box



Faulty driver's
under-dash
fuse/relay box



An open in the wire

10

YEL Under all conditions

Attach to ground: The left rear
door courtesy light should
come on.



Faulty left rear
door courtesy light



An open in the wire

12

BRN Under all conditions

Attach to ground: The left rear
door inner handle light should
come on.



Faulty left rear
door inner handle
light



An open in the wire

2

GRY

Driver's under-dash
fuse/ relay box
connector J (21P)
disconnected.

Check for continuity between
the No. 2 terminal and driver's
under-dash fuse/ relay box
connector J (21P) No. 1
terminal:
There should be continuity.

An open in the wire

Check for continuity to

ground: There should be no

continuity.

A short to ground in the
wire

13

(1)

LT

Left rear door open

Measure the voltage to
ground: There should be less
than 1 V.



Faulty left rear
door switch



An open in the wire



Faulty left rear



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 20

© 2005 Mitchell Repair Information Company, LLC.

RIGHT REAR POWER WINDOW SWITCH INPUT TEST

1. Turn the ignition switch OFF.

2. Remove the right rear power window switch (see POWER WINDOW MASTER SWITCH

REPLACEMENT ).

3. Disconnect the 14P connector from the right rear power window switch.

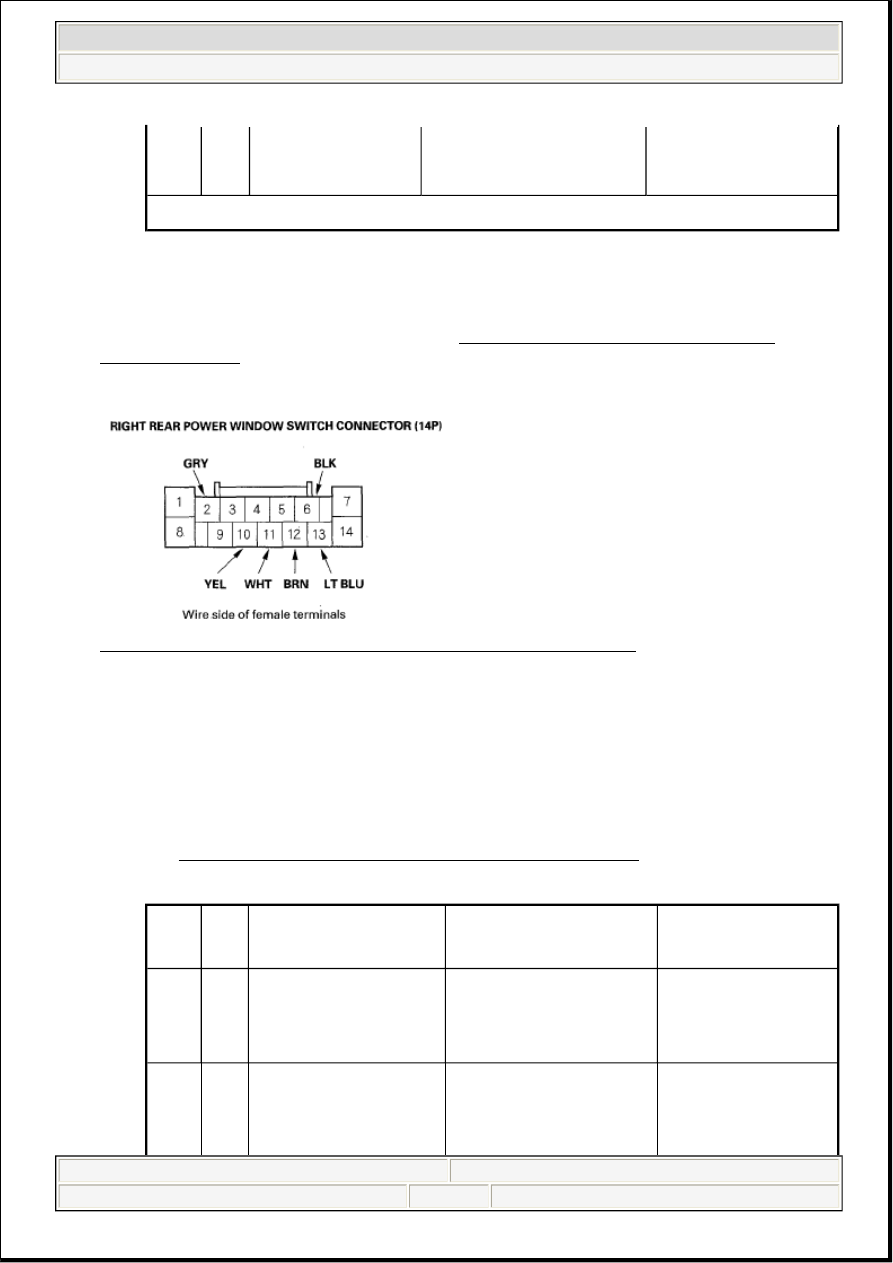

Fig. 16: Identifying Right Rear Power Window Switch 14P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Inspect the connector and socket terminals to be sure they are all making good contact.



If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.



If the terminals look OK, go to step 5.

5. With the connector still disconnected, make these input tests at the connector.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, the right rear power window switch must be faulty; replace it
(see POWER WINDOW MASTER SWITCH REPLACEMENT ).

WIRE CAVITY REFERENCE CHART

BLU

Left rear door closed

Measure the voltage to
ground: There should be 5 V
or more.

door switch



A short to ground
in the wire

(1)

Reconnect the left rear power window switch 14P connector.

Cavity Wire

Test condition

Test: Desired result

Possible cause if

desired result is not

obtained

6

(1)

BLK Under all conditions

Measure the voltage to
ground: There should be less
than 0.5 V.



Poor ground
(G651)



An open in the
wire



Blown No. 15
(40A) fuse in the
under-hood
fuse/relay box



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 21

© 2005 Mitchell Repair Information Company, LLC.

ROOF CONSOLE REPLACEMENT

11

WHT Under all conditions

Measure the voltage to
ground: There should be
battery voltage.



Blown No. 6
(7.5A) fuse in the
driver's under-
dash fuse/relay
box



Faulty driver's
under-dash
fuse/relay box



Faulty passenger's
under-dash
fuse/relay box



An open in the
wire

10

YEL Under all conditions

Attach to ground: The right
rear door courtesy light
should come on.



Faulty right rear
door courtesy
light



An open in the
wire

12

BRN Under all conditions

Attach to ground: The right
rear door inner handle light
should come on.



Faulty right rear
door inner handle
light



An open in the
wire

2

GRY

Driver's under-dash fuse/
relay box connector X
(39P) and front
passenger's MPCS unit
connector A (28P)
disconnected

Check for continuity
between the No. 2 terminal
and driver's under-dash fuse/
relay box connector X (39P)
No. 15 terminal: There
should be continuity.



Faulty passenger's
under-dash
fuse/relay box



An open in the
wire

Check for continuity to

ground: There should be no

continuity.



Faulty passenger's
under-dash
fuse/relay box



A short to ground
in the wire

13

()

LT

BLU

Right rear door open

Measure the voltage to
ground: There should be less
than 1 V.



Faulty right rear
door switch



An open in the
wire

Right rear door closed

Measure the voltage to
ground: There should be 5 V
or more.



Faulty right rear
door switch



A short to ground
in the wire

(1)

Reconnect the right rear power window switch 14P connector.
