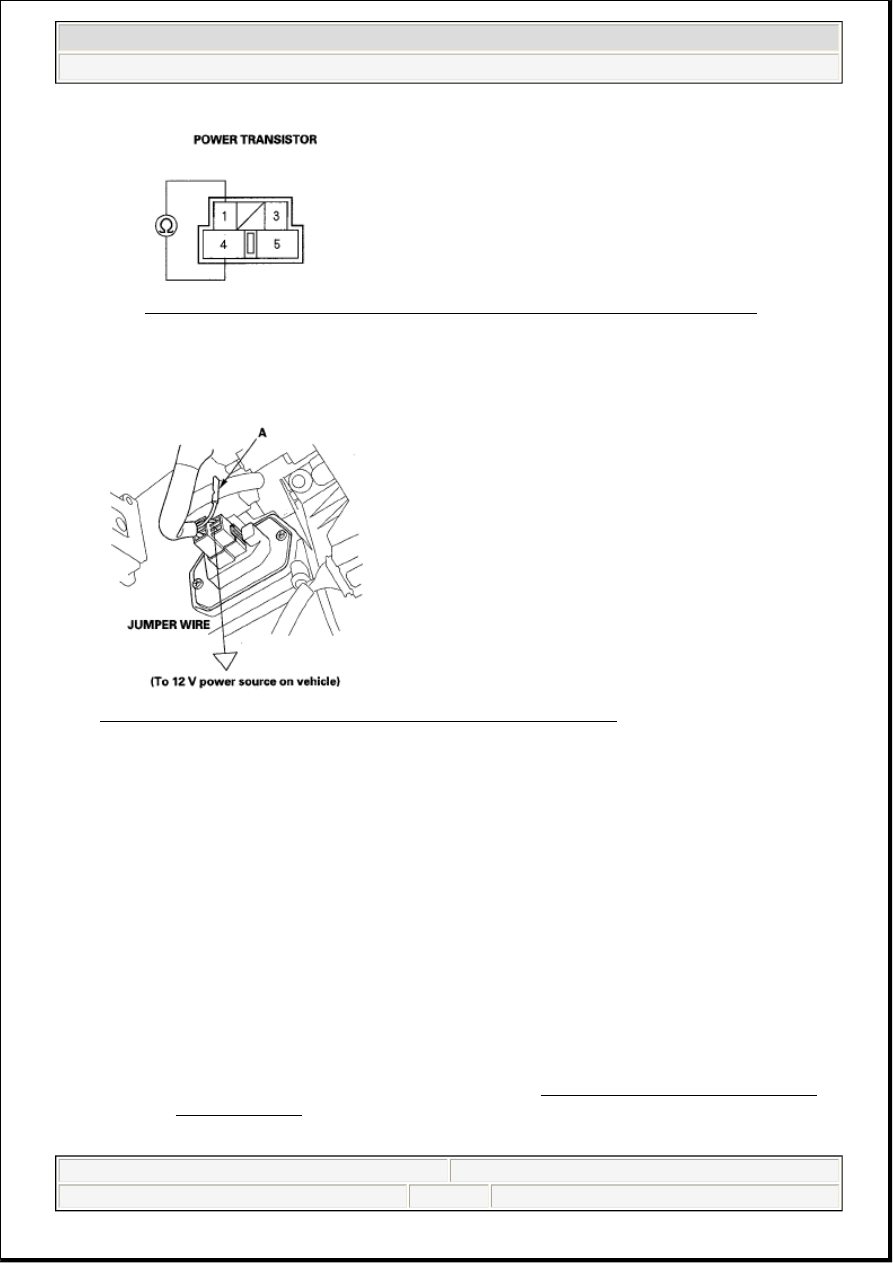

Fig. 94: Measuring Resistance Between 1 And 4 Terminals Of Power Transistor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Carefully release the lock tab on the No. 3 terminal (RED/BLK) (A) in the 5P connector, then remove

the terminal and insulate it from body ground.

Fig. 95: Removing No. 3 Terminal (RED/BLK) From 5P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Reconnect the 5P connector to the power transistor.

6. Make sure the RED/BLK wire is completely isolated, then supply 12 V to the No. 3 cavity with a

jumper wire.

7. Turn the ignition switch ON (II), and check that the blower motor runs.



If the blower motor does not run, replace the power transistor.



If the blower motor runs, the power transistor is OK.

DRIVER'S AIR MIX CONTROL MOTOR TEST

NOTE:

A faulty blower motor can cause the power transistor to fail. If the
power transistor is replaced, also check the blower motor for
binding, and replace it if necessary.

NOTE:

Before testing, check for HVAC DTCs (see GENERAL TROUBLESHOOTING
INFORMATION ).



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:43 PM

Page 87

© 2005 Mitchell Repair Information Company, LLC.

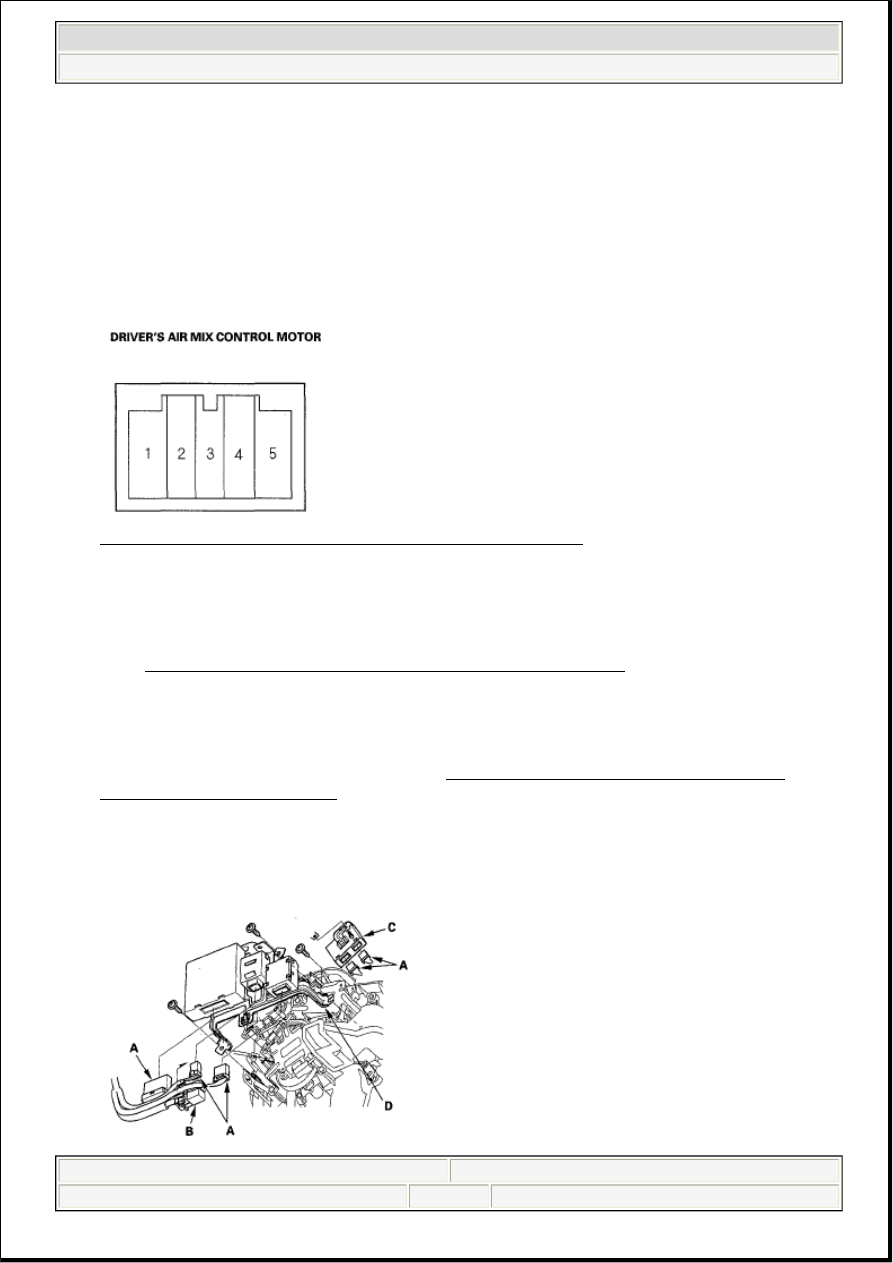

1. Disconnect the 5P connector from the driver's air mix control motor.

2. Connect battery power to the No. 1 terminal of the driver's air mix control motor, and ground the No.

2 terminal; the driver's air mix control motor should run, and stop at Max Cool. If it doesn't, reverse
the connections; the driver's air mix control motor should run, and stop at Max Hot.

Fig. 96: Identifying Driver's Air Mix Control Motor Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. If the driver's air mix control motor did not run in step 2, remove it, then check the driver's air mix

control linkage and door for smooth movement.



If the linkage and door move smoothly, replace the driver's air mix control motor (see
DRIVER'S AIR MIX CONTROL MOTOR REPLACEMENT ).



If the linkage or door sticks or binds, repair them as needed.

DRIVER'S AIR MIX CONTROL MOTOR REPLACEMENT

1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER

REMOVAL/INSTALLATION ).

2. Disconnect the connectors (A) from the power tilt/ telescopic steering control unit, the adaptive front

lighting control unit, the electronically controlled power steering control unit, and the daytime running
lights control unit. Remove the relay (B) and the power tilt/telescopic steering control unit (C), then
remove the self-tapping screws and the bracket (D).

NOTE:

Incorrectly applying power and ground to the driver's air mix control
motor will damage it. Follow the instructions carefully.



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:43 PM

Page 88

© 2005 Mitchell Repair Information Company, LLC.

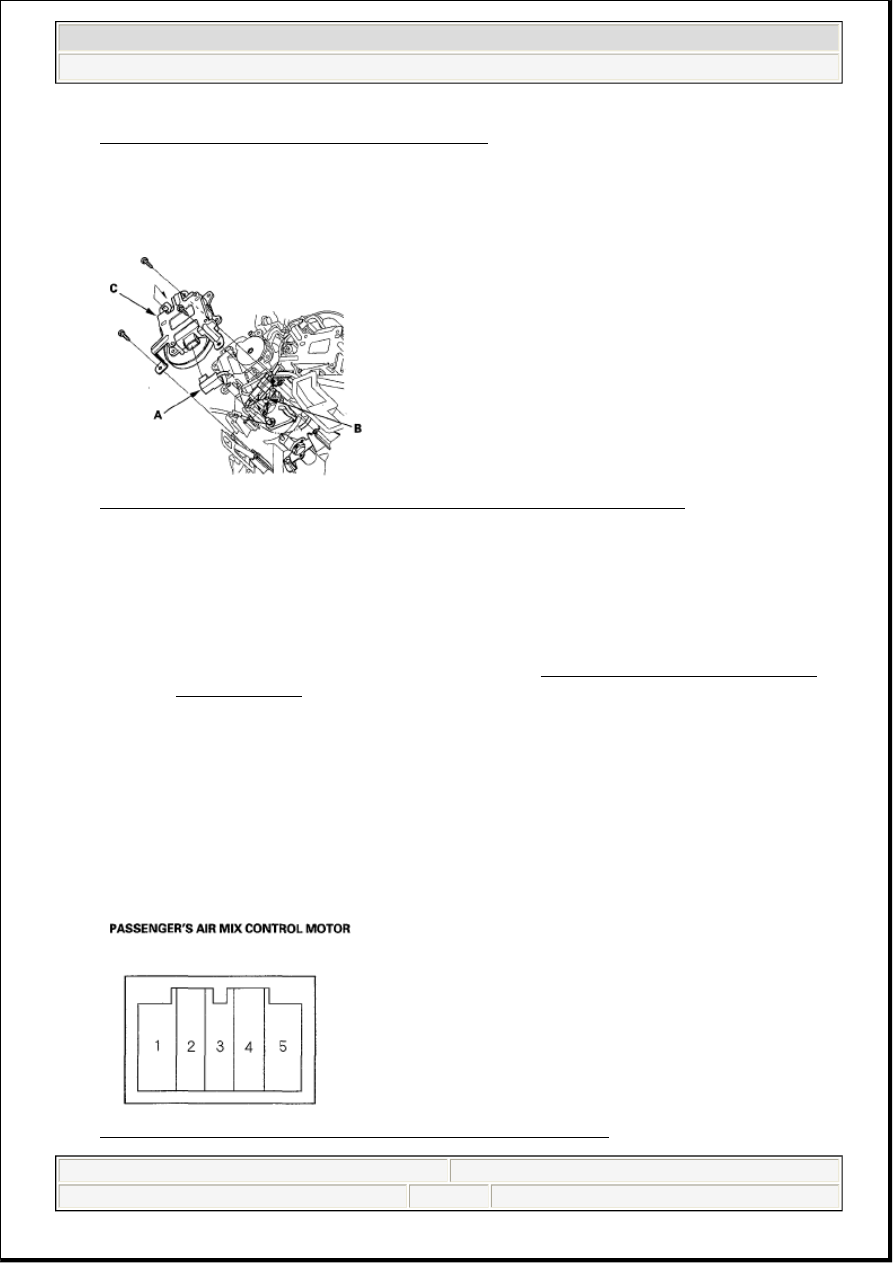

Fig. 97: Identifying Control Units And Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Disconnect the 5P connector (A) from the driver's air mix control motor. Remove the connector clip

(B). Remove the self-tapping screws and the driver's air mix control motor (C).

Fig. 98: Identifying Driver's Air Mix Control Motor, Connector And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged

with the linkage. After installation, make sure the motor runs smoothly.

PASSENGER'S AIR MIX CONTROL MOTOR TEST

1. Disconnect the 5P connector from the passenger's air mix control motor.

2. Connect battery power to the No. 1 terminal of the passenger's air mix control motor, and ground the

No. 2 terminal; the passenger's air mix control motor should run, and stop at Max Hot. If it doesn't,
reverse the connections; the passenger's air mix control motor should run, and stop at Max Cool.

Fig. 99: Identifying Passenger's Air Mix Control Motor Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:

Before testing, check for HVAC DTCs (see GENERAL TROUBLESHOOTING
INFORMATION ).

NOTE:

Incorrectly applying power and ground to the passenger's air mix
control motor will damage it. Follow the instructions carefully.



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:43 PM

Page 89

© 2005 Mitchell Repair Information Company, LLC.

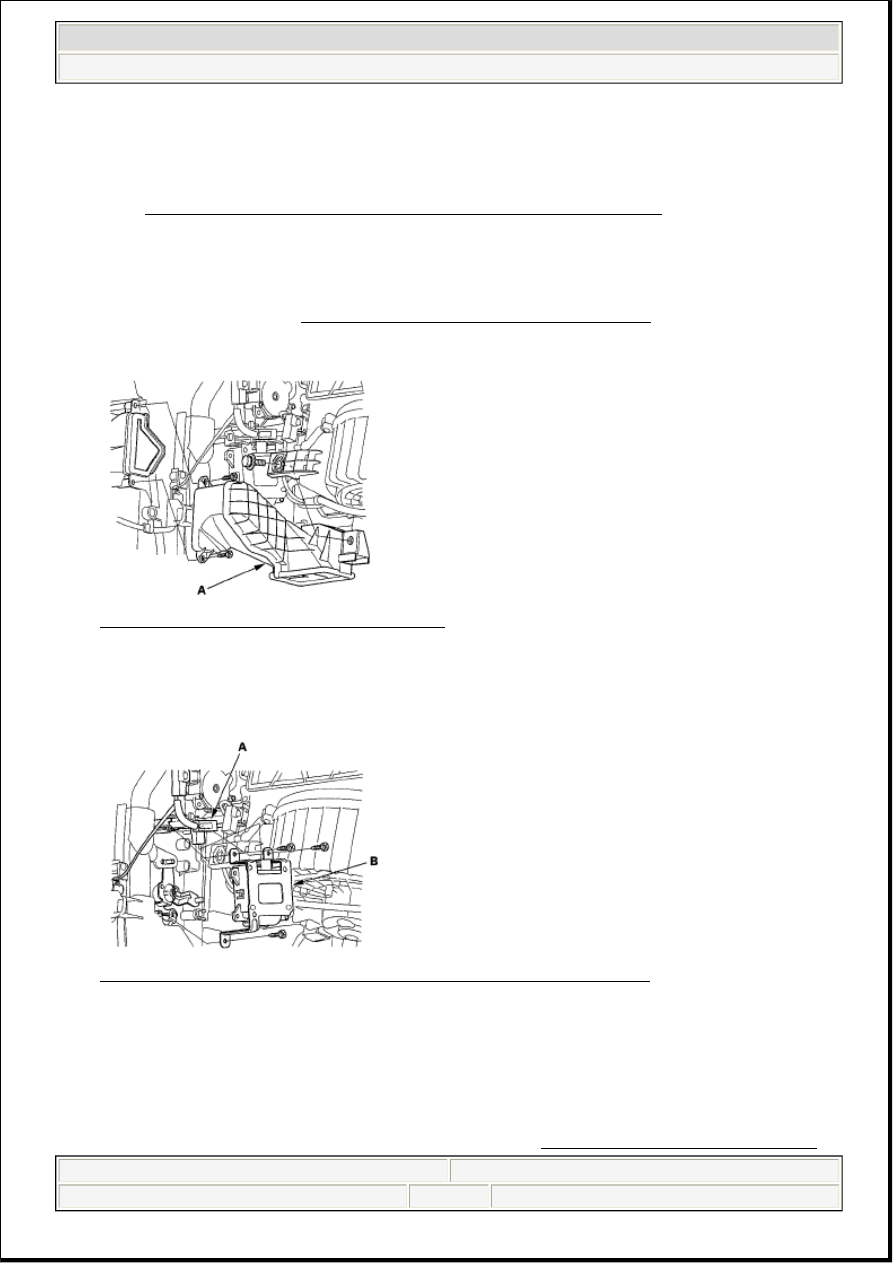

3. If the passenger's air mix control motor did not run in step 2, remove it, then check the passenger's air

mix control linkage and door for smooth movement.



If the linkage and door move smoothly, replace the passenger's air mix control motor (see
PASSENGER'S AIR MIX CONTROL MOTOR REPLACEMENT ).



If the linkage or door sticks or binds, repair them as needed.

PASSENGER'S AIR MIX CONTROL MOTOR REPLACEMENT

1. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).

2. Remove the self-tapping screws, bolt, and the duct (A).

Fig. 100: Identifying Air Duct And Fasteners
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Disconnect the 5P connector (A) from the passenger's air mix control motor. Remove the self-tapping

screws and the passenger's air mix control motor (B) from the heater unit.

Fig. 101: Identifying Passenger's Air Mix Control Motor And Fasteners
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged

with the linkage. After installation, make sure the motor runs smoothly.

DRIVER'S COOL VENT CONTROL MOTOR TEST

NOTE:

Before testing, check for HVAC DTCs (see GENERAL TROUBLESHOOTING
