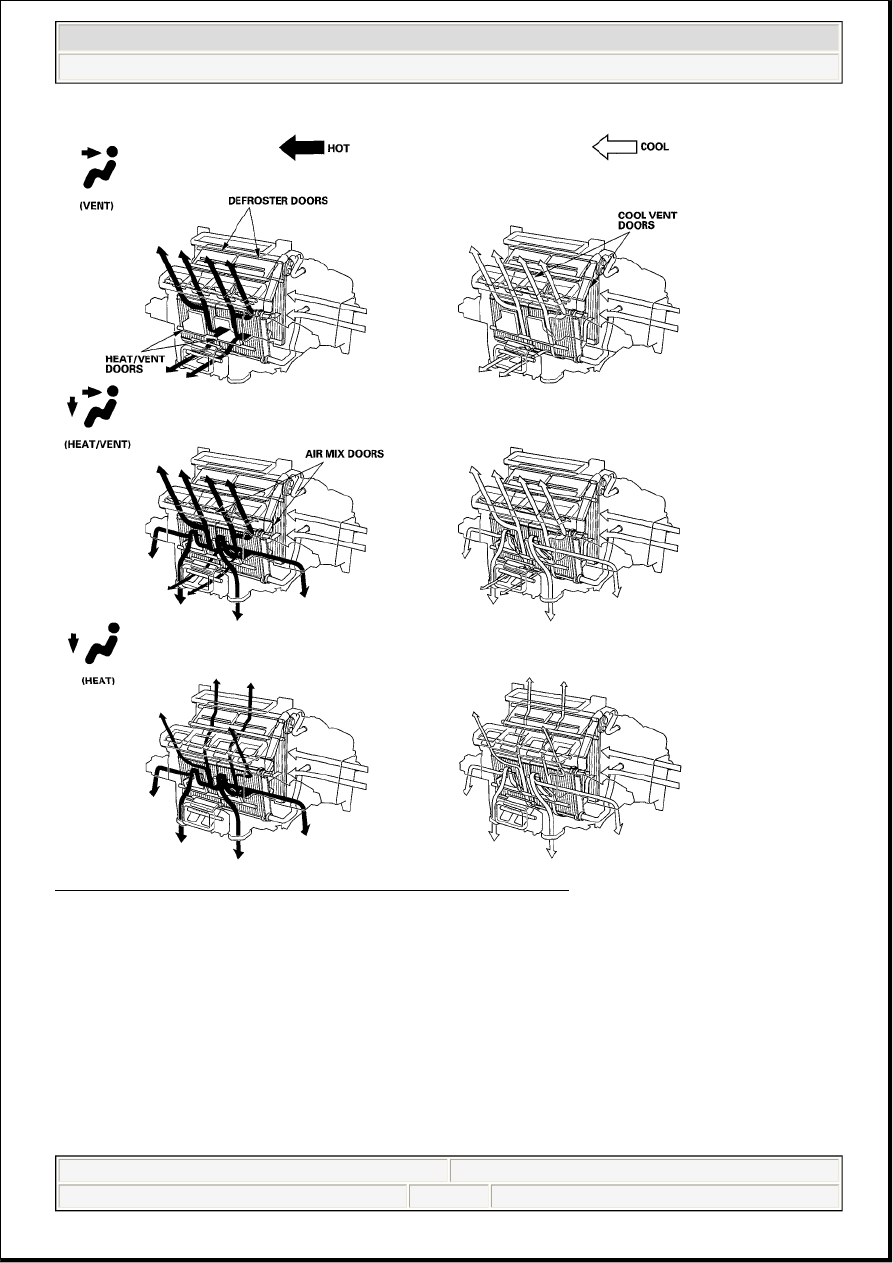

Fig. 15: Climate Control Door Positions Air Flow Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:42 PM

Page 23

© 2005 Mitchell Repair Information Company, LLC.

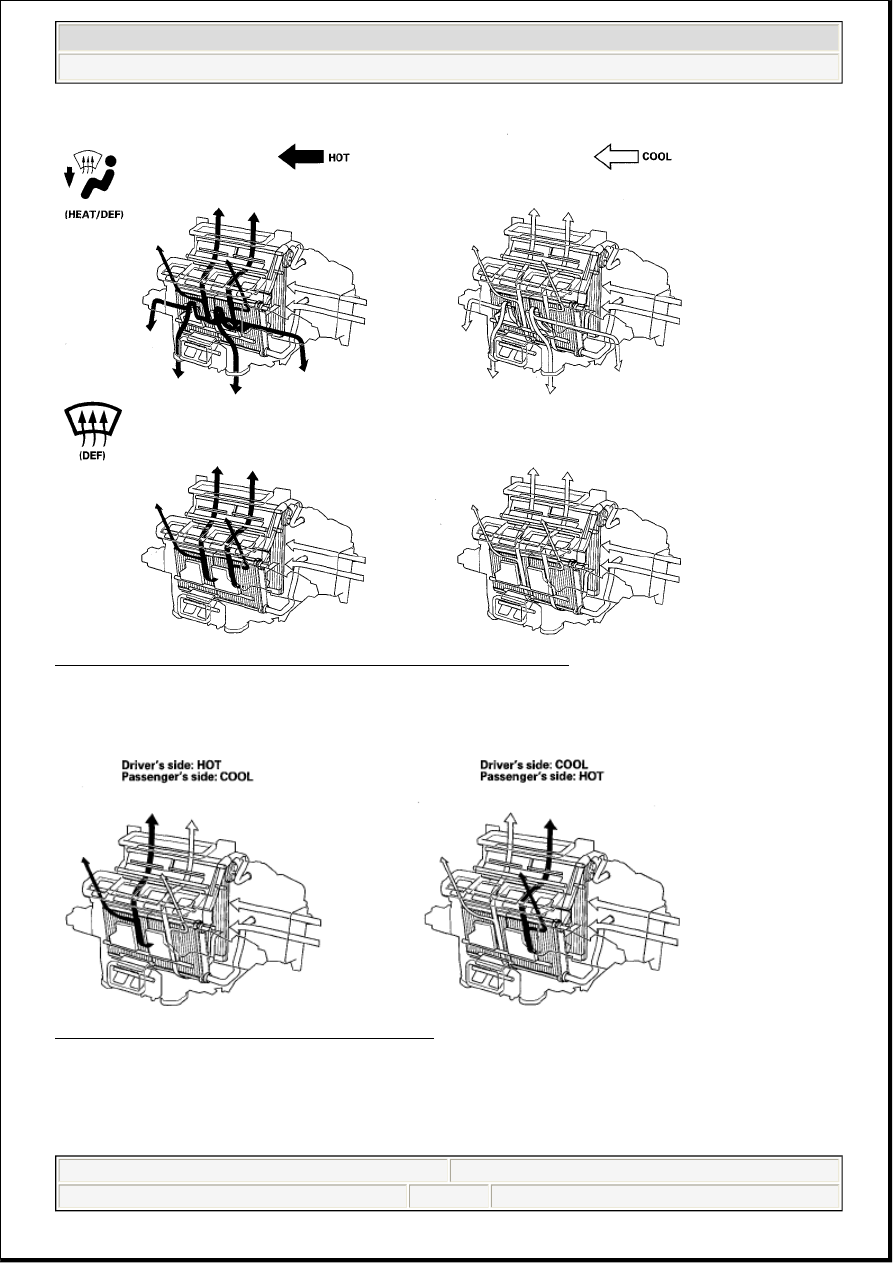

Fig. 16: Climate Control Door Positions Air Flow Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Dual Air Mix Control System

Fig. 17: Identifying Dual Air Mix Control System
Courtesy of AMERICAN HONDA MOTOR CO., INC.

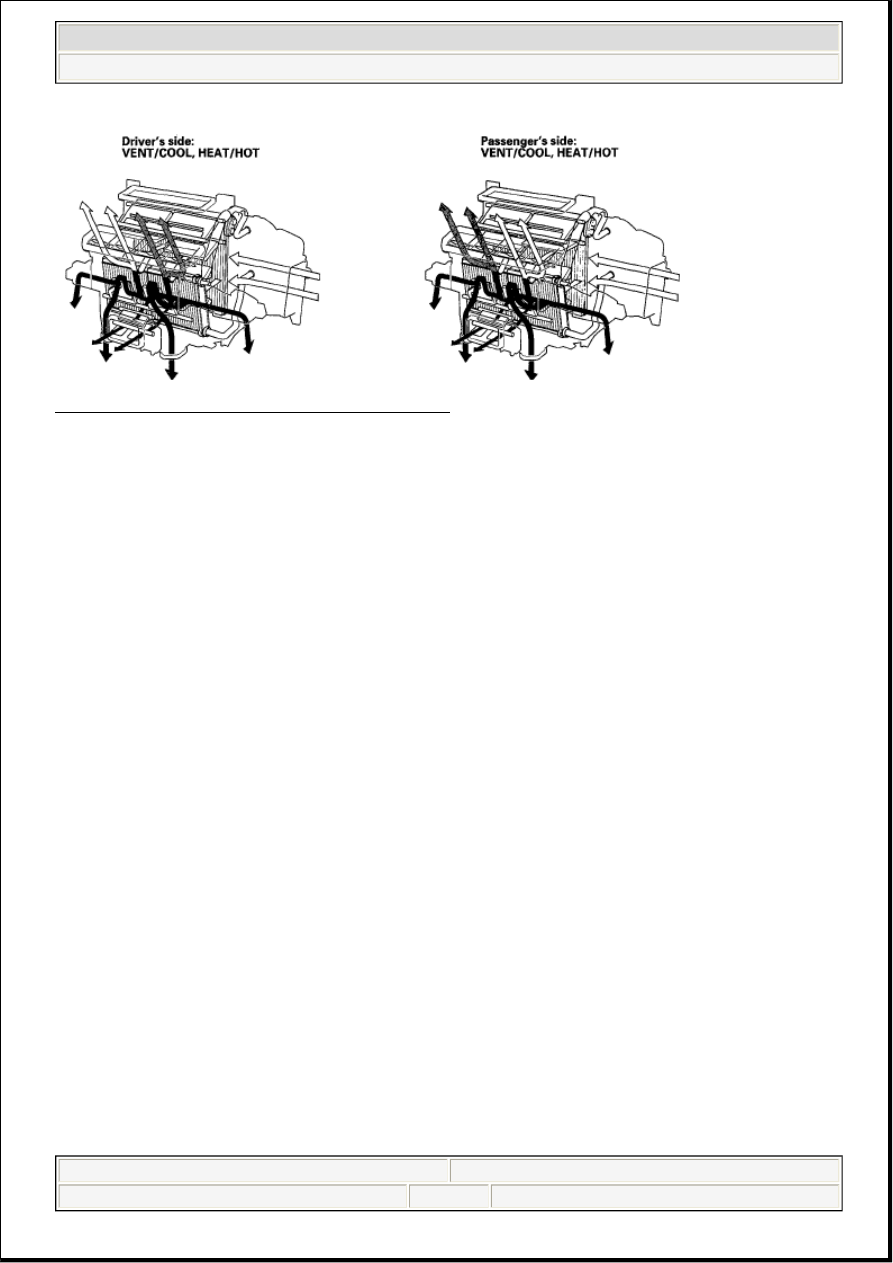

Dual Cool Vent Control System



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:42 PM

Page 24

© 2005 Mitchell Repair Information Company, LLC.

Fig. 18: Identifying Dual Cool Vent Control System
Courtesy of AMERICAN HONDA MOTOR CO., INC.

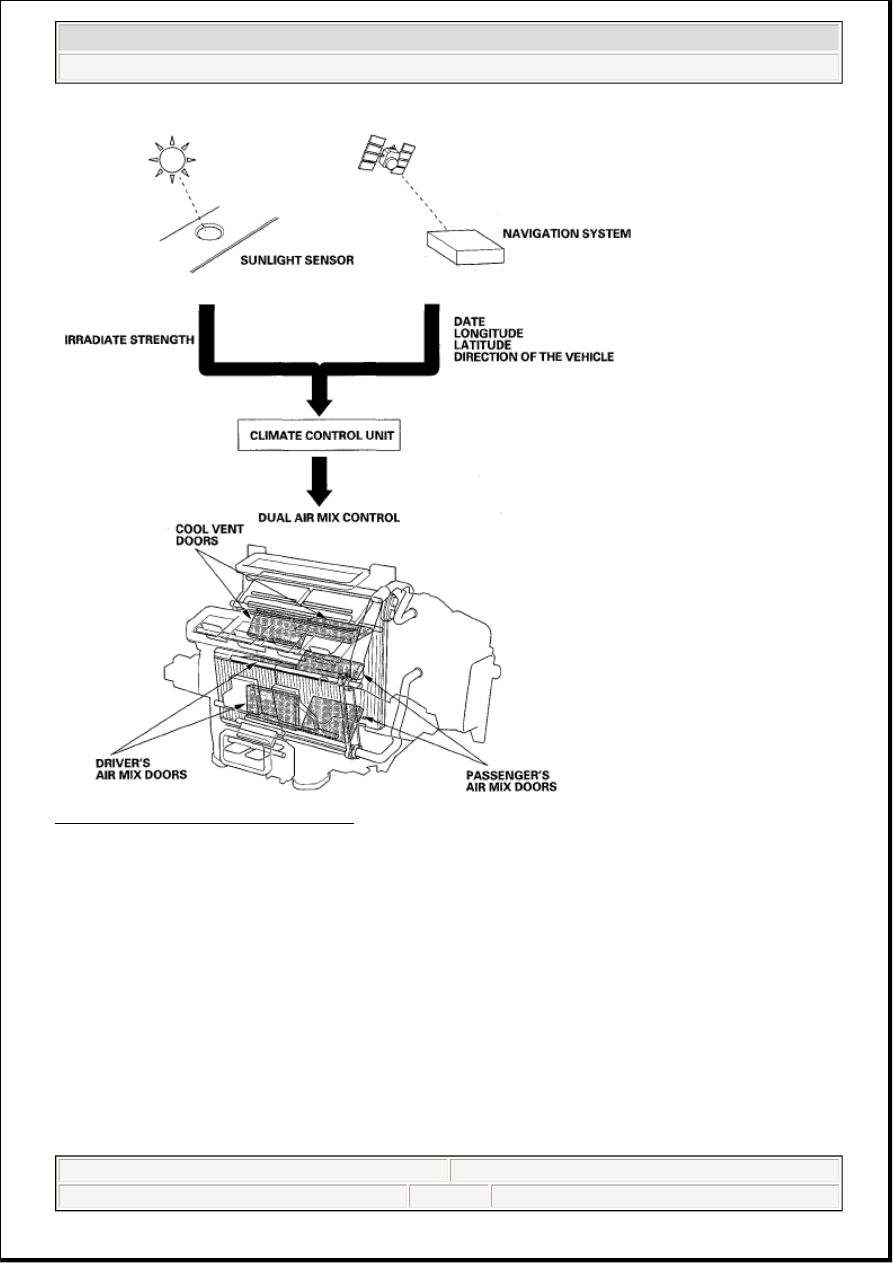

i-Dual Climate Control System

This system automatically controls the temperature and the vent mode of the air direction to the driver and
passenger's side depending on the angle of the sun and the direction of the vehicle. It calculates information
such as date, time, longitude, and latitude from the navigation system, as well as the irradiate strength of the
sun from the sunlight sensor, to determine the appropriate mode position and temperature to be directed to
each side.



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:42 PM

Page 25

© 2005 Mitchell Repair Information Company, LLC.

Fig. 19: Climate Control Unit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

In the event that the navigation system malfunctions, or when driving in areas where the navigation cannot
determine the vehicle position (non-coverage areas, tunnels, etc.), the climate control system will operate the
same as a vehicle without navigation.

Climate Control Unit Inputs and Outputs
