Acura RL. Manual - part 493

Fig. 27: Identifying Double-Sided Adhesive Tape, Pins And Trunk Opening Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the trunk opening panel in the reverse order of removal, and note these items:



Scrape off the remaining double-sided adhesive tape from the cover and body, then clean the
cover and body surface with a sponge dampened in alcohol.



Apply new adhesive tape (A) to the trunk opening panel (B).



Push the adhesive portions and pins into place securely.

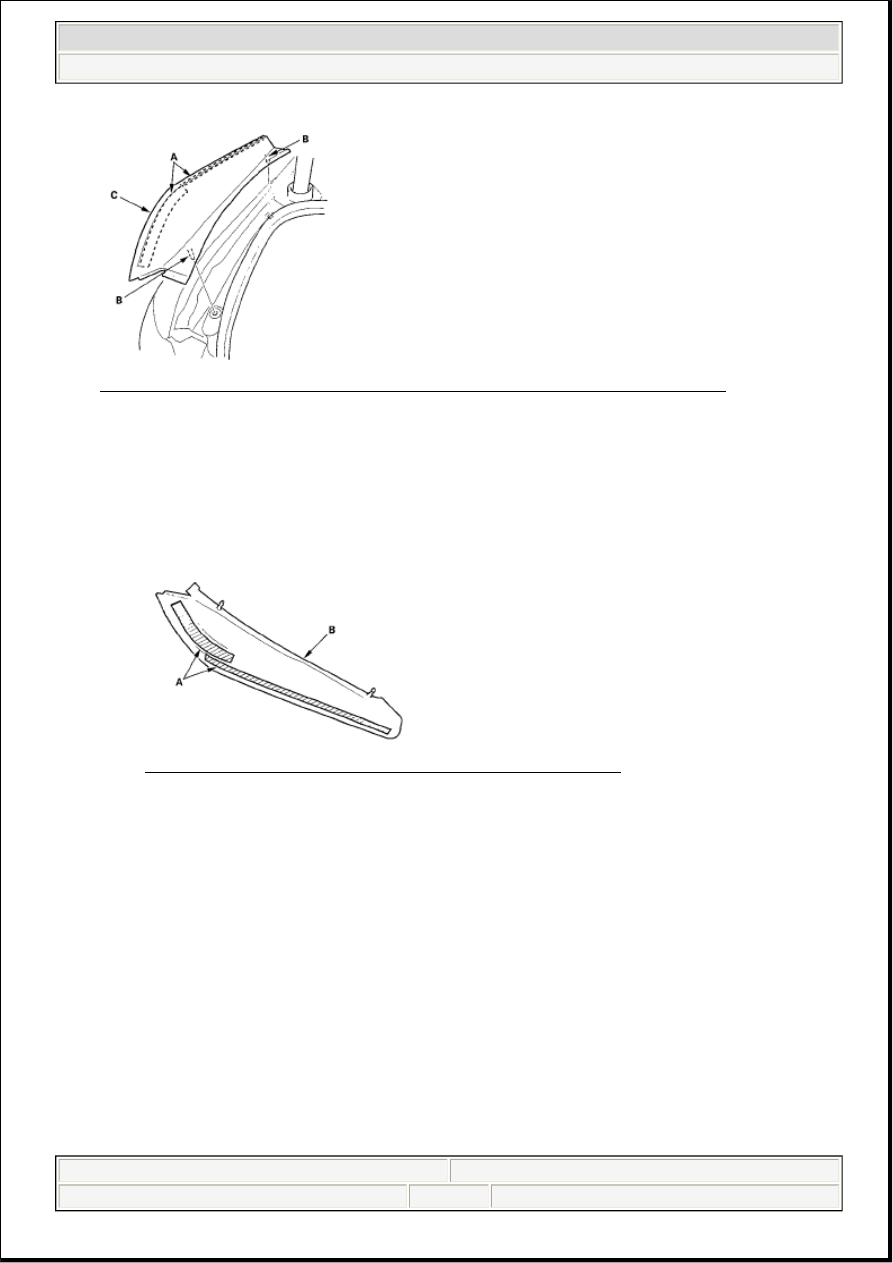

Fig. 28: Identifying Trunk Opening Panel And Adhesive Tape
Courtesy of AMERICAN HONDA MOTOR CO., INC.

EMBLEM/STICKER REPLACEMENT

1. Clean the body surface with a sponge dampened in alcohol. After cleaning, keep oil, grease, and water

from getting on the surface.

2. Apply the emblem/sticker where shown. When installing the ULEV sticker on the inside surface of

the left rear door quarter glass, align the sticker with the edge of the glass mark and black ceramic as
shown, then press the sticker into place, and remove the application tape.

NOTE:

When removing the emblems/stickers, take care not to scratch the body.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Exterior Trim - RL



me



Friday, June 05, 2009 3:52:02 PM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

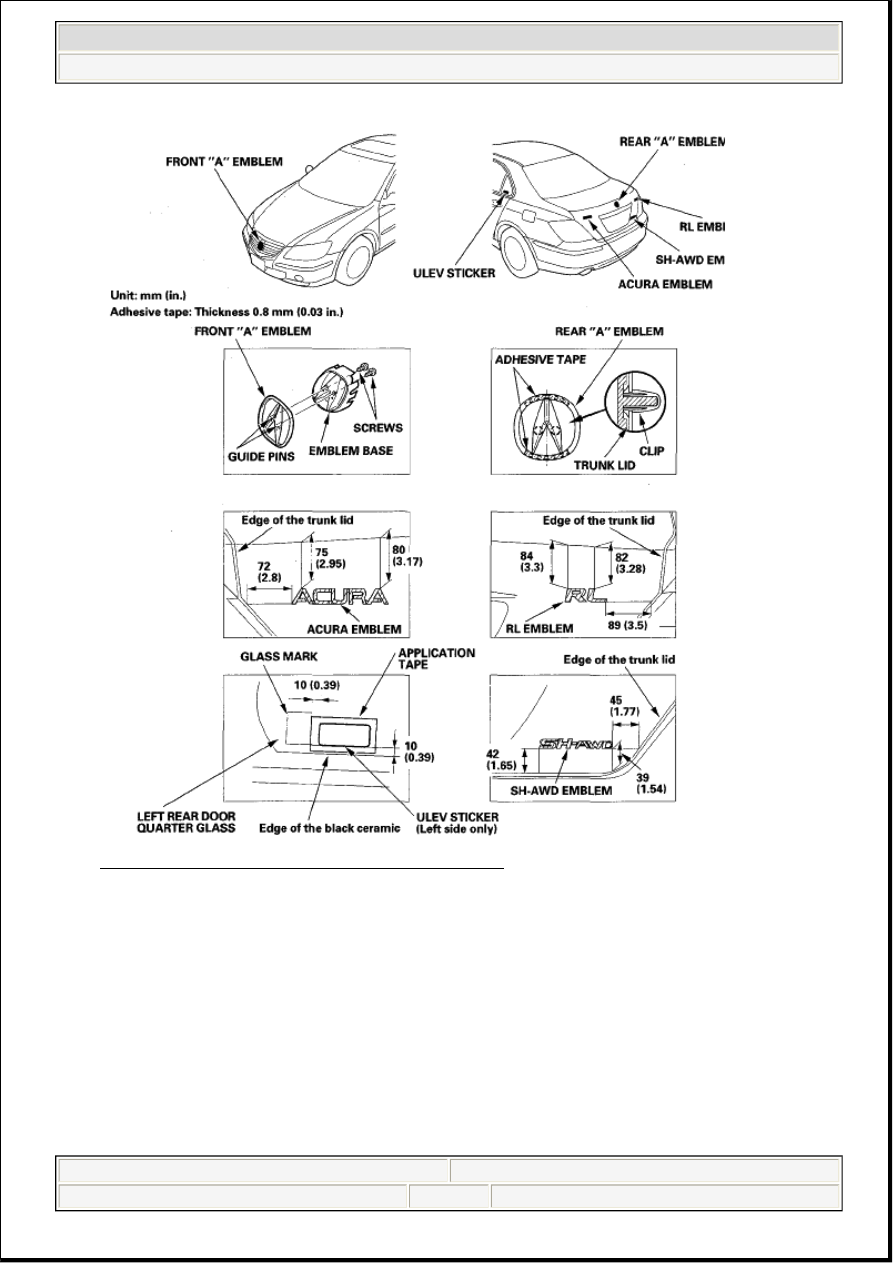

Fig. 29: Views Of Emblem And Sticker Replacement
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Exterior Trim - RL



me



Friday, June 05, 2009 3:52:02 PM

Page 19

© 2005 Mitchell Repair Information Company, LLC.

2005-08 ACCESSORIES AND EQUIPMENT

Frame - RL

FRAME BRACE REPLACEMENT

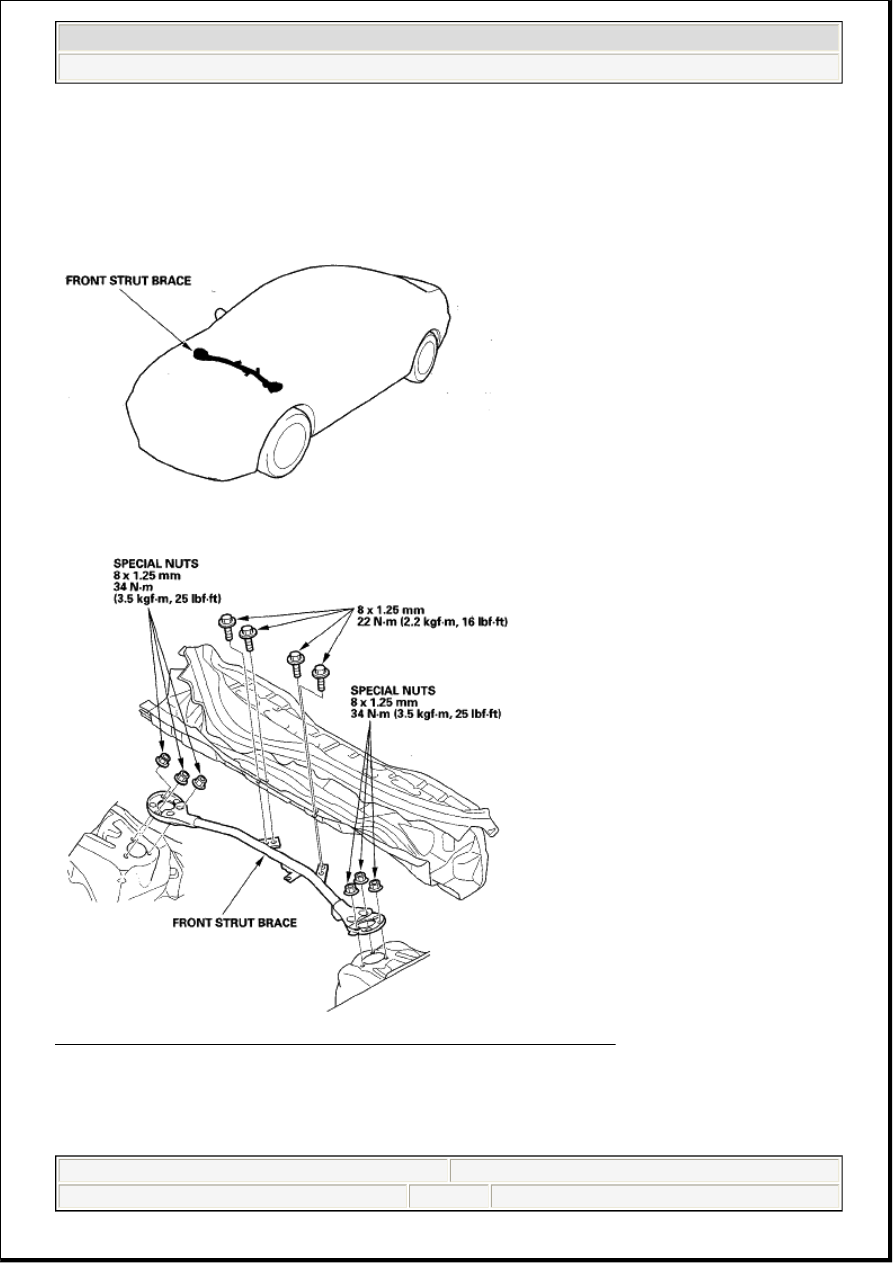

Fig. 1: Identifying Frame Brace Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SUBFRAME REPLACEMENT

Special Tools Required



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Frame - RL





2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Frame - RL



me



Friday, June 05, 2009 3:34:19 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 3:34:23 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Frame positioning guide pin 070AG-SJAA10S

FRONT SUBFRAME TORQUE

After removing the subframe mounting bolts and front suspension subframe rear bracket mounting bolts, be
sure to replace them with new ones.

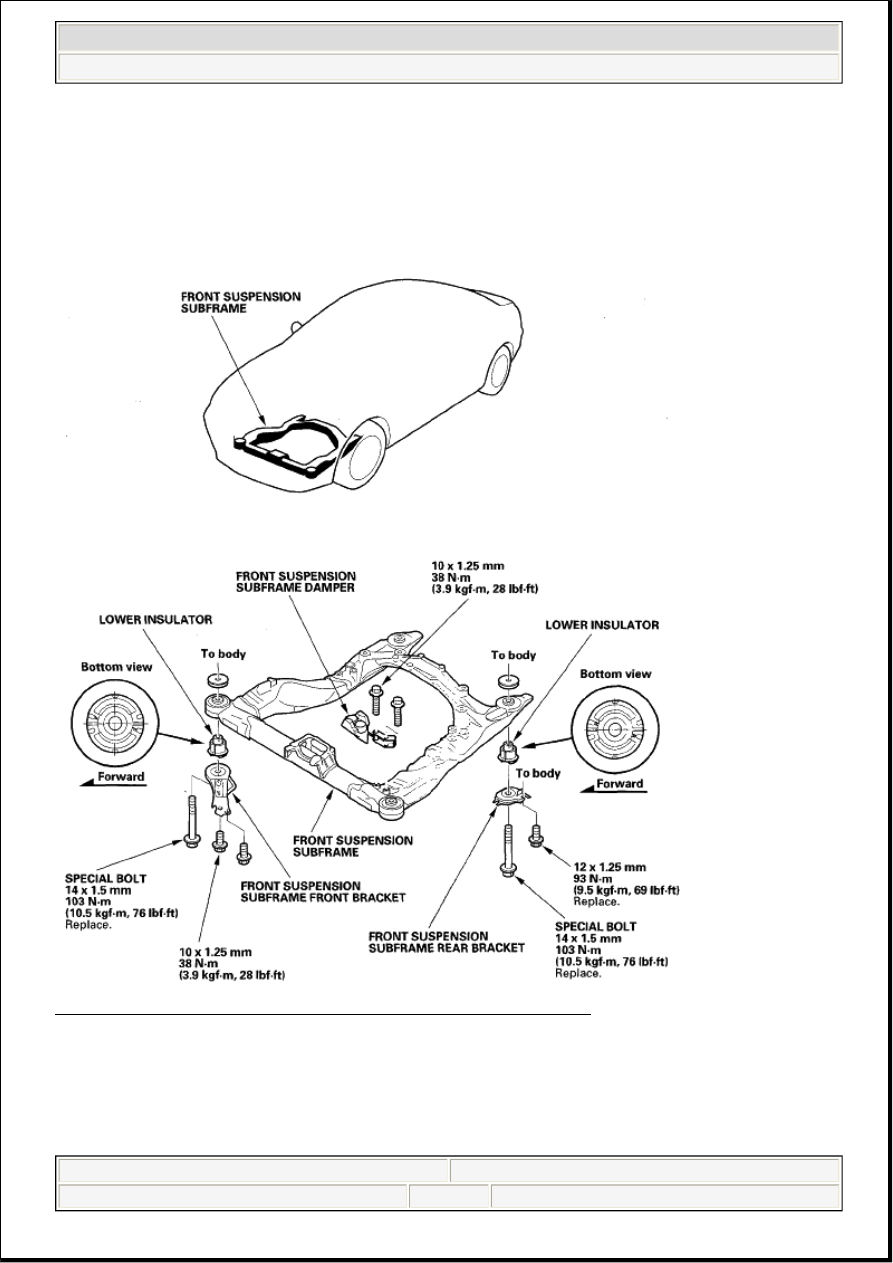

Fig. 2: Identifying Subframe Components With Torque Specifications
