Connecting Rod Journal Code Locations

Numbers or bars have been stamped on the side of each connecting rod as a code for the size of the big end.
Use them, and the letters or bars stamped on the crank (codes for rod journal size), to choose the correct
bearings. If the codes are indecipherable because of an accumulation of dirt and dust, do not scrub them with
a wire brush or scraper. Clean them only with solvent or detergent.

Fig. 12: Identifying Connecting Rod Journal Code Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.

'05 model

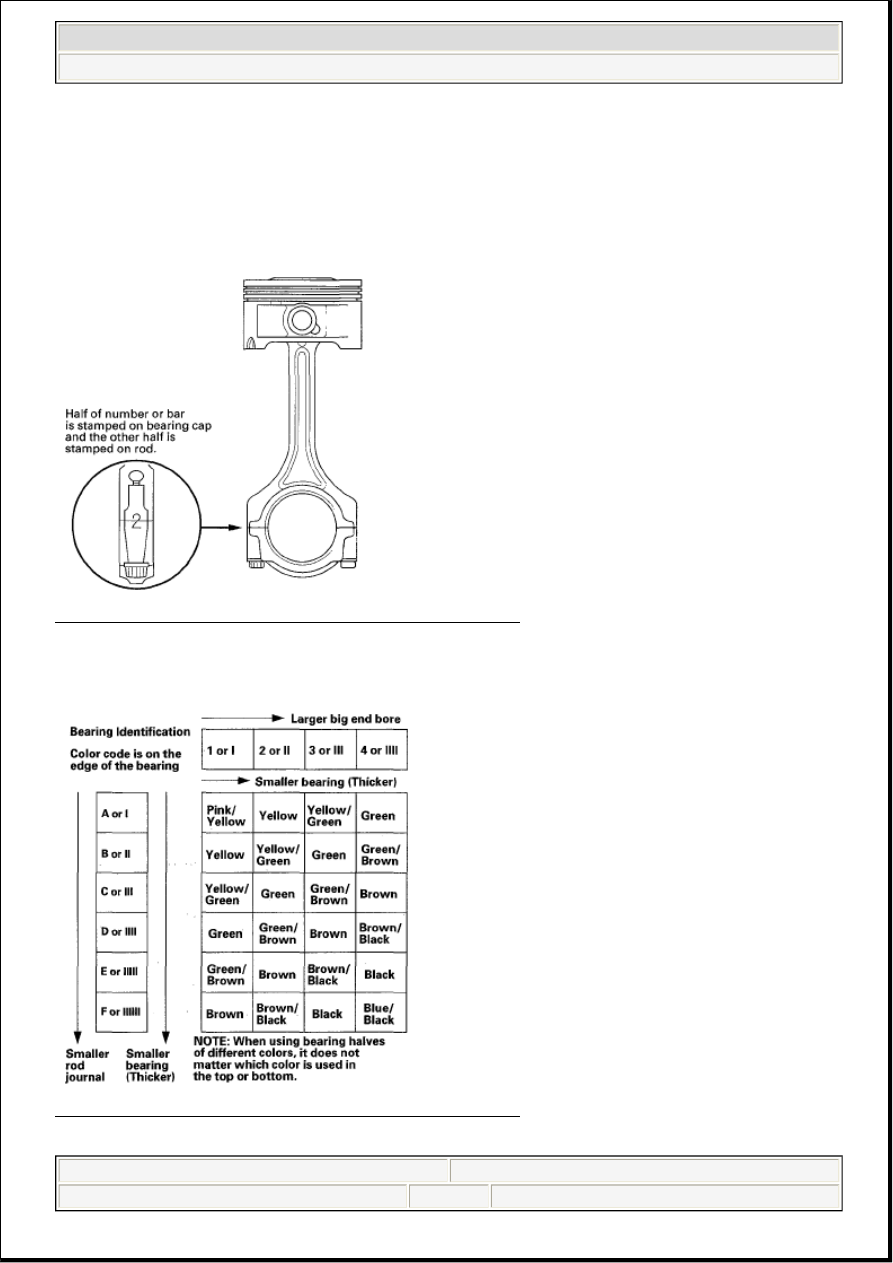

Fig. 13: Connecting Rod Bearing Selection Chart (05 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE Engine Block - RL



me



Friday, June 05, 2009 3:16:24 PM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

'06-08 models

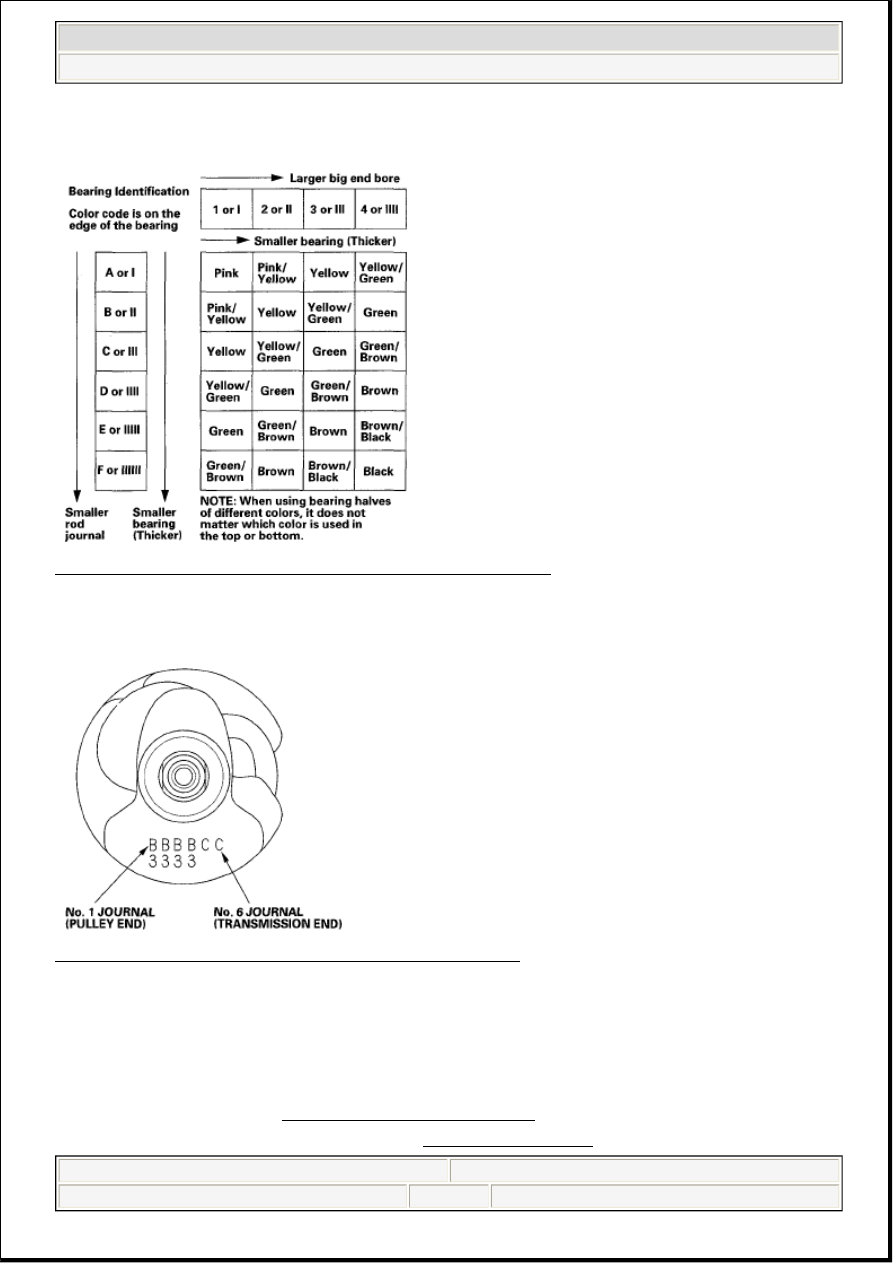

Fig. 14: Connecting Rod Bearing Selection Chart (06-08 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connecting rod journal code locations (Letters or Bars)

Fig. 15: Identifying Connecting Rod Journal Code Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.

OIL PAN REMOVAL

1. If the engine is out of the vehicle, go to step 6.

2. Raise the vehicle on the lift to full height.

3. Drain the engine oil (see ENGINE OIL REPLACEMENT ).

4. Remove the splash shield (see step 33 under ENGINE REMOVAL ).



2007 Acura RL

2005-08 ENGINE Engine Block - RL



me



Friday, June 05, 2009 3:16:24 PM

Page 11

© 2005 Mitchell Repair Information Company, LLC.

5. Remove exhaust pipe A.

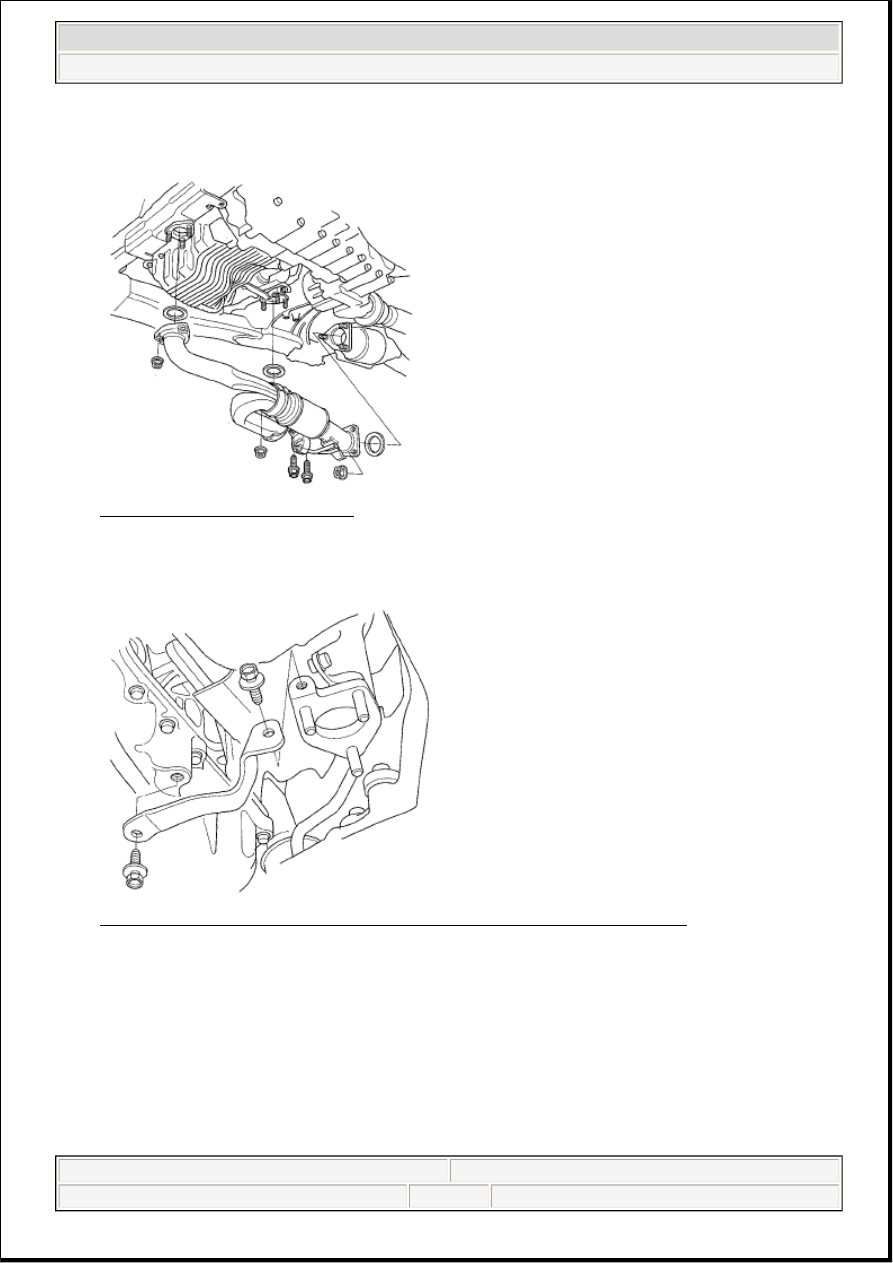

Fig. 16: Identifying Exhaust Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Remove the rear warm up three way catalytic converter (rear WU-TWC) bracket.

Fig. 17: Identifying Rear Warm Up Three Way Catalytic Converter Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Remove the torque converter cover (A) and the four bolts (B) securing the transmission.



2007 Acura RL

2005-08 ENGINE Engine Block - RL



me



Friday, June 05, 2009 3:16:24 PM

Page 12

© 2005 Mitchell Repair Information Company, LLC.

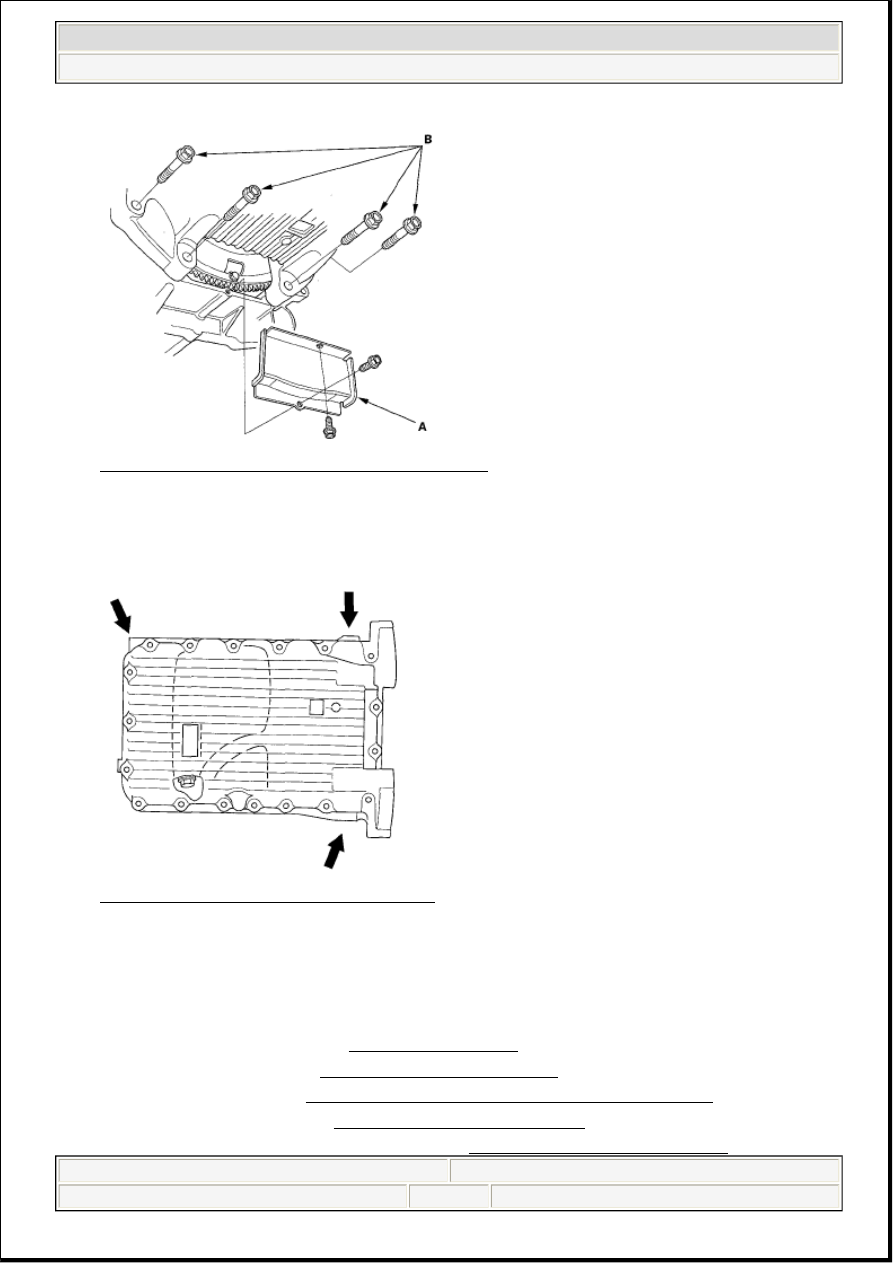

Fig. 18: Identifying Torque Converter Cover Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Remove the bolts securing the oil pan.

9. Using a flat blade screwdriver, separate the oil pan from the block in the places shown.

Fig. 19: Locating Oil Pan Separation Places
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Remove the oil pan.

CRANKSHAFT AND PISTON REMOVAL

1. Remove the engine assembly (see ENGINE REMOVAL ).

2. Remove the transmission (see TRANSMISSION REMOVAL ).

3. Remove the drive plate (see DRIVE PLATE REMOVAL AND INSTALLATION ).

4. Remove the cylinder heads (see CYLINDER HEAD REMOVAL ).

5. Remove the crankshaft position (CKP) sensor (see CKP SENSOR REPLACEMENT ).



2007 Acura RL

2005-08 ENGINE Engine Block - RL



me



Friday, June 05, 2009 3:16:24 PM

Page 13

© 2005 Mitchell Repair Information Company, LLC.
