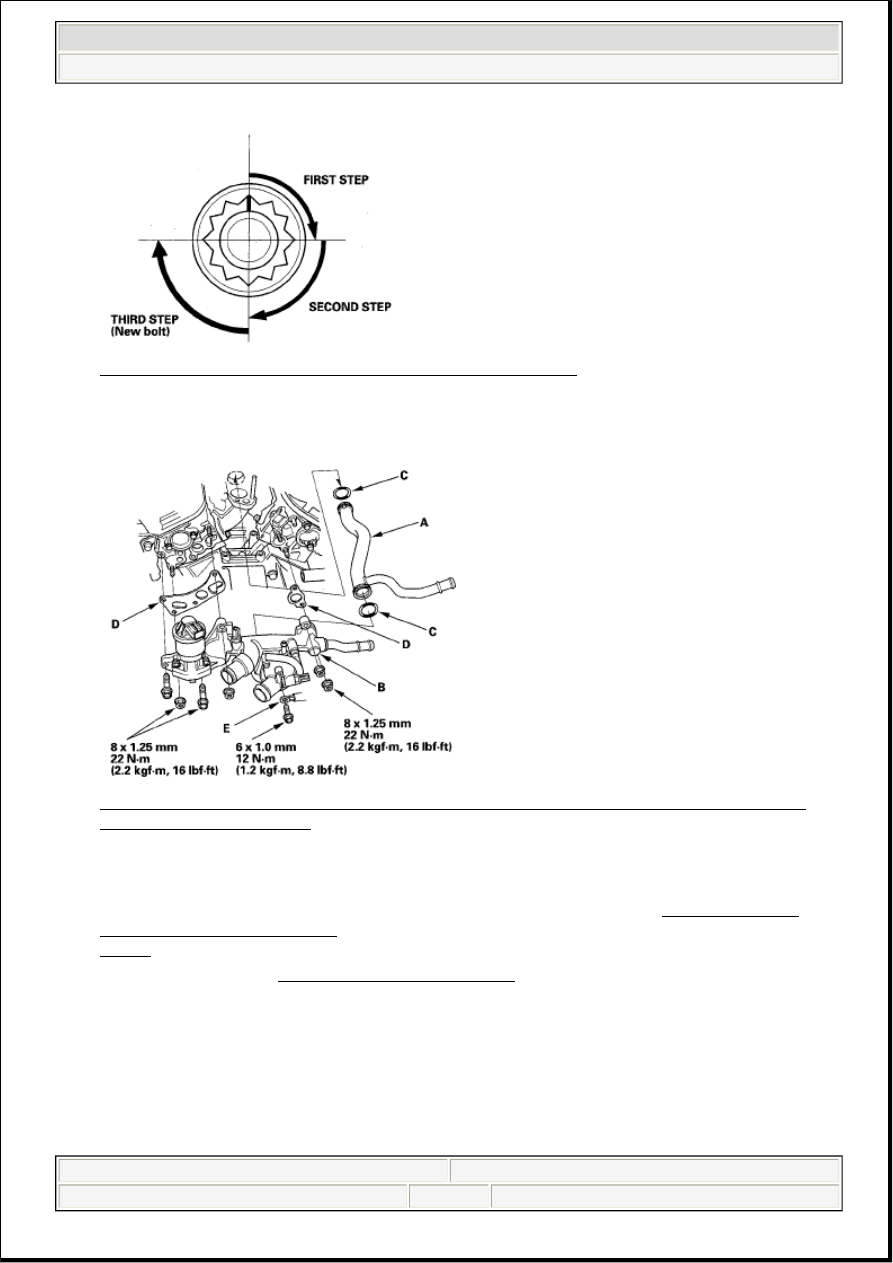

Fig. 141: Identifying Tightening Steps Of Cylinder Head Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

16. Install the connecting pipe (A) and water passage (B), using the O-rings (C) and new gaskets (D).

Fig. 142: Identifying Connecting Pipe, Water Passage, O-Rings, Gaskets And Ground Cable
With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

17. Install the ground cable (E).

18. Install the front warm up three way catalytic converter (front WU-TWC) (see WARM UP TWC

REMOVAL/INSTALLATION ) and rear warm up three way catalytic converter (WU-TWC) (see
REAR ).

19. Install the fuel rails (see INJECTOR REPLACEMENT ).

20. Install the connector bracket to the front cylinder head.



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:37 PM

Page 77

© 2005 Mitchell Repair Information Company, LLC.

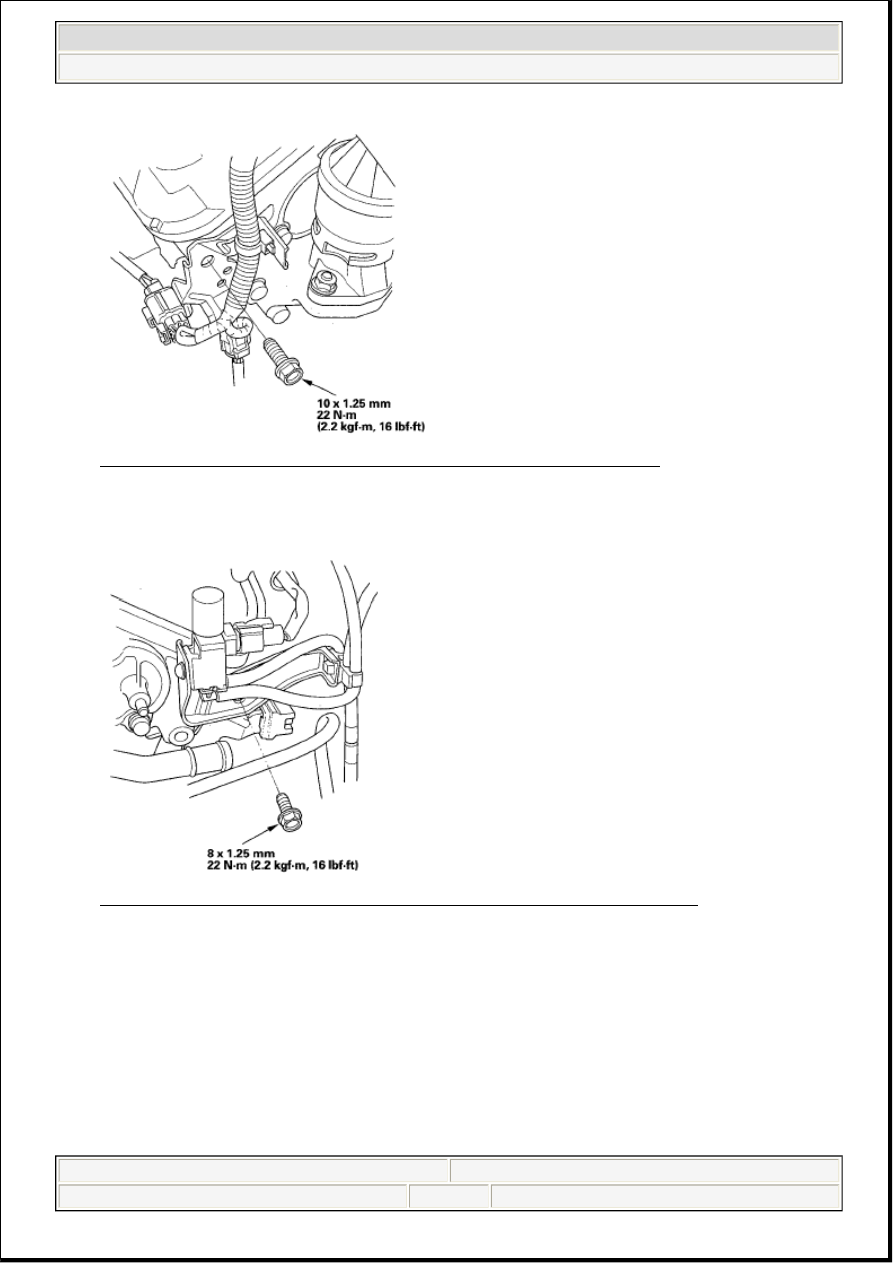

Fig. 143: Identifying Connector Bracket Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

21. Install the harness clamp bracket to the rear cylinder head.

Fig. 144: Identifying Harness Clamp Bracket Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

22. Install the harness clamp (A).



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:37 PM

Page 78

© 2005 Mitchell Repair Information Company, LLC.

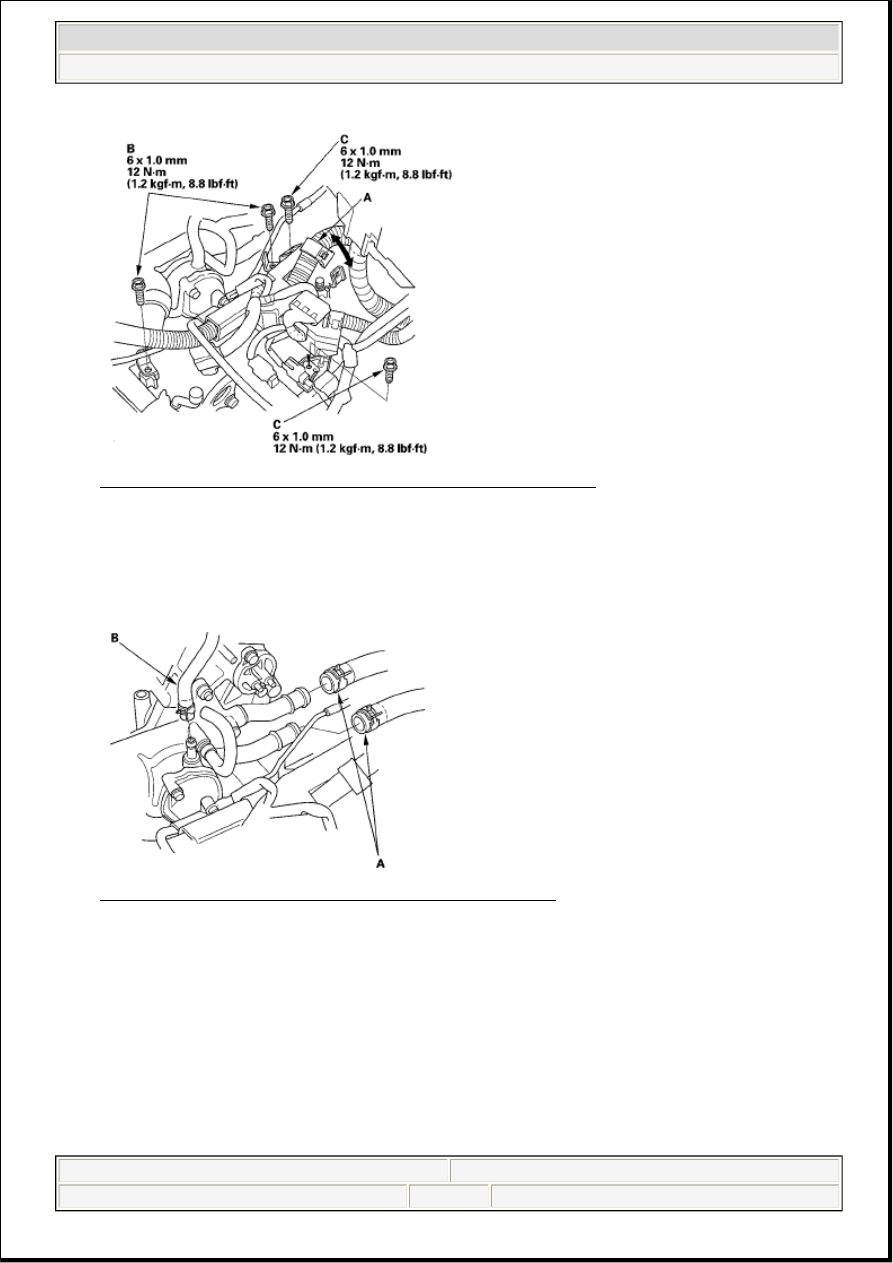

Fig. 145: Identifying Harness Clamp With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

23. Install the two bolts (B) securing the vacuum line.

24. Install the two bolts (C) securing harness holder.

25. Install the heater hoses (A) and water bypass hose (B).

Fig. 146: Identifying Heater Hoses And Water Bypass Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.

26. Install the upper radiator hose (A) and lower radiator hose (B).



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:37 PM

Page 79

© 2005 Mitchell Repair Information Company, LLC.

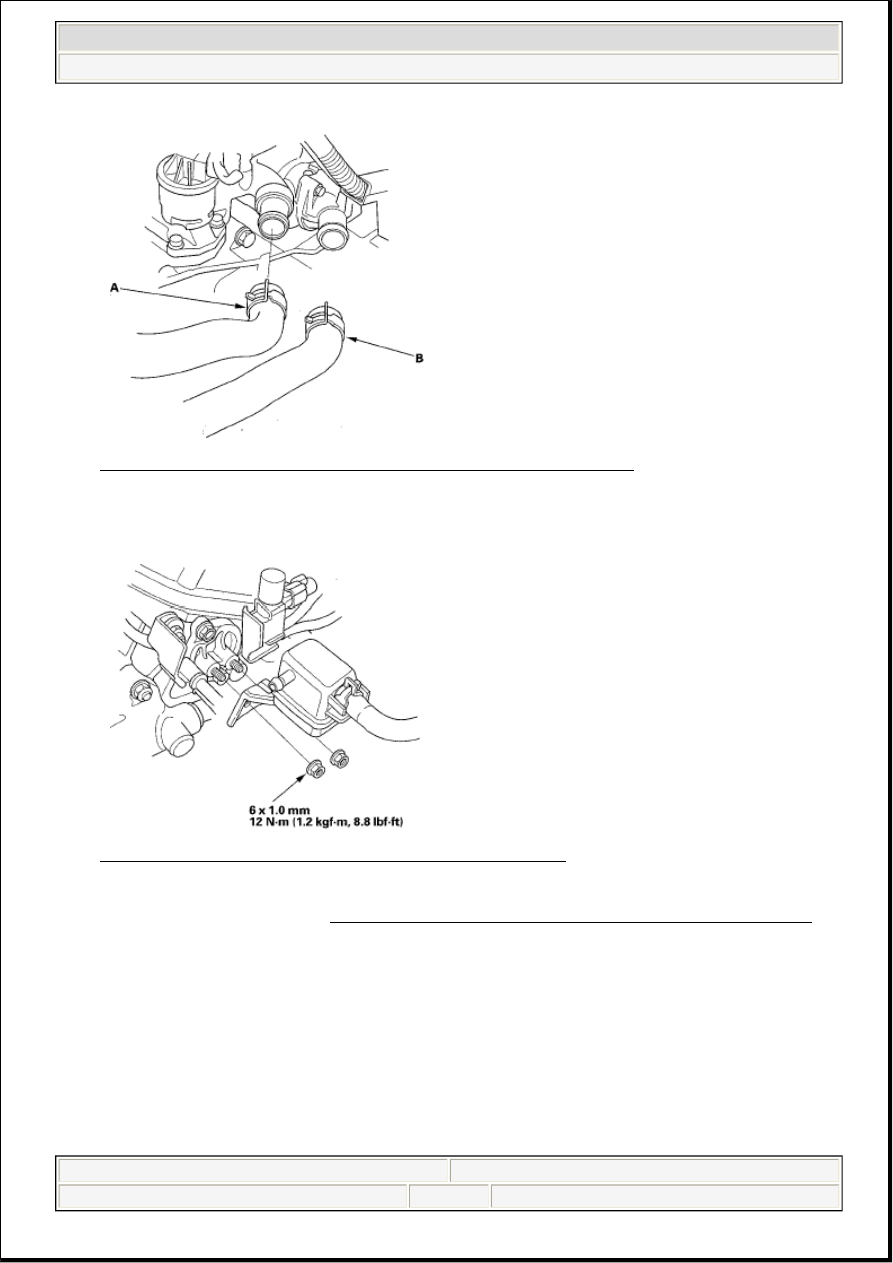

Fig. 147: Identifying Upper Radiator Hose And Lower Radiator Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.

27. Install the purge joint.

Fig. 148: Identifying Purge Joint With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

28. Connect the fuel feed hose (see FUEL LINE/QUICK-CONNECT FITTING INSTALLATION ),
