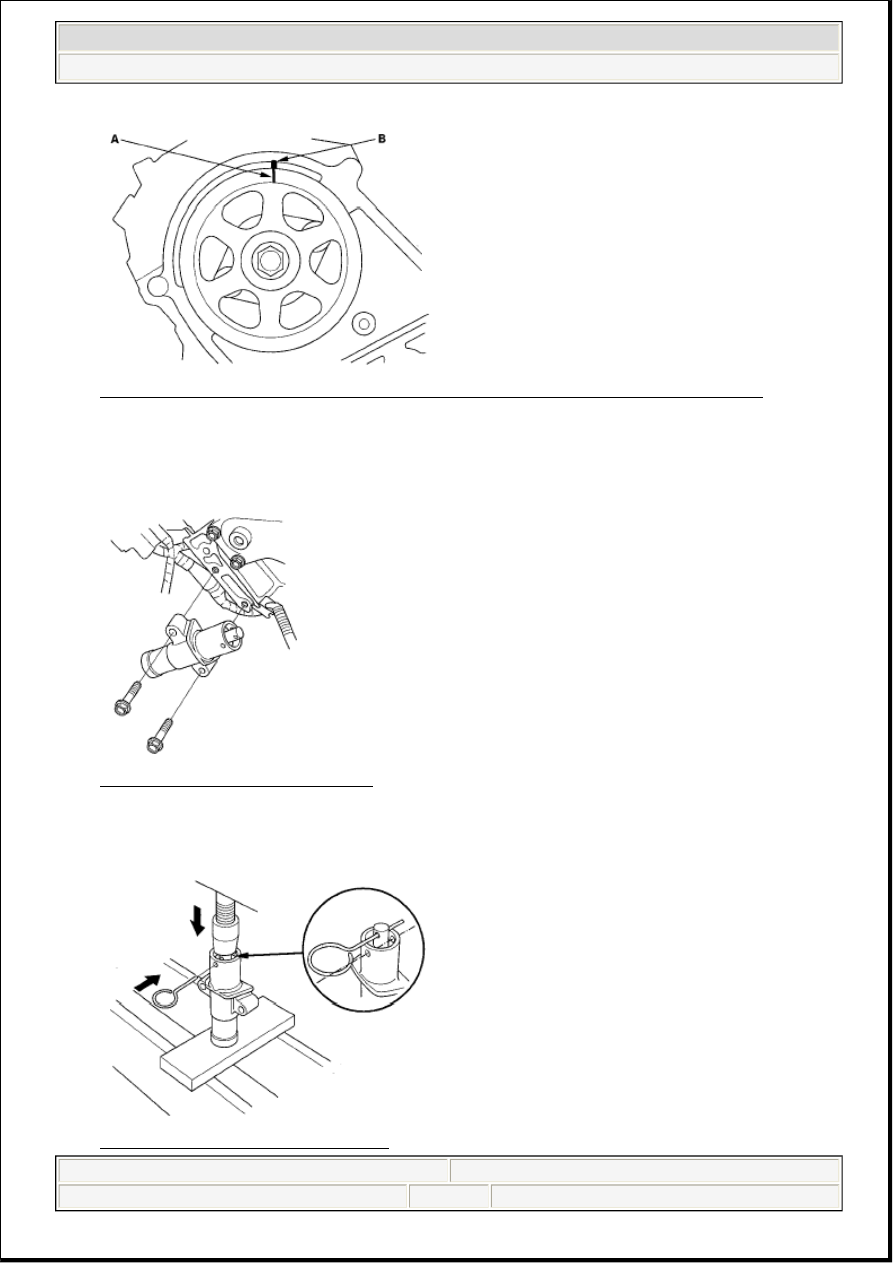

Fig. 53: Aligning TDC Marks On Camshaft Pulleys With Back Covers Pointers (Rear)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the battery clamp bolt from the back cover.

6. Remove the auto-tensioner.

Fig. 54: Identifying Auto-Tensioner
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Align the holes on the rod and housing of the auto-tensioner.

Fig. 55: Compressing Auto-Tensioner



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:36 PM

Page 29

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Use a hydraulic press to slowly compress the auto-tensioner. Insert a 2.0 mm (0.08 in.) pin through

the housing and the rod.

9. Install the auto-tensioner.

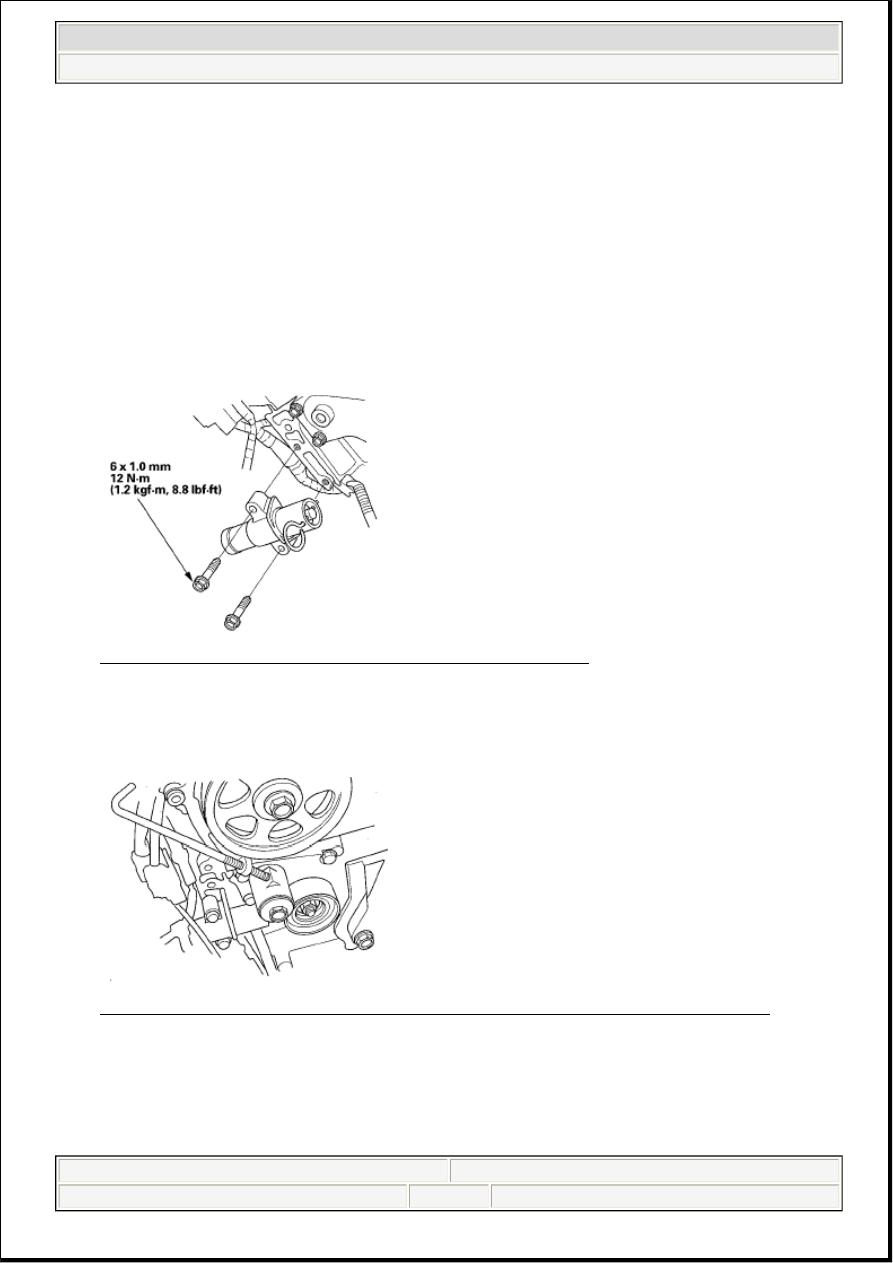

Fig. 56: Identifying Auto-Tensioner With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Thread in the battery clamp bolt as shown to hold the timing belt adjuster. Tighten it by hand, do not

use a wrench.

Fig. 57: Identifying Battery Clamp Bolt Used To Hold Timing Belt Adjuster In Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Loosely install the idler pulley with a new idler pulley bolt so the pulley can move but does not come

off.

12. Install the timing belt in a counterclockwise sequence starting with the drive pulley.

NOTE:

The compression pressure should not exceed 9,800 N (1,000 kgf, 2,200
lbf).

NOTE:

Make sure the pin stays in place.



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:36 PM

Page 30

© 2005 Mitchell Repair Information Company, LLC.

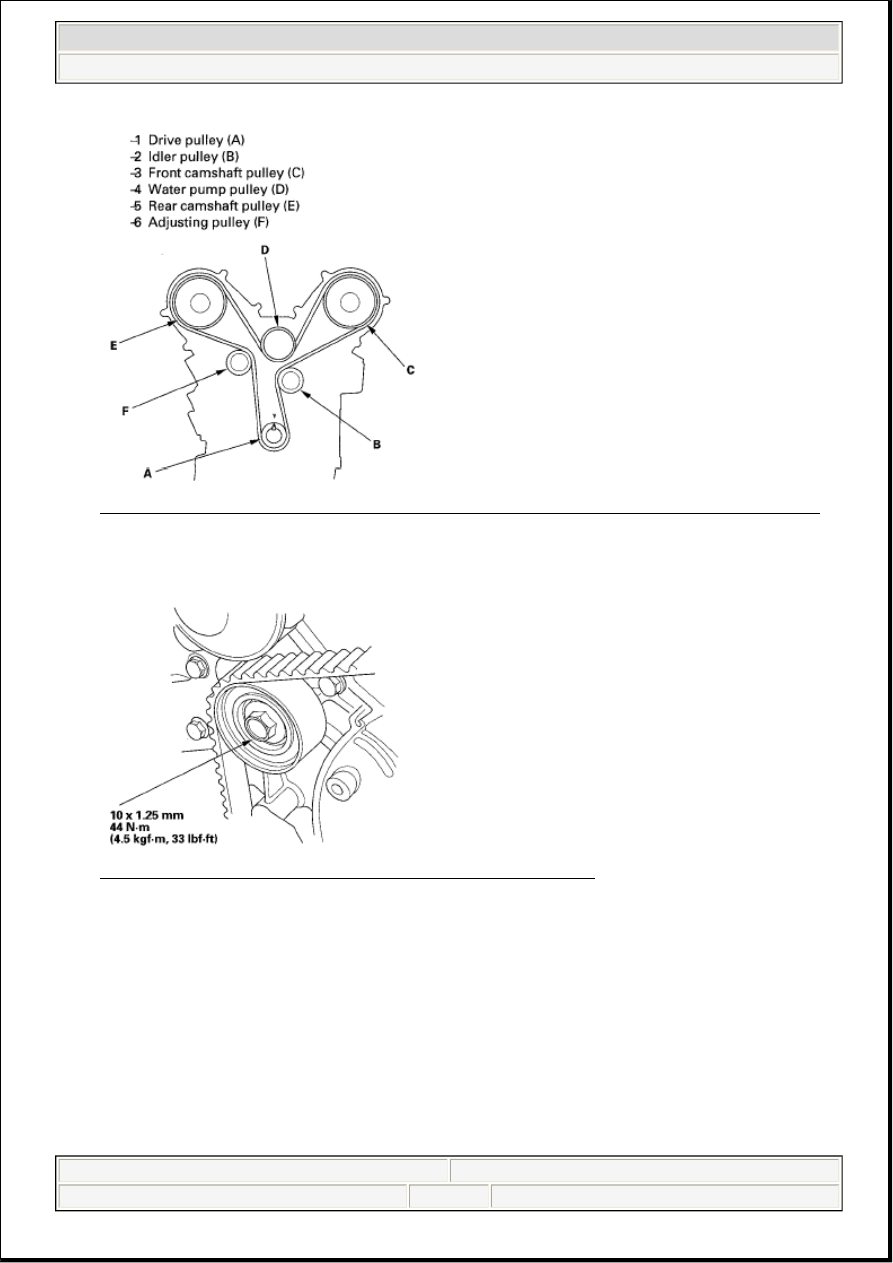

Fig. 58: Identifying Drive Pulley, Idler Pulley, Rear Camshaft Pulley And Water Pump Pulley
Courtesy of AMERICAN HONDA MOTOR CO., INC.

13. Tighten the idler pulley bolt.

Fig. 59: Identifying Idler Pulley Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Remove the pin from the auto-tensioner.



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:36 PM

Page 31

© 2005 Mitchell Repair Information Company, LLC.

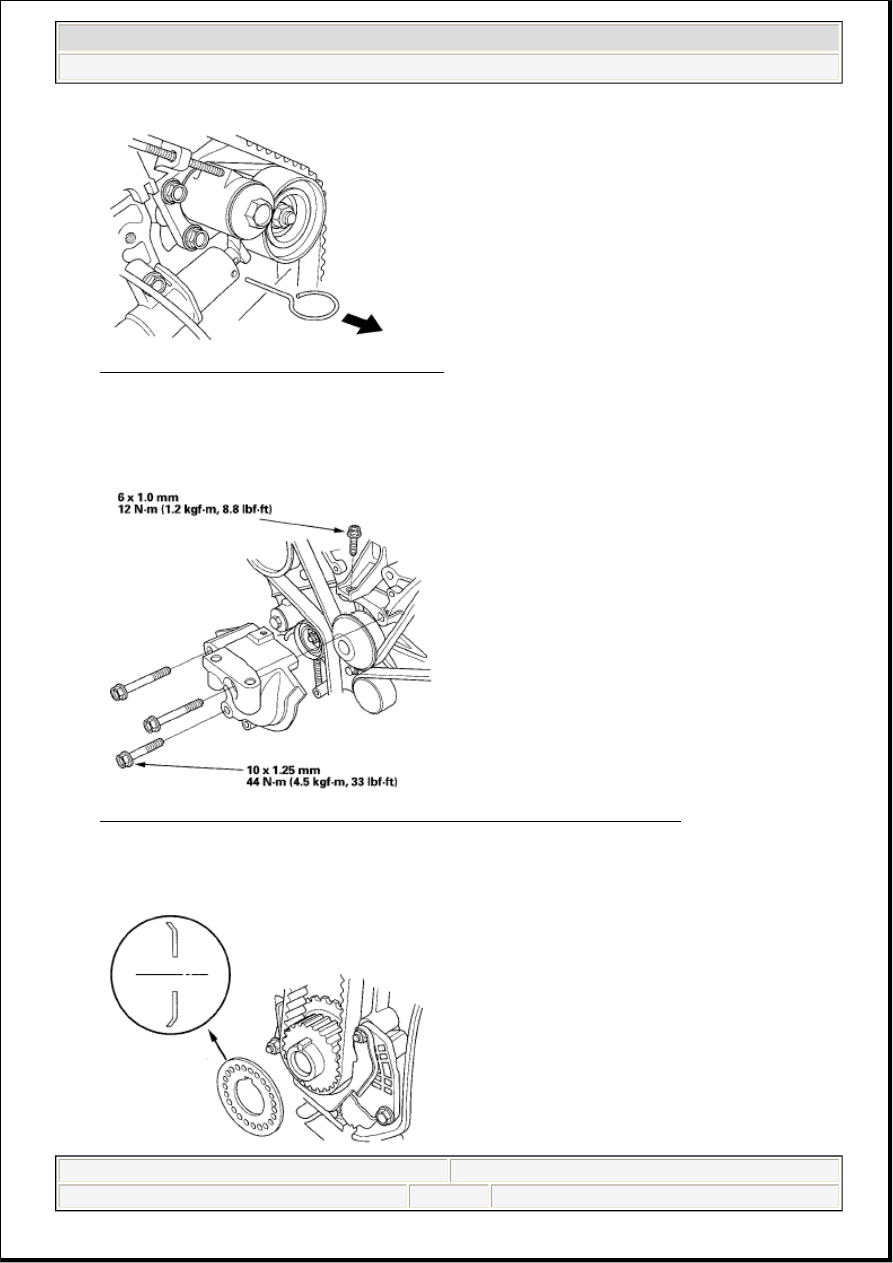

Fig. 60: Removing Pin From Auto-Tensioner
Courtesy of AMERICAN HONDA MOTOR CO., INC.

15. Remove the battery clamp bolt from the back cover.

16. Install the side engine mount bracket.

Fig. 61: Identifying Side Engine Mount Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

17. Install the timing belt guide plate as shown.
