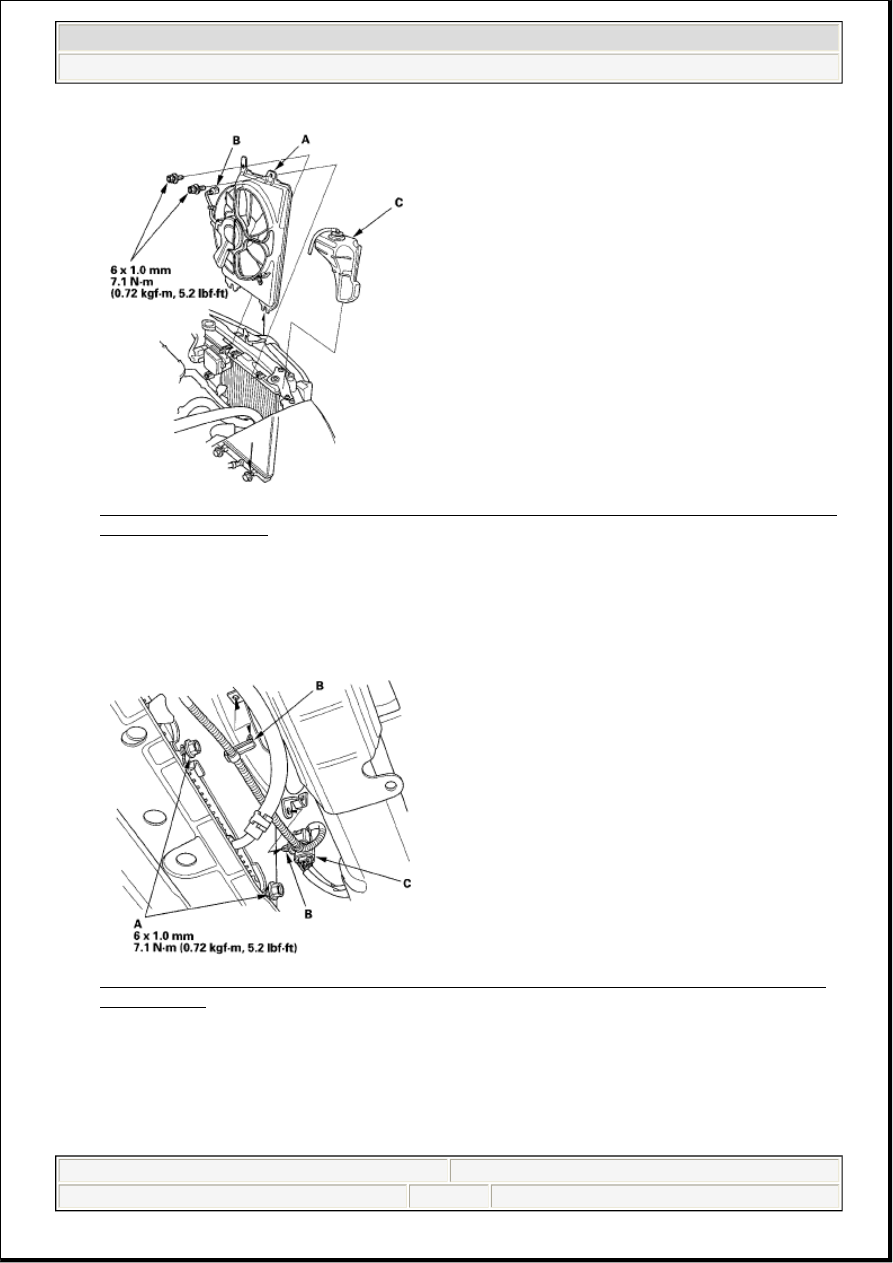

Fig. 28: Identifying A/C Condenser Fan Shroud, Fan Motor Connector And Reserve Tank With
Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Connect the fan motor connector (B), and install the reserve tank (C).

7. Raise the vehicle on the lift to full height.

8. Tighten the two bolts (A) securing the A/C condenser fan shroud.

Fig. 29: Identifying Harness Clamps And A/C Condenser Fan Shroud Connector With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Install the harness clamps (B) and connector (C) to the A/C condenser fan shroud.

10. Install the splash shield.



2007 Acura RL

2005-08 ELECTRICAL Charging System - RL



me



Friday, June 05, 2009 2:41:58 PM

Page 19

© 2005 Mitchell Repair Information Company, LLC.

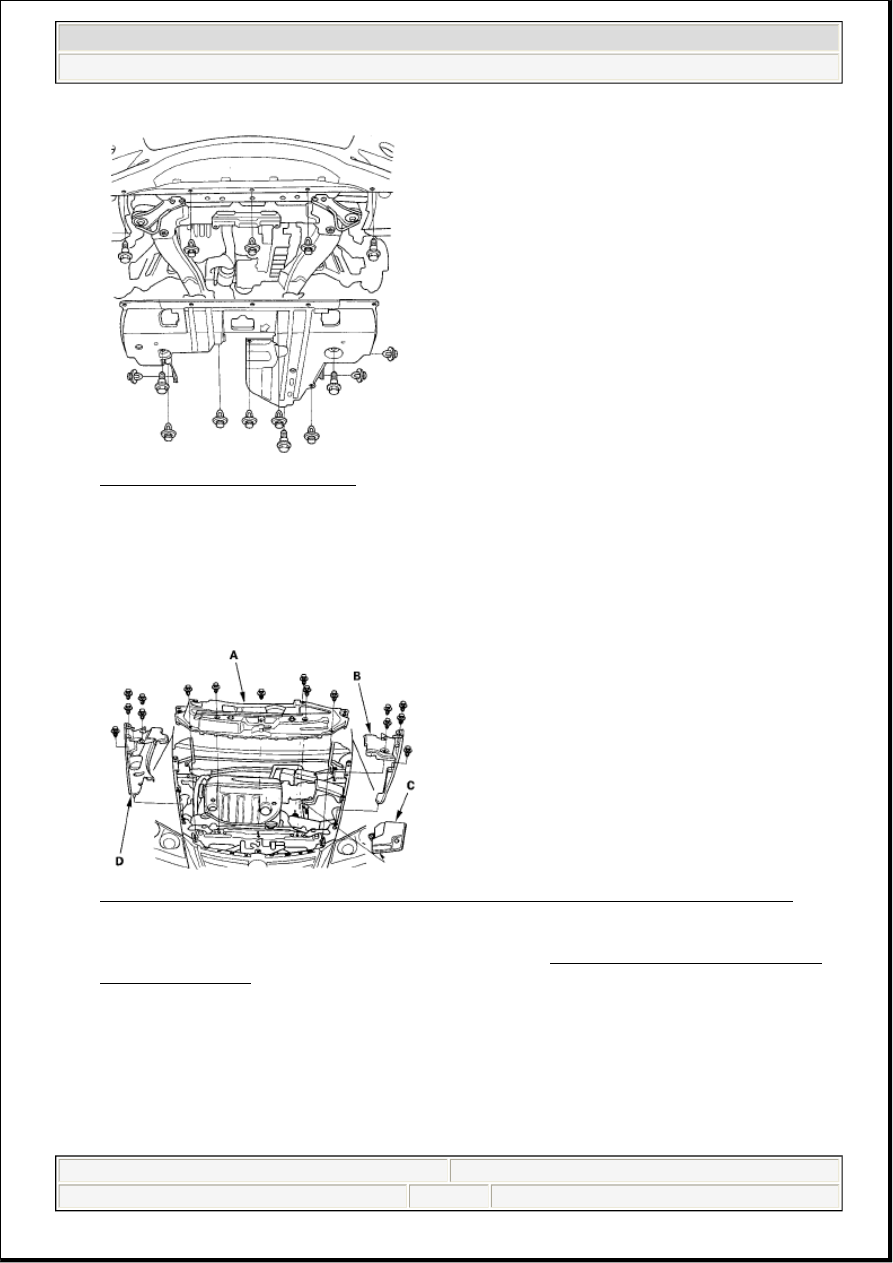

Fig. 30: Identifying Splash Shield
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Lower the vehicle on the lift.

12. Connect the negative cable to the battery.

13. Install the upper grille cover (A), then install the left upper fender trim (B), battery trim (C), and right

upper fender trim (D).

Fig. 31: Identifying Upper Grille Cover, Right/Left Upper Fender Trim And Battery Trim
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Do the steering column position memorization procedure (see STEERING COLUMN POSITION

MEMORIZATION ).

15. Enter the anti-theft codes for the audio system and navigation system.

ALTERNATOR OVERHAUL

EXPLODED VIEW



2007 Acura RL

2005-08 ELECTRICAL Charging System - RL



me



Friday, June 05, 2009 2:41:58 PM

Page 20

© 2005 Mitchell Repair Information Company, LLC.

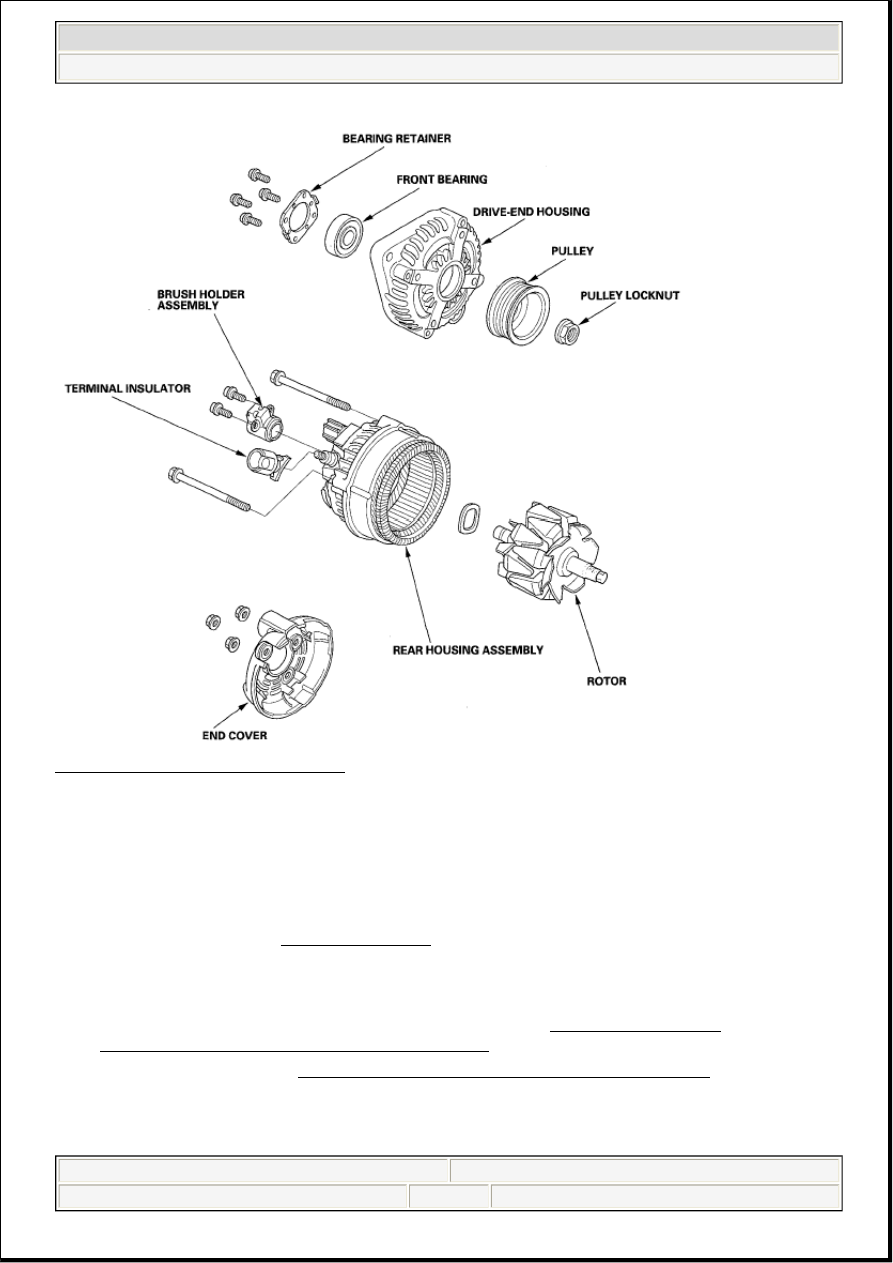

Fig. 32: Exploded View Of Alternator
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required



Handle driver 07749-0010000



Attachment, 42 x 47 mm 07746-0010300

ALTERNATOR DISASSEMBLY

1. Test the alternator and regulator before you remove them (see ALTERNATOR AND

REGULATOR CIRCUIT TROUBLESHOOTING ).

2. Remove the alternator (see ALTERNATOR REMOVAL AND INSTALLATION ).

3. If the front bearing needs replacing, remove the pulley locknut with a 10 mm wrench (A) and a 22

mm wrench (B). If necessary, use an impact wrench.

NOTE:

Refer to the EXPLODED VIEW as needed during this procedure.



2007 Acura RL

2005-08 ELECTRICAL Charging System - RL



me



Friday, June 05, 2009 2:41:58 PM

Page 21

© 2005 Mitchell Repair Information Company, LLC.

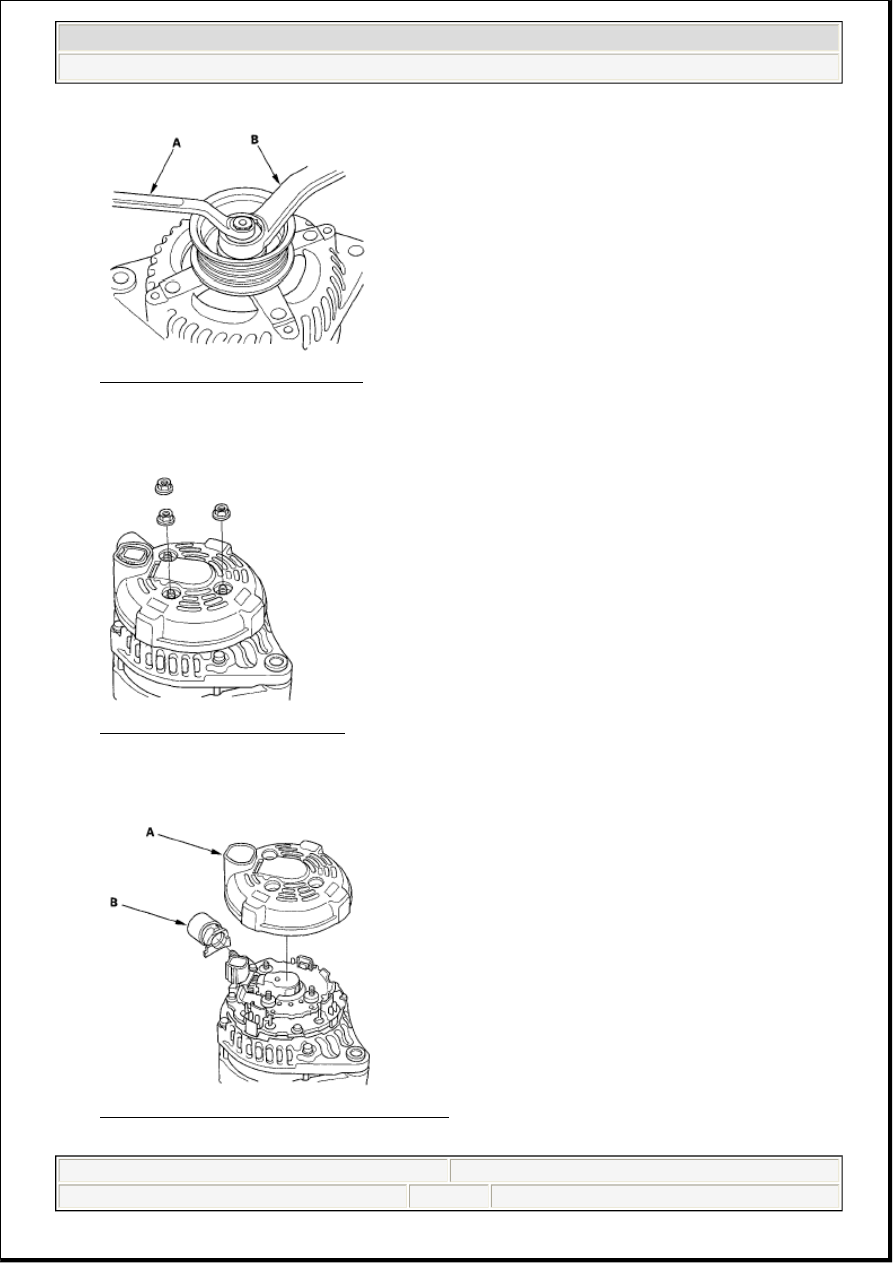

Fig. 33: Removing Pulley Locknut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the three flange nuts.

Fig. 34: Identifying Flange Nuts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the end cover (A) and the insulator (B). A.

Fig. 35: Identifying End Cover And Insulator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
