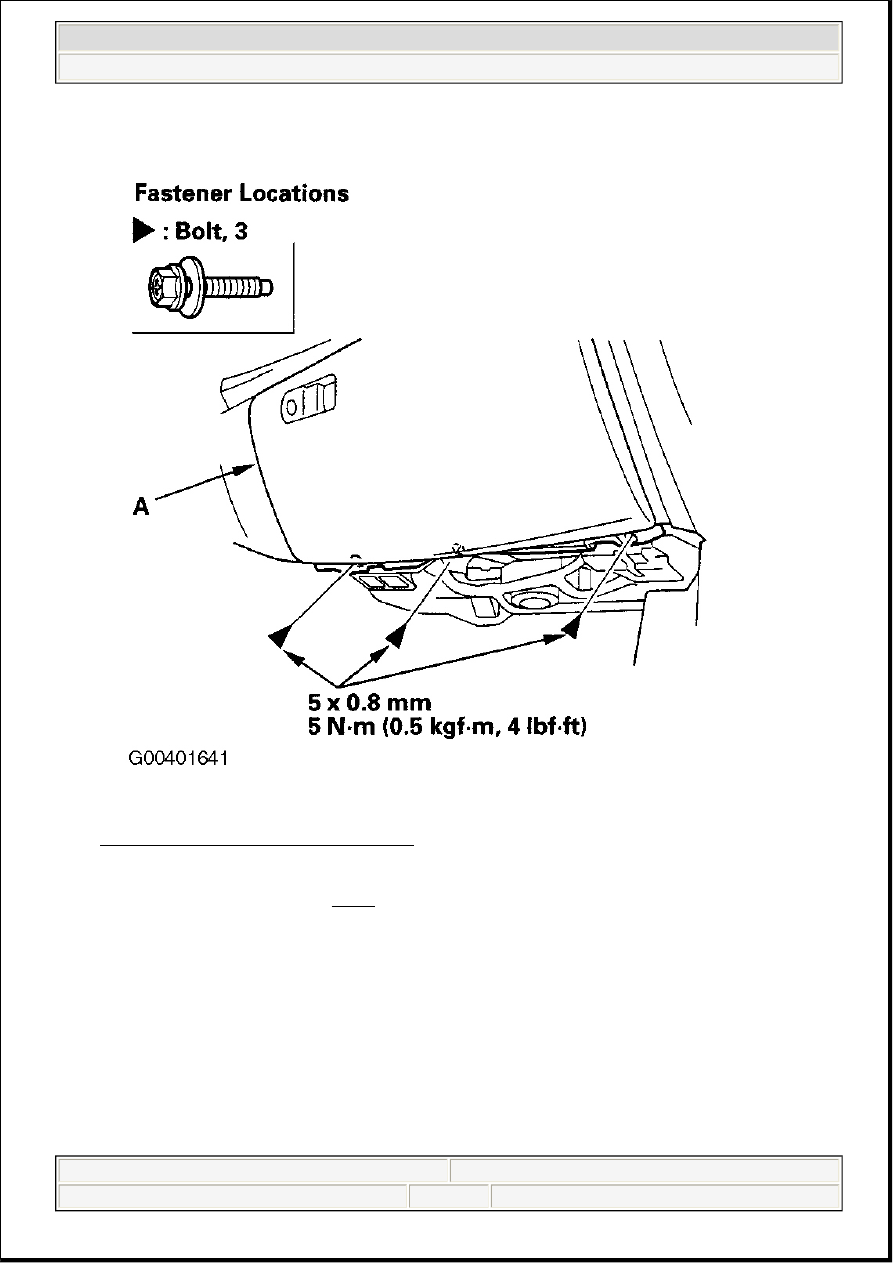

Fig. 5: Removing Lower Glove Box Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the glove box (A). See Fig. 6 . Pull out the glove box, then remove the clips (B). Remove the

harness clip (C) and the ambient light bulb socket (D). Disconnect the trunk lid opener main switch
connector (E).



2007 Acura RL

CABIN AIR FILTERS Dust & Pollen Filter - RL



me



Friday, June 05, 2009 2:22:50 PM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

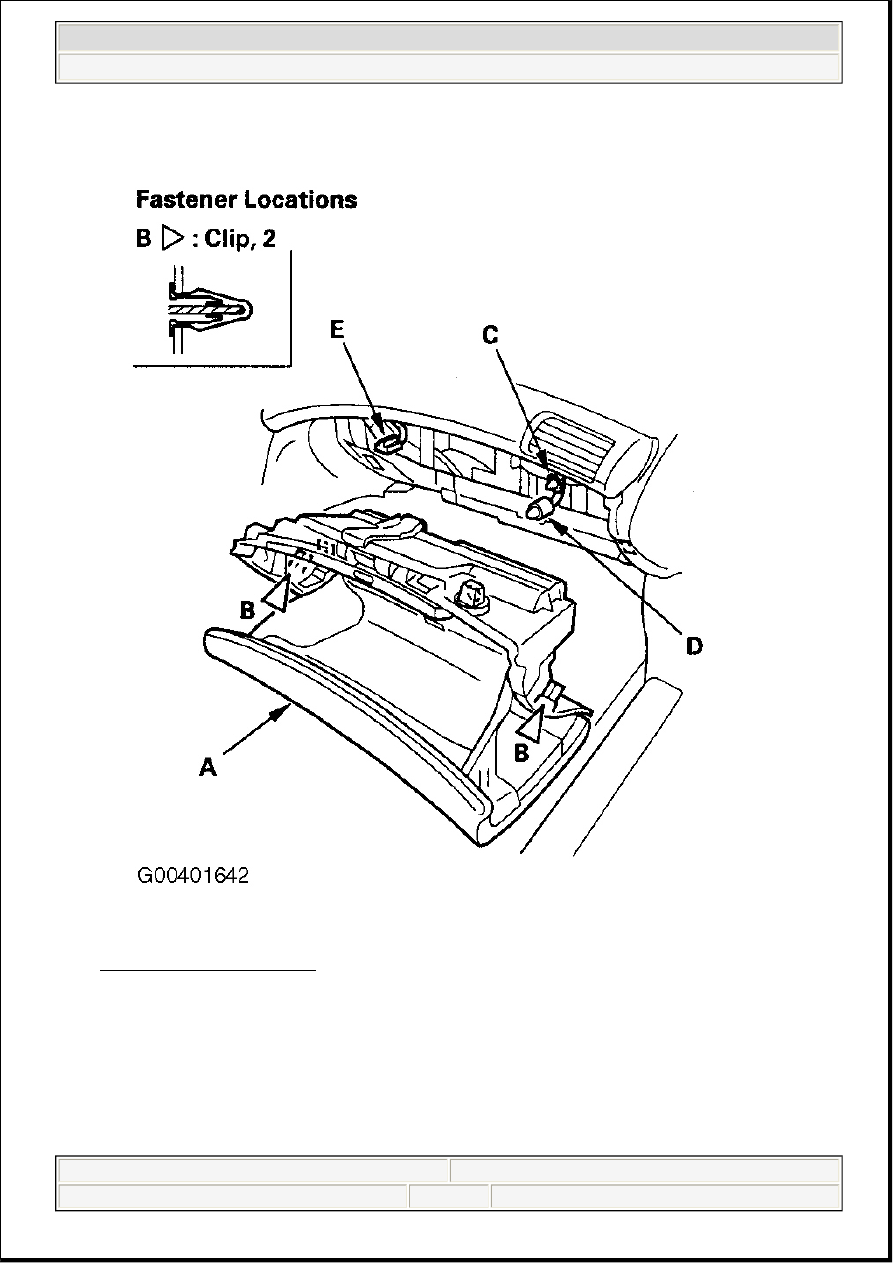

Fig. 6: Removing Glove Box
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install the box in the reverse order of removal, and note these items: Replace any damaged clips. Push

the clips into place securely. Make sure the connector is plugged in properly, and the bulb socket is
connected securely. Take care not to scratch the passenger's front console cover.

6. Install the passenger's dashboard under cover in the reverse order of removal, and note these items:

Replace any damaged clips. Push the clips into place securely. Make sure the connector is plugged in
properly. Make sure the pins of the cover are installed securely to the holders.



2007 Acura RL

CABIN AIR FILTERS Dust & Pollen Filter - RL



me



Friday, June 05, 2009 2:22:50 PM

Page 6

© 2005 Mitchell Repair Information Company, LLC.

2005-08 ELECTRICAL

Charging System - RL

COMPONENT LOCATION INDEX

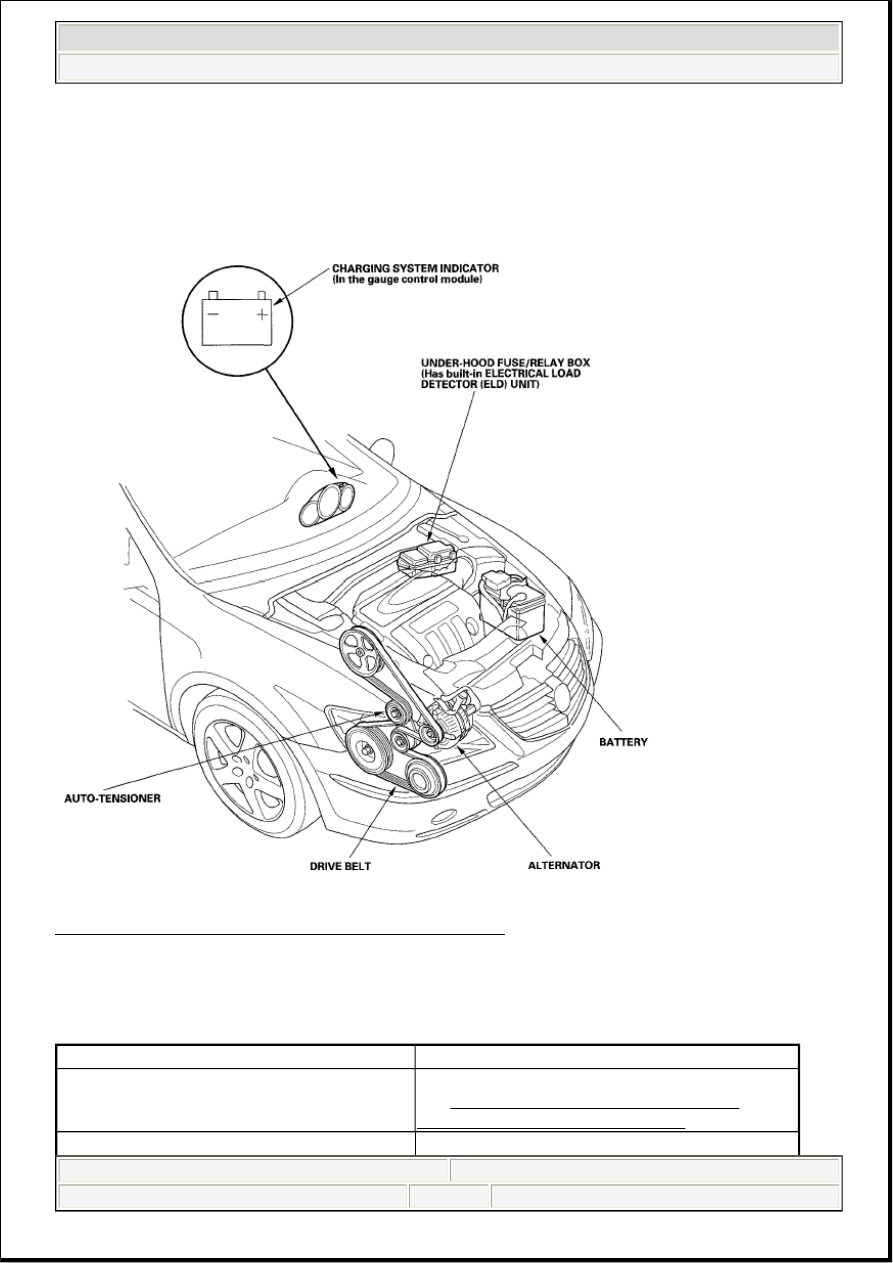

Fig. 1: Identifying Charging System Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SYMPTOM TROUBLESHOOTING INDEX

SYMPTOM TROUBLESHOOTING INDEX

Symptom

Diagnostic procedure

Charging system indicator does not come on
with the ignition switch ON (II),

Troubleshoot the charging system indicator circuit
(see CHARGING SYSTEM INDICATOR
CIRCUIT TROUBLESHOOTING ).

Charging system indicator stays on



2007 Acura RL

2005-08 ELECTRICAL Charging System - RL





2007 Acura RL

2005-08 ELECTRICAL Charging System - RL



me



Friday, June 05, 2009 2:41:57 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 2:42:02 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

CIRCUIT DIAGRAM

1. Check for PGM-FI DTCs.

2. Troubleshoot the charging system indicator

circuit (see CHARGING SYSTEM
INDICATOR CIRCUIT
TROUBLESHOOTING ).

3. Check for a broken drive belt (see DRIVE

BELT INSPECTION ).

4. Check the drive belt auto-tensioner (see

DRIVE BELT AUTO-TENSIONER
INSPECTION ).

Battery discharged

1. Check for excessive parasitic current draw

with the ignition switch OFF, and the key
removed. The multiplex control units may
take up to 10 minutes to turn off (sleep mode)
for some models.

2. Check for a broken drive belt (see DRIVE

BELT INSPECTION ).

3. Check the drive belt auto-tensioner (see

DRIVE BELT AUTO-TENSIONER
INSPECTION ).

4. Troubleshoot the alternator and regulator

circuit (see ALTERNATOR AND
REGULATOR CIRCUIT
TROUBLESHOOTING ).

5. Check for a poor connection at the battery

terminal.

6. Test the battery (see BATTERY TEST ).

Battery overcharged

1. Troubleshoot the alternator and regulator

circuit (see ALTERNATOR AND
REGULATOR CIRCUIT
TROUBLESHOOTING ).

2. Test the battery (see BATTERY TEST ).



2007 Acura RL

2005-08 ELECTRICAL Charging System - RL



me



Friday, June 05, 2009 2:41:57 PM

Page 2

© 2005 Mitchell Repair Information Company, LLC.
