Acura RL. Manual - part 355

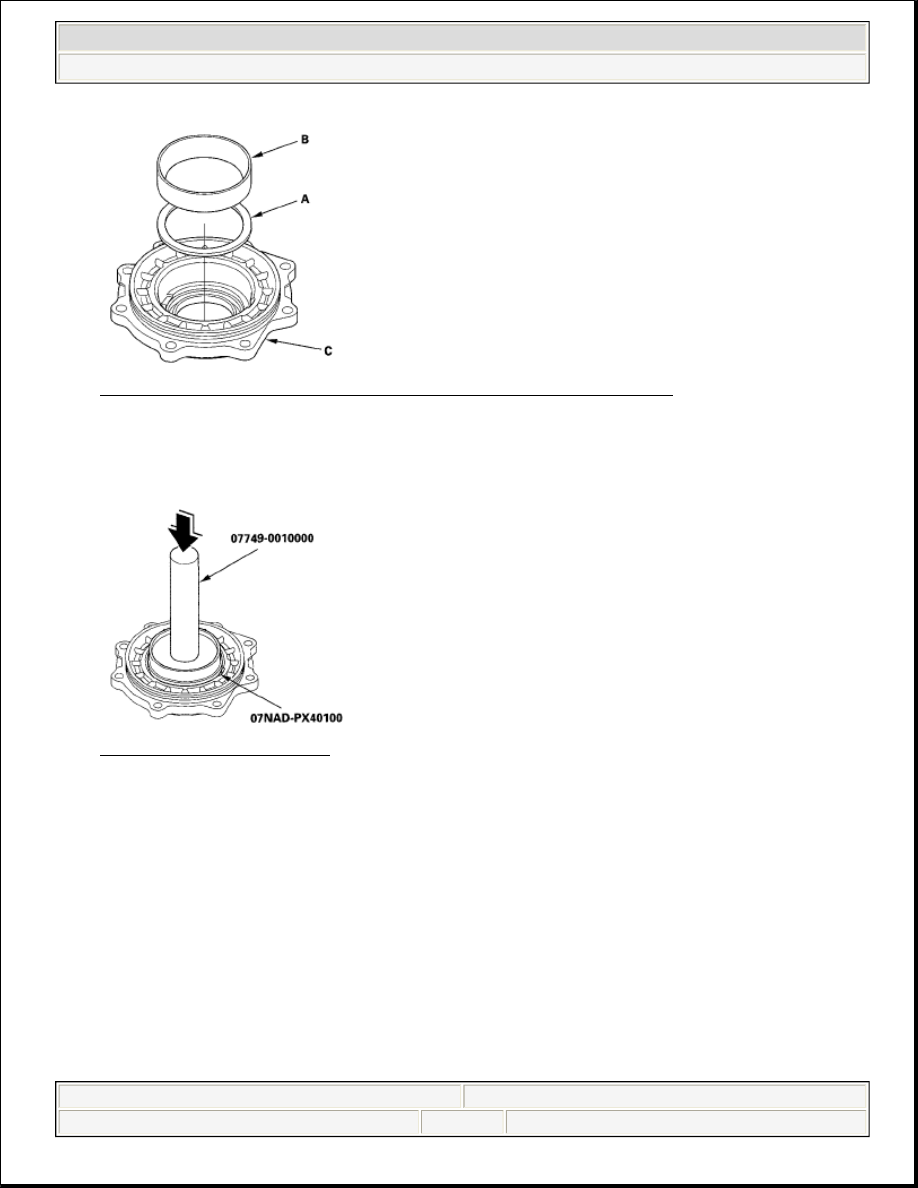

Fig. 703: Identifying Bearing Outer Race, Transfer Cover And Trust Shim
Courtesy of AMERICAN HONDA MOTOR CO., INC.

45. Drive the outer race securely in the cover using the driver and the attachment (78 x 80 mm) so there is no

clearance between the outer race, thrust shim, and cover.

Fig. 704: Pressing Outer Race
Courtesy of AMERICAN HONDA MOTOR CO., INC.

46. After replacing the 80 mm thrust shim, recheck and make sure that the total starting torque is within the

specification.

47. Install the new O-ring (A) on the transfer cover (B), then install the cover on the transfer housing (C).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:20 PM

Page 591

© 2005 Mitchell Repair Information Company, LLC.

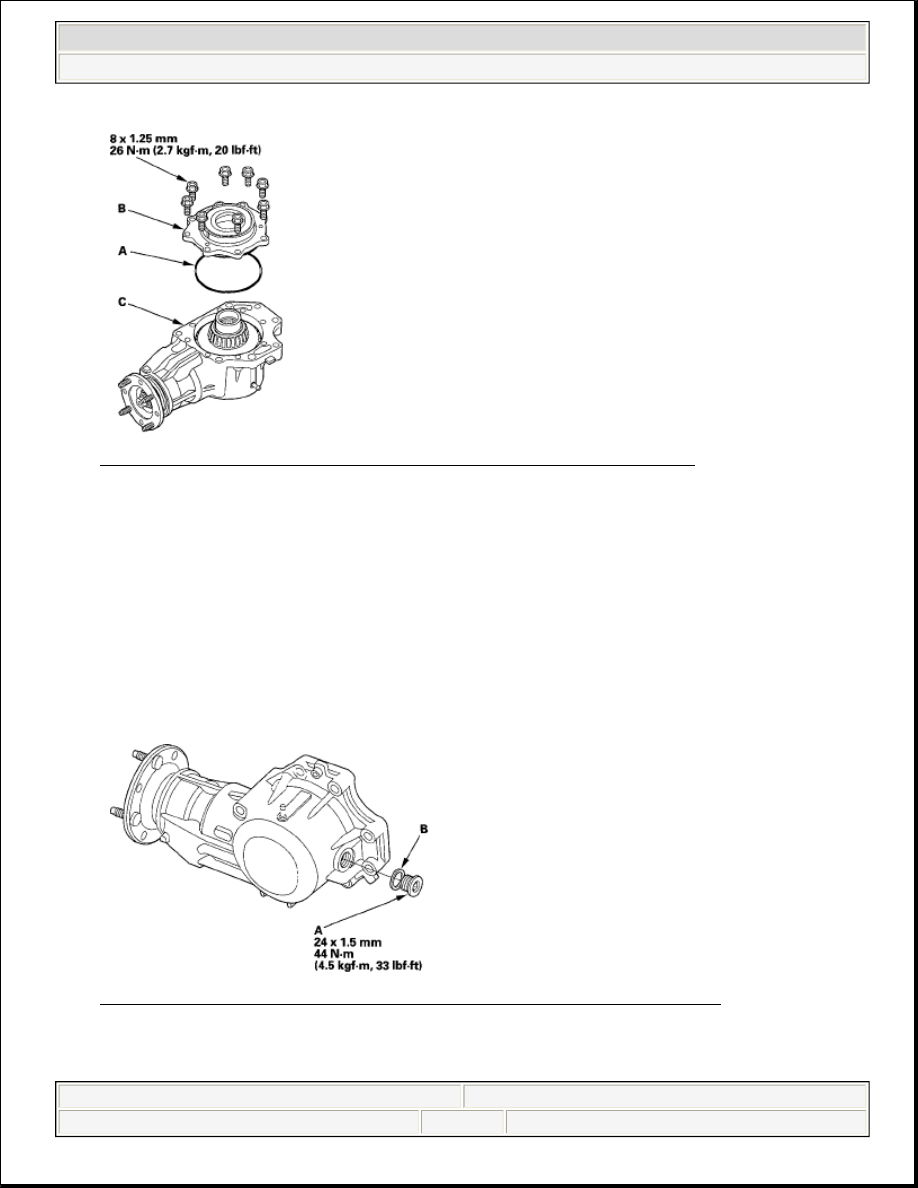

Fig. 705: Identifying O-Ring And Transfer Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

48. Remove the filler plug (A), then refill the transfer assembly with transfer fluid (hypoid gear oil). Use an

SAE 90 or SAE 80W-90 viscosity hypoid gear oil, API classified GL4 or GL5 only.

Viscosity:

SAE 90: Above 0°F (-181°C)

SAE 80W-90: Below 0° (-18°C)

Hypoid Gear Oil Capacity: 0.45 L (0.48 US qt)

Fig. 706: Identifying Filler Plug And Sealing Washer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

49. Install the filler plug with a new sealing washer (B).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:20 PM

Page 592

© 2005 Mitchell Repair Information Company, LLC.

GENERAL INFORMATION

Trouble Shooting - Basic Procedures

* PLEASE READ THIS FIRST *

ACCESSORIES & ELECTRICAL

CHARGING SYSTEM TROUBLE SHOOTING

BASIC CHARGING SYSTEM TROUBLE SHOOTING CHART

NOTE:

This is GENERAL information. This article is not intended to be specific to
any unique situation or individual vehicle configuration. The purpose of this
Trouble Shooting information is to provide a list of common causes to
problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT,
DIAGNOSTIC, or TESTING articles available in the section(s) you are
accessing.

NOTE:

This is GENERAL information. This article is not intended to be specific to
any unique situation or individual vehicle configuration. The purpose of this
Trouble Shooting information is to provide a list of common causes to
problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT,
DIAGNOSTIC, or TESTING articles available in the section(s) you are
accessing.

NOTE:

This is GENERAL information. This article is not intended to be specific to
any unique situation or individual vehicle configuration. The purpose of this
Trouble Shooting information is to provide a list of common causes to
problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT,
DIAGNOSTIC, or TESTING articles available in the section(s) you are
accessing.

CONDITION & POSSIBLE CAUSE

CORRECTION

Vehicle Will Not Start

Dead battery

Check battery cells, alternator

belt tension and alternator

output

Loose or corroded battery connections

Check all charging system

connections

Ignition circuit or switch malfunction

Check and replace as necessary

Alternator Light Stays On With Engine Running

Loose or worn alternator drive belt

Check alternator drive tension

and condition, See Belt

Adjustment in TUNE-UP

article in the TUNE-UP section

Loose alternator wiring connections

Check all charging system

connections
