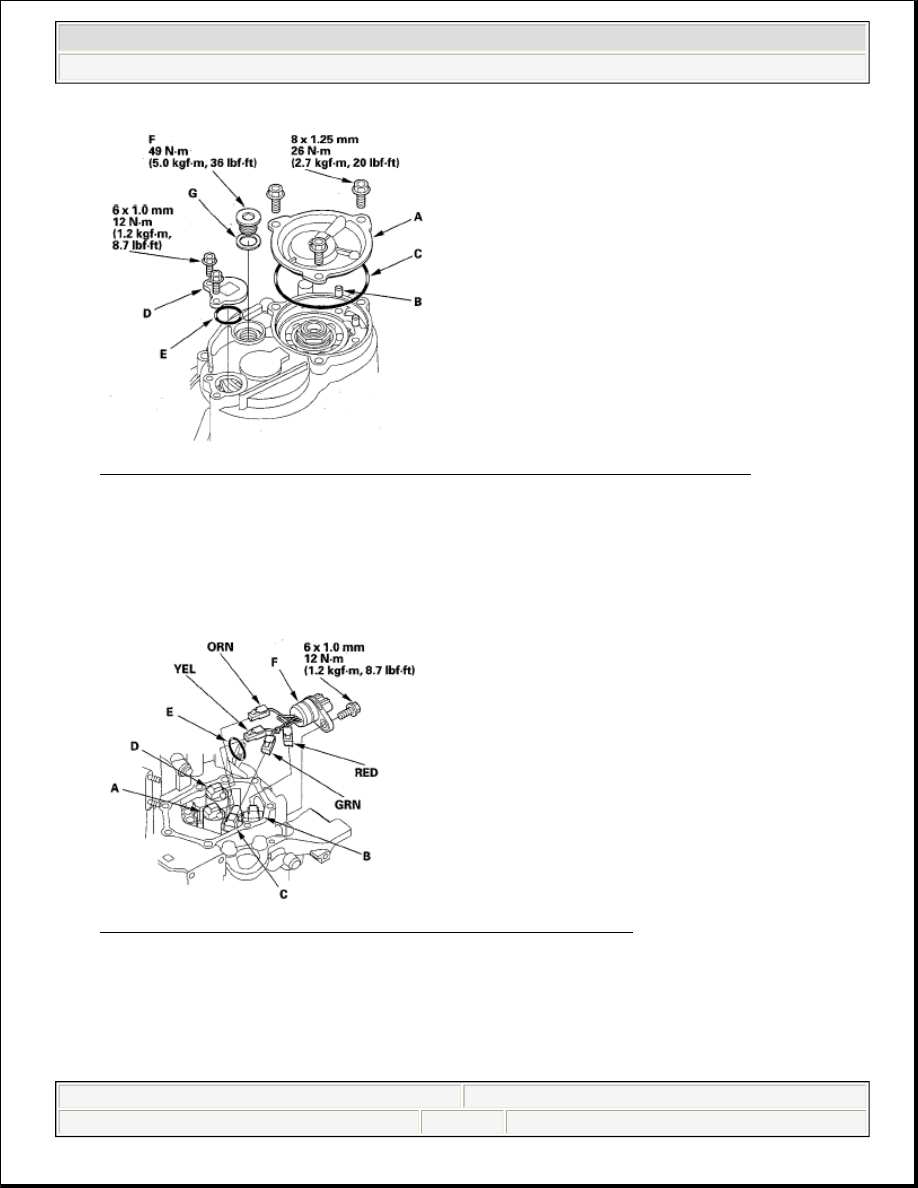

Fig. 613: Identifying O-Ring, Dowel Pin, And End Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

45. Install the snap ring cap (D) with the new O-ring (E).

46. Apply thread lock sealant to the threads of the sealing plug (F), and install the sealing plug and the new

sealing washer (G).

47. Install the new O-ring (E) on the solenoid harness connector (F).

Fig. 614: Identifying O-ring and Solenoid With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

48. Route the solenoid harness through the transmission housing, and install the solenoid harness connector.

49. Connect the harness terminals to the solenoid:



GRN wire connector to shift solenoid valve C.



YEL wire connector to shift solenoid valve A.

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:19 PM

Page 535



RED wire connector to shift solenoid valve B.



ORN wire connector to shift solenoid valve D.

50. Secure the solenoid harness connector with the bolt on the transmission housing.

51. Install the solenoid valve cover (A) with the two dowel pins (B) and the new gasket (C), and secure it

with the seven bolts.

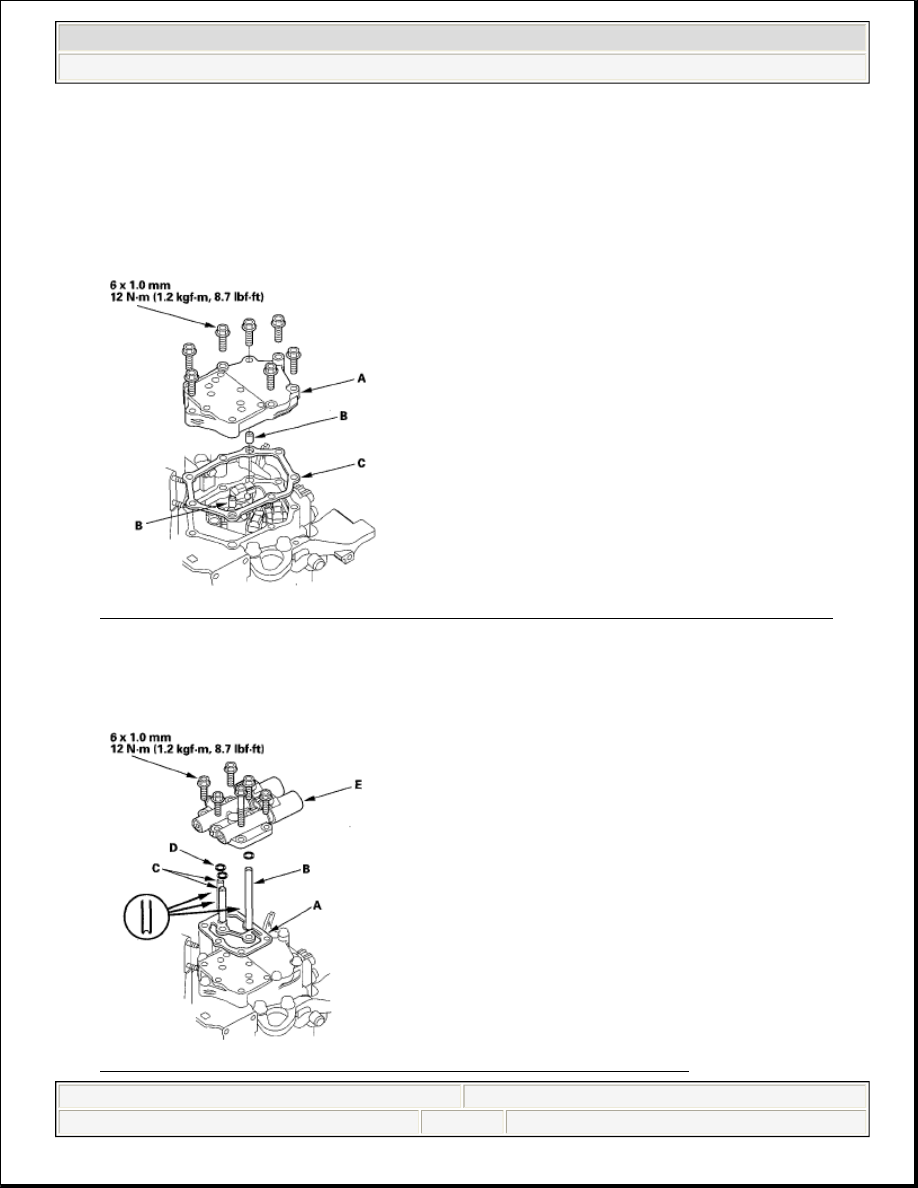

Fig. 615: Identifying Dowel Pins, Gasket And Solenoid Valve Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

52. Place the new gasket (A) on the solenoid valve cover, then install the 8 x 105.8 mm ATF feed pipe (B)

and 8 x 58.3 mm pipes (C) with their filter side into the transmission housing.

Fig. 616: Identifying Gasket And ATF Feed Pipe With Torque Specifications

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:19 PM

Page 536

Courtesy of AMERICAN HONDA MOTOR CO., INC.

53. Install the new O-rings (D) over the ATF feed pipes, and install A/T clutch pressure control solenoid

valves A and B (E).

54. Install the 8 x 53 mm ATF joint pipe (A) with the filter side into its mounting hole (B).

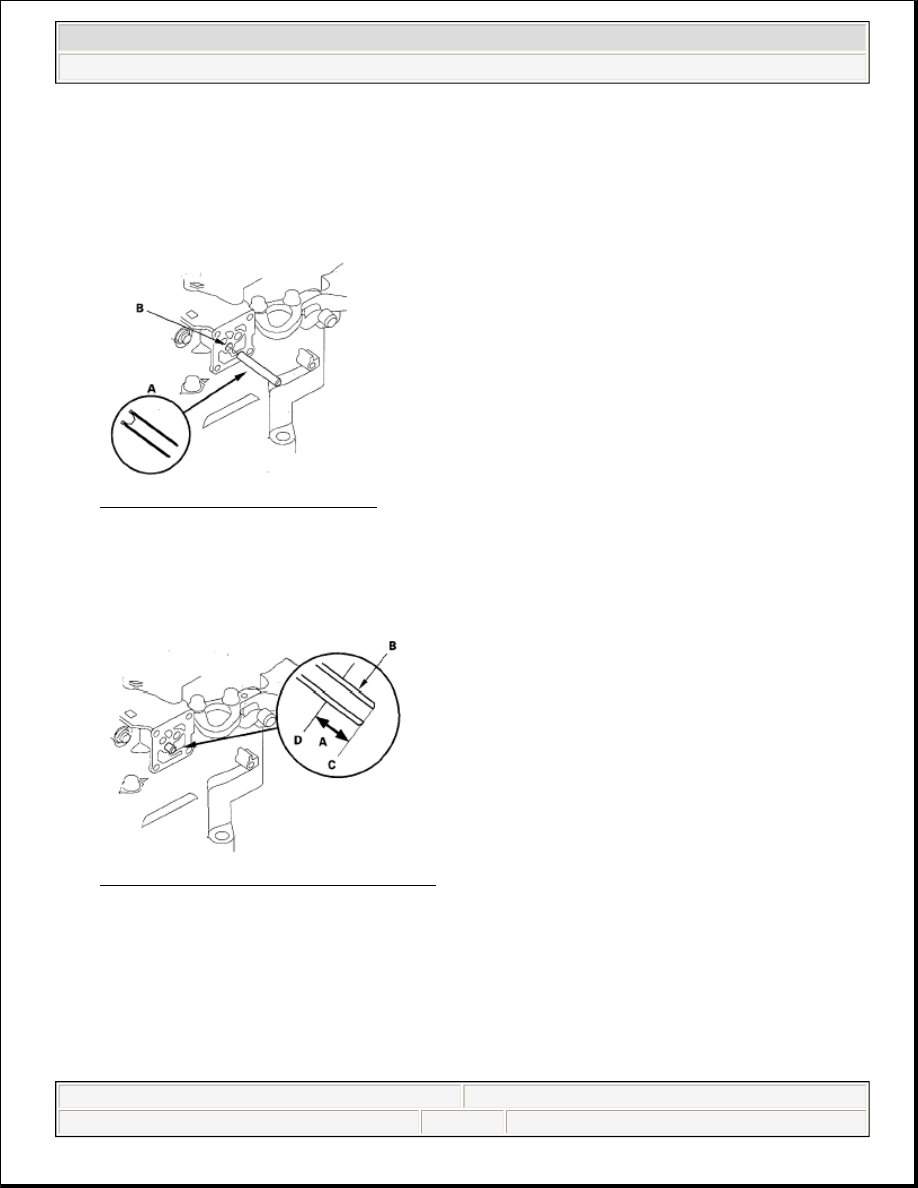

Fig. 617: Identifying ATF Feed Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.

55. Check the height (A) of the 8 x 53 mm ATF joint pipe (B) between the top (C) of the pipe and the

solenoid valve body mounting surface (D). The height is about 7 mm (0.3 in.). If the height is over 7 mm
(0.3 in.), install the pipe securely until it bottoms in the accumulator body.

Fig. 618: Identifying ATF Joint Pipe Height
Courtesy of AMERICAN HONDA MOTOR CO., INC.

56. Install the new gasket (A) on the transmission housing. Install the 8 x 34.5 mm ATF pipe (B) with the

filter end in the transmission housing, and install the 8 x 25.5 mm ATF pipe (D).

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:19 PM

Page 537

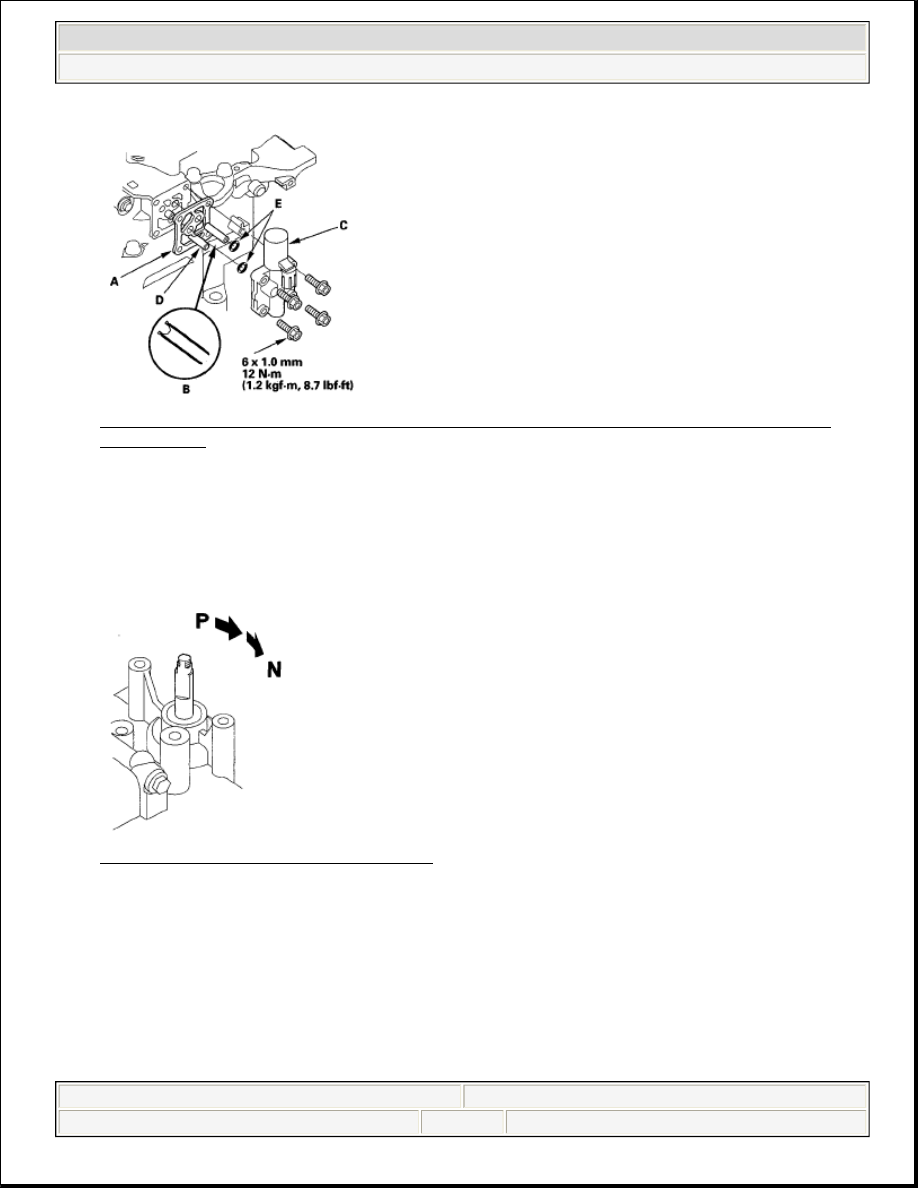

Fig. 619: Identifying ATF Pipes And A/T Clutch Pressure Control Solenoid Valve With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

57. Install new O-rings (E) over the ATF joint pipes.

58. Install A/T clutch pressure control solenoid valve C.

59. With a 6.0 mm wrench, turn the control shaft fully counterclockwise (view from shaft end) to P. Turn the

control shaft back two click-stopped positions so that it is in N.

Fig. 620: Identifying Control Shaft Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.

60. Set the transmission range switch (A) to N. The transmission range switch clicks in N, and the selector

control shaft hole (B) aligns with the N positioning line (C).

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:19 PM

Page 538
