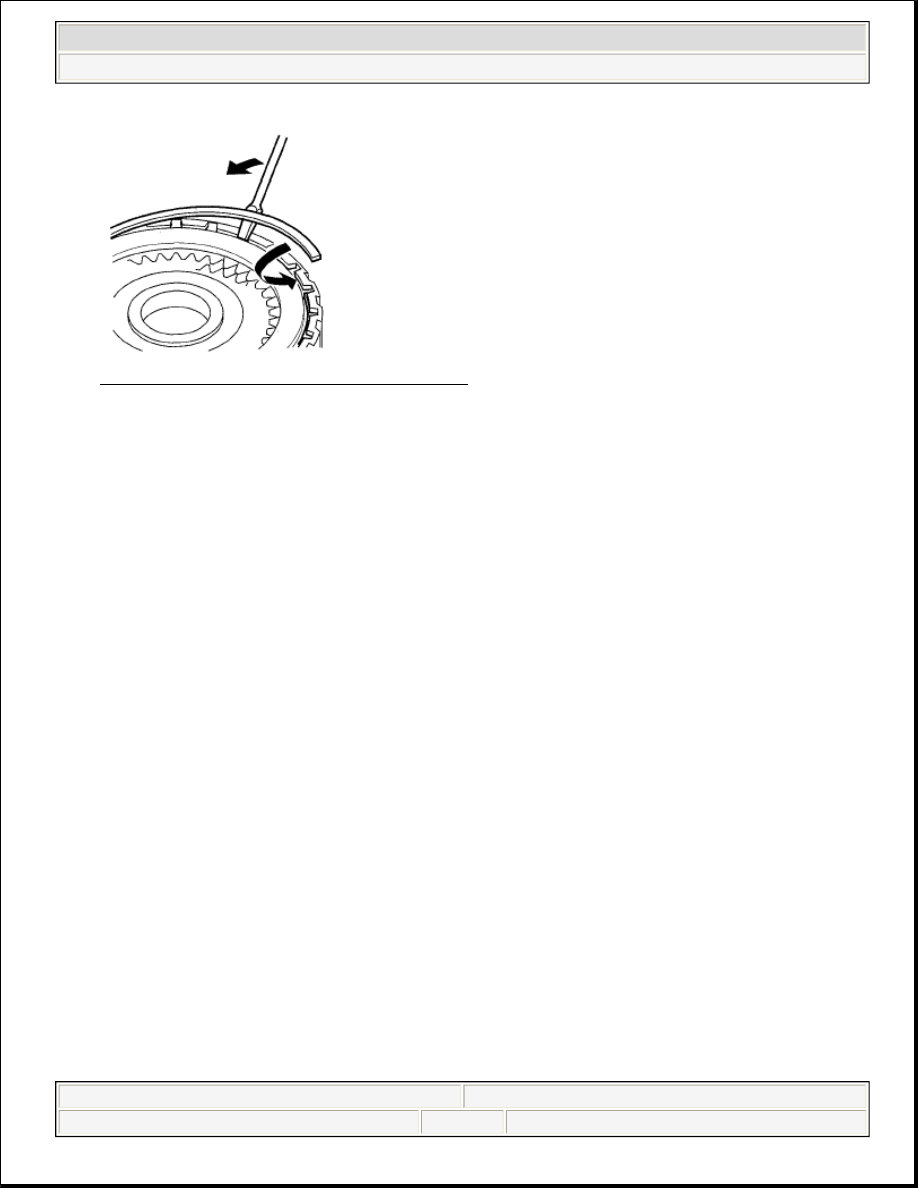

Fig. 593: Installing Clutch End-Plate Snap Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUTOMATIC TRANSMISSION

TRANSMISSION REASSEMBLY

Exploded View ('05 Model)



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:18 PM

Page 523

© 2005 Mitchell Repair Information Company, LLC.

Fig. 594: Exploded View Of Automatic Transmission (05 Model) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Exploded View ('06-08 Models)



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:18 PM

Page 524

© 2005 Mitchell Repair Information Company, LLC.

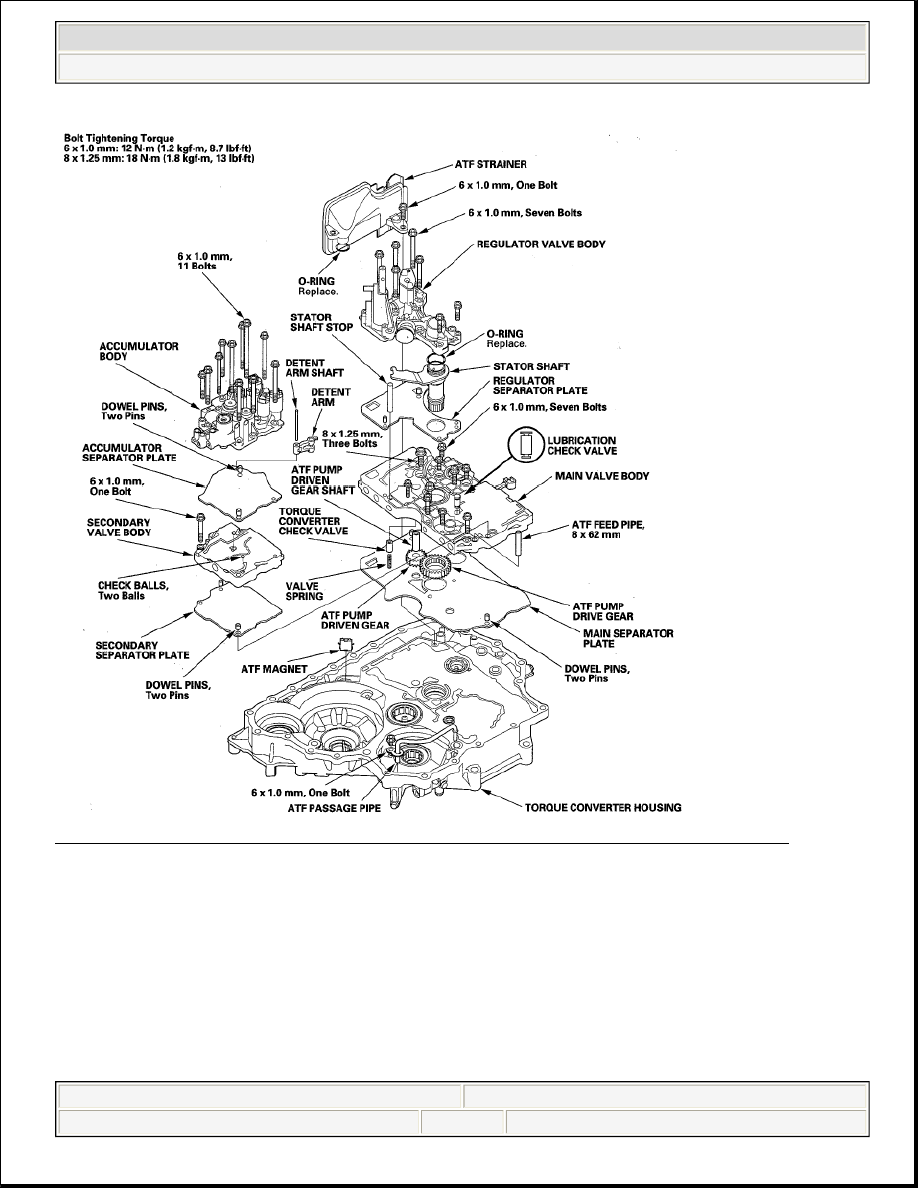

Fig. 595: Exploded View Of Automatic Transmission (06-08 Model) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Mainshaft holder 07GAB-PF50101 or 07PAB-0010000

1. Make sure that the ATF magnet is cleaned and installed in the torque converter housing. Clean and install

the ATF magnet, if necessary.

2. Install the main separator plate and the two dowel pins on the torque converter housing. Then install the

ATF pump drive gear (A), driven gear (B), and ATF pump driven gear shaft (C). Install the ATF pump
driven gear with its grooved and chamfered side facing down.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:18 PM

Page 525

© 2005 Mitchell Repair Information Company, LLC.

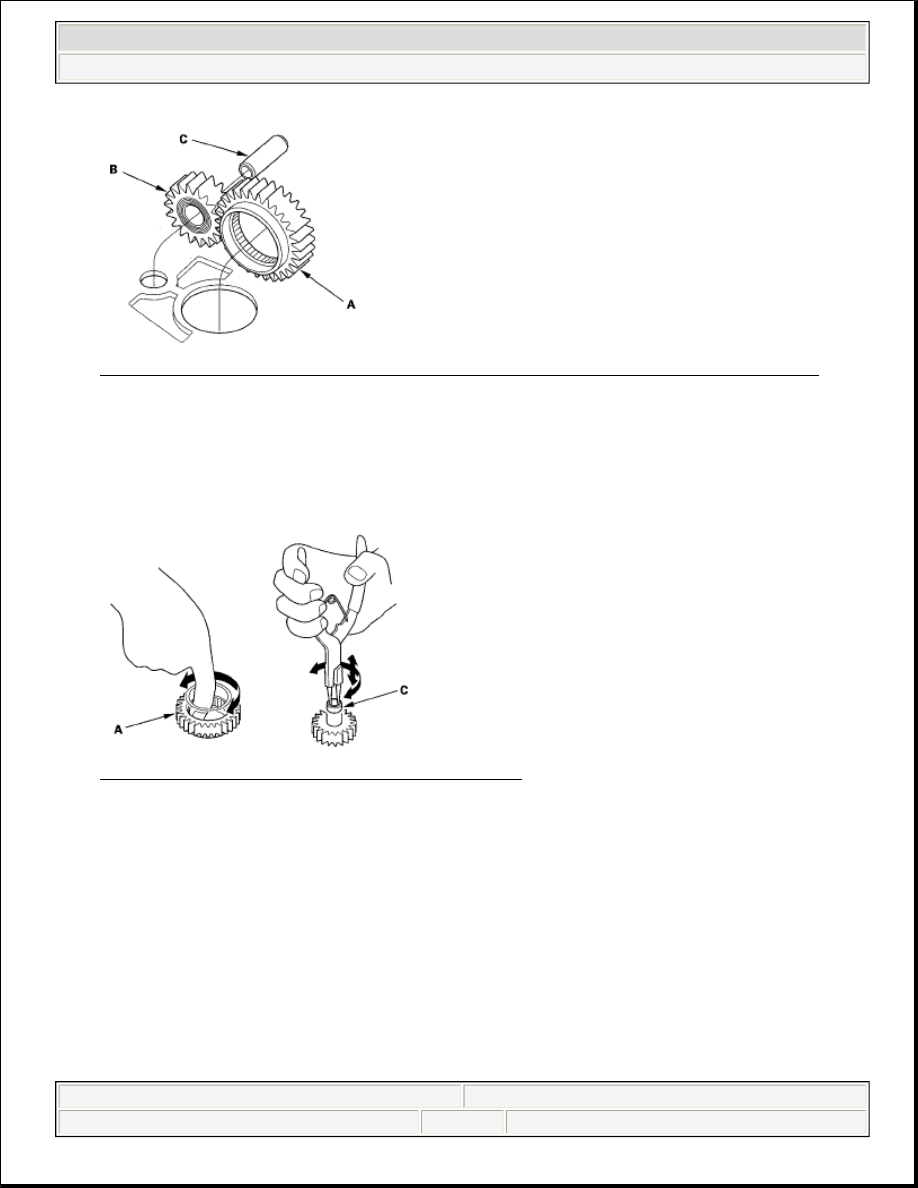

Fig. 596: Identifying ATF Pump Drive Gear, Driven Gear And ATF Pump Driven Gear Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the torque converter check valve spring and valve in the torque converter housing.

4. Install the main valve body (seven 6 mm bolt and three 8 mm bolts). Make sure the ATF pump drive gear

(A) rotates smoothly in the normal operating direction, and the ATF pump driven gear shaft (C) moves
smoothly in the axial and normal operating direction.

Fig. 597: Checking ATF Pump Drive And Driven Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. If the ATF pump drive gear and ATF pump driven gear shaft do not move smoothly, loosen the main

valve body bolts. Realign the ATF pump driven gear shaft, and retighten the bolts to the specified
torques, then recheck. Failure to align the ATF pump driven gear shaft correctly will result in a seized
ATF pump drive gear or ATF pump driven gear shaft.

6. Install the lubrication check valve in the main valve body, in the direction shown in the exploded view;

and for '05 model, install the cooler check valve (ball) and the valve spring in the main valve body.

7. Install the secondary separator plate and the two dowel pins on the main valve body, and install the

secondary valve body (one bolt).

8. Install the three check balls and choke in the secondary valve body.

9. Install the accumulator separator plate and two dowel pins on the secondary valve body.

10. Position the detent arm on the accumulator separator plate, and install the detent arm shaft into the detent
