needle bearing.

MAINSHAFT 4TH GEAR REPLACEMENT

Special Tools Required

Driver, 40 mm I.D. 07746-0030100

1. Remove the mainshaft 4th gear (A) with a press. Place a shaft protector (B) between the press and

mainshaft (C) to prevent damaging the mainshaft.

Fig. 493: Removing Mainshaft 4th Gear With A Press
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Slide the new mainshaft 4th gear (A) over the mainshaft (B), then press it into place using the driver (40

mm I.D.) and a press.

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:17 PM

Page 459

Fig. 494: Installing Mainshaft 4th Gear Onto Mainshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

COUNTERSHAFT DISASSEMBLY

Exploded View

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:17 PM

Page 460

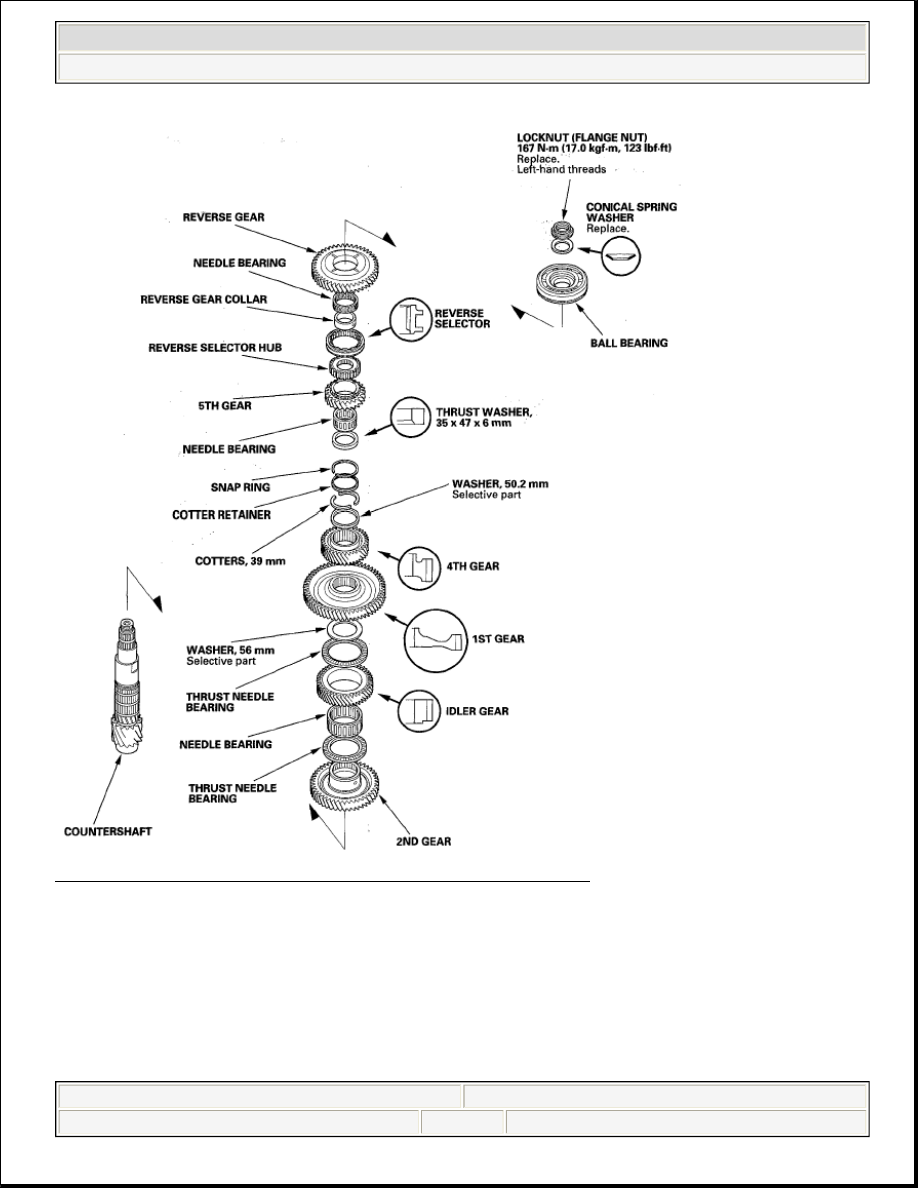

Fig. 495: Exploded View Of Countershaft With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

1. Cut the lock tab (A) off the countershaft locknut (B) using a chisel (C).

NOTE:

Refer to the Exploded View as needed during the following procedure.

NOTE:

Keep all of the chiseled particles out of the countershaft.

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:17 PM

Page 461

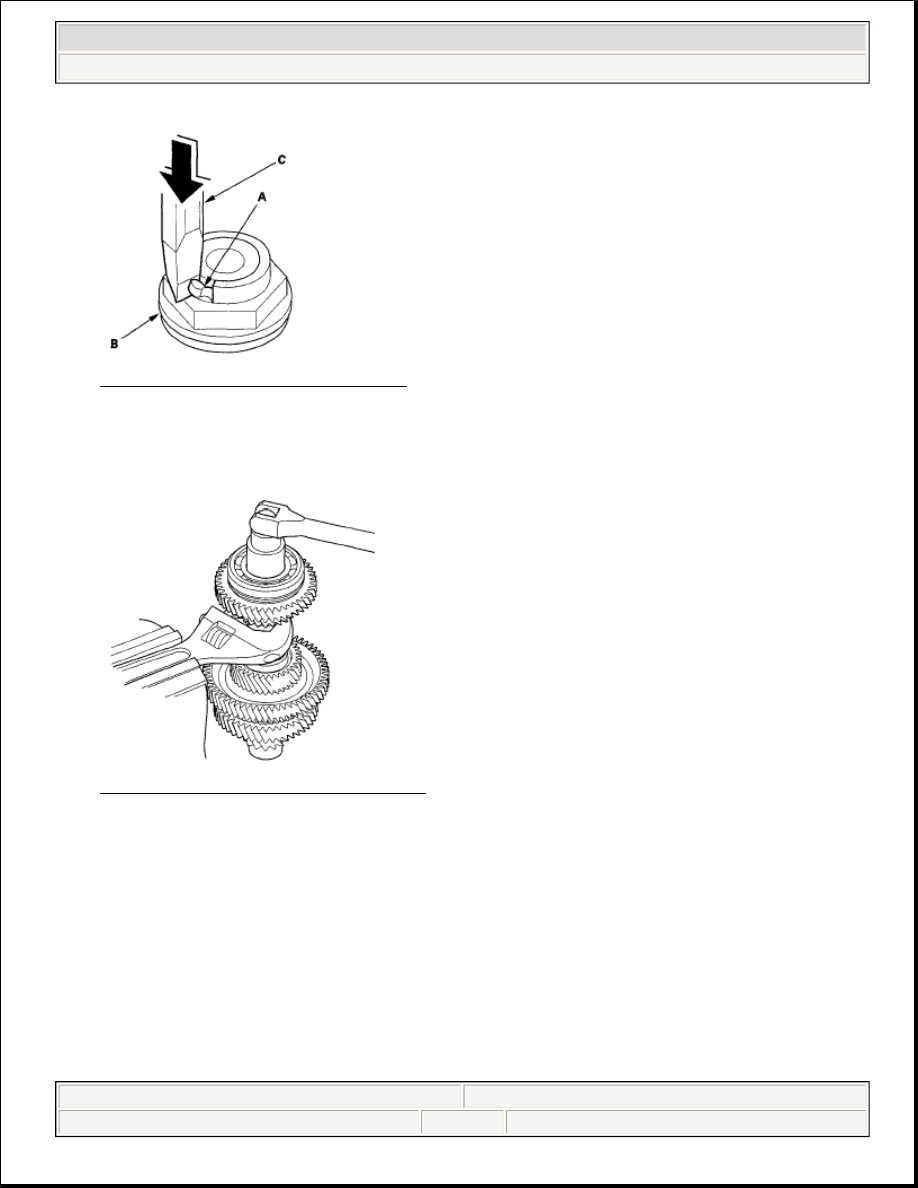

Fig. 496: Cutting Countershaft Locknut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Hold the countershaft with a wrench and a vise securely, loosen the locknut, and remove it. The locknut

has left-hand threads.

Fig. 497: Removing Countershaft Locknut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Place the countershaft 5th gear (A) on press bases (B), and place a shaft protector (C) between the

countershaft (D) and a press to prevent damaging the countershaft.
