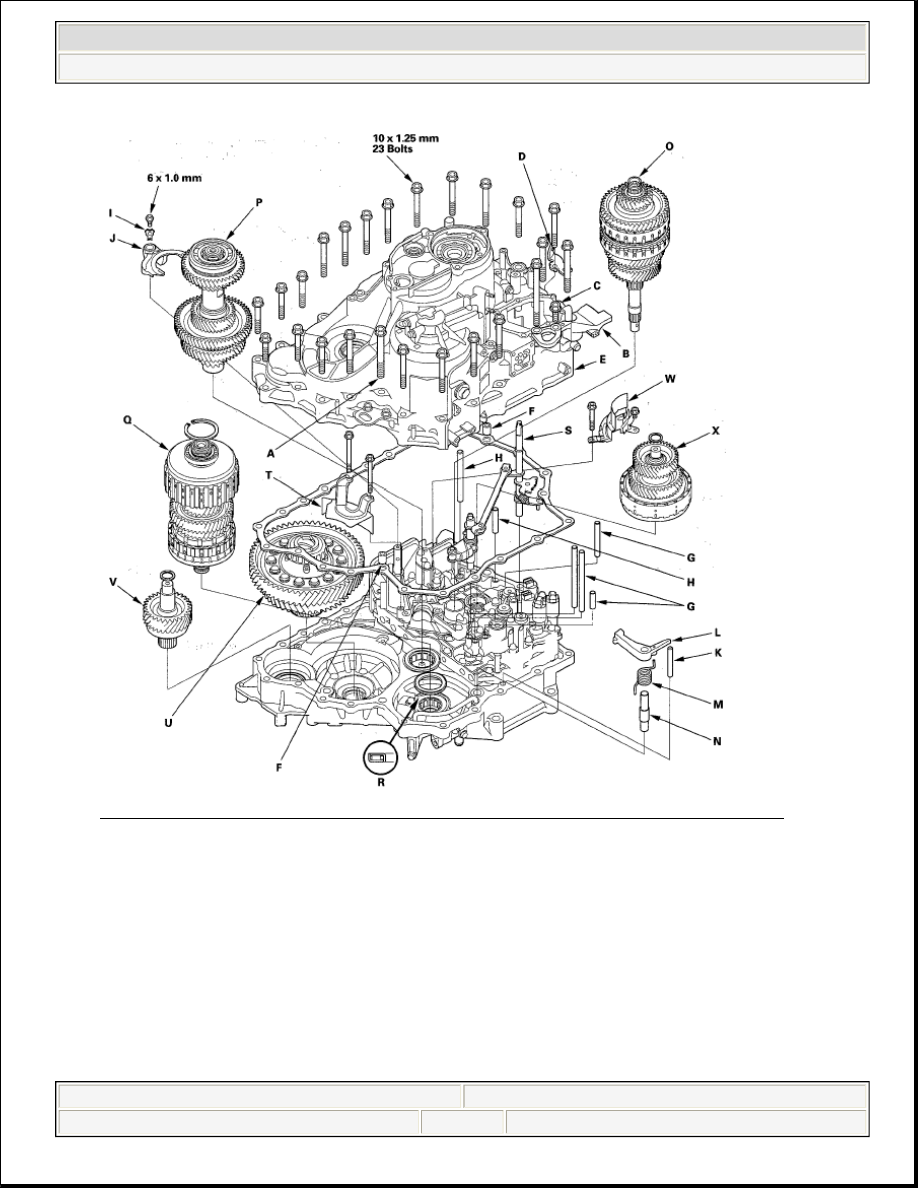

Fig. 435: Disassembling Transmission Housing And Fasteners (Exploded View - Interior)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

21. While expanding the snap ring of the countershaft bearing with snap ring pliers, lift the transmission

housing.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:16 PM

Page 419

© 2005 Mitchell Repair Information Company, LLC.

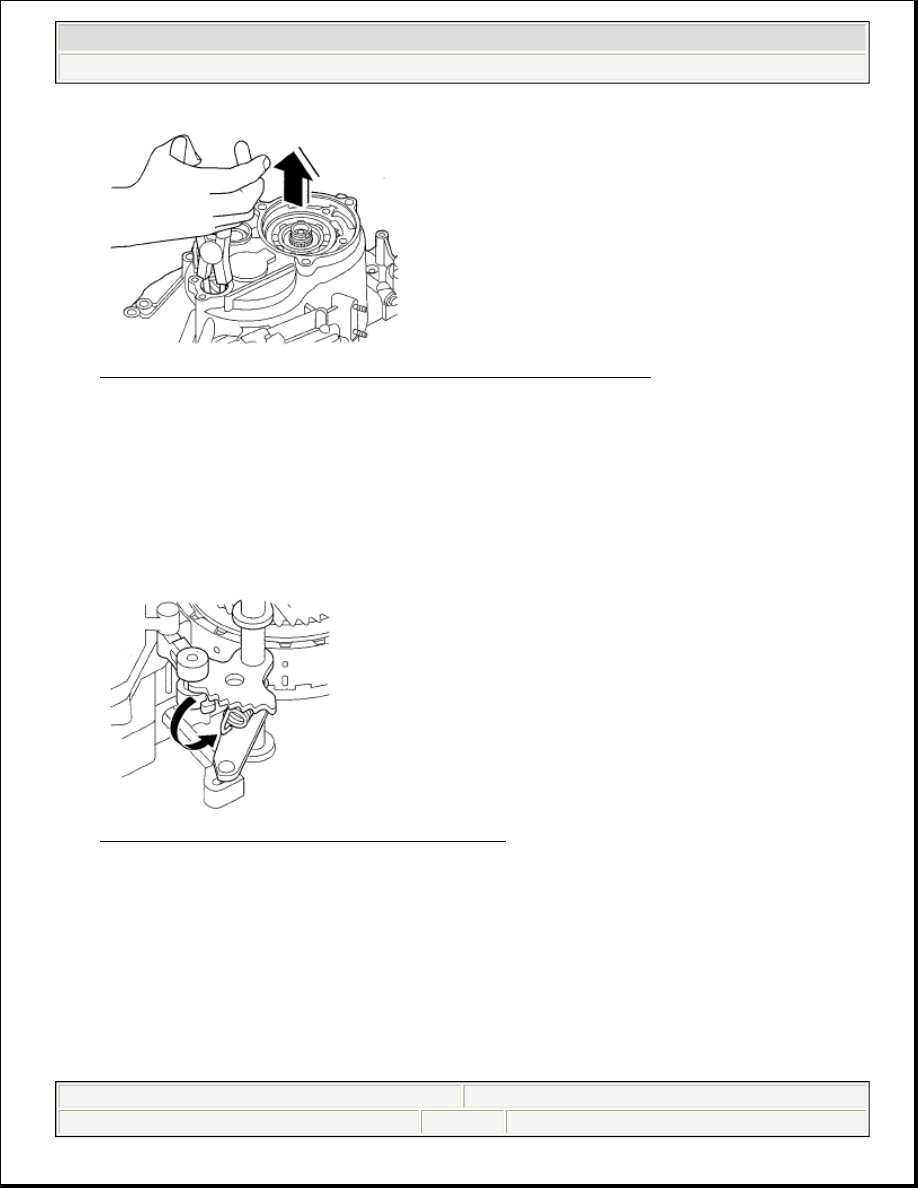

Fig. 436: Lifting Transmission Housing Upward Using Snap Ring Pliers
Courtesy of AMERICAN HONDA MOTOR CO., INC.

22. Release the pliers, and remove the transmission housing (E), two dowel pins (F), and gasket.

23. Remove the ATF feed pipes (G) (four) from the accumulator body.

24. Remove the ATF feed pipes (H) (two) from the torque converter housing.

25. Remove the mainshaft holder from the mainshaft.

26. Pry the lock tab of the lock washer (I) on the shift fork (J), then remove the bolt and lock washer.

27. Unlock the detent spring from the detent arm.

Fig. 437: Unlocking Detent Spring From Detent Arm
Courtesy of AMERICAN HONDA MOTOR CO., INC.

28. Remove the park pawl stop (K), park pawl (L), pawl spring (M), and pawl shaft (N).

29. Remove the mainshaft (O), countershaft (P), shift fork (J), and secondary shaft (Q) together, and remove

the needle bearing (R) from the torque converter housing.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:16 PM

Page 420

© 2005 Mitchell Repair Information Company, LLC.

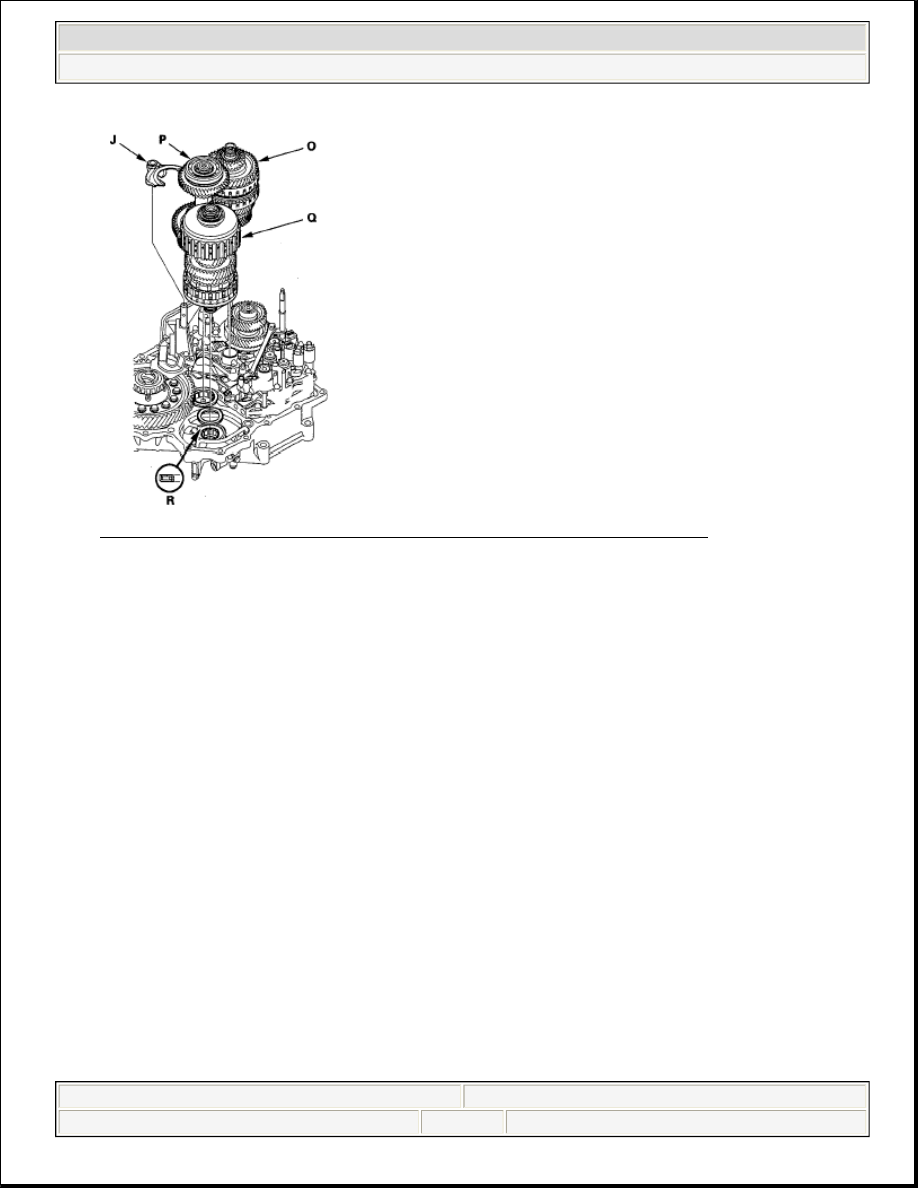

Fig. 438: Identifying Mainshaft, Countershaft, Shift Fork And Secondary Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

30. Remove the selector control shaft and park lever link(S).

31. Remove the baffle plate (T).

32. Remove the differential assembly (U).

33. Remove the transfer output shaft (V).

34. Remove the baffle plate (W).

35. Remove the intermediary shaft (X).

36. Remove the ATF strainer (A) (one bolt).

'05 Model



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:16 PM

Page 421

© 2005 Mitchell Repair Information Company, LLC.

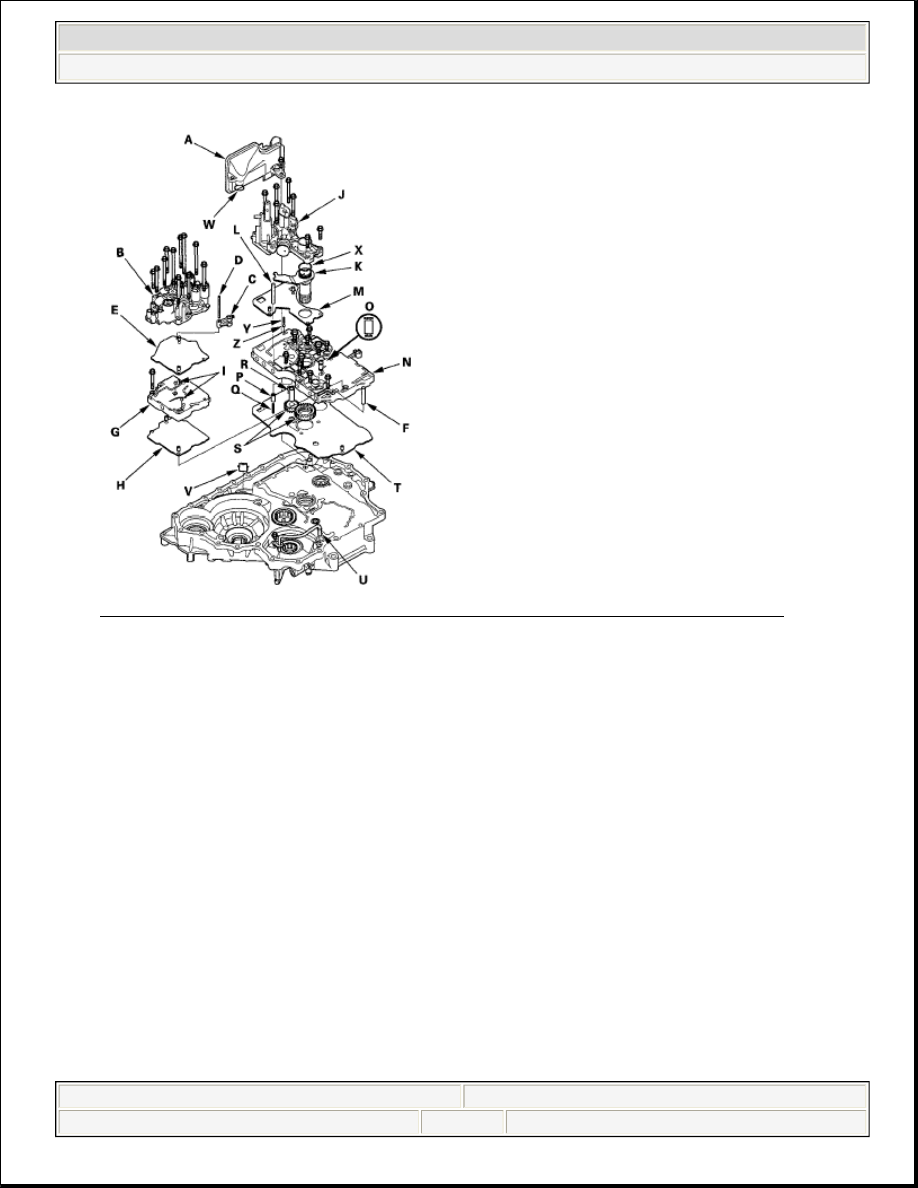

Fig. 439: Identifying ATF Strainer, Accumulator Body And Main Valve Body (05 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

'06-08 Models
