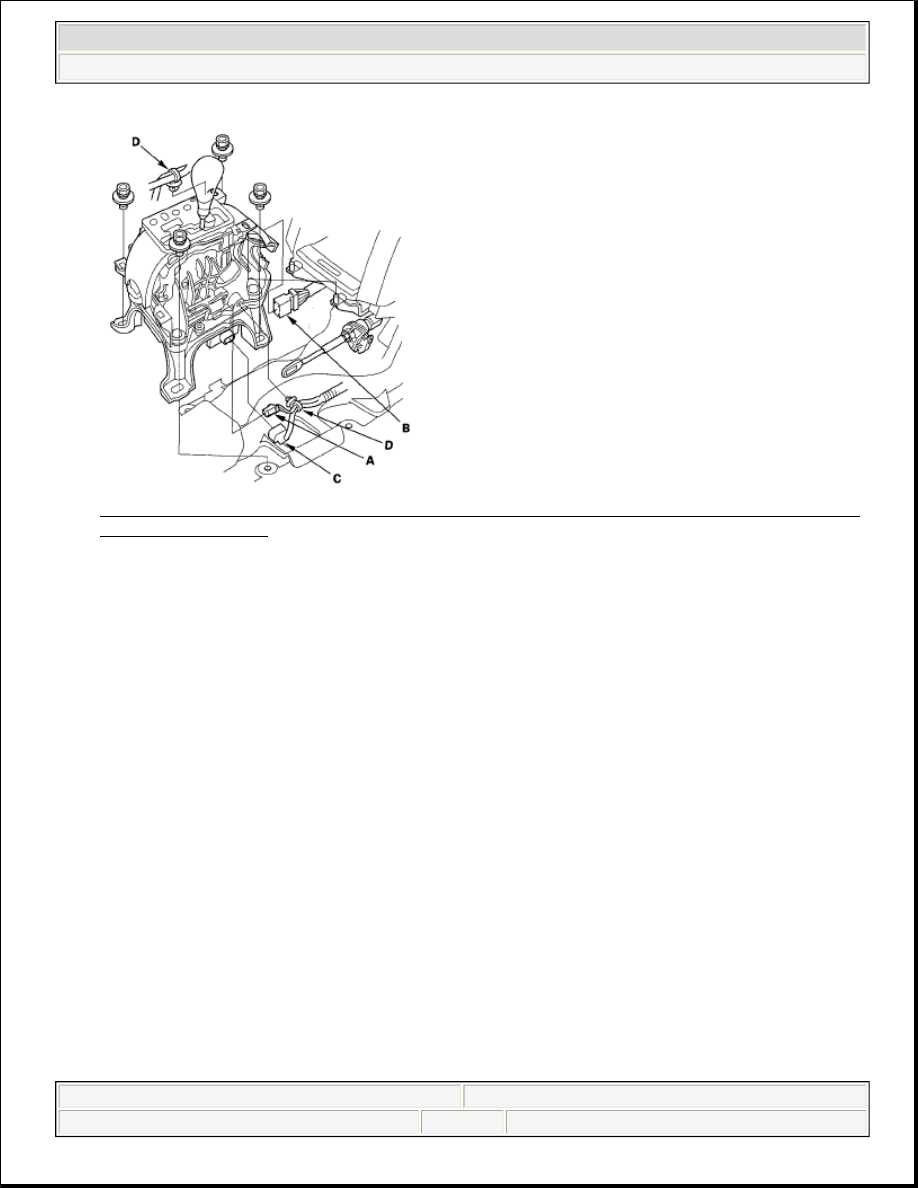

Fig. 350: Identifying Shift Lock Solenoid Connector And Transmission Gear Selection Switch/Park
Pin Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Remove the harness clamps (D).

7. Remove the shift lever assembly.

SHIFT LEVER INSTALLATION

1. Install the shift lever assembly (A) by aligning the positioning holes (B) with the tips (C) on the console

panel.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 363

© 2005 Mitchell Repair Information Company, LLC.

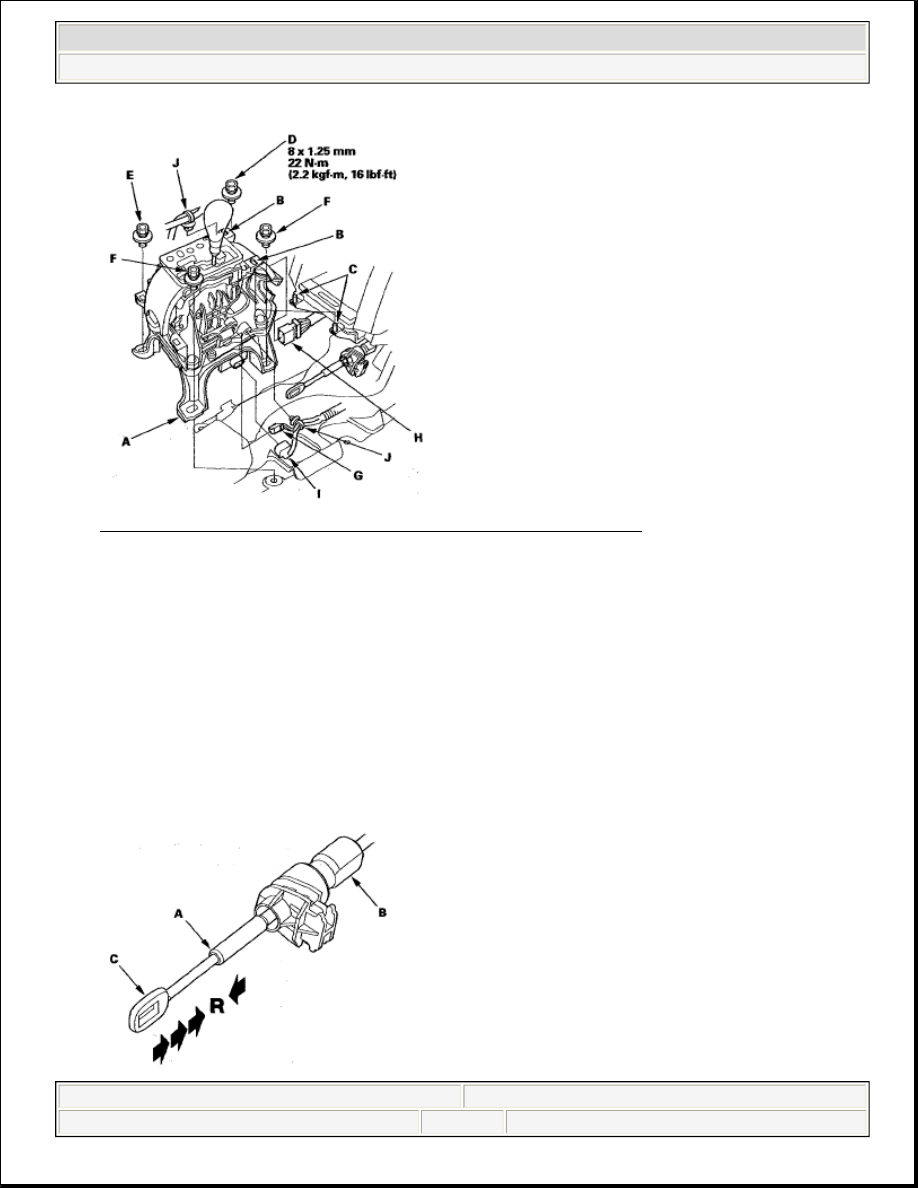

Fig. 351: Identifying Shift Lever Assembly With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Loosely install the mounting bolt (D) on the left front of the shift lever, then install and tighten the

mounting bolt (E) on the left rear to 22 N.m (2.2 kgf.m, 16 lbf.ft).

3. Install and tighten the mounting bolts (F) on the right side, and tighten the bolt (D) to 22 N.m (2.2 kgf.m,

16 lbf.ft).

4. Connect the shift lock solenoid connector (G), the transmission gear selection switch/park pin switch

connector (H), and the sensor cluster connector (I).

5. Install the harness clamps (J) on the shift lever bracket base.

6. Turn the ignition switch to ON (II), and check that the R indicator comes on.

7. if necessary, push the shift cable until it stops, then release it. Pull the shift cable back one step so that the

shift position is in R. Do not hold the shift cable guide (A) and damper (B) to adjust the shift cable (C).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 364

© 2005 Mitchell Repair Information Company, LLC.

Fig. 352: Pushing Shift Cable In And Releasing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Turn the ignition switch to LOCK (0).

9. Place the shift lever in R, then insert a 6.0 mm (0.24 in.) pin (A) through the positioning hole (B) on the

shift lever bracket base, through the positioning hole (C) on the shift lever, and into the positioning hole
(D) on the shift lever bracket base. The shift lever is secured in R.

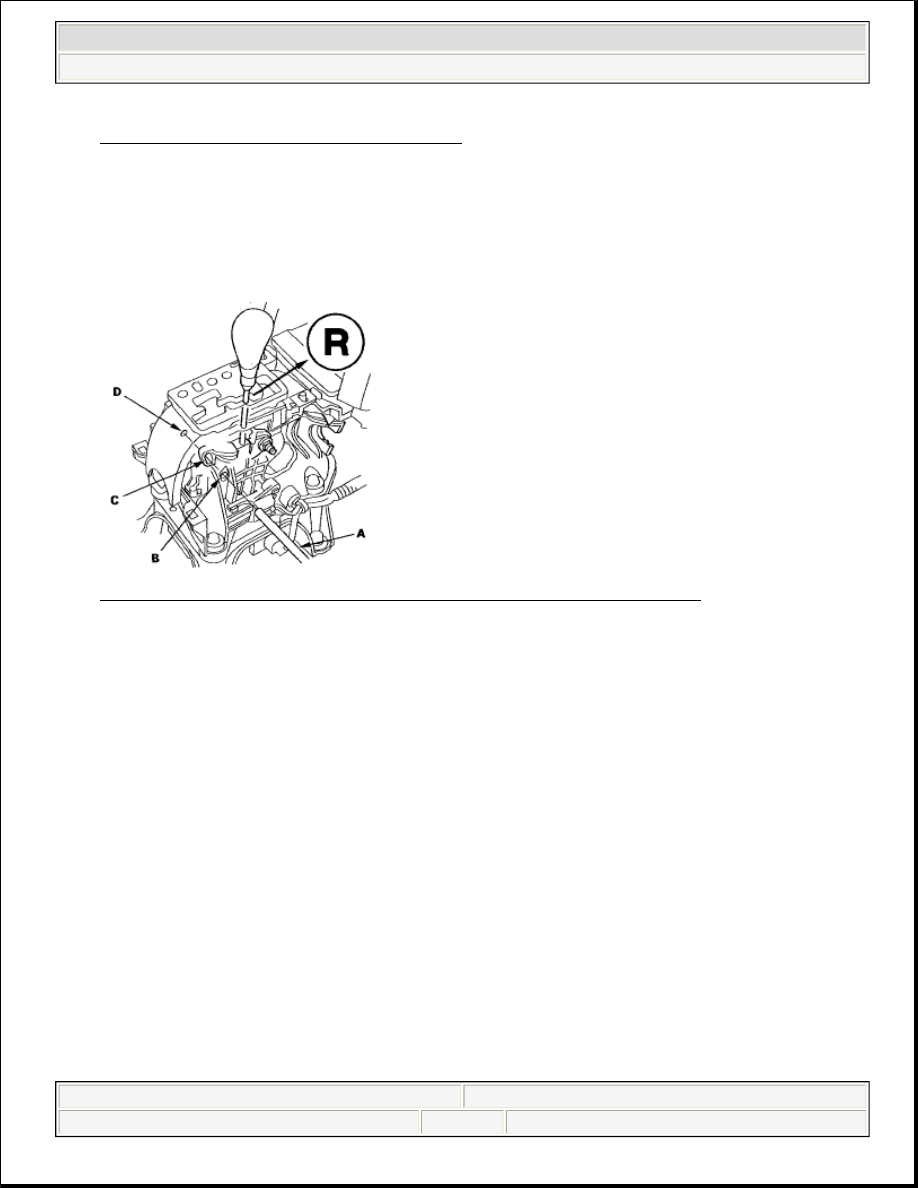

Fig. 353: Inserting Pin Through Positioning Hole On Shift Lever Bracket Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Align the socket holder (A) on the shift cable (B) with the slot in the bracket base (C), then slide the

holder into the base. Install the shift cable end (D) over the mounting stud (E) by aligning its square hole
(F) with the square fitting (G) at the bottom of the stud. Push the holder until it snaps securely in place.
Do not install the shift cable by holding the shift cable guide (H) and damper (I).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 365

© 2005 Mitchell Repair Information Company, LLC.

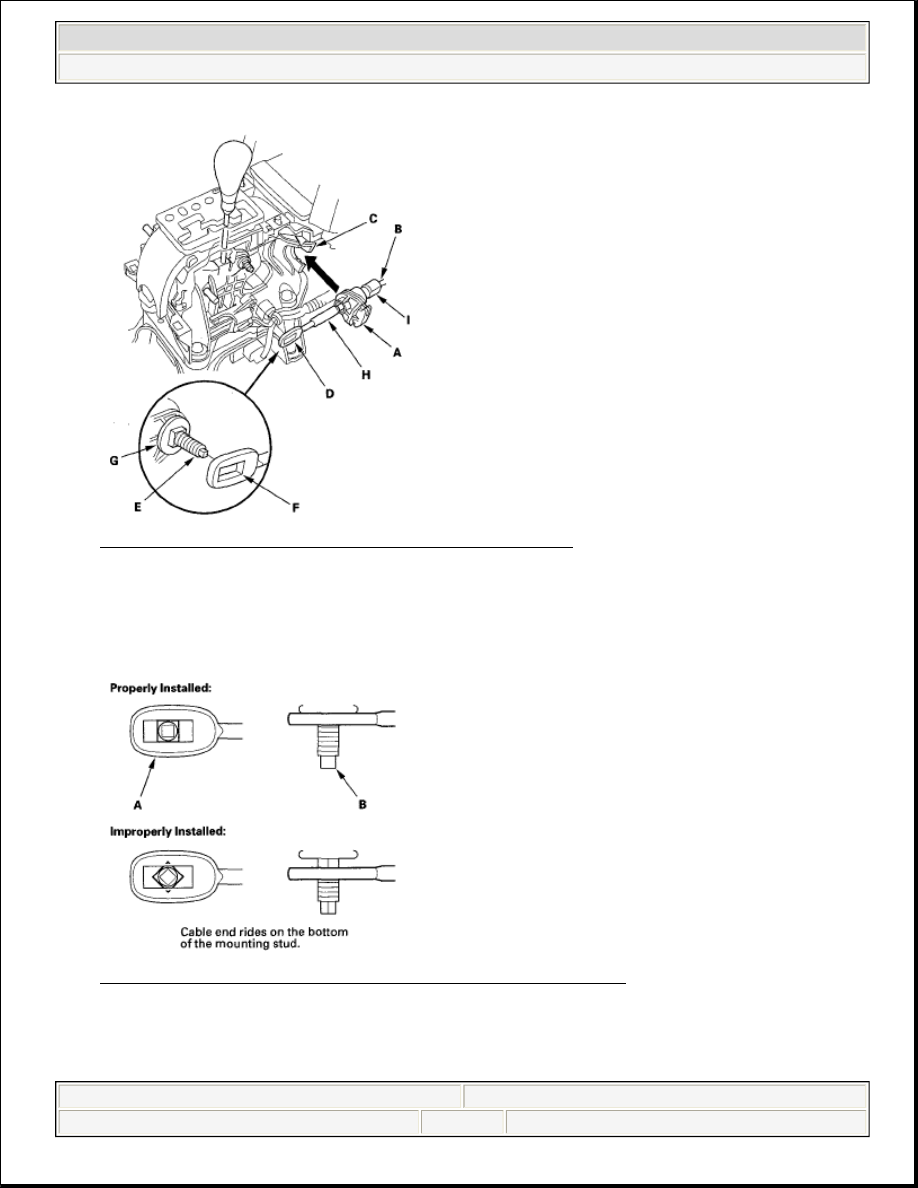

Fig. 354: Sliding Shift Cable Socket Holder Into Bracket Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Check that the shift cable end (A) is properly installed on the mounting stud (B).

Properly Installed:

Fig. 355: Identifying Proper Installation Position Of Shift Cable End
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. If improperly installed, remove the shift cable from the bracket base, and reinstall the shift cable. Do not

install the shift cable end on the mounting stud while the shift cable is on the bracket base.
