Acura RL. Manual - part 278

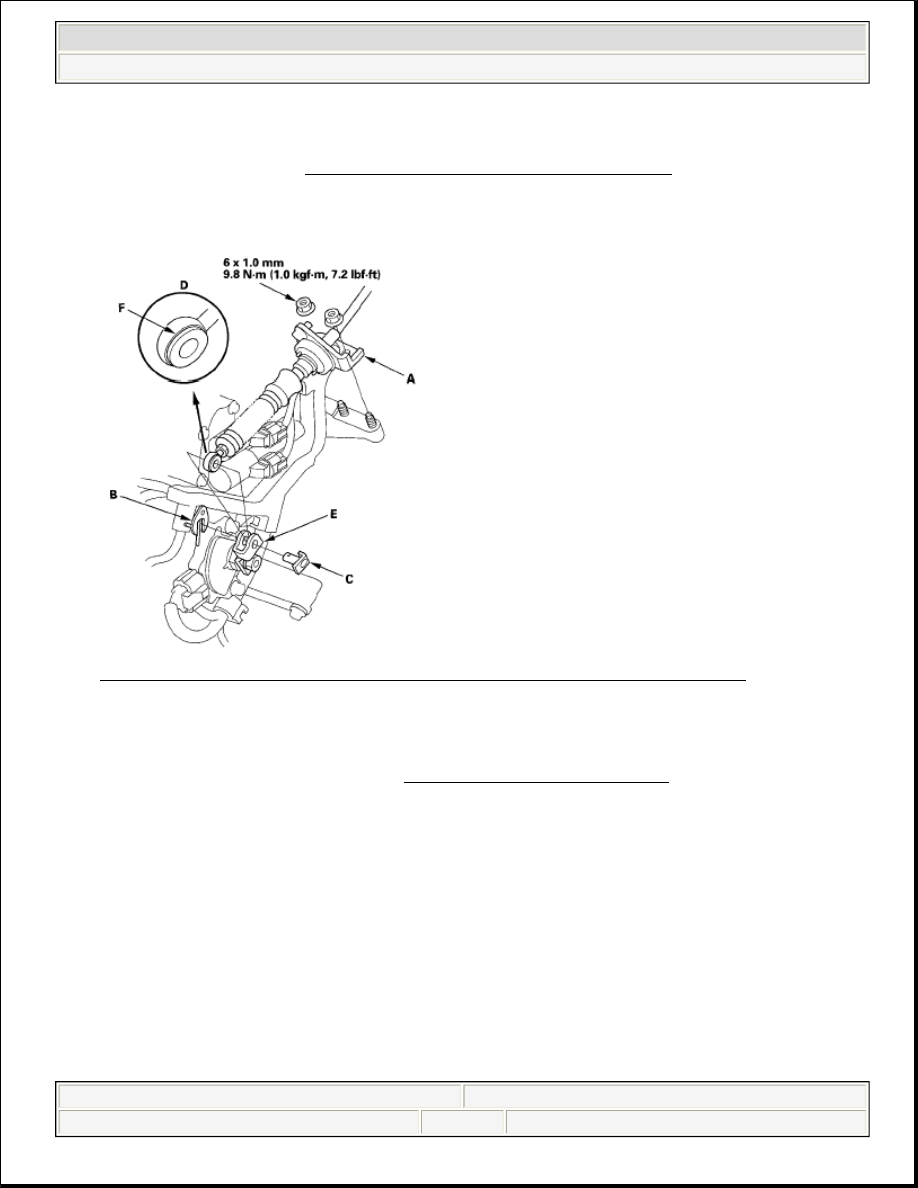

Fig. 214: Identifying Shift Cable End Transmission Side With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Remove the spring clip/washer (B) and the control pin (C), then separate the shift cable end (D) from the

control lever (E). Check the bushing (F) in the shift cable end for a proper fit and wear. If the bushing is
loose or worn, replace the shift cable (see SHIFT CABLE REPLACEMENT ).

15. Disconnect the connectors from A/T clutch pressure control solenoid valves A and B, the solenoid

harness, transmission range switch, ATF temperature sensor, output shaft (countershaft) speed sensor,
input shaft (mainshaft) speed sensor, 3rd clutch transmission fluid pressure switch, and 4th clutch
transmission fluid pressure switch.

16. Remove the bolt securing the harness cover (A).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:14 PM

Page 283

© 2005 Mitchell Repair Information Company, LLC.

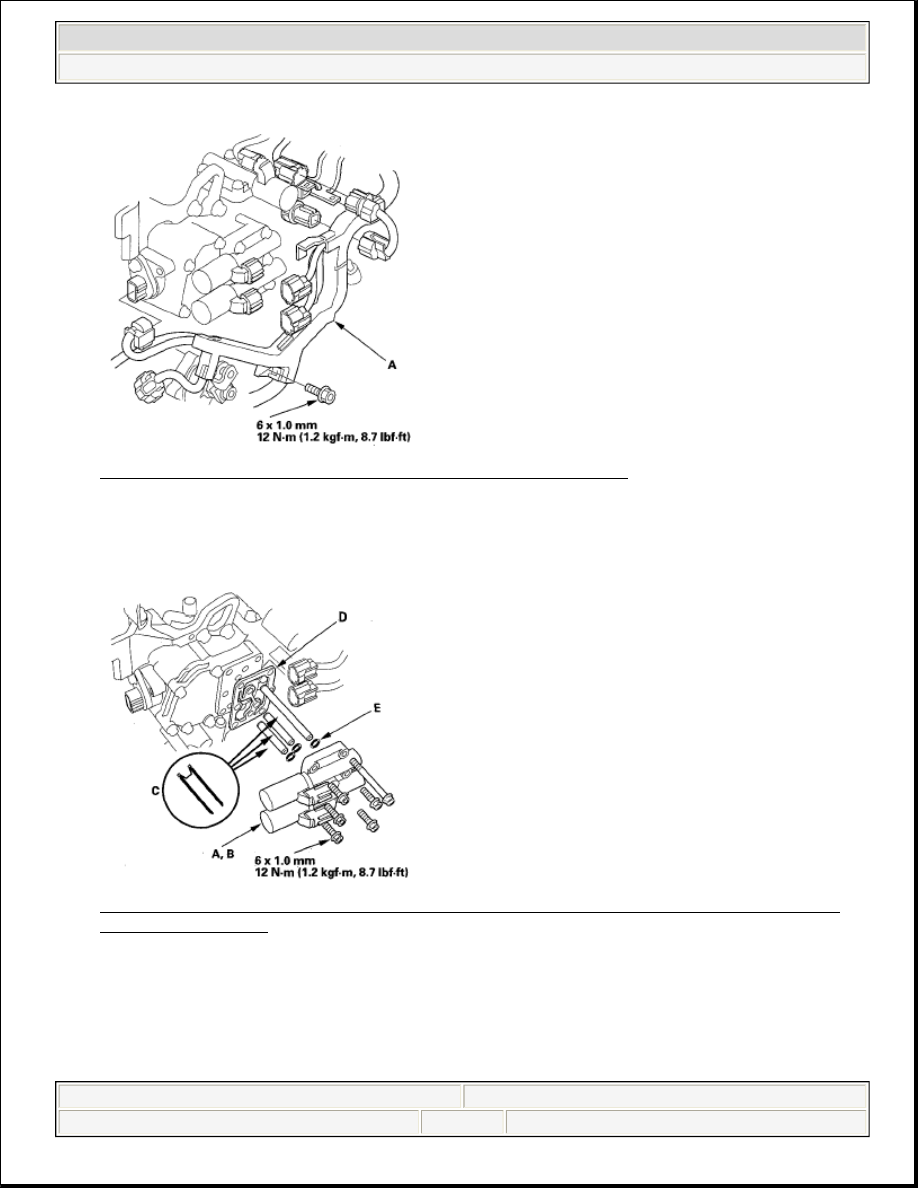

Fig. 215: Identifying Harness Cover Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

17. Remove A/T clutch pressure control solenoid valves A and B, ATF pipes (C), gasket (D), and O-rings

(E).

Fig. 216: Identifying A/T Clutch Pressure Control Solenoid Valves, Gasket And ATF Pipes With
Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

18. Check the fluid passage of the solenoid valve for contamination.

19. Connect the negative battery terminal to A/T clutch pressure control solenoid valve B connector terminal

No. 2, and connect the positive battery terminal to connector terminal No. 1. Make sure A/T clutch
pressure control solenoid valve B moves.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:14 PM

Page 284

© 2005 Mitchell Repair Information Company, LLC.

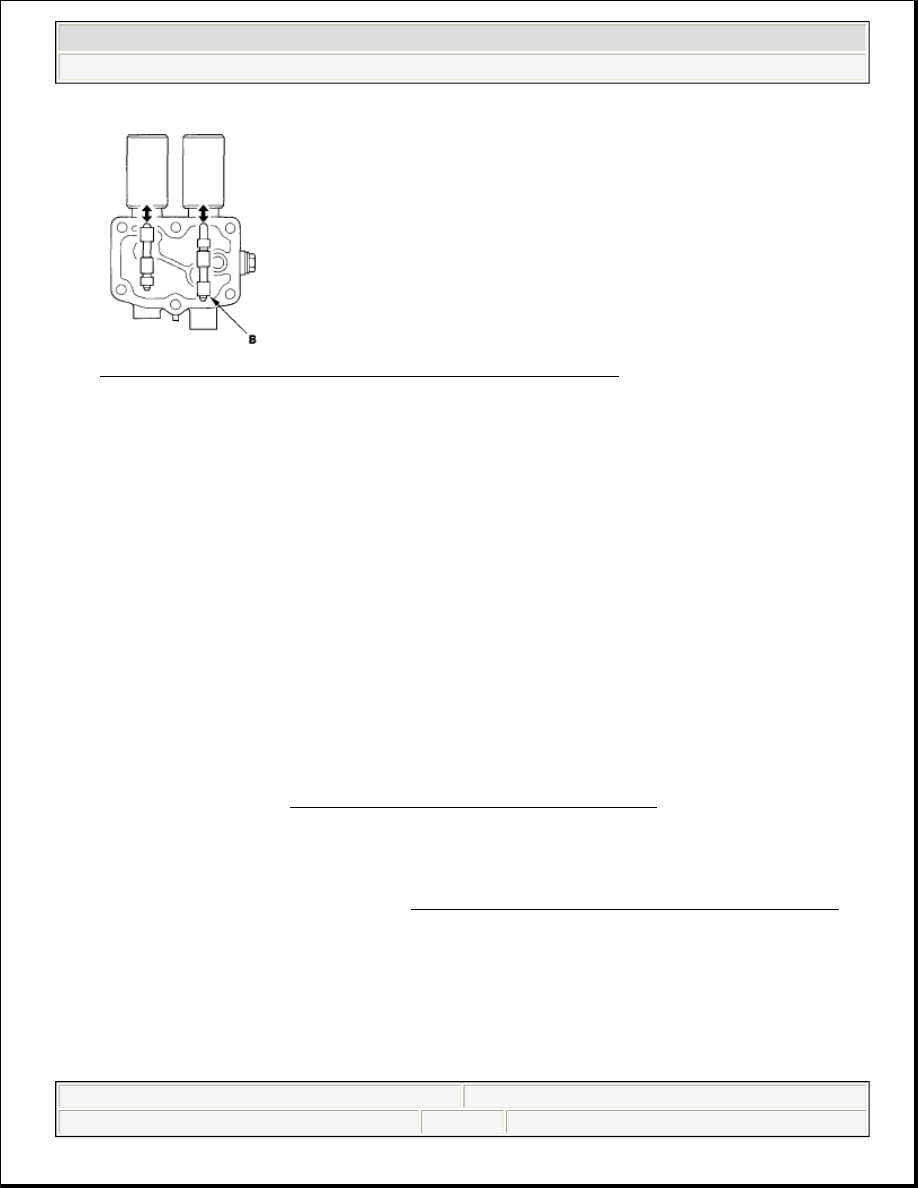

Fig. 217: Checking A/T Clutch Pressure Control Solenoid Valve (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

20. Disconnect one of the battery terminals, and check the valve movement at the fluid passage in the valve

body mounting surface. If the valve binds or moves sluggishly, or if the solenoid valve does not operate,
replace A/T clutch pressure control solenoid valves A and B.

21. Clean the mounting surfaces and the fluid passages of the solenoid valve body and the solenoid valve

cover.

22. Install the new solenoid valve body gasket on the solenoid valve cover, and install the ATF pipes with the

filter end in the transmission housing. Install the new O-rings over the ATF pipes.

23. Install A/T clutch pressure control solenoid valves A and B.

24. Secure the harness cover with the bolt.

25. Check the connectors for rust, dirt, or oil, clean or repair if necessary, then connect the connectors

securely.

26. Apply molybdenum grease to the hole in the bushing in the shift cable end. Attach the shift cable end to

the control lever, then insert the control pin into the control lever hole through the shift cable end, and
secure the control pin with the spring clip/washer.

27. Secure the shift cable bracket with the nuts.

28. Install the battery base.

29. Install the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).

30. Install the battery tray, battery, and battery hold-down bracket, then connect the battery terminals.

31. Install the left upper fender cover and battery trim.

32. Enter the anti-theft codes for the audio system and the navigation system.

33. Do the steering column memorization (see STEERING COLUMN POSITION MEMORIZATION ).

A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE A AND B REPLACEMENT

1. Make sure you have the anti-theft codes for the audio system and the navigation system. Make sure the

ignition switch is in LOCK (0).

2. Remove the battery trim and left upper fender cover.

3. Disconnect the negative terminal from the battery, then disconnect the positive terminal.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:14 PM

Page 285

© 2005 Mitchell Repair Information Company, LLC.

4. Remove the battery hold-down bracket, and remove the battery and battery tray.

5. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).

6. Remove the battery base.

7. Remove the nuts securing the shift cable bracket (A).

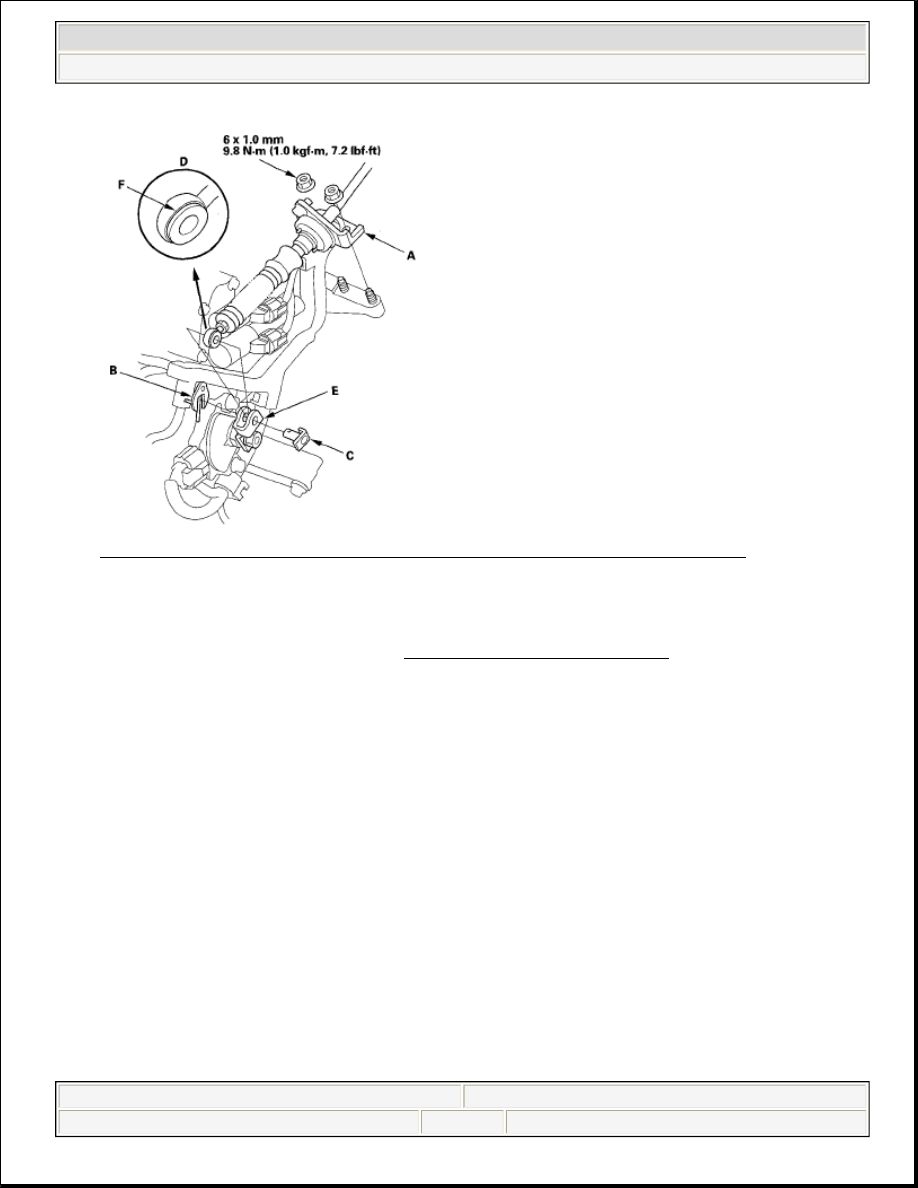

Fig. 218: Identifying Shift Cable End Transmission Side With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Remove the spring clip/washer (B) and control pin (C), then separate the shift cable end (D) from the

control lever (E). Check the bushing (F) in the shift cable end for a proper fit and wear. If the bushing is
loose or worn, replace the shift cable (see SHIFT CABLE REPLACEMENT ).

9. Disconnect the connectors from A/T clutch

10. pressure control solenoid valves A and B, solenoid harness, transmission range switch, ATF temperature

sensor, output shaft (countershaft) speed sensor, input shaft (mainshaft) speed sensor, 3rd clutch
transmission fluid pressure switch, and 4th clutch transmission fluid pressure switch.

11. Remove the bolt securing the harness cover (A).
