8. Measure the resistance between A/T clutch pressure control solenoid valve B connector terminals No. 1

and No. 2.

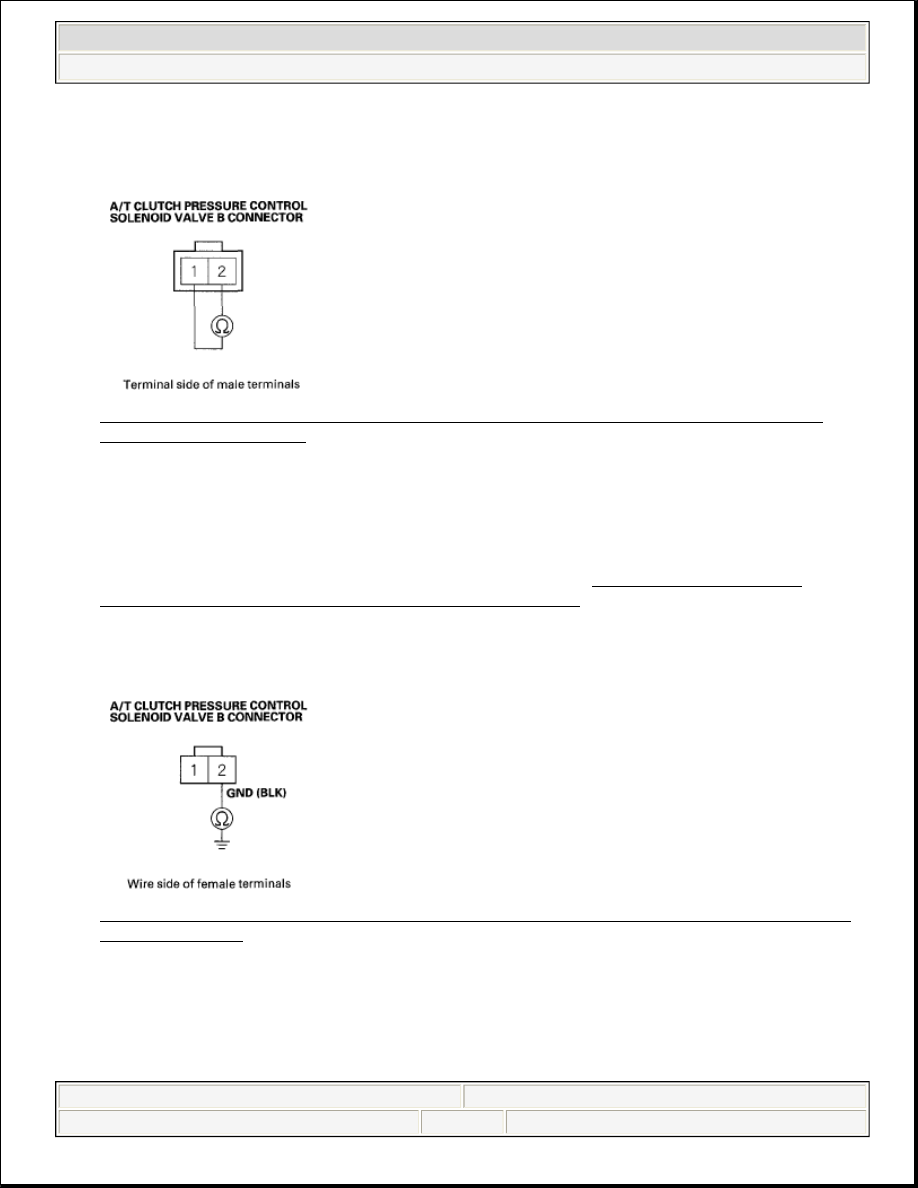

Fig. 145: Measuring Resistance Between Clutch Pressure Control Solenoid Valve B Connector
Terminals No. 1 And No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there 3-10 ohms?

YES - Go to step 9.

NO - Replace the A/T clutch pressure control solenoid valve B (see A/T CLUTCH PRESSURE
CONTROL SOLENOID VALVE A AND B REPLACEMENT ), then go to step 22.

9. Check for continuity between A/T clutch pressure control solenoid valve B connector terminal No. 2 and

body ground.

Fig. 146: Checking Continuity Between Clutch Pressure Control Solenoid Valve B Terminal No. 2
And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 10.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:12 PM

Page 207

© 2005 Mitchell Repair Information Company, LLC.

NO - Repair open in the wire between A/T clutch pressure control solenoid valve B and ground (G101,
G102), or repair poor ground (G101, G102), then go to step 22.

10. Turn the ignition switch to ON (II).

11. Measure the voltage between A/T clutch pressure control solenoid valve B connector terminals No. 1 and

No. 2.

Fig. 147: Measuring Voltage Between Clutch Pressure Control Solenoid Valve B Connector
Terminals No. 1 And No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES - Go to step 12.

NO - Repair open or short in the wire between PCM connector terminal C15 and A/T clutch pressure
control solenoid valve B, then go to step 22.

12. Measure the voltage between PCM connector terminals A10 and A3 or B15.

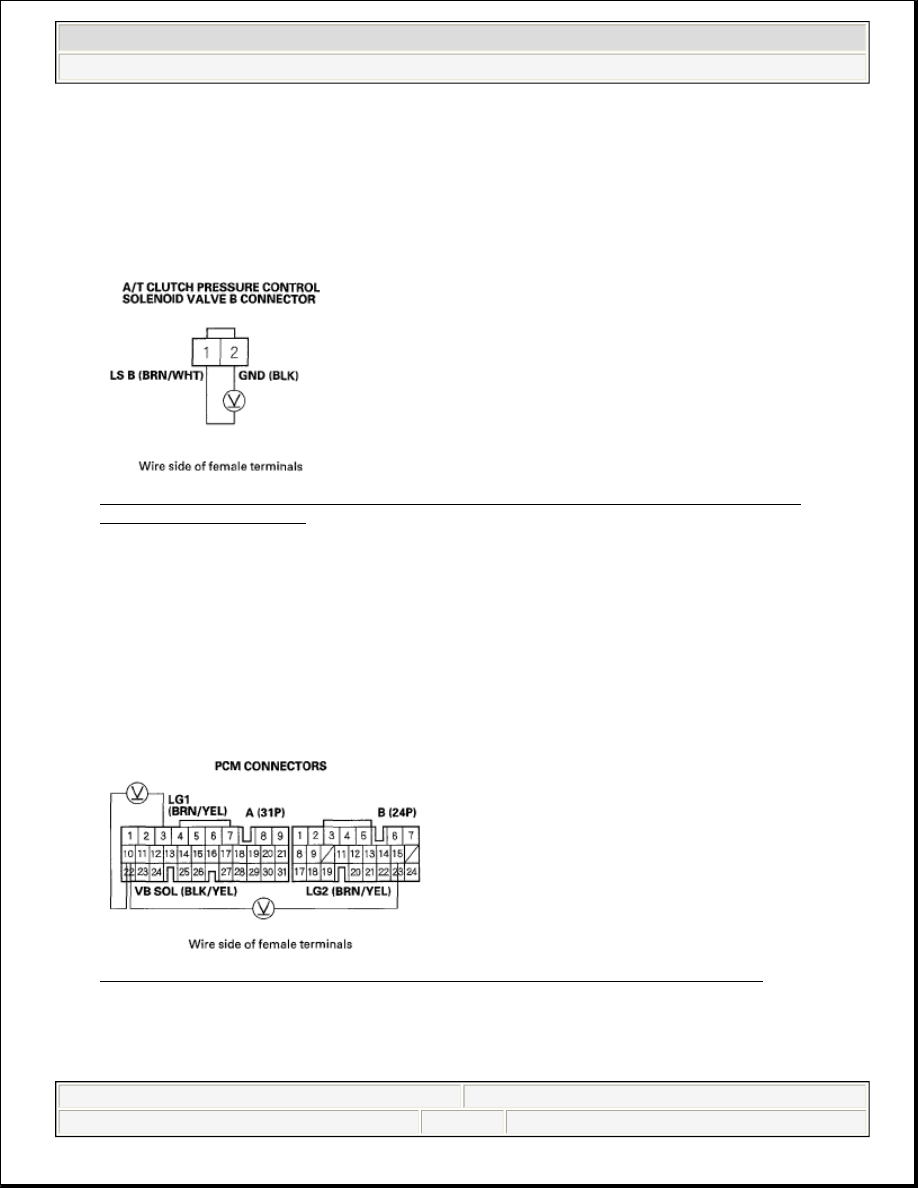

Fig. 148: Measuring Voltage Between PCM Connector Terminals A10 And A3 Or B15
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:13 PM

Page 208

© 2005 Mitchell Repair Information Company, LLC.

YES - Go to step 17.

NO - Go to step 13.

13. Turn the ignition switch to LOCK (0).

14. Jump the SCS line with the HDS.

15. Disconnect PCM connectors A (31P) and B (24P).

16. Check for continuity between PCM connector terminals A3 and body ground, and between B15 and body

ground.

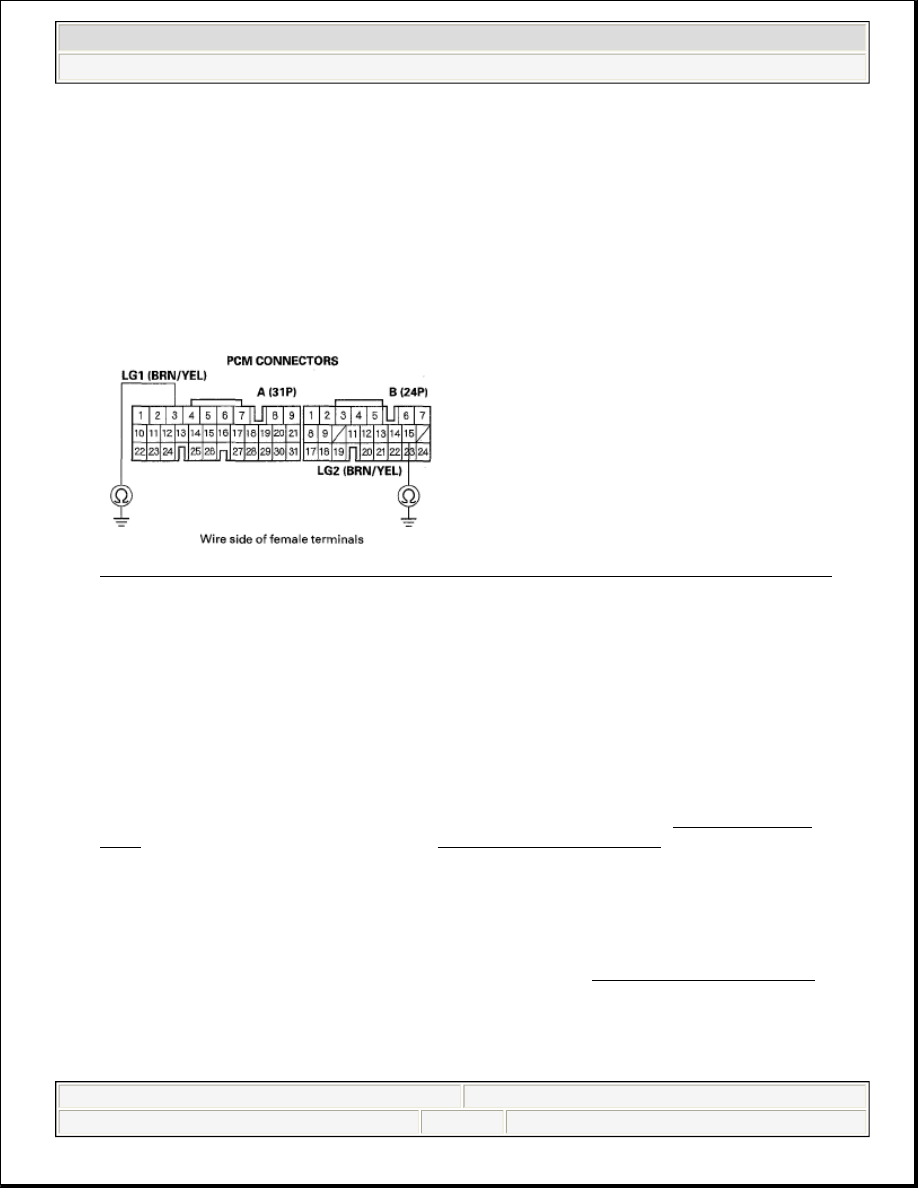

Fig. 149: Checking Continuity Between PCM Connector Terminals A3[B15] And Body Ground
