44. Do the self-diagnostic function (see SELF-DIAGNOSTIC FUNCTION ).

45. Press and release the "No. 1" button.

46. Measure the voltage between the active noise control unit 16P connector No. 2 terminal and body

ground.

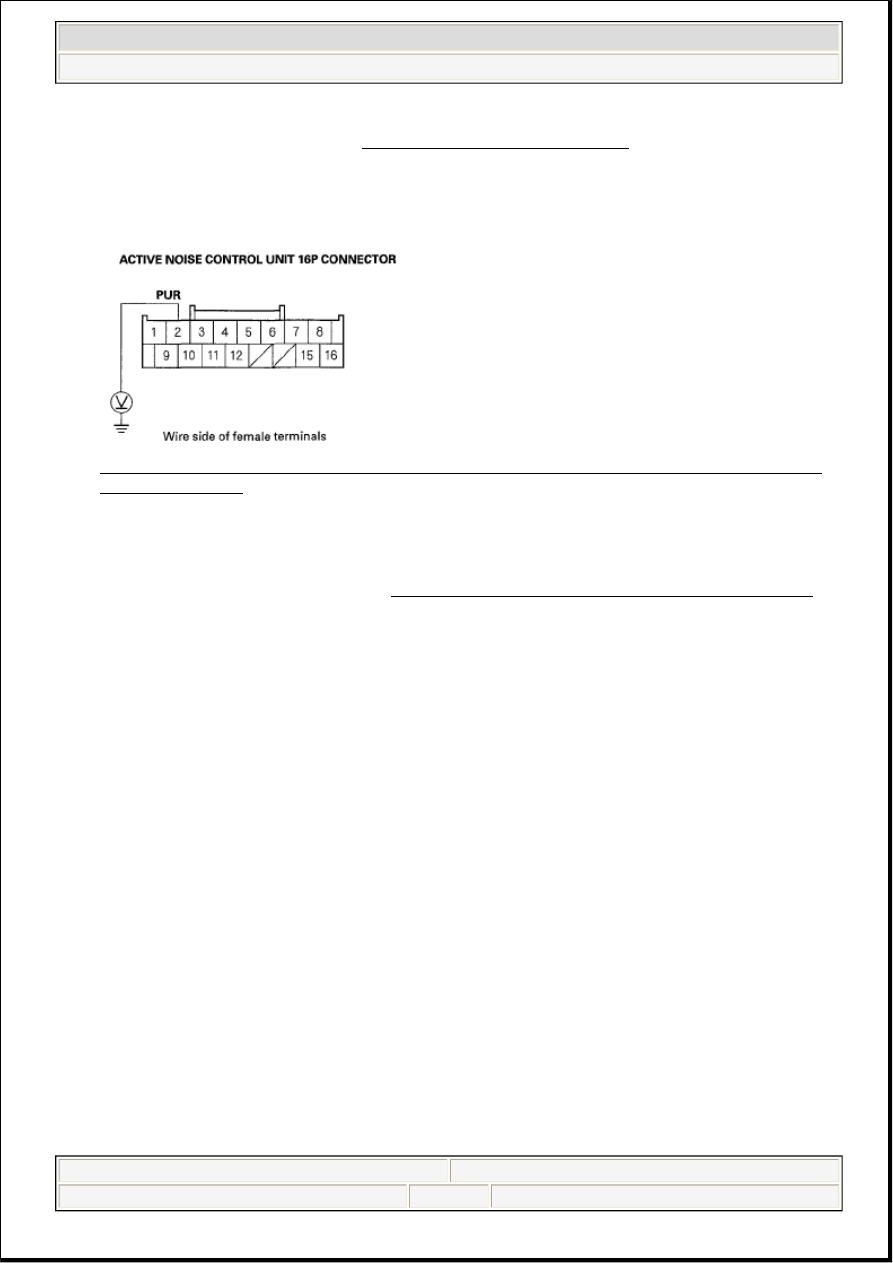

Fig. 93: Measuring Voltage Between Active Noise Control Unit 16P Connector No. 2 Terminal
And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there about 2.5 V?

YES - Replace the stereo amplifier (see STEREO AMPLIFIER REMOVAL/INSTALLATION ).

NO - Go to step 47.

47. Turn the ignition switch to LOCK (0).

48. Disconnect the active noise control unit 16P connector and stereo amplifier connector C (23P).

49. Check for continuity between the active noise control unit 16P connector and stereo amplifier

connector C (23P).

16P:

No. 1

No. 2

No. 9

No. 10

23P:

No. 16

No. 14

No. 17



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Audio System - RL



me



Friday, June 05, 2009 3:53:07 PM

Page 86

© 2005 Mitchell Repair Information Company, LLC.

No. 15

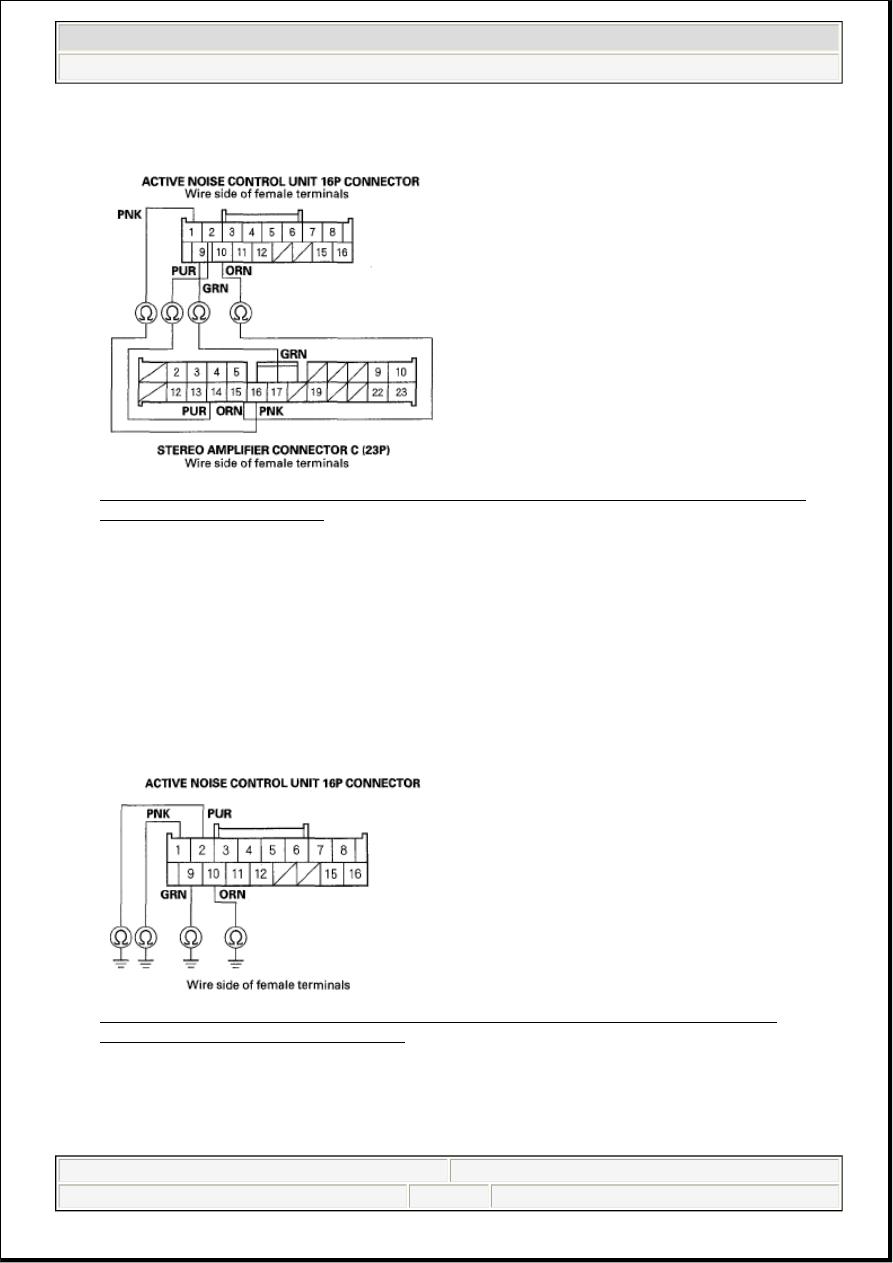

Fig. 94: Checking Continuity Between Active Noise Control Unit 16P Connector And Stereo
Amplifier Connector C (23P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 50.

NO - Repair open in the wire(s) between the active noise control unit 16P connector and stereo
amplifier connector C (14P).

50. Check for continuity between body ground and active noise control unit 16P connector No. 1, 2,9, and

10 terminals individually.

Fig. 95: Checking Continuity Between Body Ground And Active Noise Control Unit 16P
Connector No. 1, 2,9, And 10 Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Repair short in the wire(s) between the active noise control unit 16P connector and stereo



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Audio System - RL



me



Friday, June 05, 2009 3:53:07 PM

Page 87

© 2005 Mitchell Repair Information Company, LLC.

amplifier connector C (14P).

NO - Replace the active noise control unit (see ACTIVE NOISE CONTROL UNIT
REMOVAL/INSTALLATION ).

51. Start the engine, and let the vehicle idle.

52. Perform the self-diagnostic function (see SELF-DIAGNOSTIC FUNCTION ).

53. Press the No. 1 button.

Can you hear the low-frequency hum ?

YES - Go to step 54.

NO - The system is OK.

54. Turn the ignition switch to LOCK (0).

55. Disconnect the active noise control unit 16P connector and PCM connector A (31P).

56. Check for continuity between the active noise control unit 16P connector No. 15 terminal and PCM

connector A (31P) No. 23 terminal.

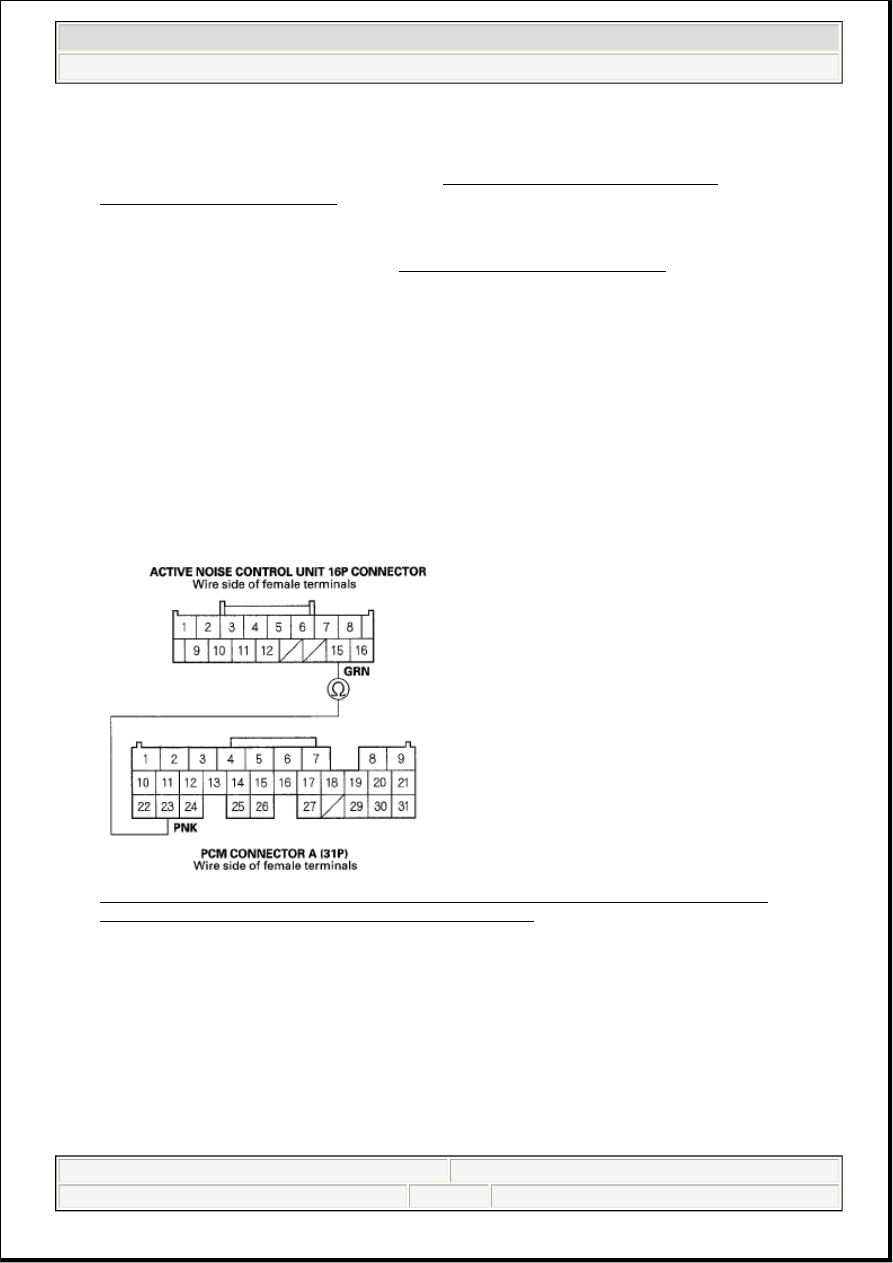

Fig. 96: Checking Continuity Between Active Noise Control Unit 16P Connector No. 15
Terminal And PCM Connector A (31P) No. 23 Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 57.

NO - Repair open in the wire between the active noise control unit 16P connector No. 15 terminal and
PCM connector A (31P) No. 23 terminal.

57. Check for continuity between the active noise control unit 16P connector No. 15 terminal and body

ground.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Audio System - RL



me



Friday, June 05, 2009 3:53:07 PM

Page 88

© 2005 Mitchell Repair Information Company, LLC.

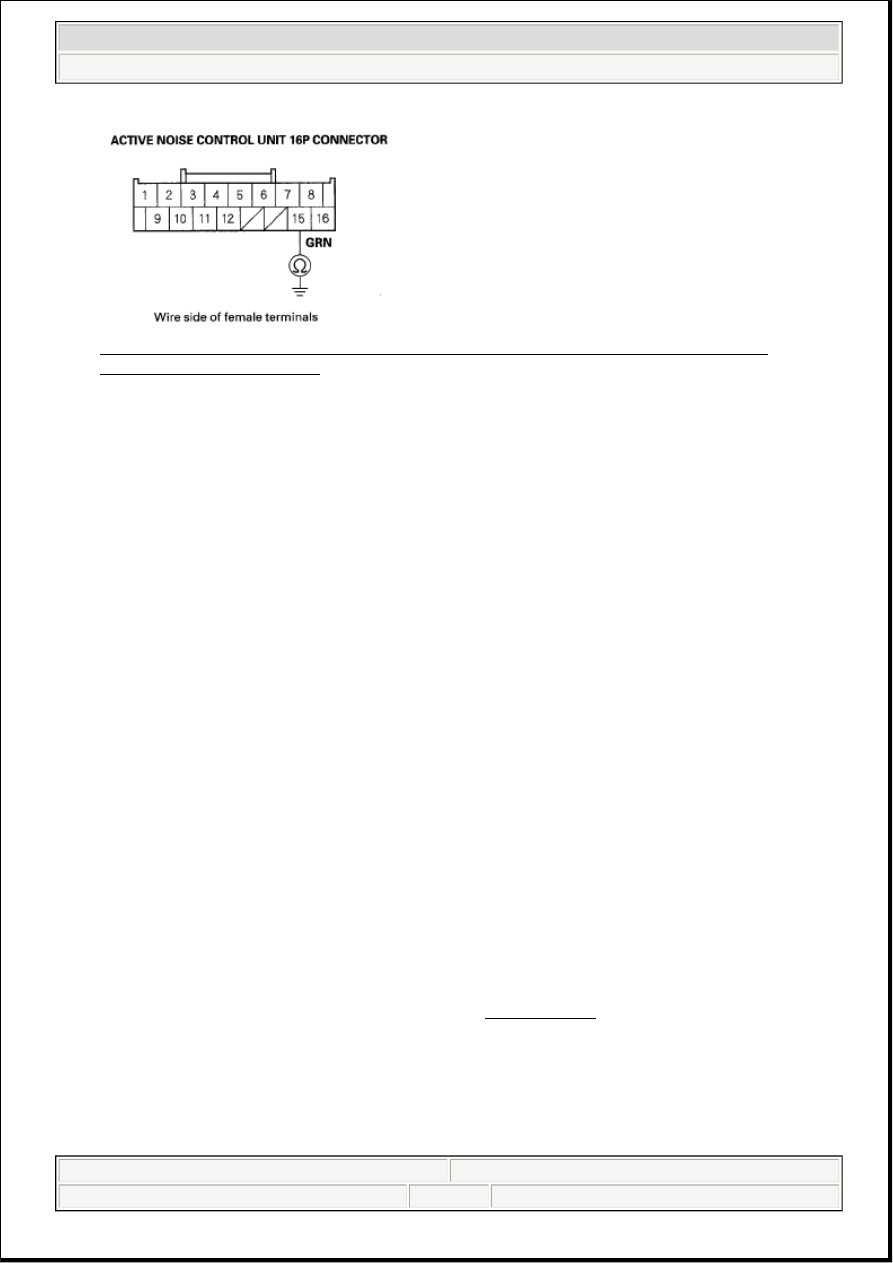

Fig. 97: Checking Continuity Between Active Noise Control Unit 16P Connector No. 15
Terminal And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Repair short in the wire between body ground and the active noise control unit 16P connector
No. 15 terminal and PCM connector A (31P) No. 23 terminal.

NO - Replace the PCM.

SOUND QUALITY DIAGNOSIS

Special tools required

Diagnostics CD 07AAZ-SDBA100

Use the following tests to check sound quality.

LEFT/RIGHT CHANNEL ID

Do this test to confirm proper channel routing.

1. Insert the audio diagnostic CD (T/N 07AAZ-SDBA100) into the audio unit.

2. Play track No. 1 (left, both, right channel ID) at a normal, or slightly higher than normal, volume

level.

3. The voice should be audible only from the channel or channels when indicated.



If the channel ID is correct for each side, go to PHASE TEST.



If the channel ID is not correct, check for



Shorted speaker wire



Faulty amplifier



Faulty audio unit

NOTE:

Before beginning the following tests, write down the client's bass, treble,
fader and balance settings, then set them to their center positions for the
testing.
