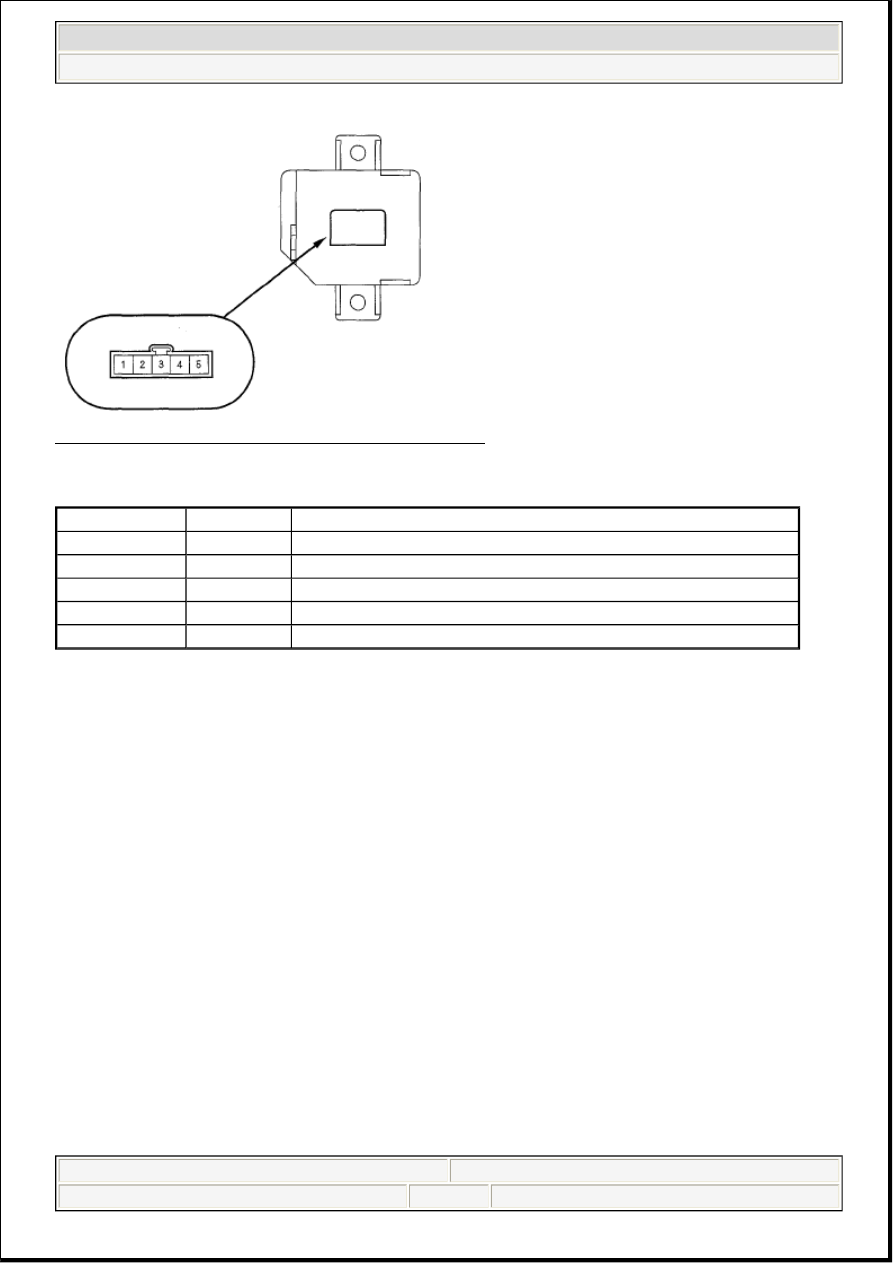

Fig. 13: Identifying Auxiliary Jack Assembly Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

WIRE CAVITY CHART

CIRCUIT DIAGRAM

Cavity

Wire

Connects to

1

YEL

Audio unit (AUX DET)

2

BLK

Audio unit (AUX GND)

3

GRN

Audio unit (AUX SIG GND)

4

WHT

Audio unit (AUX L-CH)

5

RED

Audio unit (AUX R-CH)



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Audio System - RL



me



Friday, June 05, 2009 3:53:06 PM

Page 22

© 2005 Mitchell Repair Information Company, LLC.

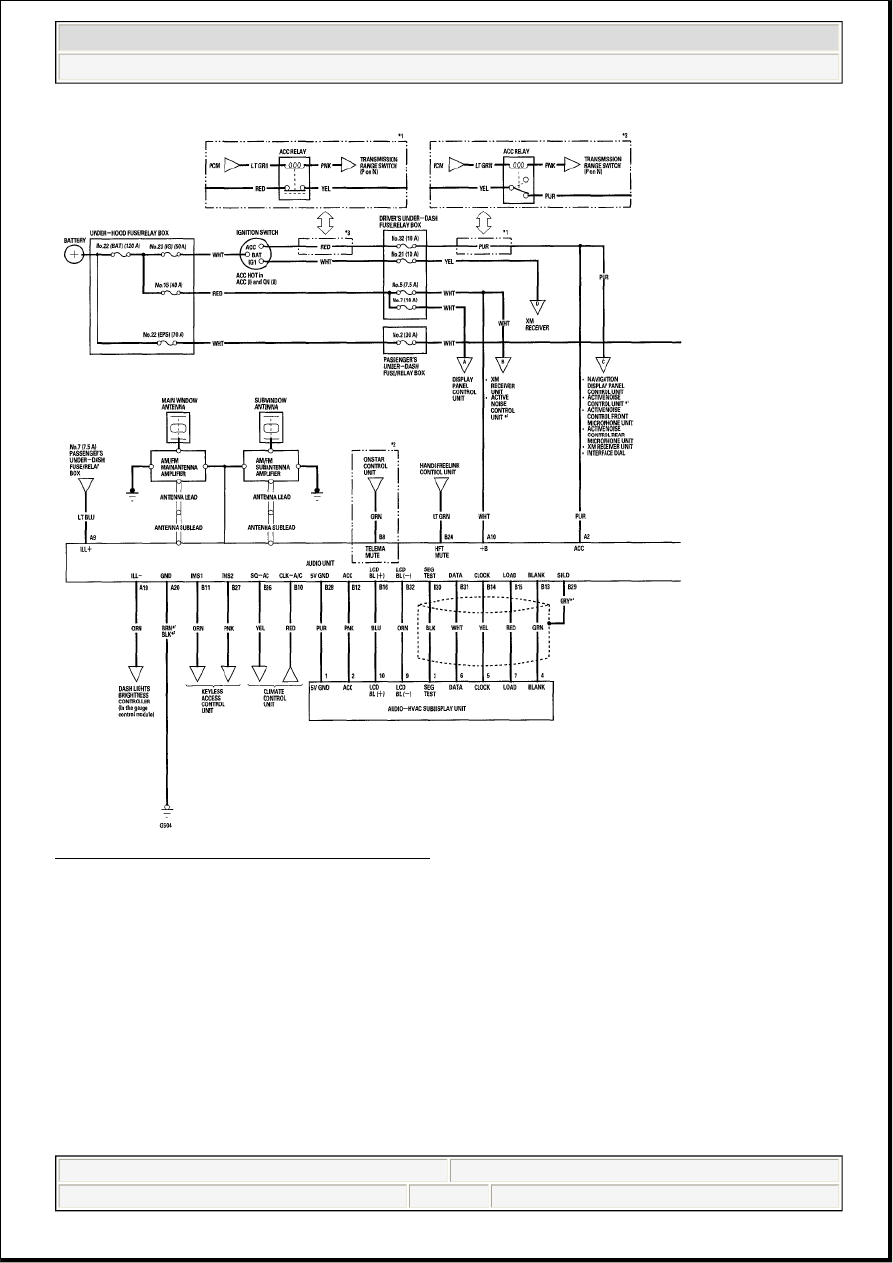

Fig. 14: Audio System - Circuit Diagram (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Audio System - RL



me



Friday, June 05, 2009 3:53:06 PM

Page 23

© 2005 Mitchell Repair Information Company, LLC.

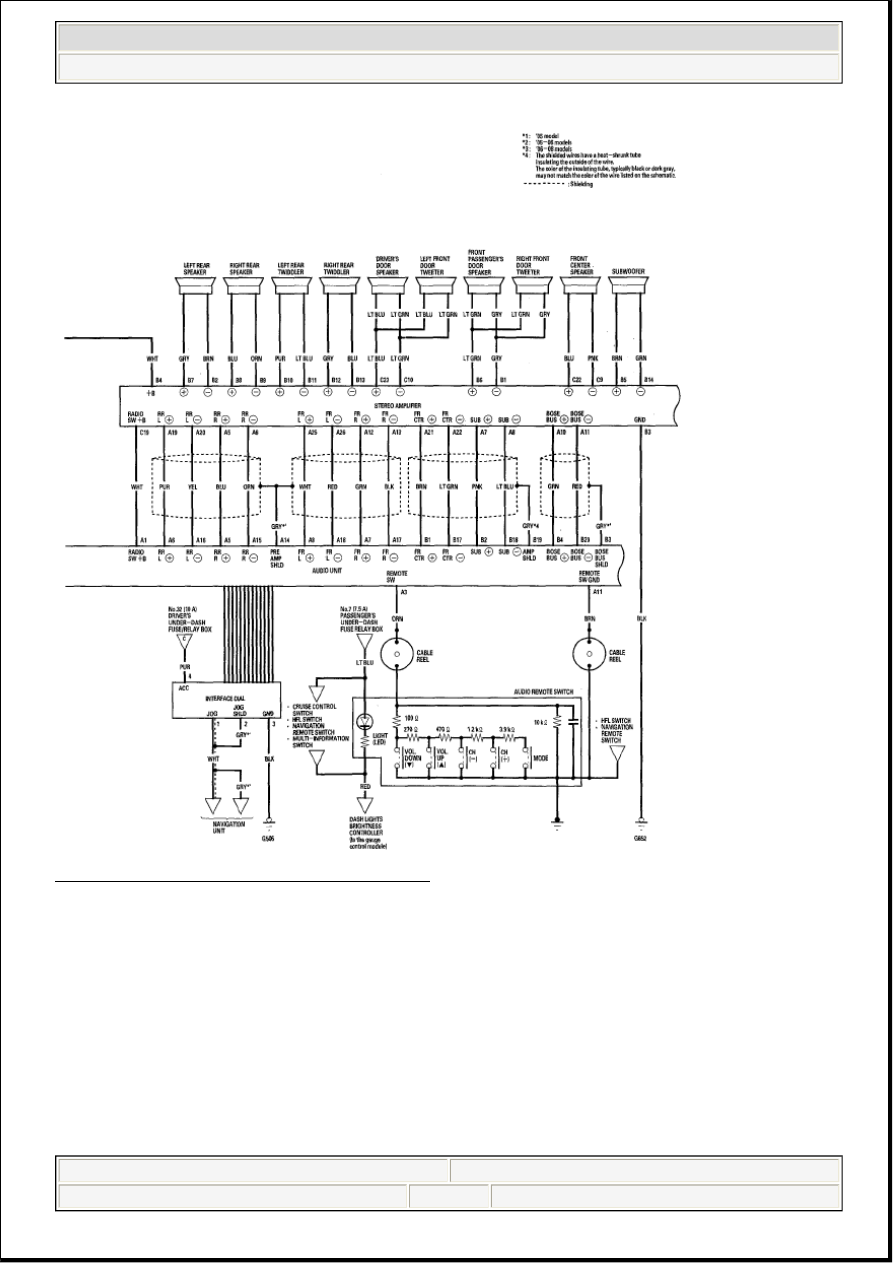

Fig. 15: Audio System - Circuit Diagram (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Audio System - RL



me



Friday, June 05, 2009 3:53:06 PM

Page 24

© 2005 Mitchell Repair Information Company, LLC.

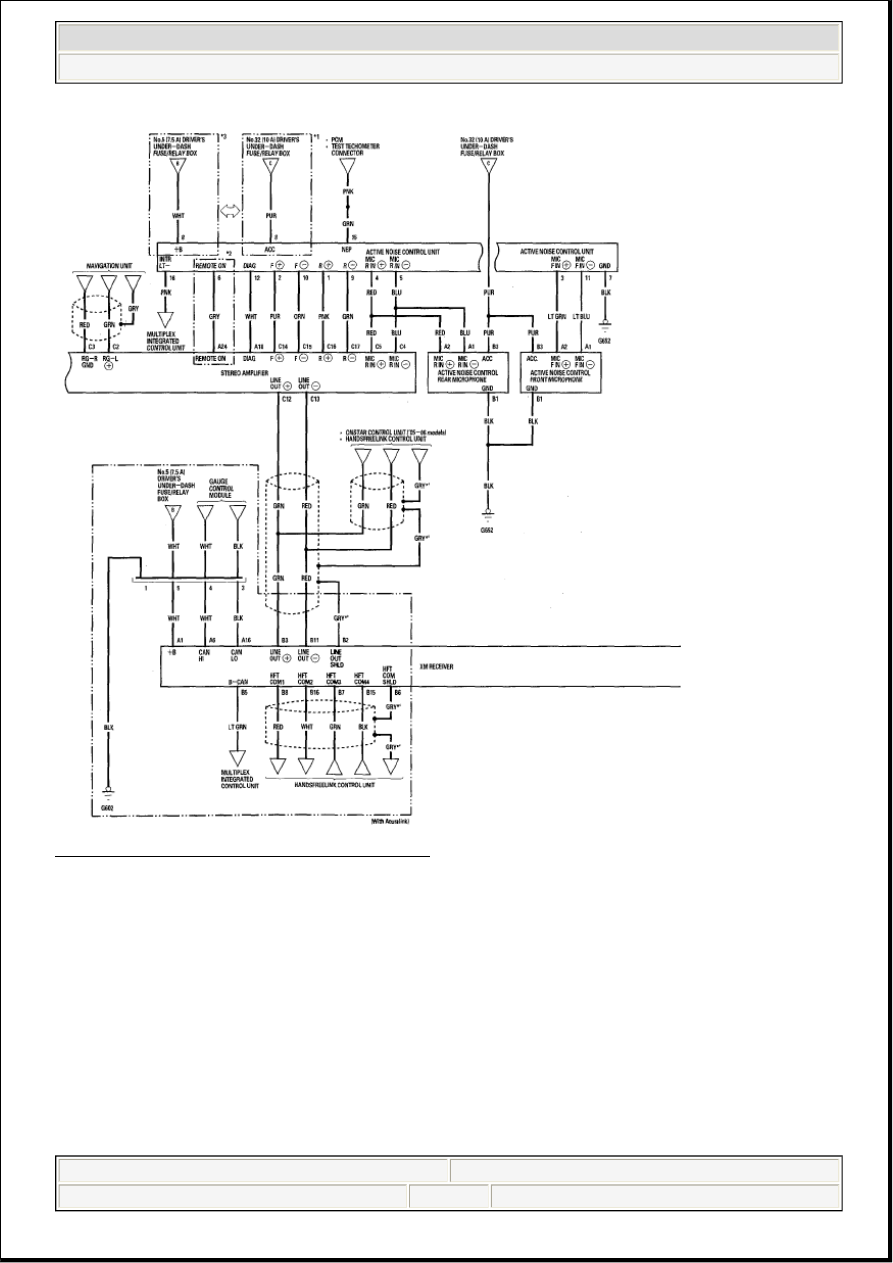

Fig. 16: Audio System - Circuit Diagram (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
