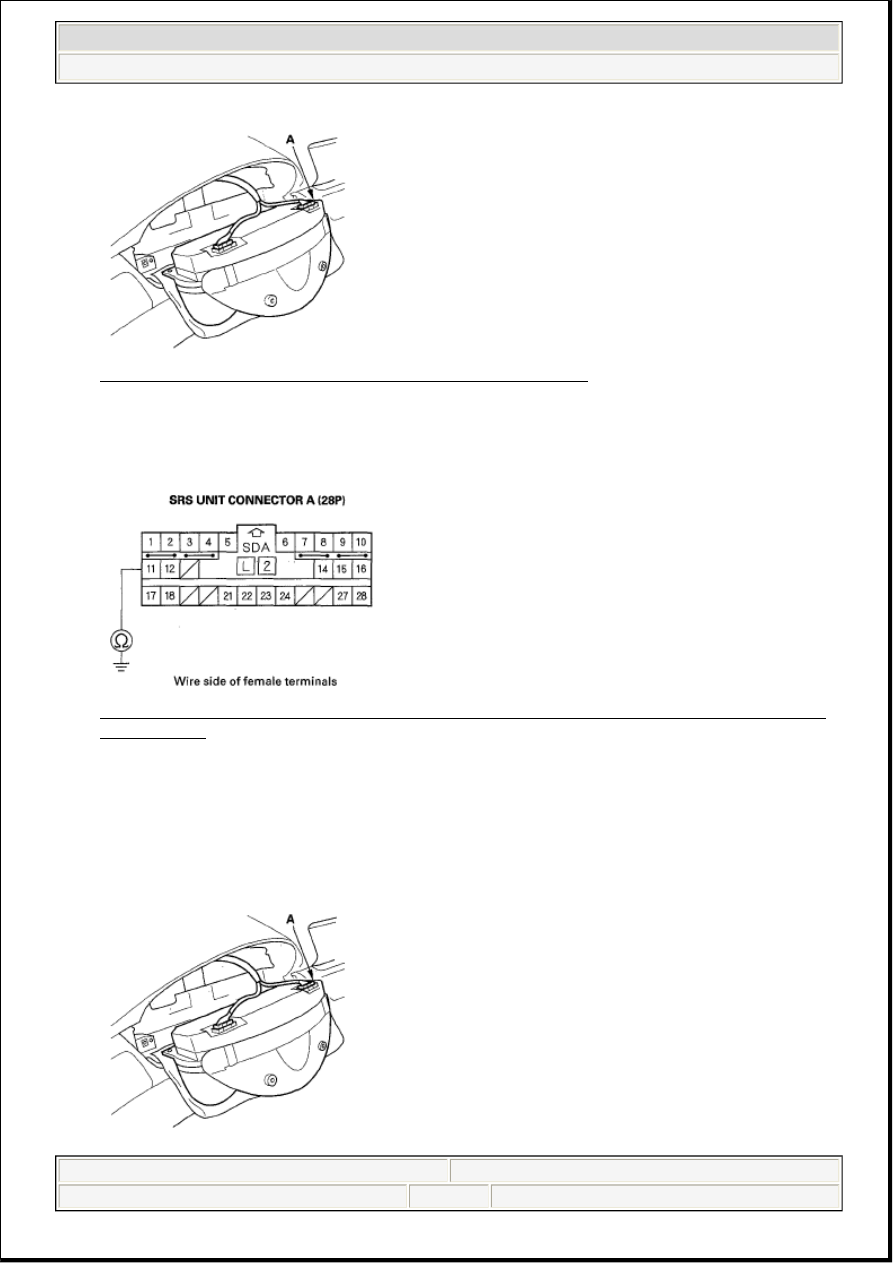

Fig. 341: Identifying Gauge Control Module Connector A (20P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Measure the resistance between the No. 11 terminal of SRS unit connector A (28P) and body ground.

There should be an open circuit or at least 1 Mohms.

Fig. 342: Measuring Resistance Between No. 11 Terminal Of SRS Unit Connector A (28P) And
Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is the resistance as specified?

YES - Go to step 7.

NO - Short to ground in the dashboard wire harness; replace the dashboard wire harness.

2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL

Friday, June 05, 2009 2:21:58 PM

Fig. 343: Identifying Gauge Control Module Connector A (20P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Reconnect the gauge control module connector A (20P).

8. Turn the ignition switch ON (II).

9. Install a jumper wire between the No. 12 terminal of gauge control module connector A (20P) and the

No. 1 terminal of the gauge control module connector B (28P). The SRS indicator should go off.

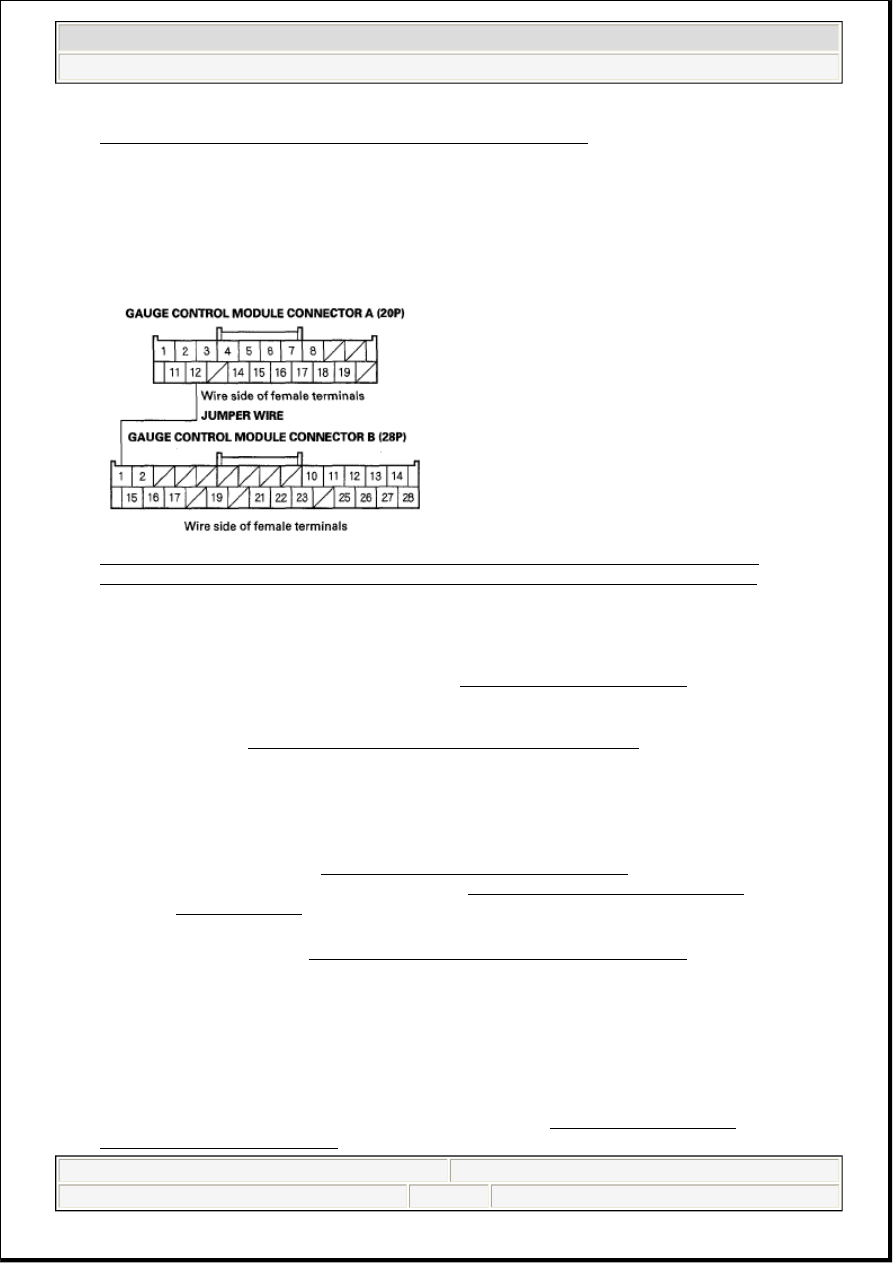

Fig. 344: Installing Jumper Wire Between No. 12 Terminal Of Gauge Control Module
Connector A (20P) And No. 1 Terminal Of Gauge Control Module Connector B (28P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Does the SRS indicator go off?

YES - Faulty SRS unit; replace the SRS unit (see SRS UNIT REPLACEMENT ).

NO - Short to ground in the SRS indicator circuit of the gauge control module; replace the gauge
control module (see GAUGE CONTROL MODULE REPLACEMENT ).

DTC 92-1X ("X" CAN BE 0 THRU 9 OR A THRU F): OPEN IN PASSENGER'S AIRBAG CUTOFF
INDICATOR

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and

then goes off.

Does the SRS indicator stay on, and is DTC 92-1x indicated?

YES - Go to step 3.

NO - Intermittent failure, the system is OK at this time. Go to TROUBLESHOOTING
INTERMITTENT FAILURES . If another DTC is indicated, troubleshoot the DTC.

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).

2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL

Friday, June 05, 2009 2:21:58 PM

3. Disconnect the passenger's airbag cutoff indicator 6P connector (see PASSENGER'S AIRBAG

CUTOFF INDICATOR ILLUMINATION BULB TEST ).

4. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes.

5. Disconnect SRS unit connector A (28P) from the SRS unit (see step 7 ).

6. Reconnect the negative cable to the battery.

7. Turn the ignition switch ON (II).

8. Measure the voltage between the No. 12 terminal of SRS unit connector A (28P) and body ground.

There should be 0.5 V or less.

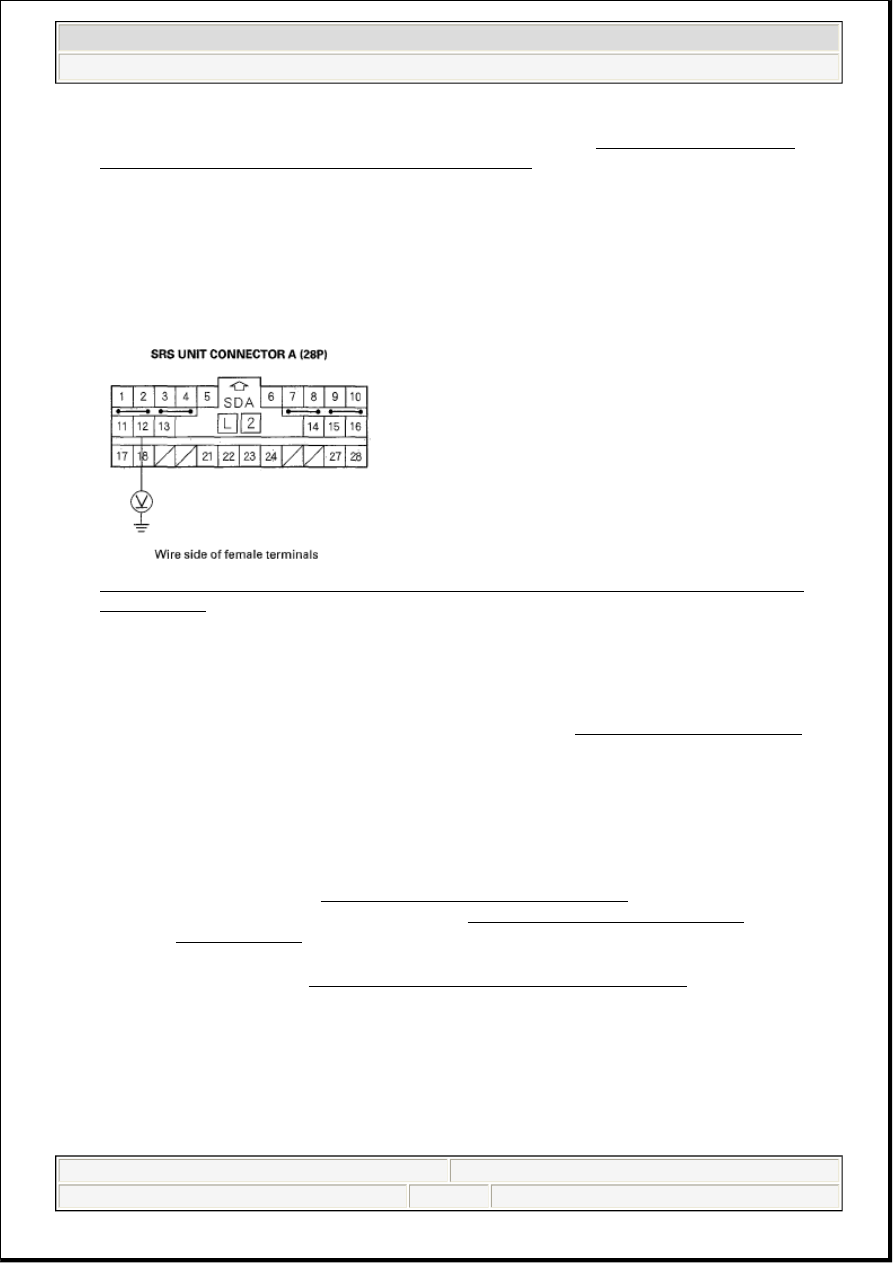

Fig. 345: Measuring Voltage Between No. 12 Terminal Of SRS Unit Connector A (28P) And
Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is the voltage as specified?

YES - Faulty SRS unit or passenger's airbag cutoff indicator; replace the passenger's airbag cutoff
indicator. If the problem is still present, replace the SRS unit (see SRS UNIT REPLACEMENT ).

NO - Short to power in dashboard wire harness A; replace dashboard wire harness A.

DTC 92-2X ("X" CAN BE 0 THRU 9 OR A THRU F): OPEN OR SHORT TO GROUND IN
PASSENGER'S AIRBAG CUTOFF INDICATOR

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and

then goes off.

Does the SRS indicator stay on, and is DTC 92-21 indicated?

YES - Go to step 3.

NO - Intermittent failure, the system is OK at this time. Go to TROUBLESHOOTING

NOTE:

2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL

Friday, June 05, 2009 2:21:58 PM

INTERMITTENT FAILURES . If another DTC is indicated, troubleshoot the DTC.

3. Disconnect the passenger's airbag cutoff indicator 6P connector (see PASSENGER'S AIRBAG

CUTOFF INDICATOR ILLUMINATION BULB TEST ).

4. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes.

5. Disconnect SRS unit connector A (28P) from the SRS unit (see step 7 ).

6. Measure the resistance between the No. 2 terminal of the passenger's airbag cutoff indicator 6P

connector and the No. 12 terminal of SRS unit connector A (28P). There should be 0-1.0 ohms.

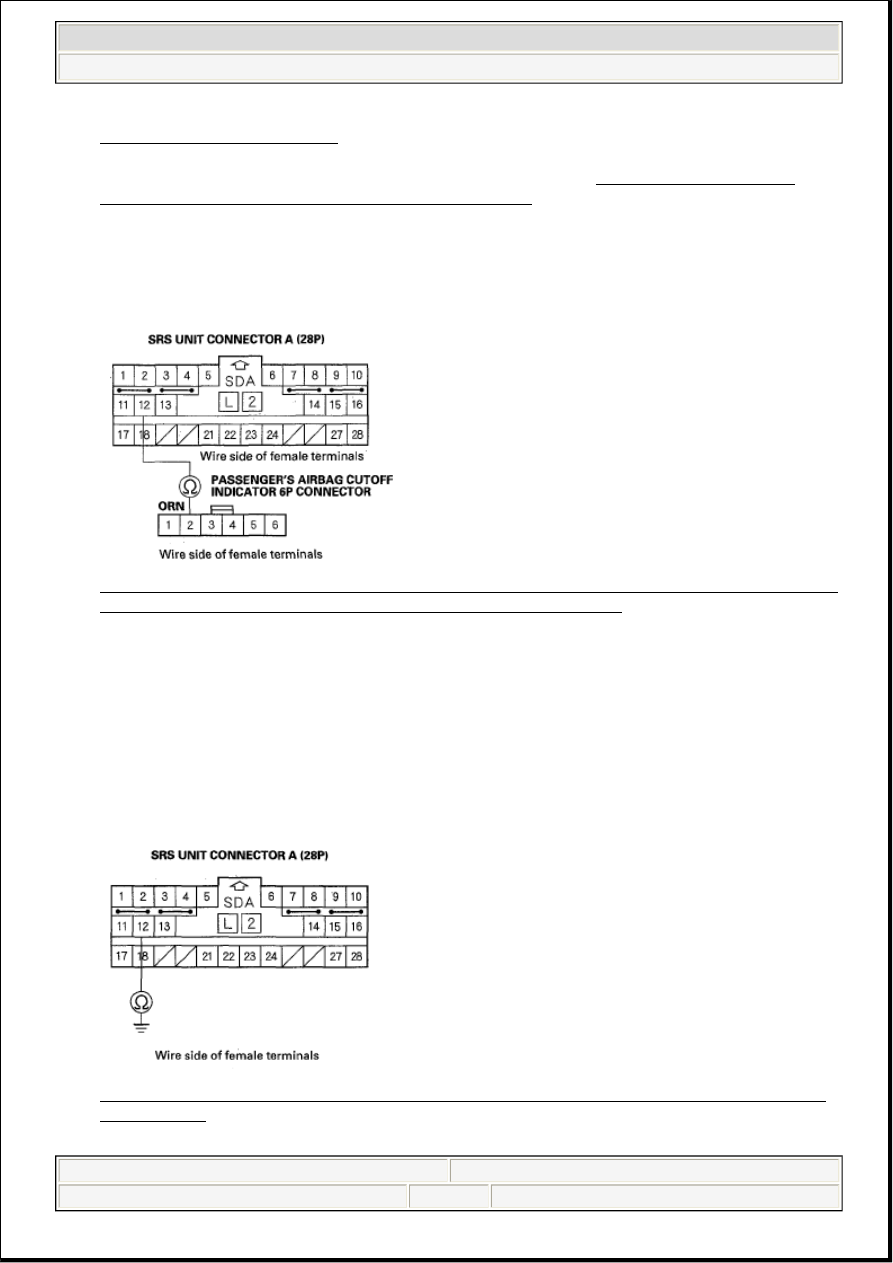

Fig. 346: Measuring Resistance Between No. 2 Terminal Of Passenger's Airbag Cutoff Indicator
6P Connector And No. 12 Terminal Of SRS Unit Connector A (28P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is the resistance as specified?

YES - Go to step 7.

NO - Open in dashboard wire harness A; replace dashboard wire harness A.

7. Measure the resistance between the No. 12 terminal of the SRS unit connector A (28P) and body

ground. There should be an open circuit or at least 1Mohms.

Fig. 347: Measuring Resistance Between No. 12 Terminal Of SRS Unit Connector A (28P) And
Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL

Friday, June 05, 2009 2:21:58 PM
