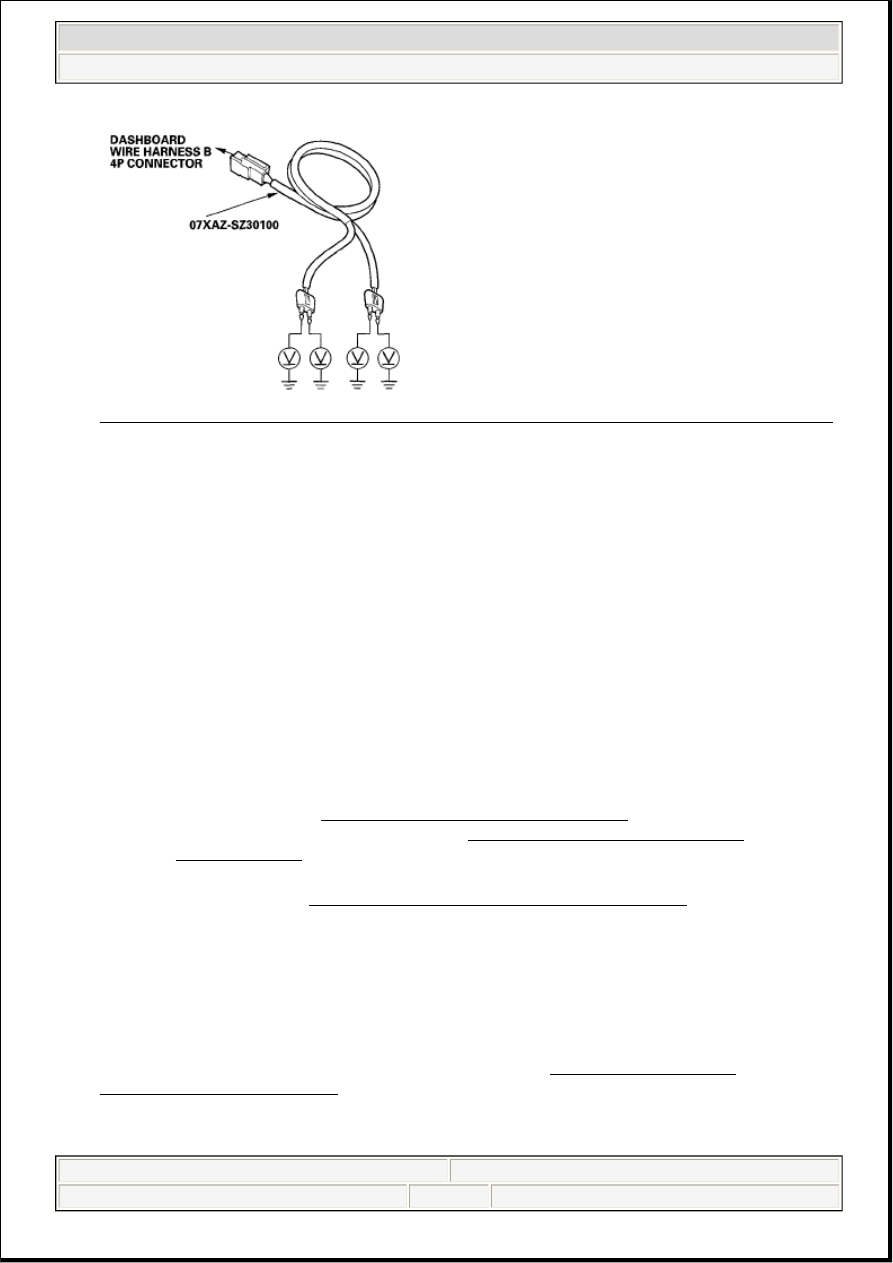

Fig. 82: Measuring Voltage Between Each Terminal Of SRS Simulator Lead And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is the voltage as specified?

YES - Short to power in dashboard wire harness A; replace dashboard wire harness A.

NO - Short to power in dashboard wire harness B; replace dashboard wire harness B.

DTC 11-8X ("X" CAN BE 0 THRU 9 OR A THRU F): SHORT TO POWER IN DRIVER'S AIRBAG
FIRST INFLATOR ('06-08 MODELS); DTC 11-AX ("X" CAN BE 0 THRU 9 OR A THRU F):
SHORT TO POWER IN DRIVER'S AIRBAG SECOND INFLATOR ('06-08 MODELS)

Special Tools Required



SRS inflator simulator 07SAZ-TB4011A



SRS simulator lead F 07XAZ-SZ30100

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and

then goes off.

Does the SRS indicator stay on, and is DTC 11-8x or 11-Ax indicated?

YES - Go to step 3.

NO - Intermittent failure, the system is OK at this time. Go to TROUBLESHOOTING
INTERMITTENT FAILURES . If another DTC is indicated, troubleshoot the DTC.

3. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes.

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).

2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL

Friday, June 05, 2009 2:21:55 PM

Page 72

4. Disconnect the driver's airbag 4P connector (A) from the cable reel.

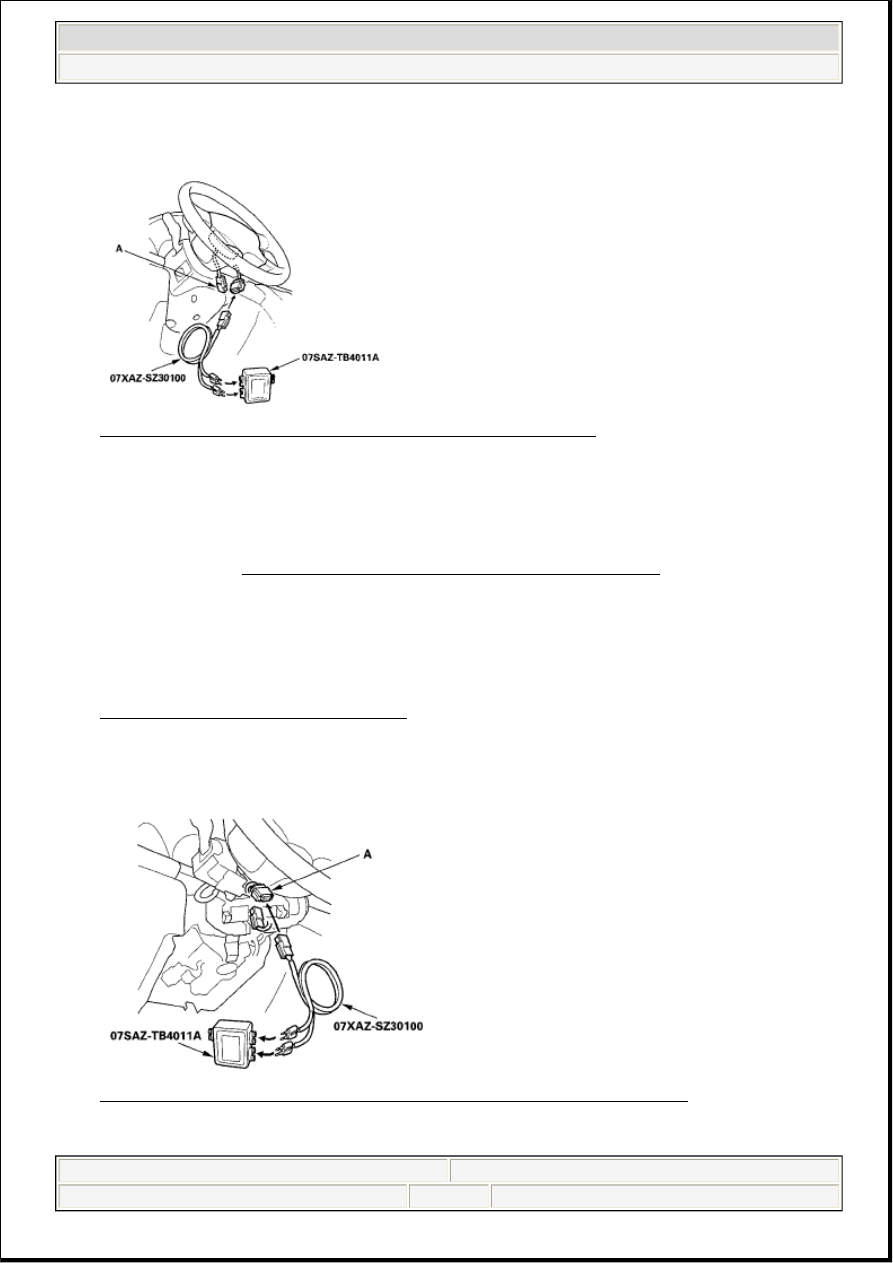

Fig. 83: Identifying Driver's Airbag 4P Connector Of Cable Reel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Connect the SRS inflator simulator (2 ohms connectors) and simulator lead F to the cable reel.

6. Reconnect the negative cable to the battery.

7. Clear the DTC memory.

8. Read the DTC (see GENERAL TROUBLESHOOTING INFORMATION ).

Is DTC 11-8x or 11-Ax indicated?

YES - Go to step 9.

NO - Short to power in the driver's airbag first or second inflator; replace the driver's airbag (see
DRIVER'S AIRBAG REPLACEMENT ).

9. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes.

10. Disconnect the dashboard wire harness A 4P connector (A) from the cable reel.

Fig. 84: Identifying Dashboard Wire Harness A 4P Connector Of Cable Reel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL

Friday, June 05, 2009 2:21:55 PM

Page 73

11. Connect the SRS inflator simulator (2 ohms connectors) and simulator lead F to dashboard wire

harness A.

12. Reconnect the negative cable to the battery.

13. Clear the DTC memory.

14. Read the DTC.

Is DTC 11-8x or 11-Ax indicated?

YES - Go to step 15.

NO - Short to power in the cable reel; replace the cable reel (see CABLE REEL
REPLACEMENT ).

15. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes.

16. Disconnect SRS unit connector A (28P) from the SRS unit (see step 7 ).

17. Disconnect the SRS inflator simulator from the SRS simulator lead.

18. Reconnect the negative cable to the battery.

19. Turn the ignition switch ON (II).

20. Measure the voltage between each terminal of the SRS simulator lead and body ground. There should

be 0.5 V or less.

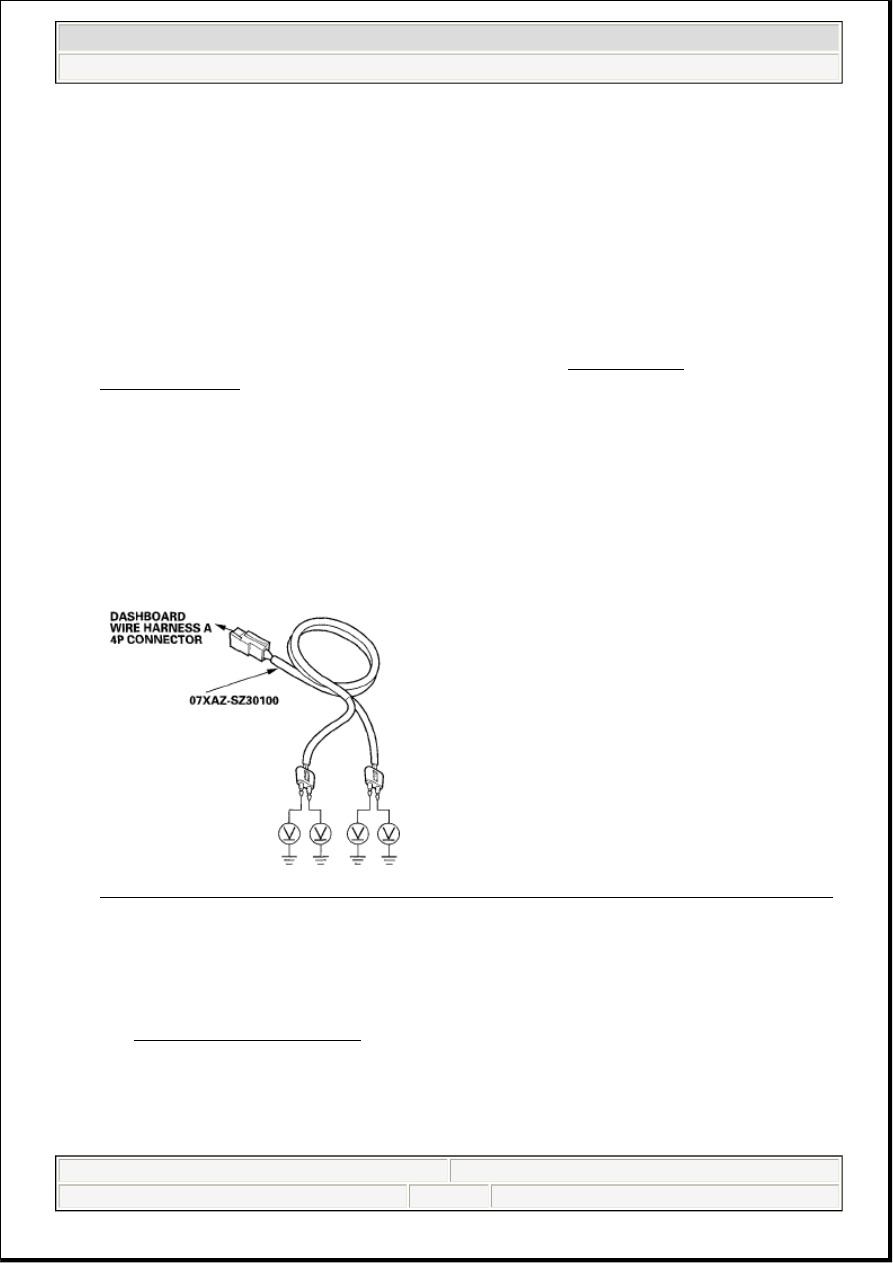

Fig. 85: Measuring Voltage Between Each Terminal Of SRS Simulator Lead And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is the voltage as specified?

YES - Faulty SRS unit or poor connection at SRS unit connector A (28P) and the SRS unit. Check the
connection between the connector and the SRS unit. If the connection is OK, replace the SRS unit
(see SRS UNIT REPLACEMENT ).

NO - Short to power in dashboard wire harness A; replace dashboard wire harness A.

DTC 11-9X ("X" CAN BE 0 THRU 9 OR A THRU F): SHORT TO GROUND IN DRIVER'S
AIRBAG FIRST INFLATOR ('05 MODEL); DTC 11 -BX ("X" CAN BE 0 THRU 9 OR A THRU F):

2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL

Friday, June 05, 2009 2:21:55 PM

Page 74

SHORT TO GROUND IN DRIVER'S AIRBAG SECOND INFLATOR ('05 MODEL)

Special Tools Required



SRS inflator simulator 07SAZ-TB4011A



SRS simulator lead F 07XAZ-SZ30100

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and

then goes off.

Does the SRS indicator stay on, and is DTC 11-9x or 11-Bx indicated?

YES - Go to step 3.

NO - Intermittent failure, the system is OK at this time. Go to TROUBLESHOOTING
INTERMITTENT FAILURES . If another DTC is indicated, troubleshoot the DTC.

3. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes.

4. Disconnect the driver's airbag 4P connector (A) from the cable reel.

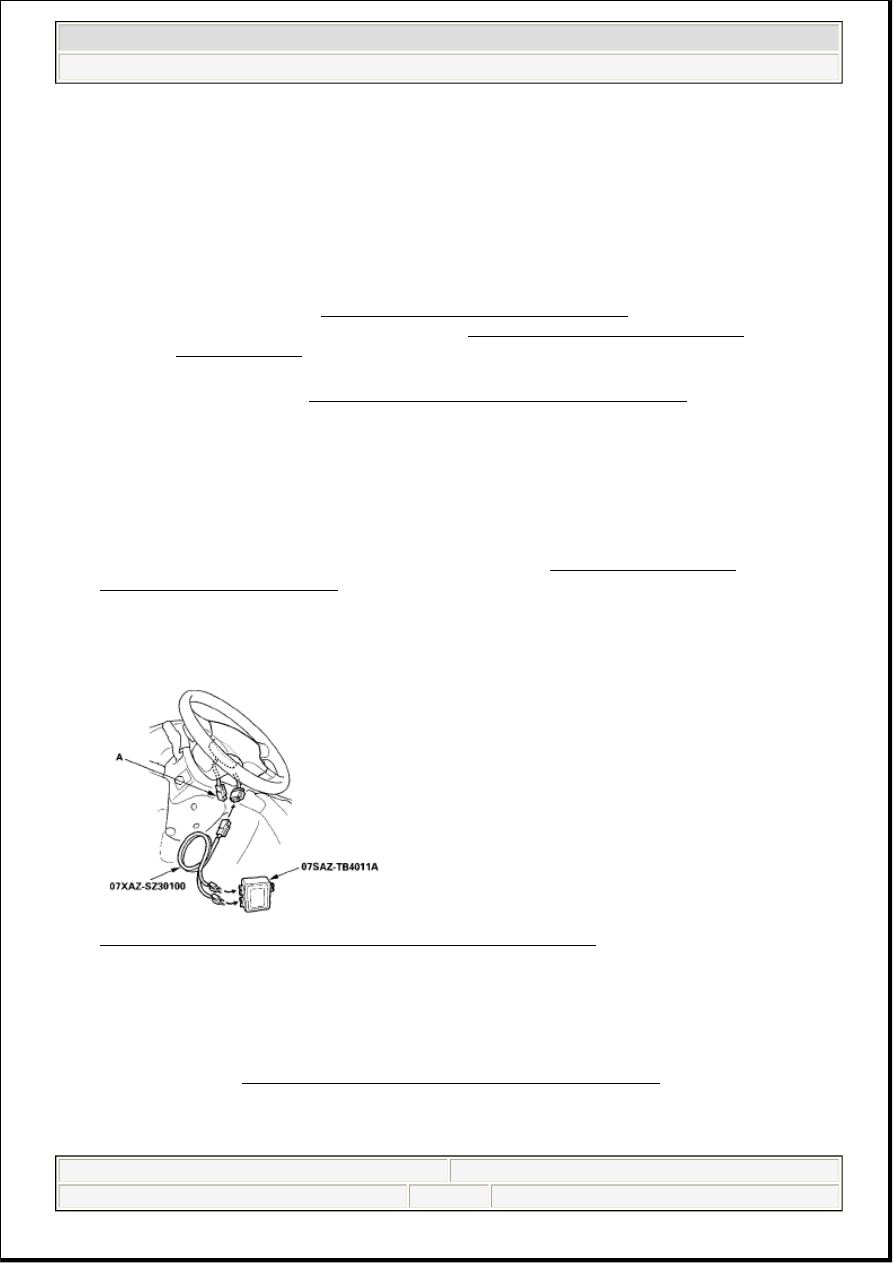

Fig. 86: Identifying Driver's Airbag 4P Connector Of Cable Reel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Connect the SRS inflator simulator (2 ohms connectors) and simulator lead F to the cable reel.

6. Reconnect the negative cable to the battery.

7. Clear the DTC memory.

8. Read the DTC (see GENERAL TROUBLESHOOTING INFORMATION ).

Is DTC 11-9x or 11-Bx indicated?

NOTE:

2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL

Friday, June 05, 2009 2:21:55 PM

Page 75
