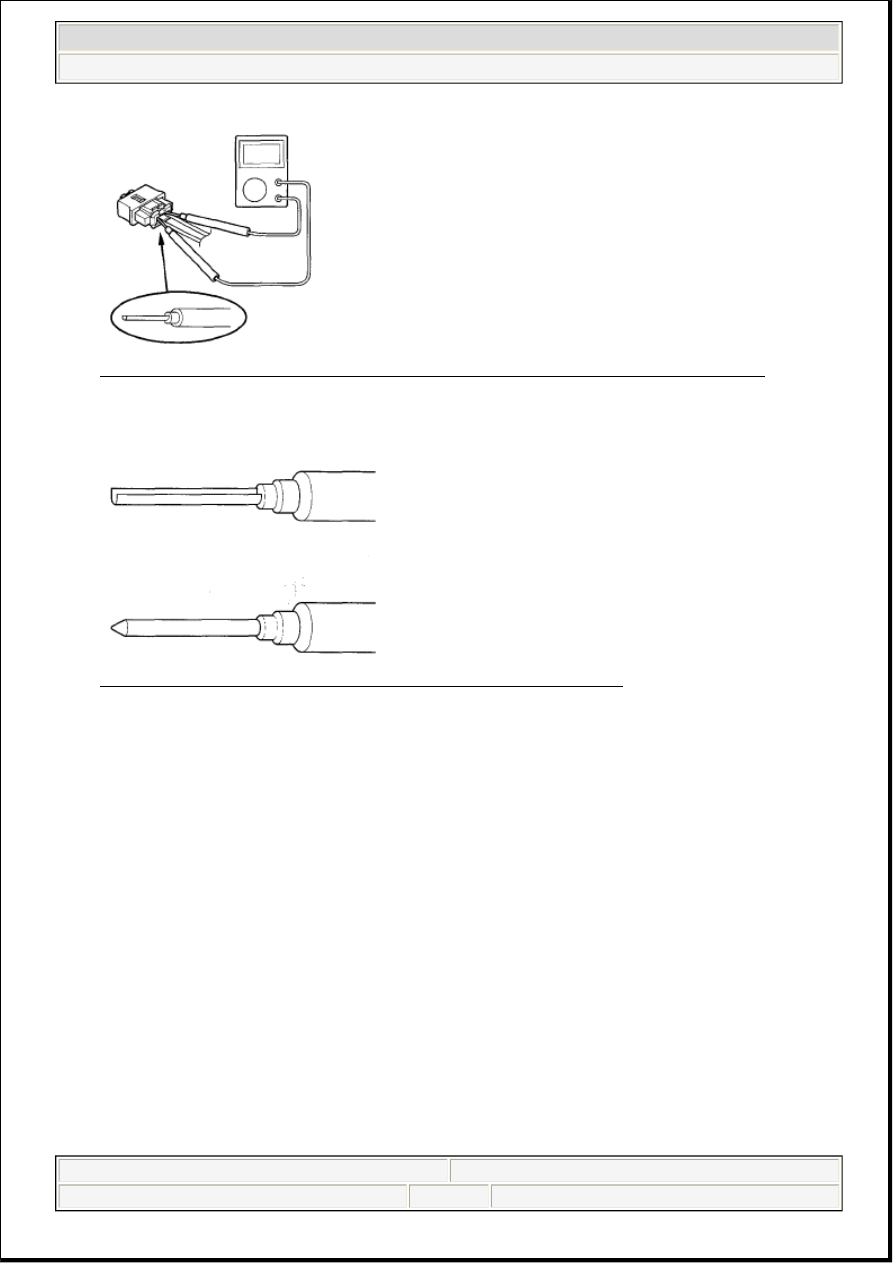

Fig. 13: Precaution For Electrical Inspections - When Using Electrical Test Equipment
Courtesy of AMERICAN HONDA MOTOR CO., INC.



Use a U-shaped probe. Do not insert the probe forcibly.

Fig. 14: Precaution For Electrical Inspections - Use U-Shaped Probe
Courtesy of AMERICAN HONDA MOTOR CO., INC.



Use specified service connectors in troubleshooting. Using improper tools could cause an error in
inspection due to poor metal-to-metal contact.

SPRING-LOADED LOCK CONNECTOR

Some SRS system connectors have a spring-loaded lock.

Front Airbag Connectors

Disconnecting

To release the lock, pull the spring-loaded sleeve (A) toward the stop (B) while holding the opposite half of
the connector. Then pull the connector halves apart. Be sure to pull on the sleeve and not on the connector.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:55 PM

Page 8

© 2005 Mitchell Repair Information Company, LLC.

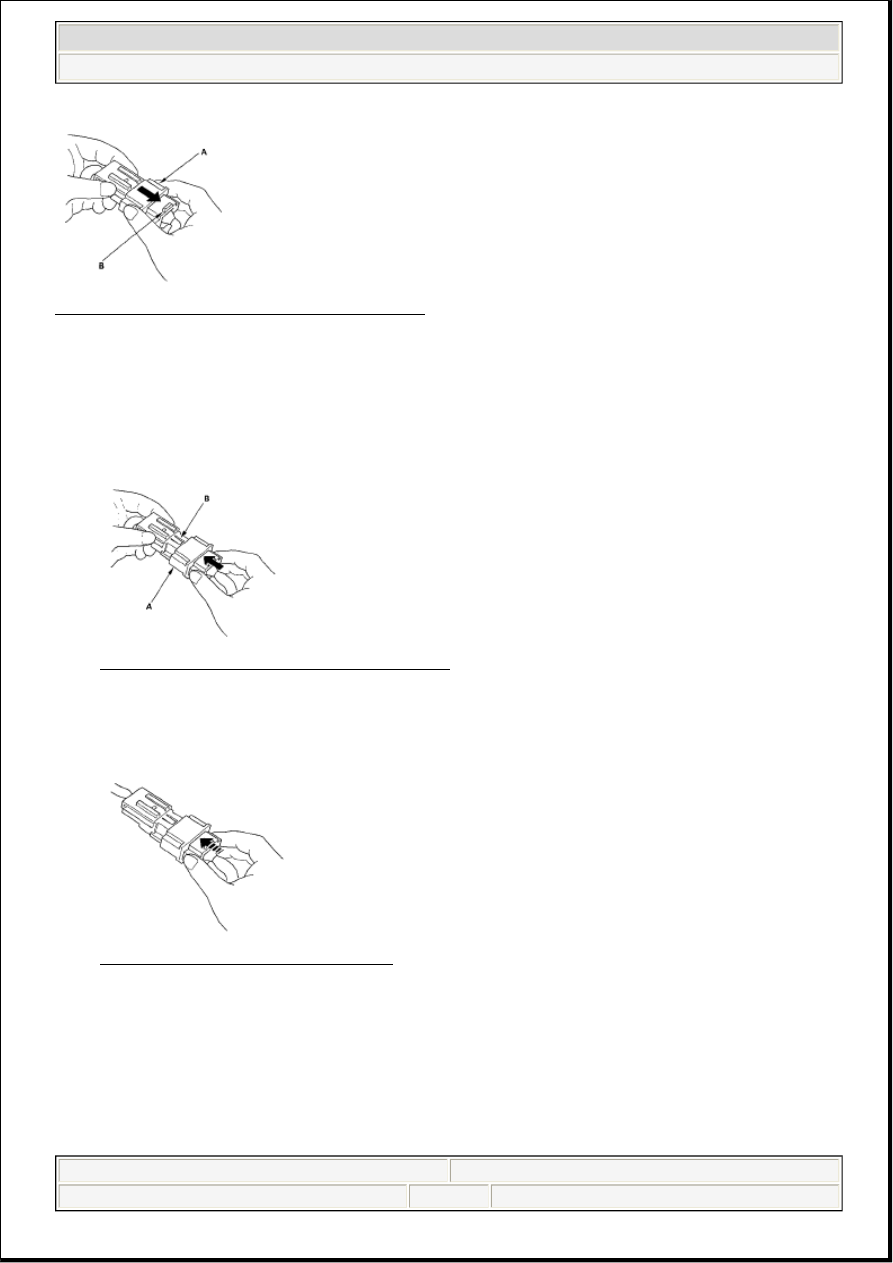

Fig. 15: Disconnecting Front Airbag Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connecting

1. To reconnect, hold the pawl-side connector, and press on the back of the sleeve-side connector in the

direction shown. As the two connector halves are pressed together, the sleeve (A) is pushed back by
the pawl (B). Do not touch the sleeve.

Fig. 16: Connecting Front Airbag Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. When the connector halves are completely connected, the pawl is released, and the spring-loaded

sleeve locks the connector.

Fig. 17: Connecting Connector Halves
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Side Airbag Connector

Disconnecting

To release the lock, pull the spring-loaded sleeve (A) and the slider (B) while holding the opposite half of
the connector. Then pull the connector halves apart. Be sure to pull on the sleeve and not on the connector
half.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:55 PM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

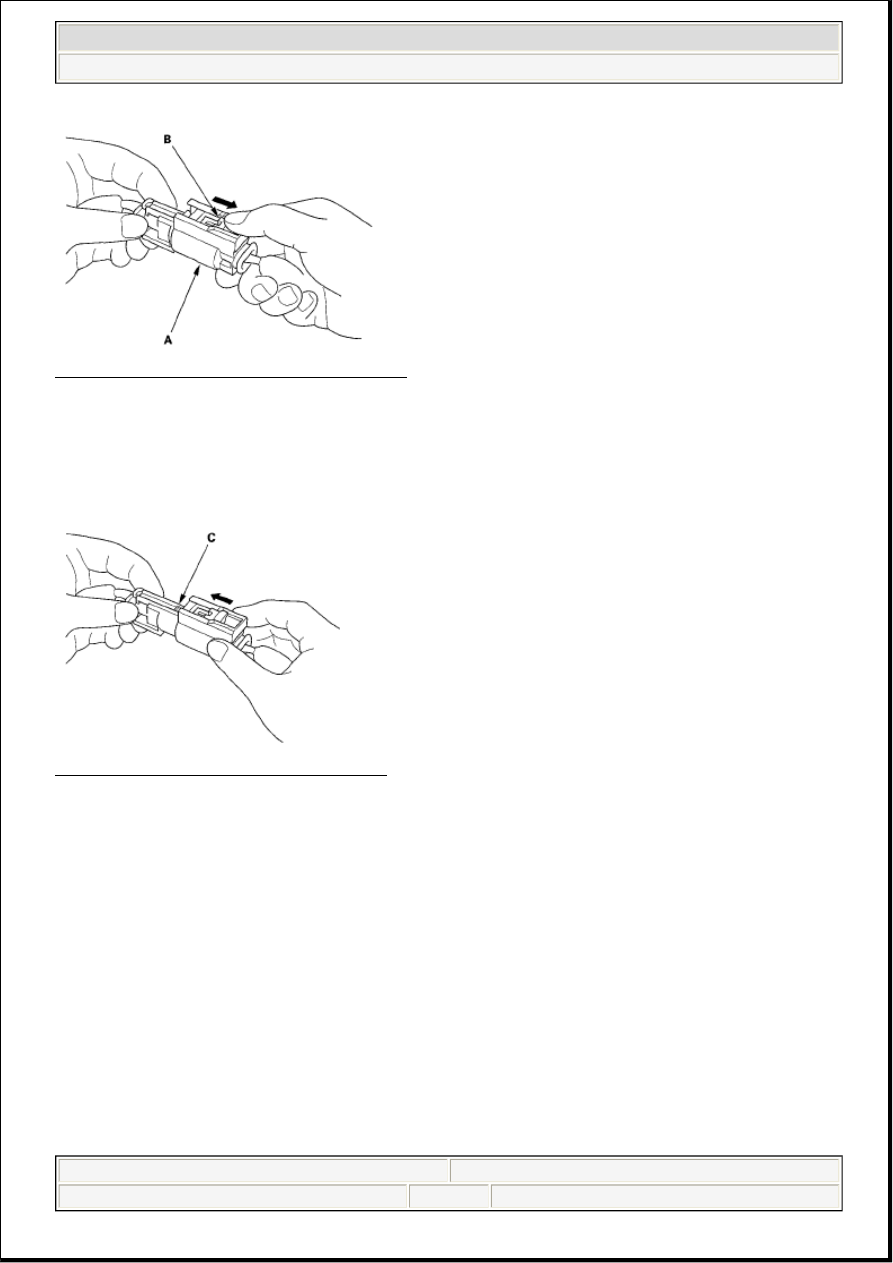

Fig. 18: Disconnecting Side Airbag Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connecting

Hold both connector halves, and press them firmly together until the projection (C) of the sleeve-side
connector clicks.

Fig. 19: Connecting Side Airbag Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

OPENING THE SRS UNIT SHORTING CONNECTORS FOR DIAGNOSIS

Special Tools Required

SRS Short Canceller 070AZ-SAA0100

When SRS unit connectors A or C are disconnected, a short circuit is created in the connector by its own
function to prevent airbag deployment. The circuit may need to be opened when diagnosis is done on the

NOTE:



To prevent damaging of the connector cavity, insert the SRS short
canceller straight into the cavity from the terminal side.



Before installing the short canceller, wash it with electrical contact
cleaner, then dry it with compressed air.



Do not use the short canceller if it is damaged.



Make sure to remove the short canceller before reconnecting.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:55 PM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

circuit. Insert the short canceller (No. 070AZ-SAA0100) in the specified cavities when it is necessary to
keep the circuit open for diagnosis.

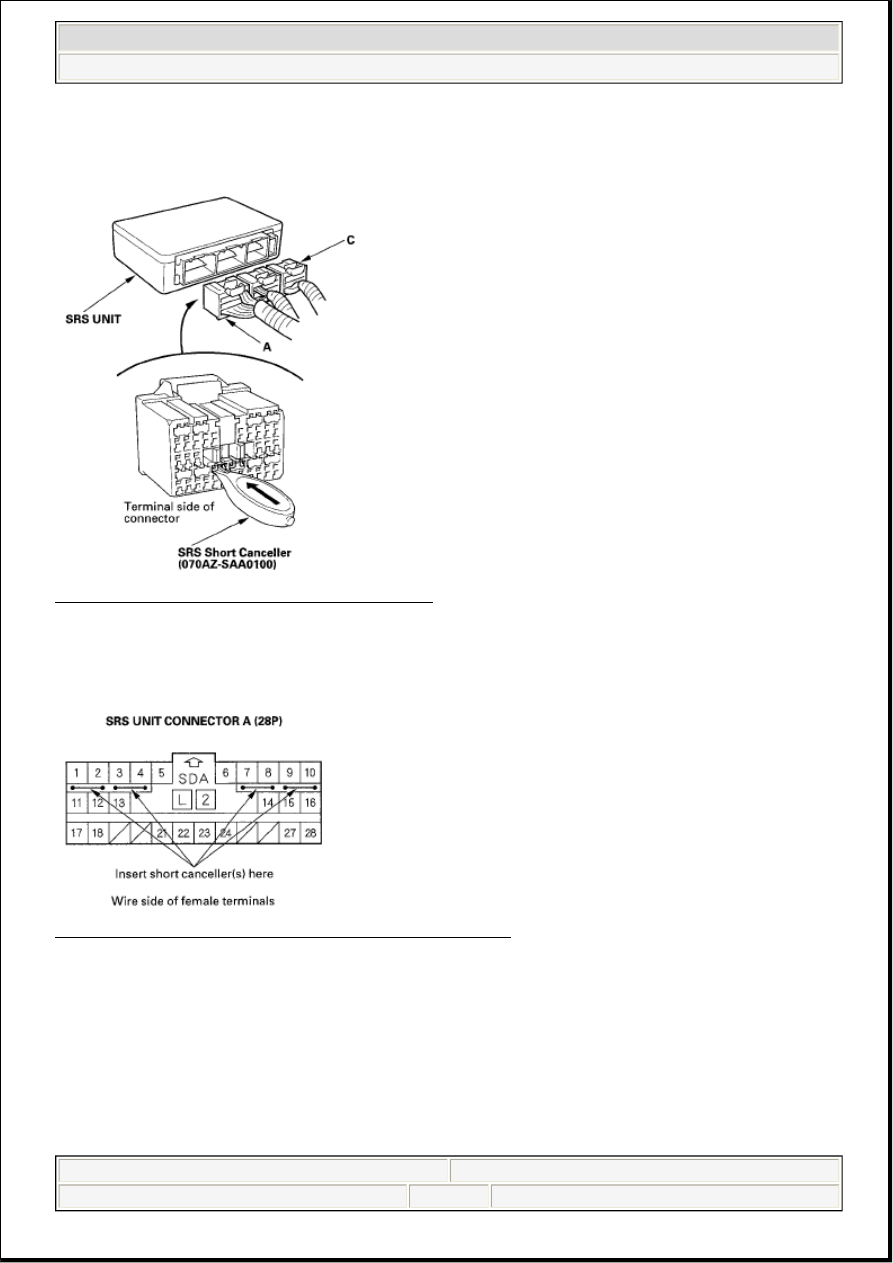

Fig. 20: Identifying SRS Unit Connectors A Or C
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Terminal numbers are shown from the wire side of the female terminals. Insert the short canceller(s) into the
cavities on the terminal side of the connector.

Fig. 21: Identifying SRS Unit Connector A (28P) Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
